2SMES-01

型号:

2SMES-01

描述:

RF MEMS开关[ RF MEMS Switch ]

品牌:

OMRON[ OMRON ELECTRONICS LLC ]

页数:

10 页

PDF大小:

618 K

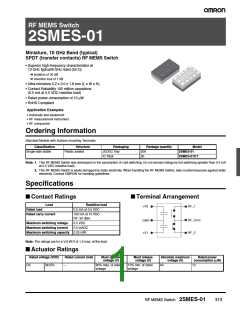

2RFSMEMMS SEwitSch -01
Miniature, 10 GHz Band (typical)
SPDT (transfer contacts) RF MEMS Switch
• Superior high-frequency characteristics at
10 GHz typical/8 GHz rated (50 Ω)
Isolation of 30 dB
Insertion loss of 1 dB
• Ultra-miniature 5.2 x 3.0 x 1.8 mm (L x W x H).
• Contact Reliability 100 million operations
(0.5 mA at 0.5 VDC resistive load)
• Rated power consumption of 10 μW
• RoHS Compliant
Application Examples
Automatic test equipment
RF measurement instrument
RF component
Ordering Information
Standard Models with Surface-mounting Terminals
Classification
Structure
Plastic sealed
Packaging
JEDEC Tray
IC Pack
Package quantity
Model
2SMES-01
2SMES-01CT
Single-side stable
200
50
Note: 1. This RF MEMS Switch was developed on the assumption of cold switching. Do not exceed ratings by hot switching (greater than 0.5 mA
at 0.5 VDC resistive load).
2. This RF MEMS Switch is easily damaged by static electricity. When handling the RF MEMS Switch, take countermeasures against static
electricity. Contact OMRON for handling guidelines.
Specifications
Contact Ratings
Terminal Arrangement
Load
Resistive load
0.5 mA at 0.5 VDC
100 mA at 10 VDC
+V2
RF_1
Rated load
Rated carry current
RF: 30 dBm
0.5 VDC
RF_Com
RF_2
GND
+V1
Maximum switching voltage
Maximum switching current
0.5 mADC
Maximum switching capacity 0.25 mW
Note: The ratings are for a V.S.W.R of 1.2 max. at the load.
Actuator Ratings
Rated voltage (VDC)
Rated current (mA)
Must operate
voltage (V)
Must release
voltage (V)
Absolute maximum
voltage (V)
Rated power
consumption (μW)
DC 34±5%
---
90% max. of rated
voltage
10% min. of rated
voltage
40
10
RF MEMS Switch 2SMES-01
313
High Frequency Characteristics
Item
2 GHz
8 GHz
10 GHz
12 GHz
Isolation
---
30 dB
1 dB
10 dB
---
---
Insertion Loss
Return Loss
---
1 dB (Typ.)
3 dB
---
---
Maximum peak power
Maximum carry power
36 dBm
30 dBm
---
---
---
Note: 1. The impedance of the measurement system is 50 Ω.
2. The above values are initial values.
3. These values are for a V.S.W.R. of 1.2 max. at the load.
Characteristics
Item
Single-side stable model
2SMES-01
Contact resistance
Operating time
Release time
1500 mΩ max.
100 μs max.
100 μs max.
Insulation
resistance
V-GND
100 MΩ (at 40 VDC)
100 MΩ (at 100 VDC)
10 Hz to 500 Hz 10 G
10 Hz to 500 Hz 10 G
100 G
others
Vibration
resistance
Destruction
Malfunction
Destruction
Malfunction
Mechanical
Electrical
Shock
resistance
100 G
Life
expectancy
100,000,000 Operations min.
100,000,000 Operations min.
100 V (Human body model)
ESD
Ambient temperature
Ambient humidity
Weight
Operating: 20°C to 85°C (with no icing or condensation)
Operating: 5% to 85%
Approx. 0.1 g
Note: 1. The above values are initial values.
2. The contact resistance was measured with 10 mA at 1 VDC with a voltage drop method.
314
RF MEMS Switch 2SMES-01
Engineering Data (for reference)
High Frequency Characteristics
Insertion Loss
Isolation
Average value (initial)
Average value (initial)
0
0.0
10
0.5
20
30
40
50
60
70
80
1.0
(dB)
(dB)
1.5
2.0
2.5
3.0
0
3
6
9
12
15
0
3
6
9
12
15
Frequency (GHz)
Frequency (GHz)
Return Loss
Average value (initial)
0
10
20
(dB)
30
40
50
0
3
6
9
12
15
Frequency (GHz)
Note: 1. Ambient temperature condition: 23°C
2. These high-frequency characteristics are measured with RF probe (without a mounting board).
3. The high-frequency characteristics depend on the mounting board. Be sure to check operation including durability in actual equipment
before use.
RF MEMS Switch 2SMES-01
315
Electrical Endurance (Contact Resistance Shift)
1000
0.5 mA at 0.5 mVDC, Hot switch
800
600
400
200
0
200
400
600
800
1000
N = 125 Samples (250 contacts)
0
10
20
30
40
50
60
70
80
90
100
Operating cycles (x 106 operations)
Electrical Endurance (Pickup Voltage/Release Voltage)
35
Must Operate Voltage (30.6 V = 90%)
30
25
20
15
Operate Voltage (Ave):
10
N = 125 Samples (250 contacts)
Release Voltage (Ave):
5
0
Must Release Voltage (3.4 V = 10%)
0
10
20
30
40
50
60
70
80
90
100
Operating cycles (Million operations)
Ambient Temperature vs. Pickup voltage/Release Voltage
34
32
30
Pickup Voltage
Release Voltage
28
26
24
22
20
18
16
N = 8 Samples
80 90 100
30 20 10
0
10
20
30
40
50
60
70
Ambient Temperature (°C)
316
RF MEMS Switch 2SMES-01
Recommended Soldering Method
The thickness of the solder paste is to be applied between 150 and
200 μm and the land pattern should be based on OMRON's recom-
mended PCB pattern.
To maintain the correct soldering joint shown in the following dia-
gram, we recommend applying solder with the soldering conditions
shown on the left.
T4
T3
Check the soldering in the actual mounting conditions before use.
T2
T1
When washing the product after soldering the RF MEMS Switch to
a print circuit board, use a water-based solvent or alcohol-based
solvent and keep the solvent temperature to less than 40°C.
Do not put the RF MEMS Switch in a cold cleaning bath immedi-
ately after soldering.
t1
t2
Preheating
Soldering
Time (s)
Preheating (T1 to T2, t1)
150°C to 180°C
Measuring position/Item
Terminal
Soldering (T3, t2)
230°C min.
Peak value (T4)
250°C max.
120 s max.
30 s max.
Upper surface of case
---
---
255°C max.
Example of Drive Circuit for RF MEMS Switch
+Vcc
INPUT 1
Vcont_1
RF_1
R
RF_com
RF_2
R
INPUT 2
DRIVER IC
Vcont_2
2SMES-01
Note: 1. Operate the driving voltage with the high-side switch (Vcont_1 & Vcont_2, not ground).
2. It is necessary to discharge the charge that accumulates in the electrostatic actuator to turn off the RF MEMS Switch because this product
is a MEMS Switch of an electrostatic drive type. Install the electrical discharge circuit in the drive circuit of the RF MEMS Switch with a
resistance of 1 MΩ or less. Without an electrical discharge circuit, the RF MEMS Switch might not turn off, and the contacts could stick.
For Reference Only
High frequency characteristics - method and substrate for measurement
Agilent N5230
Vector Network
Analyzer
2SMES-01
Note: Substrate: t = 1.6 mm Rogers 4350B (Dielectric constant at 10 GHz: 3.48)
RF MEMS Switch 2SMES-01
317
Dimensions
Note: All units are in millimeters unless otherwise indicated.
2SMES-01
Mounting PAD Dimensions
12-Terminal Land Grid Array (LGA)
(Top View)
0.7
0.7
3.6
2.65
0.1
5.2
1.35
0.45
No.11
No.7
0.7
0.1
3
0.6
1.6
0.6
0.45
0.45
1 pin mark
1.4
0.7
0.15
1.85
0.45
No.1
No.5
1
2.2
1.1
2.3
No.1
No.5
0.4
0.6
0.5
0.4
No. Pin Arrangement
1
2
3
4
5
6
7
8
9
GND
GND
RF_com
GND
GND
RF_2
GND
Vcont_2
GND
0.4
1.7
1.5
0.6
0.5
1.45
2.55
3.7
No.11
No.7
4.9
10 Vcont_1
11 GND
12 RF_1
Terminal Arrangement
+V2
RF_1
RF_Com
RF_2
GND
+V1
Evaluation Board Model: 2SMES-01-EVBA
6
48
13
3.5
3.5
3.5
3.5
12.5
2.54
25
25
20
2.54
12.5
3.5
3.5
20
12.5
11.5
23
67
Pattern for RF correction (open)
Device mounting area
Pattern for RF correction (thru)
318
RF MEMS Switch 2SMES-01
Ground Plane Connections
In case of Microstrip Line
In case of Coplanar Waveguide
Via to internal RF
ground plane
#7
#11
#11
#7
Via to Internal RF ground plane
#5
#5
#1
#1
Surface RF ground plane
Connect ALL RF ground pads to the
surface RF ground plane directly.
Connect EACH RF ground pad to the
internal RF ground plane through the
via placed to the RF ground pad.
*RF Ground Pad is designated as
Safety Precautions
Precautions for Correct Use
Turn off power when doing the exchange and the wiring work of the
RF MEMS Switch.
Long-term, Continuous ON Contacts
Using the RF MEMS Switch in a circuit where the RF MEMS Switch
will be ON continuously for long periods (more than 24 hours)
(rather than switching) can lead to unstable contacts. If a single-
side stable model must be used in this kind of circuit, we recom-
mend adding fail-safe circuits in case the contact fails.
Do not touch the terminal of the RF MEMS Switch when energized.
RF MEMS Switch Handling
Use the RF MEMS Switch as soon as possible after opening the
moisture-proof package (within one week). If the RF MEMS Switch
is left for a long time after opening the moisture-proof package, the
appearance may suffer and seal failure may occur after the solder
mounting process. To store the RF MEMS Switch after opening the
moisture-proof package, place it into the original package and seal
the package with adhesive tape.
Claw Securing Force During Automatic
Mounting
During automatic insertion of RF MEMS Switches, be sure to set
the securing force of each claw to the following so that the RF
MEMS Switch's characteristics will be maintained.
When washing the product after soldering the RF MEMS Switch to
a print circuit board, use a water-based solvent or alcohol-based
solvent and keep the solvent temperature to less than 40°C. Do not
put the RF MEMS Switch in a cold cleaning bath immediately after
soldering.
Direction C: 2.0 N max.
Do not use an Ultrasonic wash.
This RF MEMS Switch is easily damaged by static electricity. When
handling the RF MEMS Switch, take countermeasure against static
electricity (100 V or less). Contact OMRON for additional guide-
lines.
When handling the RF MEMS Switch, do not drop.
Do not apply force resulting in the product to transform and change
in quality.
Environmental Conditions for Usage,
Storage, and Transport
Avoid direct sunlight when using, storing, or transporting the RF
MEMS Switch and maintain normal temperature, humidity, and
pressure conditions.
Avoid caustic gases when using, storing, or transporting the RF
MEMS Switch.
Coating
Do not coat the RF MEMS Switch when it is mounted to the print
circuit board. Do not wash the print circuit board after the RF
MEMS Switch is mounted using detergent containing silicone. Oth-
erwise, the detergent may remain on the surface of the RF MEMS
Switch.
RF MEMS Switch 2SMES-01
319
MEMO
320
RF MEMS Switch 2SMES-01
(b) Use in consumer Products or any use in significant quantities.
(c) Energy control systems, combustion systems, railroad systems, aviation systems,
medical equipment, amusement machines, vehicles, safety equipment, and
installations subject to separate industry or government regulations.
(d) Systems, machines, and equipment that could present a risk to life or property.
3. Prohibited Use: NEVER USE THE PRODUCT FOR AN APPLICATION INVOLVING
SERIOUS RISK TO LIFE OR PROPERTY WITHOUT ENSURING THAT THE SYSTEM
AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE
PRODUCT IS PROPERLY RATED AND INSTALLED FOR THE INTENDED USE
WITHIN THE OVERALL EQUIPMENT OR SYSTEM.
4. Motorized Vehicle Application: USE OF ANY PRODUCT/S FOR A MOTORIZED
VEHICLE APPLICATION MUST BE EXPRESSLY STATED IN THE SPECIFICATION BY
SELLER.
5. Programmable Products: Seller shall not be responsible for the Buyer's programming of
a programmable Product.
Omron Electronic Components, LLC
Terms and Conditions of Sales
I. GENERAL
1. Definitions: The words used herein are defined as follows.
(a) Terms:
(b) Seller:
(c) Buyer:
These terms and conditions
Omron Electronic Components LLC and its subsidiaries
The buyer of Products, including any end user in section III through VI
(d) Products: Products and/or services of Seller
(e) Including: Including without limitation
2. Offer; Acceptance: These Terms are deemed part of all quotations, acknowledgments,
invoices, purchase orders and other documents, whether electronic or in writing, relating
to the sale of Products by Seller. Seller hereby objects to any Terms proposed in Buyer's
purchase order or other documents which are inconsistent with, or in addition to, these
Terms.
3. Distributor: Any distributor shall inform its customer of the contents after and including
section III of these Terms.
IV. WARRANTY AND LIMITATION
1. Warranty: Seller's exclusive warranty is that the Products will be free from defects in
materials and workmanship for a period of twelve months from the date of sale by Seller
(or such other period expressed in writing by Seller). SELLER MAKES NO WARRANTY
OR REPRESENTATION, EXPRESS OR IMPLIED, ABOUT ALL OTHER WARRANTIES,
NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE OF THE PRODUCTS.
2. Buyer Remedy: Seller's sole obligation hereunder shall be to replace (in the form
originally shipped with Buyer responsible for labor charges for removal or replacement
thereof) the non-complying Product or, at Seller's election, to repay or credit Buyer an
amount equal to the purchase price of the Product; provided that there shall be no
liability for Seller or its affiliates unless Seller's analysis confirms that the Products were
correctly handled, stored, installed and maintained and not subject to contamination,
abuse, misuse or inappropriate modification. Return of any Products by Buyer must be
approved in writing by Seller before shipment.
3. Limitation on Liability: SELLER AND ITS AFFILIATES SHALL NOT BE LIABLE FOR
SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF
PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY CONNECTED
WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED IN CONTRACT,
WARRANTY, NEGLIGENCE OR STRICT LIABILITY. FURTHER, IN NO EVENT SHALL
LIABILITY OF SELLER OR ITS AFFILITATES EXCEED THE INDIVIDUAL PRICE OF
THE PRODUCT ON WHICH LIABILITY IS ASSERTED.
4. Indemnities: Buyer shall indemnify and hold harmless Seller, its affiliates and its
employees from and against all liabilities, losses, claims, costs and expenses (including
attorney's fees and expenses) related to any claim, investigation, litigation or proceeding
(whether or not Seller is a party) which arises or is alleged to arise from Buyer's acts or
omissions under these Terms or in any way with respect to the Products.
II. SALES
1. Prices; Payment: All prices stated are current, subject to change without notice by Seller.
Buyer agrees to pay the price in effect at the time the purchase order is accepted by
Seller. Payments for Products received are due net 30 days unless otherwise stated in
the invoice. Buyer shall have no right to set off any amounts against the amount owing in
respect of this invoice.
2. Discounts: Cash discounts, if any, will apply only on the net amount of invoices sent to
Buyer after deducting transportation charges, taxes and duties, and will be allowed only
if (a) the invoice is paid according to Seller's payment terms and (b) Buyer has no past
due amounts owing to Seller.
3. Interest: Seller, at its option, may charge Buyer 1.5% interest per month or the maximum
legal rate, whichever is less, on any balance not paid within the stated terms.
4. Orders: Seller will accept no order less than 200 U.S. dollars net billing.
5. Currencies: If the prices quoted herein are in a currency other than U.S. dollars, Buyer
shall make remittance to Seller at the then current exchange rate most favorable to
Seller; provided that if remittance is not made when due, Buyer will convert the amount
to U.S. dollars at the then current exchange rate most favorable to Seller available
during the period between the due date and the date remittance is actually made.
6. Governmental Approvals: Buyer shall be responsible for all costs involved in obtaining
any government approvals regarding the importation or sale of the Products.
7. Taxes: All taxes, duties and other governmental charges (other than general real
property and income taxes), including any interest or penalties thereon, imposed directly
or indirectly on Seller or required to be collected directly or indirectly by Seller for the
manufacture, production, sale, delivery, importation, consumption or use of the Products
sold hereunder (including customs duties and sales, excise, use, turnover and license
taxes) shall be charged to and remitted by Buyer to Seller.
V. INFORMATION; ETC.
1. Intellectual Property: The intellectual property embodied in the Products is the exclusive
property of Seller and its affiliates and Buyer shall not attempt to duplicate it in any way
without the written permission of Seller. Buyer (at its own expense) shall indemnify and
hold harmless Seller and defend or settle any action brought against Seller to the extent
that it is based on a claim that any Product made to Buyer specifications infringed
intellectual property rights of another party.
2. Property; Confidentiality: Notwithstanding any charges to Buyer for engineering or
tooling, all engineering and tooling shall remain the exclusive property of Seller. All
information and materials supplied by Seller to Buyer relating to the Products are
confidential and proprietary, and Buyer shall limit distribution thereof to its trusted
employees and strictly prevent disclosure to any third party.
3. Performance Data: Performance data is provided as a guide in determining suitability
and does not constitute a warranty. It may represent the result of Seller's test conditions,
and the users must correlate it to actual application requirements.
4. Change In Specifications: Product specifications and descriptions may be changed at
any time based on improvements or other reasons. It is Seller’s practice to change part
numbers when published ratings or features are changed, or when significant
engineering changes are made. However, some specifications of the Product may be
changed without any notice.
8. Financial: If the financial position of Buyer at any time becomes unsatisfactory to Seller,
Seller reserves the right to stop shipments or require satisfactory security or payment in
advance. If Buyer fails to make payment or otherwise comply with these Terms or any
related agreement, Seller may (without liability and in addition to other remedies) cancel
any unshipped portion of Products sold hereunder and stop any Products in transit until
Buyer pays all amounts, including amounts payable hereunder, whether or not then due,
which are owing to it by Buyer. Buyer shall in any event remain liable for all unpaid
accounts.
9. Cancellation; Etc: Orders are not subject to rescheduling or cancellation unless Buyer
indemnifies Seller fully against all costs or expenses arising in connection therewith.
10. Force Majeure: Seller shall not be liable for any delay or failure in delivery resulting from
causes beyond its control, including earthquakes, fires, floods, strikes or other labor
disputes, shortage of labor or materials, accidents to machinery, acts of sabotage, riots,
delay in or lack of transportation or the requirements of any government authority.
11. Shipping; Delivery: Unless otherwise expressly agreed in writing by Seller:
(a) All sales and shipments of Products shall be FOB shipping point (unless otherwise
stated in writing by Seller), at which point title to and all risk of loss of the Products
shall pass from Seller to Buyer, provided that Seller shall retain a security interest in
the Products until the full purchase price is paid by Buyer;
5. Errors And Omissions: The information on Seller’s website or in other documentation
has been carefully checked and is believed to be accurate; however, no responsibility is
assumed for clerical, typographical or proofreading errors or omissions.
6. Export Controls: Buyer shall comply with all applicable laws, regulations and licenses
regarding (a) export of the Products or information provided by Seller; (b) sale of
Products to forbidden or other proscribed persons or organizations; (c) disclosure to non-
citizens of regulated technology or information.
(b) Delivery and shipping dates are estimates only; and
(c) Seller will package Products as it deems proper for protection against normal
handling and extra charges apply to special conditions.
12. Claims: Any claim by Buyer against Seller for shortage or damage to the Products
occurring before delivery to the carrier or any claim related to pricing or other charges
must be presented in detail in writing to Seller within 30 days of receipt of shipment.
III. PRECAUTIONS
VI. MISCELLANEOUS
1. Suitability: IT IS THE BUYER’S SOLE RESPOINSIBILITY TO ENSURE THAT ANY
OMRON PRODUCT IS FIT AND SUFFICIENT FOR USE IN A MOTORIZED VEHICLE
APPLICATION. BUYER SHALL BE SOLELY RESPONSIBLE FOR DETERMINING
APPROPRIATENESS OF THE PARTICULAR PRODUCT WITH RESPECT TO THE
BUYER’S APPLICATION INCLUDING (A) ELECTRICAL OR ELECTRONIC
COMPONENTS, (B) CIRCUITS, (C) SYSTEM ASSEMBLIES, (D) END PRODUCT, (E)
SYSTEM, (F) MATERIALS OR SUBSTANCES OR (G) OPERATING ENVIRONMENT.
Buyer acknowledges that it alone has determined that the Products will meet their
requirements of the intended use in all cases. Buyer must know and observe all
prohibitions of use applicable to the Product/s.
1. Waiver: No failure or delay by Seller in exercising any right and no course of dealing
between Buyer and Seller shall operate as a waiver of rights by Seller.
2. Assignment: Buyer may not assign its rights hereunder without Seller's written consent.
3. Law: These Terms are governed by Illinois law (without regard to conflict of laws).
Federal and state courts in Cook County, Illinois have exclusive jurisdiction for any
dispute hereunder.
4. Amendment: These Terms constitute the entire agreement between Buyer and Seller
relating to the Products, and no provision may be changed or waived unless in writing
signed by the parties.
5. Severability: If any provision hereof is rendered ineffective or invalid, such provision shall
not invalidate any other provision.
2. Use with Attention: The followings are some examples of applications for which
particular attention must be given. This is not intended to be an exhaustive list of all
possible use of any Product, nor to imply that any use listed may be suitable for any
Product:
(a) Outdoor use, use involving potential chemical contamination or electrical
interference.
RF MEMS Switch 2SMES-01
Certain Precautions on Specifications and Use
1. Suitability for Use. Seller shall not be responsible for conformity with any stan- 2. Programmable Products. Seller shall not be responsible for the user's pro-
dards, codes or regulations which apply to the combination of the Product in
gramming of a programmable product, or any consequence thereof.
Buyer's application or use of the Product. At Buyer's request, Seller will pro- 3. Performance Data. Performance data given in this publication is provided as
vide applicable third party certification documents identifying ratings and limi-
tations of use which apply to the Product. This information by itself is not
sufficient for a complete determination of the suitability of the Product in com-
bination with the end product, machine, system, or other application or use.
a guide for the user in determining suitability and does not constitute a war-
ranty. It may represent the result of Seller's test conditions, and the users must
correlate it to actual application requirements. Actual performance is subject to
Seller's Warranty and Limitations of Liability.
Buyer shall be solely responsible for determining appropriateness of the par- 4. Change in Specifications. Product specifications and accessories may be
ticular Product with respect to Buyer's application, product or system. Buyer
shall take application responsibility in all cases but the following is a non-
exhaustive list of applications for which particular attention must be given:
(i) Outdoor use, uses involving potential chemical contamination or electrical
interference, or conditions or uses not described in this document.
(ii) Energy control systems, combustion systems, railroad systems, aviation
systems, medical equipment, amusement machines, vehicles, safety
equipment, and installations subject to separate industry or government
regulations.
(iii) Use in consumer products or any use in significant quantities.
(iv) Systems, machines and equipment that could present a risk to life or
property. Please know and observe all prohibitions of use applicable to this
product.
changed at any time based on improvements and other reasons. It is our prac-
tice to change part numbers when published ratings or features are changed,
or when significant construction changes are made. However, some specifica-
tions of the Product may be changed without any notice. When in doubt, spe-
cial part numbers may be assigned to fix or establish key specifications for
your application. Please consult with your Seller representative at any time to
confirm actual specifications of purchased Product.
5. Errors and Omissions. The information in this publication has been carefully
checked and is believed to be accurate; however, no responsibility is assumed
for clerical, typographical or proofreading errors, or omissions.
6. RoHS Compliance. Where indicated, our products currently comply, to the
best of our knowledge as of the date of this publication, with the requirements
of the European Union's Directive on the Restriction of certain Hazardous
Substances ("RoHS"), although the requirements of RoHS do not take effect
until July 2006. These requirements may be subject to change. Please consult
our website for current information.
NEVER USE THE PRODUCT FOR AN APPLICATION INVOLVING SERIOUS
RISK TO LIFE OR PROPERTY WITHOUT ENSURING THAT THE SYSTEM
AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT
THE OMRON PRODUCT IS PROPERLY RATED AND INSTALLED FOR THE
INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.
Complete “Terms and Conditions of Sale” for product purchase and use are on Omron’s website
at http://www.components.omron.com – under the “About Us” tab, in the Legal Matters section.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
OMRON ON-LINE
Global - http://www.omron.com
USA - http://www.components.omron.com
OMRON ELECTRONIC
COMPONENTS LLC
55 E. Commerce Drive, Suite B
Schaumburg, IL 60173
847-882-2288
08/09
Specifications subject to change without notice
Printed in USA
Cat. No. X302-E-1
RF MEMS Switch 2SMES-01
厂商 型号 描述 页数 下载

Carling Technologies

2SM-MSP1-P1-M6GET/R [ Toggle Switch, SPDT, Latched, 3A, 28VDC, Solder Terminal, Plastic, Anti-static Actuator, Surface Mount-right Angle ] 7 页

Carling Technologies

2SM-MSP1-P1-M6RET/R [ Toggle Switch, SPDT, Latched, 0.02A, 20VDC, Solder Terminal, Plastic, Anti-static Actuator, Surface Mount-right Angle ] 7 页

Carling Technologies

2SM-MSP1-P1-M7GE [ Toggle Switch, SPDT, Latched, 3A, 28VDC, Solder Terminal, Plastic, Anti-static Actuator, Surface Mount-right Angle ] 7 页

Carling Technologies

2SM-MSP1-P1-M7GET/R [ Toggle Switch, SPDT, Latched, 3A, 28VDC, Solder Terminal, Plastic, Anti-static Actuator, Surface Mount-right Angle ] 7 页

Carling Technologies

2SM-MSP1-P1-S6GE [ Toggle Switch, SPDT, Latched, 3A, 28VDC, Solder Terminal, Plastic, Anti-static Actuator, Surface Mount-right Angle ] 7 页

Carling Technologies

2SM-MSP1-P1-S6GET/R [ Toggle Switch, SPDT, Latched, 3A, 28VDC, Solder Terminal, Plastic, Anti-static Actuator, Surface Mount-right Angle ] 7 页

Carling Technologies

2SM-MSP1-P2-M6GE [ Toggle Switch, SPDT, Latched, 3A, 28VDC, Solder Terminal, Plastic, Anti-static Actuator, Surface Mount-right Angle ] 7 页

Carling Technologies

2SM-MSP1-P2-M6GET/R [ Toggle Switch, SPDT, Latched, 3A, 28VDC, Solder Terminal, Plastic, Anti-static Actuator, Surface Mount-right Angle ] 7 页

Carling Technologies

2SM-MSP1-P2-M6RE [ Toggle Switch, SPDT, Latched, 0.02A, 20VDC, Solder Terminal, Plastic, Anti-static Actuator, Surface Mount-right Angle ] 7 页

Carling Technologies

2SM-MSP1-P2-M6RET/R [ Toggle Switch, SPDT, Latched, 0.02A, 20VDC, Solder Terminal, Plastic, Anti-static Actuator, Surface Mount-right Angle ] 7 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.215334s
