1SS511WS

型号:

1SS511WS

描述:

开关二极管[ SWITCHING DIODE ]

品牌:

SEMTECH[ SEMTECH CORPORATION ]

页数:

3 页

PDF大小:

298 K

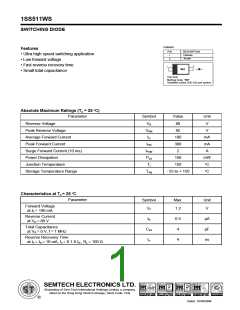

1SS511WS
SWITCHING DIODE
PINNING
Features
DESCRIPTION
Cathode
PIN
1
• Ultra high speed switching application
• Low forward voltage
Anode
2
• Fast reverse recovery time
• Small total capacitance
2
1
W2
Top View
Marking Code: "W2"
Simplified outline SOD-323 and symbol
O
Absolute Maximum Ratings (Ta = 25 C)
Parameter
Symbol
Value
Unit
Reverse Voltage
VR
VRM
IO
80
V
V
Peak Reverse Voltage
Average Forward Current
Peak Forward Current
Surge Forward Current (10 ms)
Power Dissipation
85
100
mA
mA
A
IFM
IFSM
Ptot
Tj
300
2
150
mW
O
C
Junction Temperature
Storage Temperature Range
150
O
C
Tstg
- 55 to + 150
O
Characteristics at Ta = 25 C
Parameter
Symbol
VF
Max.
1.2
Unit
V
Forward Voltage
at IF = 100 mA
Reverse Current
at VR = 80 V
IR
Ctot
trr
0.5
4
µA
pF
ns
Total Capacitance
at VR = 0 V, f = 1 MHz
Reverse Recovery Time
at IF = IR = 10 mA, Irr = 0.1 X IR , RL = 100
4
SEMTECH ELECTRONICS LTD.
(Subsidiary of Sino-Tech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
®
Dated : 07/04/2009
1SS511WS
SEMTECH ELECTRONICS LTD.
(Subsidiary of Sino-Tech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
®
Dated : 07/04/2009
1SS511WS
PACKAGE OUTLINE
Plastic surface mounted package; 2 leads
SOD-323
A
c
HE
A
D
E
bp
UNIT
mm
A
bp
C
D
E
HE
1.10
0.80
2.80
2.30
0.40
0.25
1.35
1.15
0.15
0.00
1.80
1.60
SEMTECH ELECTRONICS LTD.
(Subsidiary of Sino-Tech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
®
Dated : 07/04/2009
