1SS422

型号:

1SS422

描述:

Hiiigh速度SWIIITCHIIING Diiiodes[ Hiiigh Speed SWIIITCHIIING Diiiodes ]

品牌:

PACELEADER[ PACELEADER INDUSTRIAL ]

页数:

3 页

PDF大小:

246 K

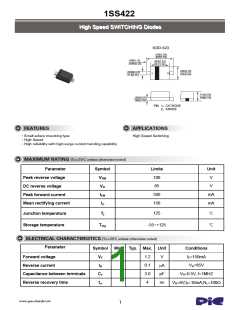

1SS422
High Speed SWITCHING Diodes
High Speed SWITCHING Diodes
SOD-523
.059(1.50)
.067(1.70)
.006(0.15)
.043(1.10)
.051(1.30)
.0098(0.25)
.028(0.70)
.035(0.90)
.0098(0.25)
.014(0.35)
1
2
.012(0.50)
.028(0.70)
.003(0.07)
.008(0.20)
FEATURES
APPLICATIONS
Small suface mounting type
High Speed Switching
High Speed
High reliability with high surge current handing capability
o
MAXIMUM RATING (TA=25 C unless otherwise noted)
Parameter
Peak reverse voltage
DC reverse voltage
Symbol
VRM
VR
Limits
100
85
Unit
V
V
500
150
mA
mA
Peak forward current
Mean rectifying current
IFM
IO
125
Junction temperature
Storage temperature
Tj
-55~+125
Tstg
o
ELECTRICAL CHARACTERISTICS (TA=25 C unless otherwise noted)
Parameter
Symbol Min. Typ. Max. Unit
Conditions
1.2
0.1
3.0
4
V
IF=150mA
VR=85V
Forward voltage
VF
IR
Reverse current
µA
pF
ns
VR=0.5V, f=1MHZ
Capacitance between terminals
Reverse recovery time
CT
trr
VR=6V,IF=10mA,RL=100Ω
www.paceleader.tw
1
1SS422
High Speed SWITCHING Diodes
www.paceleader.tw
2
1SS422
High Speed SWITCHING Diodes
SC
-
79/SOD-523
A
C
V M
A
H
E
1
2
CATHODE
ANODE
0.5
0
1mm
D
A
SOD–523
scale
E
b
p
A X
z
z
z
DIMENSIONS (mm are the original dimensions)
UNIT
A
b p
c
D
E
H E
1.7
1.5
V
0.7
0.5
0.35
0.25
0.2
0.1
1.3
1.1
0.9
0.7
m m
0.15
Note
1. The marking bar indicates the cathode.
REFERENCES
OUTLINE
VERSION
EUROPEAN
ISSUE DATE
PROJECTION
IEC
JEDEC
EIAJ
SC-79
SOD523
98-11-25
www.paceleader.tw
3
