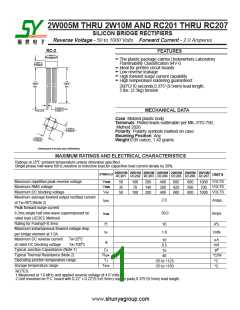

2W005M THRU 2W10M AND RC201 THRU RC207
SILICON BRIDGE RECTIFIERS
Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Amperes
RC-2
0.366(9.3)
0.355(8.9)
FEATURES
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Ideal for printed circuit boards
0.290(7.4)
0.270(6.9)
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed:
260 C/10 seconds,0.375”(9.5mm) lead length,
5 lbs. (2.3kg) tension
1.2
(30.5)
MIN.
1.0
(25.4)
MIN.
0.032(0.8)
0.028(0.7)
DIA.
POS.LEAD
MECHANICAL DATA
Case: Molded plastic body
Terminals: Plated leads solderable per MIL-STD-750,
Method 2026
0.220(5.6)
0.180(4.6)
Polarity: Polarity symbols marked on case
Mounting Position: Any
0.220(5.6)
0.180(4.6)
Weight:0.05 ounce, 1.42 grams
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
2W005M 2W01M 2W02M 2W04M 2W06M 2W08M 2W10M
RC201 RC202 RC203 RC204 RC205 RC206 RC207
SYMBOLS
UNITS
Maximum repetitive peak reverse voltage
Maximum RMS voltage
VRRM
VRMS
VDC
VOLTS
VOLTS
VOLTS
50
35
50
100
70
200
140
200
400
280
400
600
420
600
800
560
800
1000
700
Maximum DC blocking voltage
Maximum average forward output rectified current
at TA=50 C(Note 2)
100
1000
2.0
I(AV)
Amps
Peak forward surge current
8.3ms single half sine-wave superimposed on
rated load (JEDEC Method)
50.0
Amps
IFSM
I2t
A2s
Rating for Fusing(t<8.3ms)
10
Maximum instantaneous forward voltage drop
per birdge element at 1.0A
Volts
VF
1.0
Maximum DC reverse current
at rated DC blocking voltage
TA=25 C
u
A
10
0.5
15
40
IR
TA=100 C
mA
pF
C/W
C
Typical Junction Capacitance (Note 1)
Typical Thermal Resistance (Note 2)
Operating junction temperature range
storage temperature range
CJ
RqJA
TJ
-55 to +125
-55 to +150
TSTG
C
NOTES:
1.Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts.
2.Unit mounted on P.C. board with 0.22” x 0.22”(5.5x5.5mm) copper pads,0.375”(9.5mm) lead length.
