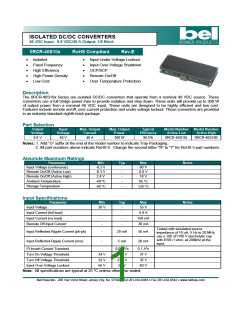

ISOLATED DC/DC CONVERTERS
48 VDC Input 9.6 VDC/40 A Output, 1/8 Brick
0RCR-40S10x
RoHS Compliant
Rev.E
•
•
•
•
•
Isolated
•
•
•
•
•
Input Under-Voltage Lockout
Input Over-Voltage Shutdown
OCP/SCP
Fixed Frequency
High Efficiency
High Power Density
Low Cost
Remote On/Off
Over Temperature Protection
Description
The 0RCR-40S10x Series are isolated DC/DC converters that operate from a nominal 48 VDC source. These
converters use a full bridge power train to provide isolation and step down. These units will provide up to 300 W
of output power from a nominal 48 VDC input. These units are designed to be highly efficient and low cost.
Features include remote on/off, over current protection and under voltage lockout. These converters are provided
in an industry standard eighth-brick package.
Part Selection
Output
Input
Voltage
Max. Output
Current
Max. Output
Power
Typical
Efficiency
Model Number Model Number
Voltage
Active Low
Active High
9.6 V
48 V
40 A
300 W
96.5%
0RCR-40S10L
0RCR-40S100
Notes: 1. Add “G” suffix at the end of the model number to indicate Tray Packaging.
2. All part numbers above indicate RoHS 6. Change the second letter "R" to "7" for RoHS 5 part numbers.
Absolute Maximum Ratings
Parameter
Input Voltage (continuous)
Remote On/Off (Active Low)
Remote On/Off (Active High)
Min
Typ
Max
60 V
0.8 V
18 V
Notes
-0.3 V
-0.3 V
2.4 V
-
-
-
Ambient Temperature
Storage Temperature
-
-
-40 °C
-40 °C
85 °C
125 °C
Input Specifications
Parameter
Min
Typ
Max
Notes
Input Voltage
38 V
-
55 V
Input Current (full load)
Input Current (no load)
Remote Off Input Current
-
-
-
-
-
-
8.8 A
150 mA
30 mA
Tested with simulated source
impedance of 10 uH, 5 Hz to 20 MHz;
use a 100 uF/100 V electrolytic cap
with ESR=1 ohm, at 200kHz at the
input.
Input Reflected Ripple Current (pk-pk)
-
-
20 mA
50 mA
Input Reflected Ripple Current (rms)
5 mA
20 mA
I2t Inrush Current Transient
Turn On Voltage Threshold
Turn Off Voltage Threshold
Input Over-Voltage Lockout
-
0.05 A2s
35.5 V
33.5 V
58 V
0.1 A2s
37 V
34 V
32 V
56 V
35 V
60 V
Note: All specifications are typical at 25 °C unless otherwise stated.
