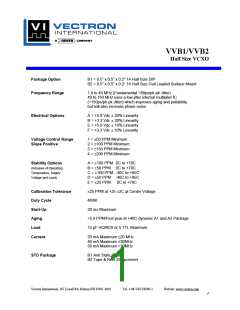

VVB1/VVB2
Half Size VCXO
Package Option
B1 = 0.5” x 0.5” x 0.2” 14 Half Size DIP
B2 = 0.5” x 0.5” x 0.2” 14 Half Size Gull Leaded Surface Mount
Frequency Range
1.0 to 40 MHz (Fundamental <80ps/pk-pk Jitter)
40 to 160 MHz uses a low jitter internal multiplier IC
(<150ps/pk-pk Jitter) which improves aging and pullability
but will also increase phase noise
Electrical Options
A = +5.0 Vdc 20% Linearity
B = +3.3 Vdc 20% Linearity
E = +5.0 Vdc 10% Linearity
F = +3.3 Vdc 10% Linearity
Voltage Control Range
Slope Positive
1 = 50 PPM Minimum
2 = 100 PPM Minimum
3 = 150 PPM Minimum
4 = 200 PPM Minimum
Stability Options
(Inclusive of Operating
Temperature, Supply
Voltage and Load)
A = 100 PPM 0C to +70C
B = 50 PPM 0C to +70C
C = 100 PPM -40C to +85C
D = 50 PPM -40C to +85C
E = 25 PPM
0C to +70C
Calibration Tolerance
Duty Cycle
Start-Up
25 PPM at +25 2C at Center Voltage
40/60
20 ms Maximum
Aging
<5.0 PPM/First year at +40C dynamic A1 and A2 Package
15 pF HCMOS or 5 TTL Maximum
Load
Current
20 mA Maximum 20 MHz
40 mA Maximum 30MHz
50 mA Maximum >30MHz
STD Package
B1 Anti Static Tubes
B2 Tape & Reel 250 pcs/reel
Vectron International, 267 Lowell Rd, Hudson NH 03051-4916
Tel: 1-88-VECTRON-1
Website: www.vectron.com
1
