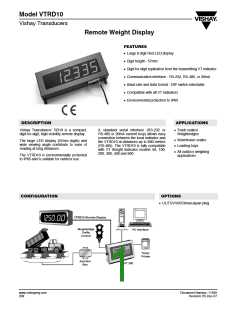

Model VTRD10
Vishay Transducers
Remote Weight Display
FEATURES
• Large 6 digit Red LED display
• Digit height - 57mm
• Digit-for-digit replication from the transmitting VT indicator
• Communication interface - RS-232, RS-485, or 20mA
• Baud rate and data format - DIP switch selectable
• Compatible with all VT indicators
• Environmental protection to IP65
DESCRIPTION
APPLICATIONS
Vishay Transducers’ RD10 is a compact,
digit-for-digit, high visibility remote display.
A standard serial interface (RS-232 or
• Truck scales/
RS-485 or 20mA current loop) allows easy
connection between the local indicator and
the VTRD10 at distances up to 600 meters
(RS-485). The VTRD10 is fully compatible
with VT Weight Indicator models 50, 100,
200, 300, 400 and 500.
Weighbridges
• Warehouse scales
• Loading bays
The large LED display (57mm digits) and
wide viewing angle contribute to ease of
reading at long distances.
• All outdoor weighing
applications
The VTRD10 is environmentally protected
to IP65 and is suitable for outdoor use.
OPTIONS
CONFIGURATION
• UL/TUV/UK/China/Japan plug
www.vishaymg.com
308
Document Number: 11645
Revision: 05-Dec-07
