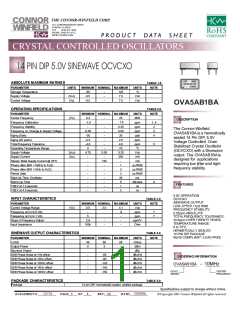

P R O D U C T D A T A S H E E T
CRYSTAL CONTROLLED OSCILLATORS
Notes:
1) Initial calibration @ 25°C, Vc = 2.0 Vdc.
2) Frequency stability, absolute over the temperature range of 0 to 70°C.
3) Frequency stability per 5% change in supply voltage.
4) At the time of shipment after 48 hours of operation.
5) Inclusive of calibration, operating temperature range, supply voltage change, shock and
vibration and aging (20 years).
6) Measured @ 25°C, within 5 minutes, the unit will be within +/-0.1ppm of its reference
frequency, measured after 30 minutes of continuous operation at a stable 25°C.
7) Referenced to Fo @ 25°C, Positive Transfer Characteristic.
Package Layout
Pin Connections
TABLE 6.0
Pin
1
Function
Voltage Control
Ground (Case)
Output
7
8
14
Vcc
Dimensional Tolerance:
±.005 (.127mm)
Solder Profile
Test Circuit
Temperature
260°C
260°C
220°C
180°C
150°C
120°C
0
Time
50 Ohm
120 S
Max.
10 S
CONTROL
VOLTAGE
Oscilloscope
Termination
60 S
Max.
360 Sec. Max.
ENVIRONMENTAL CHARACTERISTICS
Temperature Cycle: Per MIL-STD-883, Method 1010, Condition B. -55°C to 125°C, 300 cycles,
10 minute dwell, 1minute transition.
Gross Leak Test: Per MIL-STD-202, Method 112, Condition D. No Bubbles in flourinert (FC-43) at
125°C ±5°C for 20 seconds.
SOLDERING
Pin Solderability: Per MIL-STD-883, Method 2003. 8 hour steam age prior to 254°C ±5°C Solder
pot dip, 95% Coverage.
Resistance to Solder Heat: Per MIL-STD-202, Method 210, Condition C. Wave: Topside board-
mount product, 260°C ±5°C for 20 seconds.
MECHANICAL CHARACTERISTICS
Vibration: Per MIL-STD-202, Method 204, Condition A. 10G’s peak, 10Hz to 500Hz, 15 minute
cycles 12 times each perpendicular axis.
Shock: Per MIL-STD-202, Method 213, Condition F. 1500G’s, 0.5ms, half sine, 3 shocks per
direction.
Moisture Resistance: Per MIL-STD-202, Method 106. 95% RH @ 65°C, 10 cycles 10°C to 65°C.
Specifications subject to change without notice.
Copyright 2001 Connor-Winfield all rights reserved.
