applications

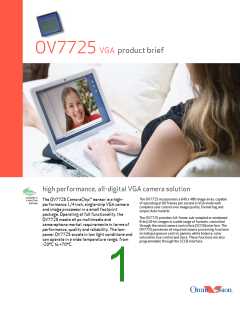

OV7725
camera phones
toys
digital still cameras
webcams
ordering information
OV07725-VL1A
(color, lead-free, CSP2-28)
OV07725-G00A
(color, no chip probing, no backgrinding)
product specifications
product features
high sensitivity for low-light
operation
frame synchronization
capability
array size: 640 x 480
dynamic range: 60 dB
power supply
pixel size: 6.0
μm x 6.0 μm
analog: 3.0V to 3.6V
digital core: 1.8 VDC ± 10%
I/O: 1.7V to 3.3V
standard SCCB interface output
support for:
– raw RGB
– RGB (GRB 4:2:2, RGB565/555/
444)
– YCbCr (4:2:2) formats
automatic image control
lens size: 1/4”
functions including:
– automatic exposure control
(AEC)
scan mode: progressive
power requirements
active: 120 mW (60 fps VGA, YUV)
standby: <20 μA
– automatic gain control (AGC)
– automatic white balance (AWB)
– automatic band filter (ABF)
– automatic black-level
calibration (ABLC)
fixed pattern noise:
< 0.03% of V PEAK-TO-PEAK
supports image sizes: VGA, QVGA,
and any size scaling down from CIF
to 40x30
image area:
package dimensions:
3984 μm x 2952 μm
CSP2: 5345 μm x 5265 μm
COB: 5360 μm x 5260 μm
image quality controls including
color saturation, hue, gamma,
sharpness (edge enhancement),
and anti blooming
electronic exposure
VarioPixel® method for sub sampling
edge enhancement level auto adjust
temperature range
up to 510:1 (for selected fps)
o
o
-20 C to +70
C
S/N ratio: 50 dB
noise suppression technology auto
adjust
functional block diagram
column
G
R
B
buffer
DSP*
buffer
sense amp
analog
processing
A/D
array
scaler
video
port
FIFO
D[9:0]
exposure/
gain detect
test pattern
generator
registers
video timing
generator
exposure/gain
control
SCCB
interface
clock
note 1 DSP* (lens shading correction, de-noise, white/black pixel correction, auto white balance, etc.)
7725_PB_001
