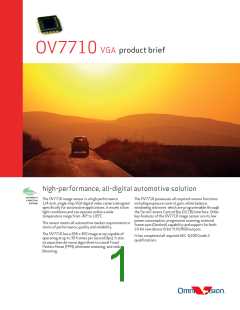

product brief
VGA
OV7710
high-performance, all-digital automotive solution
available in
a lead-free
package
The OV7710 image sensor is a high performance
The OV7710 possesses all required camera functions
1/4-inch, single-chip VGA digital video camera designed including exposure control, gain, white balance,
specifically for automotive applications. It excels in low
light conditions and can operate within a wide
temperature range from -40° to 105°C.
windowing and more, which are programmable through
the Serial Camera Control Bus (SCCB) interface. Other
key features of the OV7710 image sensor are its low
power consumption, progressive scanning, external
frame sync (Genlock) capability and support for both
10-bit raw data or 8-bit YUV/RGB outputs.
The sensor meets all automotive market requirements in
terms of performance, quality and reliability.
The OV7710 has a 656 x 492 image array capable of
operating at up to 30 frames per second (fps). It also
incorporates de-noise algorithms to cancel Fixed
Pattern Noise (FPN), eliminate smearing, and reduce
blooming.
It has completed all required AEC-Q100 Grade 2
qualifications.
