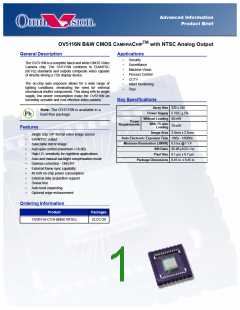

Advanced Information
Product Brief
OV5116N B&W CMOS CAMERACHIPTM with NTSC Analog Output
General Description
Applications
•
•
•
•
•
•
•
Security
The OV5116N is a complete black and white CMOS Video
Camera chip. The OV5116N conforms to EIA/NTSC
(60 Hz) standards and outputs composite video capable
of directly driving a 75Ω display device.
Surveillance
Machine Vision
Process Control
CCTV
The on-chip auto exposure allows for a wide range of
lighting conditions, eliminating the need for external
mechanical shutter components. This along with its single
supply, low power consumption make the OV5116N an
incredibly versatile and cost-effective video camera.
Infant Monitoring
Toys
Key Specifications
Array Size 320 x 240
Note: The OV5116N is available in a
lead-free package.
Power Supply 5 VDC + 5%
Without Loading 40 mW
Pb
Power
Requirements
With 75 ohm
70 mW
Loading
Features
Image Area 3.3mm x 2.5mm
•
Single chip 1/4" format video image sensor
Auto Electronic Exposure Time 1/60s - 1/6000s
Minimum Illumination (3000K) 0.5 lux @ f 1.4
S/N Ratio 46 dB (AGC=1x)
•
•
•
•
•
•
•
•
•
•
•
•
EIA/NTSC output
Selectable mirror image
Auto gain control (maximum +18 dB)
High I.R. sensitivity for nighttime applications
Auto and manual backlight compensation mode
Gamma correction - ON/OFF
External frame sync capability
40 mW on-chip power consumption
External data acquisition support
Smear free
Pixel Size 9.1 µm x 8.7 µm
Package Dimensions 0.45 in. x 0.45 in.
Auto level expanding
Optional edge enhancement
Ordering Information
Product
Packages
OV05116-C11A (B&W, NTSC)
CLCC-28
