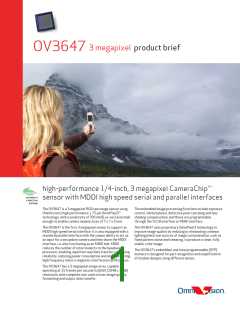

OV3647
applications
cellular phones
toys
PC multimedia
digital still cameras
ultra mobile PC
ordering information
OV03647-V47A
(color, lead-free, 47-pin CSP2)
OV03647-G04A
(color, chip probing, 200 mm backgrinding,
reconstructed wafer)
product specifications
product features
MDDI serial interface
black sun cancellation
active array size: 2048 x 1536
dynamic range:
– normal mode: 65 dB
– HDR mode: 85 dB (1024 x 768 or
lower resolution)
digital video port (DVP) parallel
output interface
embedded regulator for core
power supply:
– core: 1.5VDC + 5%
– analog: 2.45 ~ 3.0V
– I/O: 1.7 ~ 3.0V
support for LED and flash strobe
mode
second camera can share MDDI
interface
maximum image transfer rate:
– QXGA (2048 x 1536): 15 fps
– XGA (1024 x 768): 30 fps
– HF (512 x 384): 60 fps
standard serial SCCB interface
power requirements:
ultra low power and low cost
– active: 70 mA (typical)
– standby: 20 μA (typical)
embedded one-time programmable
(OTP) memory
automatic image control functions:
– automatic exposure control (AEC)
– automatic gain control (AGC)
sensitivity: 700 mV(Lux-sec)
maximum exposure interval:
temperature range:
on-chip phase lock loop (PLL)
programmable I/O drive capability
fits module size of 7.0 x 7.0 mm
– operating: -20°C to 70°C
– stable image: 0°C to 50°C
– automatic white balance (AWB)
– auto 50/60 Hz luminance detection
– auto black level calibration (ABLC)
1574 x t
ROW
output : 8-/10-bit raw RGB data
lens size: 1/4"
pixel size: 1.75 μm x 1.75 μm
support for QXGA, XGA and HF mode
HDR-ready - provides high dynamic
range (HDR) data signals for
external processing enabling
extended dynamic range at half
resolution
image area: 3626 μm x 2709 μm
programmable controls for frame
rate, mirror, flip, and cropping
lens chief ray angle: 25° non-linear
package dimensions:
– CSP2: 5515 μm x 5195 μm
– COB: 5530 μm x 5210 μm
lens correction and defective pixel
canceling
input clock frequency: 6 ~ 54 MHz
(MDDI: 260 MHz)
RAW RGB output format
S/N ratio: 37 dB
functional block diagram
OV3647
image sensor core
image sensor processor
image output
interface
column
sample/hold
10-bit RAW
10-bit
AMP
ADC
DVP
D[9:0]
array
MDDI
LINK
10-bit
MDDI
AMP
ADC
50/60Hz
gain
auto
detection
control
control register bank
SCCB
slave
interface
timing generator
PLL
and system control logic
3647_PB_001
