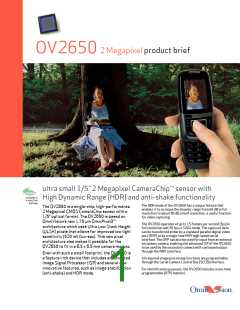

OV2650
applications
cellular phones
toys
PC multimedia
digital still cameras
ordering information
OV02650-VL9A
(color, lead-free, 38-pin CSP2)
product specifications
product features
ultra low power and low cost
support for:
array size: 1600 x 1200
shutter: rolling shutter
– video or snapshot operations
– auto focus control (AFC)
– horizontal/vertical sub-sampling
– internal and external frame
synchronization
automatic image control functions:
– automatic exposure control (AEC)
– automatic white balance (AWB)
– automatic band filter (ABF)
– automatic 50/60 Hz luminance
detection
power supply:
maximum exposure interval:
1235 x t
ROW
core: 1.5 VDC + 5%
analog: 2.45 V ~ 3.0 V
digital: 1.7 V ~ 3.0V
power requirements:
active: 250 mW
standby: 30 μA
– LED and flash strobe mode
– second CameraChip-sharing ISP
and MIPI interface
output format (8-bit):
YUV(422/420) / YCbCr422,
RGB565/555, 8-/10-bit raw
RGB data
– automatic black level calibration
(ABLC)
max image transfer rate:
UXGA (1600 x 1200): 15fps for UXGA
and any size scaling down from SXGA
standard serial SCCB interface
support for output formats: RAW
RGB, RGB565/555, YUV422/420,
and YCbCr422
digital video port (DVP) parallel
output interface
lens size: 1/5"
SVGA (800 x 600): 30fps for SVGA
and any size scaling down from SVGA
programmable controls for frame
rate, AEC/AGC 16-zone size/
MIPI serial output interface
embedded microcontroller
chief ray angle: 25° non-linear
temperature range:
position/weight control, mirror and
flip, scaling, cropping, and windowing
input clock frequency: 6 ~ 27 and
54 MHz
operating: -20
°
C to 70
° C
embedded one-time programmable
(OTP) memory
stable image:
0°
C to 50° C
image quality controls: color
saturation, hue, gamma, sharpness
(edge enhancement), lens correction,
defective pixel canceling, and noise
canceling
pixel size: 1.75 μm x 1.75 μm
integrated anti-shake
functional block diagram
OV2650
image sensor core
image sensor processor
image output
interface
column
sample/hold
DVP
DATA[9:0]
10-bit RAW
array
10-bit
A/D
AMP
MIPI
50/60Hz
auto
detection
gain
control
control register bank
SCCB
slave
interface
MIPI
control
interface
timing generator
and system control logic
PLL
2650_PB_001
