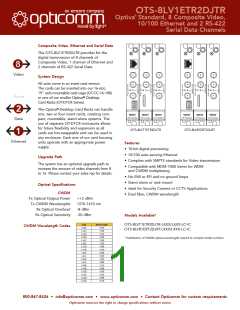

OTS-8LV1ETR2DJTR
®
Optiva Standard, 8 Composite Video,
10/100 Ethernet and 2 RS-422
Serial Data Channels
Composite Video, Ethernet and Serial Data
The OTS-8LV1ETR2DJTR provides for the
digital transmission of 8 channels of
Composite Video, 1 channel of Ethernet and
2 channels of RS-422 Serial Data.
Video
Audio
System Design
All units come in an insert card version.
The cards can be inserted into our 16-slot,
19” rack-mountable card cage (OT-CC-16-100)
or one of our smaller Optiva® Desktop
Card Racks (OT-DTCR Series).
The Optiva® Desktop Card Racks can handle
one, two or four insert cards, creating com-
pact, mountable, stand alone systems. The
use of separate OT-DTCR enclosures allows
for future flexibility and expansion as all
cards are hot-swappable and can be used in
any enclosure. Each one of our card housing
units operate with an appropriate power
supply.
Data
OTS-8LVT1ETR2DJTR
OTS-8LVR1ERT2DJRT
Ethernet
Features
• 10-bit digital processing
• 10/100 auto-sensing Ethernet
Upgrade Path
• Complies with SMPTE standards for Video transmission
The system has an optional upgrade path to
increase the amount of video channels from 8
to 16. Please contact your sales rep for details.
• Compatible with MDM-7000 Series for WDM
and CWDM multiplexing
• No EMI or RFI and no ground loops
• Stand alone or rack-mount
Optical Specifications
CWDM
• Ideal for Security Camera or CCTV Applications
• Dual fiber, CWDM wavelength
Tx Optical Output Power
Tx CWDM Wavelengths
Rx Optical Overload
>+2 dBm
1270-1610 nm
-8 dBm
Rx Optical Sensitivity
-30 dBm
Models Available*
OTS-8LVT1ETR2DJTR-L4XX/L4XX-LC-IC
OTS-8LVR1ERT2DJRT-L4XX/L4XX-LC-IC
CWDM Wavelength Codes
* Substitution of CWDM optical wavelengths requird to complet model numbers.
800-867-8426 • info@opticomm.com • www.opticomm.com • Contact Opticomm for custom requirements.
Opticomm reserves the right to change specifications without notice
