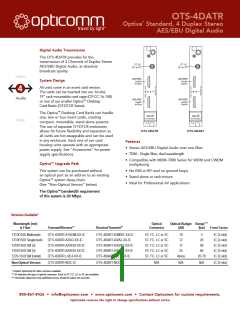

OTS-4DATR
™
Optiva Standard, 4 Duplex Stereo
AES/EBU Digital Audio
Digital Audio Transmission
The OTS-4DATR provides for the
transmission of 4 Channels of Duplex Stereo
AES/EBU Digital Audio, at absolute
broadcast quality.
ST, LC,
SC or FC
ST, LC,
SC or FC
Video
Audio
Data
AES/EBU
Audio
AES/EBU
Audio
System Design
In/Out
Out/In
A
L
E
R
T
A
L
E
R
T
S
S
All units come in an insert card version.
The cards can be inserted into our 16-slot,
19” rack-mountable card cage (OT-CC-16-100)
or one of our smaller Optiva™ Desktop
Card Racks (OT-DTCR Series).
T
A
T
U
S
T
A
T
U
S
AES/EBU
Audio
In/Out
AES/EBU
Audio
Out/In
The Optiva™ Desktop Card Racks can handle
one, two or four insert cards, creating
compact, mountable, stand alone systems.
The use of separate OT-DTCR enclosures
allows for future flexibility and expansion as
all cards are hot-swappable and can be used
in any enclosure. Each one of our card
housing units operate with an appropriate
power supply. See “Accessories” for power
supply specifications.
™
™
Optiav
Optiav
VAD Transmission
VAD Transmission
OTS-4DATR
OTS-4DART
Features
• Stereo AES/EBU Digital Audio over one fiber
• TDM - Single fiber, dual wavelength
• Compatible with MDM-7000 Series for WDM and CWDM
multiplexing
Optiva™ Upgrade Path
This system can be purchased without
an optical port as an add-on to an existing
Optiva™ system daisy-chain.
• No EMI or RFI and no ground loops
• Stand alone or rack-mount
• Ideal for Professional AV applications
(See “Non-Optical Version” below).
The Optiva™ bandwidth requirement
of this system is 20 Mbps.
Versions Available*
Wavelength (nm)
& Fiber
Optical
Connector
Optical Budget Range***
Transmit/Receive**
Receive/Transmit**
(dB)
(km) Form Factor
1310/1550 Multimode
OTS-4DATR-A1/A3M-XX-IC
OTS-4DART-A3M/A1-XX-IC
OTS-4DART-A3/A2-XX-IC
OTS-4DART-A3D/A2-XX-IC
OTS-4DART-A3H/A2-XX-IC
OTS-4DART-L4/L4-XX-IC
ST, FC, LC or SC
ST, FC, LC or SC
ST, FC, LC or SC
ST, FC, LC or SC
ST, FC, LC or SC
10
12
3
20
IC (2-slot)
IC (2-slot)
IC (2-slot)
IC (2-slot)
IC (2-slot)
1310/1550 Singlemode OTS-4DATR-A2/A3-XX-IC
1310/1550 SM (D)
1310/1550 SM (H)
1270-1610 SM (CWDM)
OTS-4DATR-A2/A3D-XX-IC
OTS-4DATR-A2/A3H-XX-IC
OTS-4DATR-L4/L4-XX-IC
17
40
25
60
Varies
20-70
Non-Optical Version
OTS-4DATR-NOC-IC
OTS-4DART-NOC-IC
N/A
N/A
N/A
IC (2-slot)
* Contact Opticomm for other versions available.
** XX indicates the type of optical connector. Each of ST, FC, LC or SC are available.
*** Chromatic dispersion and additional losses should be taken into account.
800-867-8426 • info@opticomm.com • www.opticomm.com • Contact Opticomm for custom requirements.
Opticomm reserves the right to change specifications without notice
