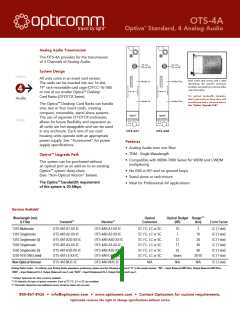

OTS-4A
™
Optiva Standard, 4 Analog Audio
Analog Audio Transmission
The OTS-4A provides for the transmission
of 4 Channels of Analog Audio.
ST, LC,
SC or FC
ST, LC,
SC or FC
System Design
Video
Audio
Data
All units come in an insert card version.
The cards can be inserted into our 16-slot,
19” rack-mountable card cage (OT-CC-16-100)
or one of our smaller Optiva™ Desktop
Card Racks (OT-DTCR Series).
Each insert card comes with a label
identifying the specific protocols
handled, connector pin-out and other
vital information.
Audio In
Audio In
Audio Out
Audio Out
For optimal bandwidth allocation,
each insert card can daisy-chain with
an additional card in the same chassis.
See “Optiva™ Upgrade Path”.
The Optiva™ Desktop Card Racks can handle
one, two or four insert cards, creating
compact, mountable, stand alone systems.
The use of separate OT-DTCR enclosures
allows for future flexibility and expansion as
all cards are hot-swappable and can be used
in any enclosure. Each one of our card
housing units operate with an appropriate
power supply. See “Accessories” for power
supply specifications.
OTS-4AT
OTS-4AR
Features
• Analog Audio over one fiber
• TDM - Single Wavelength
Optiva™ Upgrade Path
• Compatible with MDM-7000 Series for WDM and CWDM
multiplexing
This system can be purchased without
an optical port as an add-on to an existing
Optiva™ system daisy-chain.
• No EMI or RFI and no ground loops
• Stand alone or rack-mount
(See “Non-Optical Version” below).
The Optiva™ bandwidth requirement
of this system is 20 Mbps.
• Ideal for Professional AV applications
Versions Available*
Wavelength (nm)
& Fiber
Optical
Connector
Optical Budget Range***
Transmit**
Receive**
(dB)
(km)
Form Factor
1310 Multimode
OTS-4AT-A1-XX-IC
OTS-4AT-A2-XX-IC
OTS-4AT-A2D-XX-IC
OTS-4AT-A3-XX-IC
OTS-4AT-A3D-XX-IC
OTS-4AT-L4-XX-IC
OTS-4AR-A1-XX-IC
OTS-4AR-A2-XX-IC
OTS-4AR-A2D-XX-IC
OTS-4AR-A3-XX-IC
OTS-4AR-A3D-XX-IC
OTS-4AR-L4-XX-IC
ST, FC, LC or SC
ST, FC, LC or SC
ST, FC, LC or SC
ST, FC, LC or SC
ST, FC, LC or SC
ST, FC, LC or SC
10
7
3
10
IC (1-slot)
IC (1-slot)
IC (1-slot)
IC (1-slot)
IC (1-slot)
IC (1-slot)
1310 Singlemode
1310 Singlemode (D)
1550 Singlemode
1550 Singlemode (D)
1270-1610 SM (CWDM)
12
20
17
40
25
60
Varies
20-70
Non-Optical Version
OTS-4AT-NOC-IC
OTS-4AR-NOC-IC
N/A
N/A
N/A
IC (1-slot)
Analog Audio Codes - To indicate your Analog Audio impedance preference, please use the following instead of "A" in the model number: "AB" = Input Balanced 600 Ohm, Output Balanced 600 Ohm;
"ABH" = Input Balanced Hi-Z, Output Balanced Low-Z; and "AUH" = Input Unbalanced Hi-Z, Output Unbalanced Low-Z.
* Contact Opticomm for other versions available.
** XX indicates the type of optical connector. Each of ST, FC, LC or SC are available.
*** Chromatic dispersion and additional losses should be taken into account.
800-867-8426 • info@opticomm.com • www.opticomm.com • Contact Opticomm for custom requirements.
Opticomm reserves the right to change specifications without notice
