1SS86

型号:

1SS86

描述:

硅肖特基二极管[ SILICON SCHOTTKY BARRIER DIODE ]

品牌:

SEMTECH[ SEMTECH CORPORATION ]

页数:

1 页

PDF大小:

118 K

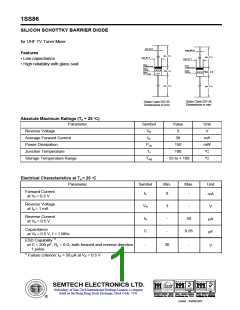

1SS86
SILICON SCHOTTKY BARRIER DIODE
for UHF TV Tuner Mixer
Max. 0.5
Max. 0.45
Features
Min. 27.5
Max. 3.9
Min. 27.5
Min. 27.5
Max. 2.9
Min. 27.5
Max. 1.9
Max. 1.9
• Low capacitance
• High reliability with glass seal
Black
Cathode Band
Black
Part No.
Black
"ST" Brand
Black
Cathode Band
Black
Part No.
XXX
ST
XXX
Glass Case DO-34
Dimensions in mm
Glass Case DO-35
Dimensions in mm
O
Absolute Maximum Ratings (Ta = 25 C)
Parameter
Symbol
VR
Value
3
Unit
V
Reverse Voltage
Average Forward Current
Power Dissipation
IO
30
mA
mW
Ptot
TJ
150
100
O
C
Junction Temperature
O
C
Storage Temperature Range
Tstg
- 55 to + 100
O
Electrical Characteristics at Ta = 25 C
Parameter
Symbol
IF
Min.
Max.
Unit
Forward Current
at VF = 0.5 V
8
3
-
-
-
mA
V
Reverse Voltage
at IR = 1 mA
VR
IR
Reverse Current
at VR = 0.5 V
50
0.85
µA
pF
Capacitance
C
-
at VR = 0.5 V, f = 1 MHz
ESD Capability 1)
at C = 200 pF, RL = 0 , both forward and reverse direction
-
30
-
V
1 pulse.
1) Failure criterion: IR > 50 µA at VR = 0.5 V
SEMTECH ELECTRONICS LTD.
(Subsidiary of Sino-Tech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
®
Dated : 20/06/2007
