0RSB-40U03B

型号：

0RSB-40U03B

描述：

隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ]

品牌：

BEL[ BEL FUSE INC. ]

页数：

14 页

PDF大小：

369 K

下载PDF手册

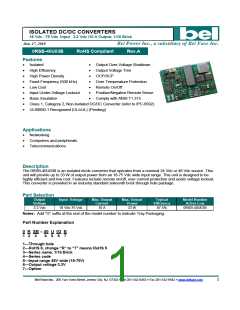

ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input 3.3 Vdc /10 A Output, 1/16 Brick
Jun. 17, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
0RSB-40U03B
Features
RoHS Compliant
Rev.A
•
•
•
•
•
•
•
•
•
Isolated
•
•
•
•
•
•
•
Output Over-Voltage Shutdown
Output Voltage Trim
High Efficiency
High Power Density
Fixed Frequency (500 kHz)
Low Cost
OCP/SCP
Over Temperature Protection
Remote On/Off
Input Under-Voltage Lockout
Basic Insulation
Positive/Negative Remote Sense
Comply with ANSI T1.315
Class 1, Category 2, Non-Isolated DC/DC Converter (refer to IPC-9592)
UL60950-1 Recognized (UL/cUL) (Pending)
Applications
•
•
•
Networking
Computers and peripherals
Telecommunications
Description
The 0RSB-40U03B is an isolated dc/dc converter that operates from a nominal 24 Vdc or 48 Vdc source. This
unit will provide up to 33 W of output power from an 18-75 Vdc wide input range. This unit is designed to be
highly efficient and low cost. Features include remote on/off, over current protection and under voltage lockout.
This converter is provided in an industry standard sixteenth brick through hole package.
Part Selection
Output
Input Voltage
Max. Output
Current
Max. Output
Power
Typical
Efficiency
Model Number
Active Low
Voltage
3.3 Vdc
18 Vdc-75 Vdc
10 A
33 W
87.5%
0RSB-40U03B
Notes: Add “G” suffix at the end of the model number to indicate Tray Packaging.
Part Number Explanation
0 R SB – 40 U 03 B
1 2
3
4
5
6
7
1---Through hole
2---RoHS 6, change “R” to “7” means RoHS 5
3---Series name, 1/16 Brick
4---Series code
5---Input range 48V wide (18-75V)
6---Output voltage 3.3V
7---Option
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
1
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input 3.3 Vdc /10 A Output, 1/16 Brick
Jun. 17, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Absolute Maximum Ratings
Unit
Parameter
Min
-0.3
-
Typ
Max
80
Notes
Continuous Input Voltage
Input Transient Voltage
Remote On/Off
-
-
-
-
-
-
V
V
100
18
100 mS maximum
-0.3
-
V
I/O Isolation Voltage
Ambient Temperature
Storage Temperature
1500
85
V
-40
-55
°C
°C
125
Note: Ratings used beyond the maximum ratings may cause a reliability degradation of the converter or may
permanently damage the device.
Input Specifications
Parameter
Min
Typ
Max
Unit
Notes
Operating Input Voltage
18
48
75
V
Input Current (full load)
Input Current (no load)
Remote Off Input Current
-
-
-
-
60
1
3.0
120
3
A
mA
mA
Tested with simulated source
impedance of 10 uH, 5 Hz to 20 MHz;
use a 100 uF/100 V electrolytic
capacitor with ESR = 1 ohm max. at
200 kHz at 25 °C.
Input Reflected Ripple Current
(rms)
-
-
3
7
mA
Input Reflected Ripple Current
(pk-pk)
I2t Inrush Current Transient
Turn-on Voltage Threshold
Turn-off Voltage Threshold
20
50
mA
-
-
0.02
18.0
17.6
A2s
V
16.0
15.6
17.2
16.8
V
CAUTION: This converter is not internally fused. An input line fuse must be used in application.
Recommend a fast-acting fuse with maximum rating of 3A on system board. Refer to the fuse
manufacture’s datasheet for further information.
Note: All specifications are typical at 25 °C unless otherwise stated.
Output Specifications
Parameter
Min
Typ
Max
Unit
Notes
Output Voltage Set Point
3.25
3.3
3.35
V
Vin=48V, Io=50% load
Load Regulation
Line Regulation
-
-
±4
±3
±9
±8
mV
mV
Regulation Over Temperature
(-40deg.C-85deg.C)
-
±9
±16
mV
0-20 MHz BW, with a 1µF ceramic
capacitor and a 330uF Tantalum
cap at output.
Ripple and Noise (pk-pk)
Ripple and Noise (rms)
-
-
55
12
90
25
mV
mV
Ripple and Noise (pk-pk)
under worst case
over all operating input voltage,
load and temperature conditions.
-
-
120
mV
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
2
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input 3.3 Vdc /10 A Output, 1/16 Brick
Jun. 17, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Output Specifications (continued)
Parameter
Min
Typ
Max
Unit
Notes
Output Current Range
0
-
10
A
Output DC Current Limit
Short Circuit Surge Transient
Rise Time
11
-
14
-
16
1
A
A2s
mS
mS
mS
-
10
25
25
15
50
50
-
Enable form Vin
Turn on Time
-
Enable form ON/OFF
Overshoot at Turn on
-
0
-
5
%
Output Capacitance
330
4700
uF
Transient Response
Overshoot
-
-
-
-
180
80
250
150
250
150
mV
uS
△V50%~75% of
Max Load
di/dt=0.1A/us, Vin=48Vdc, Ta=25°C,
with a 1µF ceramic capacitor and a
330uF Tantalum cap at the output.
Settling Time
Overshoot
180
80
mV
uS
△V75%~50% of
Max Load
Settling Time
Notes: All specifications are typical at nominal input, full load at 25°C unless otherwise stated.
General Specifications
Parameter
Min
Typ
Max
Unit
Notes
Vin=48V, full load
Efficiency
85
87.5
-
%
Switching Frequency
-
500
-
-
kHz
V
Output Voltage Trim Range
2.97
3.63
Over Temperature Protection
Over Voltage Protection(Static)
Weight
-
-
-
125
4
130
4.9
-
°C
V
14
g
Calculated Per Bell Core SR-332
(Vin=48 V, Vo=3.3 V, Io=8 A, Ta = 25
°C, FIT=109/MTBF)
FIT
TBD
-
-
Dimensions
Inches (L × W × H)
1.30 x 0.90 x 0.46
Millimeters (L × W × H)
33.02 x 22.86 x 11.69
Isolation characteristics
Input to Output
-
10M
-
-
-
1500
V
Isolation Resistance
Isolation Capacitance
ohm
pF
3900
-
Note: All specifications are typical at 25 °C unless otherwise stated.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
3
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input 3.3 Vdc /10 A Output, 1/16 Brick
Jun. 17, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Efficiency Data
90%
85%
80%
75%
70%
65%
60%
55%
50%
18V
24V
48V
75V
1
2.5
5
7.5
10
OUTPUT CURRENT (A)
Thermal Derating Curves
Maximum junction temperature of semiconductors derated to 120 degree C.
Top View
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
4
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input 3.3 Vdc /10 A Output, 1/16 Brick
Jun. 17, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Thermal Derating Curves (continued)
Derating curve under 24Vdc input
Derating curve under 48Vdc input
Temperature reference points on top side
Temperature reference points on bottom side
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
5
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input 3.3 Vdc /10 A Output, 1/16 Brick
Jun. 17, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Ripple and Noise Waveform
48 Vdc input, 3.3Vdc/10A output
Note: Ripple and Noise at full load, Ta=25°C, with a 1µF ceramic capacitor and a 330uF Tantalum cap at the
output.
Transient Response Waveforms
75%-50% Load Transients
50%-75% Load Transients
Note: Transient Response at di/dt=0.1A/uS, Ta=25°C, with 1uF ceramic cap and 330uF tantalum cap at
output.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
6
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input 3.3 Vdc /10 A Output, 1/16 Brick
Jun. 17, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Startup & Shutdown
Rise Time
Test Condition:
48Vdc input, 3.3Vdc/10A
output, and Ta=25 deg C
Startup from on/off
Ch1: Vo
Ch2: on/off
Startup from Vin
Ch1: Vo
Ch2: Vin
Test Condition: 48Vdc input, 3.3Vdc/10A output
and Ta=25 deg C
Test Condition: 48Vdc input, 3.3Vdc/10A output
and Ta=25 deg C
Shutdown
Test Condition:
48Vdc input, 3.3Vdc/10A
output, and Ta=25 deg C
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
7
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input 3.3 Vdc /10 A Output, 1/16 Brick
Jun. 17, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Remote On/Off
Parameter
Min
Typ
Max
Unit
Notes
Signal Low (Unit On)
Signal High (Unit Off)
Current Sink
-0.3
-
0.8
V
Active Low
The remote on/off pin open, Unit off.
2.4
0
-
-
18
1
V
mA
Recommended remote on/off circuit for active low
Vin+
On/off
Vin-
Vin+
On/off
Vin-
Control with open collector/drain circuit
Control with photocoupler circuit
Vin+
Vin+
On/off
Vin-
Vcc
On/off
Vin-
Control with logic circuit
Permanently on
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
8
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input 3.3 Vdc /10 A Output, 1/16 Brick
Jun. 17, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Output Trim Equations
Equations for calculating the trim resistor are shown below. The Trim Down resistor should be connected
between the Trim pin and GND pin. The Trim Up resistor should be connected between the Trim pin and the
Vout pin. Only one of the resistors should be used for any given application.
Minimum trim down voltage is 2.97V
Maximum trim up voltage is 3.63V.
The total voltage increased by trim and remote sense should not exceed 10% of the nominal output voltage.
Vout
511
Rtrimdown =
−10.22
[kΩ
]
Module
Module
Trim
GND
delta
Rtrimdown
Rtrimup
Vout
Trim
GND
(100 + delta)⋅Vo⋅5.11− 626
1.225⋅delta
Rtrimup =
[
−10.22 kΩ
]
Note:
(
)
Vo _ req −Vo
delta =
×100
[%]
Vo
Vo_req=Desired (trimmed) output voltage [V]
Output voltage Vo=3.308 V
1500
1350
1200
1050
900
750
600
450
300
150
0
300
270
240
210
180
150
120
90
60
30
0
3.3 3.33 3.37 3.4 3.43 3.46 3.5 3.53 3.56 3.6 3.63
Adjusted output voltage Vo,adj(V)
2.64 2.71 2.77 2.84 2.9 2.97 3.04 3.1 3.17 3.23 3.3
Adjusted output voltage Vo,adj (V)
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
9
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input 3.3 Vdc /10 A Output, 1/16 Brick
Jun. 17, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Remote Sense
This module has remote sense compensation feature. It can minimizes the effects of resistance between
moudle's output and load in system layout and facilitates accutate voltage regulation at load terminals or
other selected point.
1. The remote sense lines carries very little current and hence do not require a large cross-sectional area.
2. This module compensates for a maximum drop of 10% of the nominal output voltage.
3. If the unit is already trimmed up, the available remote sense compensation range should be
correspondingly reduced. The total voltage increased by trim and remote sense should not exceed 10%
of the nominal output voltage.
4. When using remote sense compensation, all the resistance, parasitic inductance and capacitance of the
system are incorpotated within the feedback loop of this module. The can make an effect on the
module's compensation, affecting the stability and dynamic response. A 0.1uF ceramic capacitor can be
connected at the point of load to de-couple noise on the sense wires.
5. Recommend the connection of remote sense compensation as below figure. There are a resistor RS+
(100 ohm) from Vo+ to Sense+ and a resistor RS- (51 ohm)) from Vo- to Sense- inside of this module.
Vo+
Sense+
Load
Sense-
Vo-
6. If not using remote sense compensation, please connect sense directly to output at module's pin, that is,
connect sense+ to Vo+ and sense- to Vo- at module's pin, the shorter the better. See below figure.
Vo+
Sense+
Load
Sense-
Vo-
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
10
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input 3.3 Vdc /10 A Output, 1/16 Brick
Jun. 17, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Over Current Protection
To provide protection in a fault output overload condition, the module is equipped with internal current-limiting
circuitry and can endure current limiting for a few mili-seconds. If the overcurrent condition persists beyond a few
milliseconds, the module will shut down into hiccup mode and restart once every 400mS. The module operates
normally when the output current goes into specified range. The typical average output current is 1A during
hiccup.
48Vin
24Vin
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
11
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input 3.3 Vdc /10 A Output, 1/16 Brick
Jun. 17, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Over Temperature Protection
The OTP is achieved by thermistor R65 and the threshold is set at 120C in non-latch mode; the hottest
component Q5 reaches 130C with 100LFM air flow correspondingly. It will restart automatically when the
temperature falls down to 110C. The protecting point will be varied a little under different conditions (air flow,
ambient temperature, input voltage, load...).
The hottest component on the top side: Q5
Input Under-voltage Lockout
Under-voltage Lockout
The thermistor on the bottom side: R65
Voltage Falling
V1=16.8V
V2=17.2V
Voltage Rising
Input Voltage (V)
V1
V2
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
12
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input 3.3 Vdc /10 A Output, 1/16 Brick
Jun. 17, 2010
Mechanical Outline
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Pin Connections
Pin
Function
Pin Size
1
Vin+
0.040’’
2
3
4
5
6
7
8
On/Off
Vin-
0.040’’
0.040’’
0.062’’
0.040’’
0.040’’
0.040’’
0.062’’
Vout-
SENSE(-)
TRIM
SENSE(+)
Vout+
Note: This module is recommended and compatible with Pb-Free Wave Soldering and must be soldered
using a peak solder temperature of no more than 260ºC for less than 5 seconds.
Note:
1) All Pins: Material - Copper Alloy;
Finish – 3 micro inches minimum Gold over 50 micro inches minimum Nickel plate.
2) Undimensioned components are shown for visual reference only.
3) All dimensions in inches (mm); Tolerances: x.xx +/-0.02 in. (x.x +/-0.5mm) x.xxx +/-0.010 in. (x.xx +/-0.25mm).
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
13
ISOLATED DC/DC CONVERTERS
18 Vdc - 75 Vdc Input 3.3 Vdc /10 A Output, 1/16 Brick
Jun. 17, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Revision History
Date
Revision
Changes Detail
Approval
First release
2010-6-17
A
JZ Wang
RoHS Compliance
Complies with the European Directive 2002/95/EC, calling for the elimination of lead and
other hazardous substances from electronic products.
©2010 Bel Fuse Inc. Specifications subject to change without notice. 061710
14
CORPORATE
FAR EAST
EUROPE
Bel Fuse Inc.
Bel Fuse Ltd.
Bel Fuse Europe Ltd.
206 Van Vorst Street
Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
8F/ 8 Luk Hop Street
San Po Kong
Kowloon, Hong Kong
Tel 852-2328-5515
Fax 852-2352-3706
www.belfuse.com
Preston Technology Management Centre
Marsh Lane, Suite G7, Preston
Lancashire, PR1 8UD, U.K.
Tel 44-1772-556601
Fax 44-1772-888366
www.belfuse.com
厂商 型号 描述 页数 下载

BEL

 		0RSB-30T033G [ DC-DC Regulated Power Supply Module, 1 Output, 30W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-30T03LG [ DC-DC Regulated Power Supply Module, 1 Output, 30W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-30T120 [ DC-DC Regulated Power Supply Module, 1 Output, 36W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-30T12L [ DC-DC Regulated Power Supply Module, 1 Output, 36W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-30TV20 [ DC-DC Regulated Power Supply Module, 1 Output, 18W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-30TV50 [ DC-DC Regulated Power Supply Module, 1 Output, 19.5W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-30TV80G [ DC-DC Regulated Power Supply Module, 1 Output, 23W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-30TV8LG [ DC-DC Regulated Power Supply Module, 1 Output, 23W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-40U033 [ DC-DC Regulated Power Supply Module, 1 Output, 33W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 21 页

BEL

 		0RSB-40U03A 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 14 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.223750s
