WSN-3280

型号:

WSN-3280

描述:

无线传感器网络配件[ Wireless Sensor Network Accessories ]

品牌:

NI[ National Instruments ]

页数:

4 页

PDF大小:

779 K

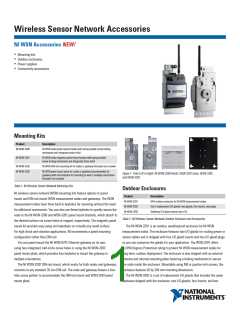

Wireless Sensor Network Accessories
NI WSN Accessories NEW!
◾
Mounting kits
◾
Outdoor enclosures
◾
Power supplies
◾
Connectivity accessories
Mounting Kits
Product
Description
NI WSN-3280
NI WSN node panel mount bracket with spring-loaded screw-locking
mechanism and integrated strain relief
NI WSN-3281
NI WSN node magnetic panel mount bracket with spring-loaded
screw-locking mechanism and integrated strain relief
NI WSN-3282
NI WSN-3283
NI WSN DIN-rail-mounting kit for nodes or gateway (includes four screws)
NI WSN panel mount plate for nodes or gateway (recommended for
gateway) with four keyholes for mounting to wall in multiple orientations
(includes four screws)
Figure 1. From Left to Right: NI WSN-3280 (front), WSN-3281 (rear), WSN-3282,
and WSN-3283
Table 1. NI Wireless Sensor Network Mounting Kits
Outdoor Enclosures
NI wireless sensor network (WSN) mounting kits feature options to panel
mount and DIN-rail mount WSN measurement nodes and gateways. The WSN
measurement nodes have three built-in keyholes for mounting without the need
for additional accessories. You can also use these keyholes to quickly secure the
node to the NI WSN-3280 and WSN-3281 panel mount brackets, which attach to
the desired surface via screw holes or magnet, respectively. The magnetic panel
mount kit provides easy setup and takedown on virtually any metal surface.
For high shock and vibration applications, NI recommends a panel mounting
configuration rather than DIN-rail.
Product
Description
NI WSN-3291
NI WSN-3292
NI WSN-3293
IP64 outdoor enclosure for NI WSN measurement nodes
Set of replacement I/O glands: two glands, four inserts, two plugs
Additional I/O gland inserts (set of 5)
Table 2. NI Wireless Sensor Network Outdoor Enclosure and Accessories
The NI WSN-3291 is an outdoor, weatherproof enclosure for NI WSN
measurement nodes. The enclosure features two I/O glands for routing power or
sensor cables and is shipped with four I/O gland inserts and two I/O gland plugs
so you can customize the glands for your application. The WSN-3291 offers
an IP64 (Ingress Protection) rating to protect NI WSN measurement nodes for
long-term, outdoor deployment. The enclosure is also shipped with an external
antenna and internal mounting plate featuring a locking mechanism to secure
the node inside the enclosure. Mountable using M6 or quarter-inch screws, the
enclosure features 82 by 204 mm mounting dimensions.
You can panel mount the NI WSN-9791 Ethernet gateway on its own
using two integrated, half-circle screw holes or using the NI WSN-3283
panel mount plate, which provides four keyholes to mount the gateway in
multiple orientations.
The NI WSN-3282 DIN-rail mount, which works for both nodes and gateways,
connects to any standard 35 mm DIN-rail. The node and gateway feature a four-
hole screw pattern to accommodate the DIN-rail mount and WSN-3283 panel
mount plate.
The NI WSN-3292 is a set of replacement I/O glands that includes the same
hardware shipped with the enclosure: two I/O glands, four inserts, and two
Wireless Sensor Network Accessories
plugs. The NI WSN-3293 contains four additional sizes of I/O gland inserts:
2-, 4-, 6-, and 10-hole inserts and one plug.
Connectivity Accessories
NI WSN measurement nodes are shipped with a built-in, two-position MINI-
COMBICON power connector and an 18-position, side-entry, screw-terminal I/O
connector. The NI WSN-3284 kit contains two extra 18-position screw-terminal
connectors and labels for the NI WSN-3202 analog input node, including
one top-entry connector and one side-entry connector. (The NI WSN-3285 kit
contains one top-entry connector and one side-entry connector, with labels for
the NI WSN-3212 thermocouple input node.) You can also obtain four extra
two-position power connectors to use with NI WSN Ethernet gateways or
measurement nodes.
In addition, NI offers a power connector backshell kit that contains a strain
relief attachment for the two-position power connector on the Ethernet gateway
and measurement nodes. This attachment clips on the MINI-COMBICON
connector and includes a zip tie to hold the power cable in place.
Figure 2. NI WSN-3291 Outdoor Enclosure with NI WSN Measurement Node (not included)
Power Supplies
These power supplies deliver external power to the NI WSN gateway or
measurement nodes. Requiring a 100 to 240 VAC, 47 to 63 Hz, and 0.4 A input,
the desktop power supply provides 12 VDC and up to 1.25 A, delivering up
to 15 W to the device. The desktop supply is rated for 0 to 70 °C operating
temperatures, and the power connector is a 3.5 mm, two-position MINI-
COMBICON connector. You must purchase region-specific power cords for
the desktop supply separately.
Figure 4. NI Wireless Sensor Network 18-Position Screw-Terminal Connectors and Power
Connector Backshell Kit
The PS-5 is a DIN-rail-mountable, 24 VDC power supply that you can use
to deliver power to the NI WSN gateway or measurement nodes, but NI
recommends it for the gateway. The PS-5 supply delivers up to 5 A of current
and is rated for operation from -25 to 60 °C. You can wire two PS-5 supplies in
parallel to deliver up to 10 A. NI recommends the PS-5 for industrial installations.
Figure 3. Desktop and PS-5 Power Supplies for NI Wireless Sensor Networks
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
2
Wireless Sensor Network Accessories
Ordering Information
NI WSN Starter Kit (Americas)......................................................781080-01
NI WSN Starter Kit (Europe/Asia) .................................................781080-11
Ethernet Gateway
NI WSN-9791 (Americas)...............................................................780996-01
NI WSN-9791 (Europe/Asia)..........................................................780996-11
Programmable Measurement Nodes
NI WSN-3202 (Americas)...............................................................780997-02
NI WSN-3202 (Europe/Asia)..........................................................780997-12
NI WSN-3212 (Americas)...............................................................780998-02
NI WSN-3212 (Europe/Asia)..........................................................780998-12
Nonprogrammable Measurement Nodes
NI WSN-3202 (Americas)...............................................................780997-01
NI WSN-3202 (Europe/Asia)..........................................................780997-11
NI WSN-3212 (Americas)...............................................................780998-01
NI WSN-3212 (Europe/Asia)..........................................................780998-11
Power Accessories
Desktop supply...............................................................................780703-01
U.S. power cord..............................................................................763000-01
PS-5 industrial supply ....................................................................778805-90
Mounting Accessories
NI WSN-3280.................................................................................780999-01
NI WSN-3281.................................................................................781073-01
NI WSN-3282.................................................................................781074-01
NI WSN-3283.................................................................................781075-01
Connectivity Accessories
NI WSN-3284.................................................................................781076-01
NI WSN-3285.................................................................................781077-01
Power connectors...........................................................................780702-01
Power connector backshell kit.......................................................196375-01
Outdoor Enclosure and Accessories
NI WSN-3291.................................................................................780994-01
NI WSN-3292.................................................................................195712-01
NI WSN-3293.................................................................................195738-01
BUY NOW
For complete product specifications, pricing, and accessory information,
call 800 813 3693 (U.S.) or go to ni.com/wsn.
BUY ONLINE at ni.com or CALL 800 813 3693 (U.S.)
3
NI Services and Support
NI has the services and support to meet
Local Sales and Technical Support
In offices worldwide, our staff is local to the country, giving you access to
engineers who speak your language. NI delivers industry-leading technical
support through online knowledge bases, our applications engineers,
and access to 14,000 measurement and automation professionals within NI
Developer Exchange forums. Find immediate answers to your questions at
ni.com/support.
I
your needs around the globe and through
A
the application life cycle – from planning
and development through deployment and
SERVICE
NEEDS
ongoing maintenance. We offer services
and service levels to meet customer
requirements in research, design, validation,
and manufacturing.
P
E
V
Y
We also offer service programs that provide automatic upgrades to your
application development environment and higher levels of technical support.
Visit ni.com/ssp.
Visit ni.com/services.
Training and Certification
NI training is the fastest, most certain route to productivity with our products.
NI training can shorten your learning curve, save development time, and reduce
maintenance costs over the application life cycle. We schedule instructor-led
courses in cities worldwide, or we can hold a course at your facility. We also
offer a professional certification program that identifies individuals who have
high levels of skill and knowledge on using NI products.
Hardware Services
System Assurance Programs
NI system assurance programs are designed to make it even easier for you
to own an NI system. These programs include configuration and deployment
services for your NI PXI, CompactRIO, or Compact FieldPoint system. The NI Basic
System Assurance Program provides a simple integration test and ensures that
your system is delivered completely assembled in one box. When you configure
your system with the NI Standard System Assurance Program, you can select
from available NI system driver sets and application development environments
to create customized, reorderable software configurations. Your system arrives
fully assembled and tested in one box with your software preinstalled. When
you order your system with the standard program, you also receive system-
specific documentation including a bill of materials, an integration test report,
a recommended maintenance plan, and frequently asked question documents.
Finally, the standard program reduces the total cost of owning an NI system
by providing three years of warranty coverage and calibration service. Use the
online product advisors at ni.com/advisor to find a system assurance program
to meet your needs.
Visit ni.com/training.
Professional Services
Our NI Professional Services team is composed of NI applications and systems
engineers and a worldwide National Instruments Alliance Partner program of
more than 600 independent consultants and integrators. Services range from
start-up assistance to turnkey system
integration. Visit ni.com/alliance.
OEM Support
We offer design-in consulting and product integration assistance if you want to
use our products for OEM applications. For information about special pricing and
services for OEM customers, visit ni.com/oem.
Calibration Services
NI recognizes the need to maintain properly calibrated devices for high-
accuracy measurements. We provide manual calibration procedures, services
to recalibrate your products, and automated calibration software specifically
designed for use by metrology laboratories. Visit ni.com/calibration.
Repair and Extended Warranty
NI provides complete repair services for our products. Express repair and
advance replacement services are also available. We offer extended warranties
to help you meet project life-cycle requirements. Visit ni.com/services.
n
ni.com 800 813 3693
n
National Instruments info@ni.com
©2009 National Instruments. All rights reserved. CompactRIO, FieldPoint, National Instruments, National Instruments Alliance Partner, NI, and ni.com are trademarks of National Instruments. Other product and company names listed
are trademarks or trade names of their respective companies. A National Instruments Alliance Partner is a business entity independent from National Instruments and has no agency, partnership, or joint-venture relationship with
National Instruments. 2009-10859-161-101-D
厂商 型号 描述 页数 下载

NI

WSN-3202 无线传感器网络的可编程模拟输入测量节点[ Wireless Sensor Network Programmable Analog Input Measurement Nodes ] 11 页

MINI

WSN-4G 频率合成器[ Frequency Synthesizer ] 13 页

MINI

WSN-4G+ 频率合成器[ Frequency Synthesizer ] 13 页

MINI

WSN-4G+F96 [ PLL/Frequency Synthesis Circuit ] 13 页

NI

WSN-9791 无线传感器网络的以太网网关[ Wireless Sensor Network Ethernet Gateway ] 6 页

VISHAY

WSN0001113R0FEA [ RESISTOR, WIRE WOUND, 1 W, 1 %, 20 ppm, 113 ohm, SURFACE MOUNT, 2515, CHIP, GREEN ] 3 页

VISHAY

WSN0001129R0DEK [ Fixed Resistor, Wire Wound, 1W, 129ohm, 0.5% +/-Tol, 20ppm/Cel, Surface Mount, 2515, CHIP, GREEN ] 3 页

VISHAY

WSN0001135R0DTA [ Fixed Resistor, Wire Wound, 1W, 135ohm, 0.5% +/-Tol, 20ppm/Cel, Surface Mount, 2515, CHIP ] 3 页

VISHAY

WSN00011K240FEA [ RESISTOR, WIRE WOUND, 1 W, 1 %, 20 ppm, 1240 ohm, SURFACE MOUNT, 2515, CHIP, GREEN ] 3 页

VISHAY

WSN00011K500BEA 线绕电阻器,精密电源,表面贴装[ Wirewound Resistors, Precision Power, Surface Mount ] 3 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.162237s
