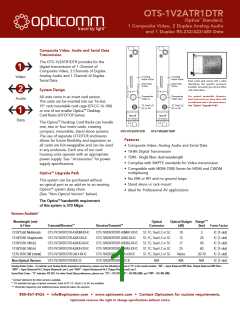

OTS-1V2ATR1DTR
Optiva™ Standard,
1 Composite Video, 2 Duplex Analog Audio
and 1 Duplex RS-232/422/485 Data
Composite Video, Audio and Serial Data
Transmission
The OTS-1V2ATR1DTR provides for the
digital transmission of 1 Channel of
Composite Video, 2 Channels of Duplex
Analog Audio and 1 Channel of Duplex
Serial Data.
2 Analog
2 Analog
Video
Audio
Data
Audio In/Out
Audio Out/In
Each insert card comes with a label
identifying the specific protocols
handled, connector pin-out and other
vital information.
Serial Data
In/Out
Serial Data
Out/In
A
L
E
R
T
A
L
E
R
T
S
S
T
A
T
U
S
T
A
T
U
S
System Design
For optimal bandwidth allocation,
each insert card can daisy-chain with
an additional card in the same chassis.
See “Optiva™ Upgrade Path”.
Composite
Video In
Composite
Video Out
All units come in an insert card version.
The cards can be inserted into our 16-slot,
19” rack-mountable card cage (OT-CC-16-100)
or one of our smaller Optiva™ Desktop
Card Racks (OT-DTCR Series).
ST, Dual LC,
SC or FC
ST, Dual LC,
SC or FC
™
™
Optiav
Optiav
VAD Transmission
VAD Transmission
The Optiva™ Desktop Card Racks can handle
one, two or four insert cards, creating
compact, mountable, stand alone systems.
The use of separate OT-DTCR enclosures
allows for future flexibility and expansion as
all cards are hot-swappable and can be used
in any enclosure. Each one of our card
housing units operate with an appropriate
power supply. See “Accessories” for power
supply specifications.
OTS-1VT2ATR1DTR
OTS-1VR2ART1DRT
Features
• Composite Video, Analog Audio and Serial Data
• 10-Bit Digital Transmission
• TDM - Single fiber, dual wavelength
• Complies with SMPTE standards for Video transmission
• Compatible with MDM-7000 Series for WDM and CWDM
multiplexing
Optiva™ Upgrade Path
• No EMI or RFI and no ground loops
• Stand alone or rack-mount
This system can be purchased without
an optical port as an add-on to an existing
Optiva™ system daisy-chain.
• Ideal for Professional AV applications
(See “Non-Optical Version” below).
The Optiva™ bandwidth requirement
of this system is 370 Mbps.
Versions Available*
Wavelength (nm)
& Fiber
Optical
Connector
Optical Budget Range***
Transmit/Receive**
Receive/Transmit**
(dB)
(km) Form Factor
1310/1550 Multimode
OTS-1VT2ATR1DTR-A1/A3M-XX-IC
OTS-1VR2ATR1DRT-A3M/A1-XX-IC
OTS-1VR2ATR1DRT-A3/A2-XX-IC
OTS-1VR2ATR1DRT-A3D/A2-XX-IC
OTS-1VR2ATR1DRT-A3H/A2-XX-IC
OTS-1VR2ATR1DRT-L4/L4-XX-IC
ST, FC, Dual LC or SC
ST, FC, Dual LC or SC
ST, FC, Dual LC or SC
ST, FC, Dual LC or SC
ST, FC, Dual LC or SC
10
12
3
20
IC (1-slot)
IC (1-slot)
IC (1-slot)
IC (1-slot)
IC (1-slot)
1310/1550 Singlemode OTS-1VT2ATR1DTR-A2/A3-XX-IC
1310/1550 SM (D)
1310/1550 SM (H)
1270-1610 SM (CWDM)
OTS-1VT2ATR1DTR-A2/A3D-XX-IC
OTS-1VT2ATR1DTR-A2/A3H-XX-IC
OTS-1VT2ATR1DTR-L4/L4-XX-IC
17
40
25
60
Varies
20-70
Non-Optical Version
OTS-1VT2ATR1DTR-NOC-IC
OTS-1VR2ATR1DRT-NOC-IC
N/A
N/A
N/A
IC (1-slot)
Analog Audio Codes - To indicate your Analog Audio impedance preference, please use the following instead of "A" in the model number: "AB" = Input Balanced 600 Ohm, Output Balanced 600 Ohm;
"ABH" = Input Balanced Hi-Z, Output Balanced Low-Z; and "AUH" = Input Unbalanced Hi-Z, Output Unbalanced Low-Z.
Serial Data Codes - "D" indicates RS-232. For other Serial Data preferences, please use: "DJ" = RS-422; "DK" = RS-485 (2W); and "DW" = RS-485 (4W).
* Contact Opticomm for other versions available.
** XX indicates the type of optical connector. Each of ST, FC, Dual LC or SC are available.
*** Chromatic dispersion and additional losses should be taken into account.
