MZ5004GW

型号：

MZ5004GW

描述：

集成硅压力传感器片上信号调节，温度补偿和校准[ Integrated Silicon Pressure Sensor On-Chip Signal Conditioned, Temperature Compensated and Calibrated ]

品牌：

FREESCALE[ Freescale ]

页数：

22 页

PDF大小：

464 K

下载PDF手册

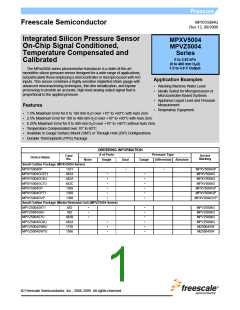

Pressure
MPXV5004G
Rev 12, 09/2009
Freescale Semiconductor
Integrated Silicon Pressure Sensor
On-Chip Signal Conditioned,
Temperature Compensated and
Calibrated
The MPxx5004 series piezoresistive transducer is a state-of-the-art
monolithic silicon pressure sensor designed for a wide range of applications,
but particularly those employing a microcontroller or microprocessor with A/D
inputs. This sensor combines a highly sensitive implanted strain gauge with
advanced micromachining techniques, thin-film metallization, and bipolar
processing to provide an accurate, high level analog output signal that is
proportional to the applied pressure.
MPXV5004
MPVZ5004
Series
0 to 3.92 kPa
(0 to 400 mm H2O)
1.0 to 4.9 V Output
Application Examples
• Washing Machine Water Level
• Ideally Suited for Microprocessor or
Microcontroller-Based Systems
• Appliance Liquid Level and Pressure
Measurement
Features
• Respiratory Equipment
• 1.5% Maximum Error for 0 to 100 mm H2O over +10° to +60°C with Auto Zero
• 2.5% Maximum Error for 100 to 400 mm H2O over +10° to +60°C with Auto Zero
• 6.25% Maximum Error for 0 to 400 mm H2O over +10° to +60°C without Auto Zero
• Temperature Compensated over 10° to 60°C
• Available in Gauge Surface Mount (SMT) or Through-Hole (DIP) Configurations
• Durable Thermoplastic (PPS) Package
ORDERING INFORMATION
# of Ports
Single
Pressure Type
Case
No.
Device
Marking
Device Name
None
Dual
Gauge
Differential Absolute
Small Outline Package (MPXV5004 Series)
MPXV5004DP
1351
482A
482A
482C
1369
1369
1368
•
•
MPXV5004DP
MPXV5004G
MPXV5004G
MPXV5004G
MPXV5004GP
MPXV5004GP
MPXV5004GVP
MPXV5004GC6T1
MPXV5004GC6U
MPXV5004GC7U
MPXV5004GP
•
•
•
•
•
•
•
•
•
•
•
•
MPXV5004GPT1
MPXV5004GVP
Small Outline Package (Media Resistant Gel) (MPVZ5004 Series)
MPVZ5004G6T1
MPVZ5004G6U
MPVZ5004G7U
MPVZ5004GC6U
MPVZ5004GW6U
MPVZ5004GW7U
482
482
•
•
•
•
•
•
•
•
•
MPVZ5004G
MPVZ5004G
MPVZ5004G
MPVZ5004G
MZ5004GW
MZ5004GW
482B
482A
1735
1560
•
•
•
© Freescale Semiconductor, Inc., 2006-2009. All rights reserved.
Pressure
SMALL OUTLINE PACKAGES THROUGH-HOLE
MPVZ5004G7U
CASE 482B-03
MPXV5004GC7U
CASE 482C-03
MPVZ5004GW7U
CASE 1560-02
SMALL OUTLINE PACKAGES SURFACE MOUNT
MPVZ5004G6U/6T1
CASE 482-01
MPXV5004G6U/6T1, MPVZ5004GC6U
CASE 482A-01
MPXV5004DP
CASE 1351-01
MPXV5004GVP
CASE 1368-01
MPVZ5004GW6U
CASE 1735-01
MPXV5004GP/GPT1
CASE 1369-01
MPXV5004G
Sensors
2
Freescale Semiconductor
Pressure
Operating Characteristics
Table 1. Operating Characteristics (VS = 5.0 VDC, TA = 25°C unless otherwise noted, P1 > P2)
Characteristic
Symbol
Min
Typ
Max
Units
Pressure Range
POP
0
—
3.92
400
kPa
mm H2O
Supply Voltage(1)
Supply Current
VS
IS
4.75
—
5.0
—
5.25
10
VDC
mAdc
V
Span @ 306 mm H2O (3 kPa)(2)
VFSS
—
—
3.0
4.0
—
—
Full Scale Span @ 400 mm H2O (3.92 kPa)(2)
Offset(3)
VOFF
V/P
—
0.75
—
1.0
1.0
—
1.25
—
V
Sensitivity
V/kPa
Accuracy (4) (5)
0 to 100 mm H2O (10 to 60°C)
—
±1.5
%VFSS withauto
zero
100 to 400 mm H2O (10 to 60°C)
0 to 400 mm H2O (10 to 60°C
—
—
—
—
—
—
±2.5
%VFSS withauto
zero
%VFSS without
auto zero
±6.25
1. Device is ratiometric within this specified excitation range.
2. Span is defined as the algebraic difference between the output voltage at specified pressure and the output voltage at the minimum rated
pressure.
3. Offset (Voff) is defined as the output voltage at the minimum rated pressure.
4. Accuracy (error budget) consists of the following:
Linearity:Output deviation from a straight line relationship with pressure over the specified pressure range.
Temperature Hysteresis:Output deviation at any temperature within the operating temperature range, after the temperature is cycled to and
from the minimum or maximum operating temperature points, with zero differential pressure applied.
Pressure Hysteresis:Output deviation at any pressure within the specified range, when this pressure is cycled to and from the minimum or
maximum rated pressure, at 25°C.
Offset Stability:Output deviation, after 1000 temperature cycles, -30 to 100°C, and 1.5 million pressure cycles, with minimum rated pressure
applied.
TcSpan:Output deviation over the temperature range of 10 to 60°C, relative to 25°C.
TcOffset:Output deviation with minimum rated pressure applied, over the temperature range of 10 to 60°C, relative to 25°C.
Variation from Nominal:The variation from nominal values, for Offset or Full Scale Span, as a percent of VFSS, at 25°C.
5. Auto Zero at Factory Installation: Due to the sensitivity of the MPVZ5004G, external mechanical stresses and mounting position can affect
the zero pressure output reading. Autozeroing is defined as storing the zero pressure output reading and subtracting this from the device's
output during normal operations. Reference AN1636 for specific information. The specified accuracy assumes a maximum temperature
change of ±5°C between autozero and measurement.
MPXV5004G
Sensors
Freescale Semiconductor
3
Pressure
Maximum Ratings
Table 2. Maximum Ratings(1)
Rating
Symbol
PMAX
TSTG
TA
Value
16
Unit
kPa
°C
Maximum Pressure (P1 > P2)
Storage Temperature
–30 to +100
0 to +85
Operating Temperature
°C
1. Exposure beyond the specified limits may cause permanent damage or degradation to the device.
Figure 1 shows a block diagram of the internal circuitry integrated on a pressure sensor chip.
VS
2
Gain Stage #2
and
Ground
Reference
Shift Circuitry
Thin Film
Temperature
Compensation
and Calibration
Circuitry
4
Sensing
Element
VOUT
Pins 1, 5, 6, 7, and 8 are NO CONNECTS
for small outline package device.
3
GND
Figure 1. Integrated Pressure Sensor Schematic
On-chip Temperature Compensation and Calibration
The performance over temperature is achieved by
integrating the shear-stress strain gauge, temperature
compensation, calibration and signal conditioning circuitry
onto a single monolithic chip.
Figure 2 illustrates the gauge configuration in the basic
chip carrier (Case 482). A fluorosilicone gel isolates the die
surface and wire bonds from the environment, while allowing
the pressure signal to be transmitted to the silicon diaphragm.
The MPxx5004G series sensor operating characteristics
are based on use of dry air as pressure media. Media, other
than dry air, may have adverse effects on sensor
qualification test for dry air, and other media, are available
from the factory. Contact the factory for information regarding
media tolerance in your application.
Figure 3 shows the recommended decoupling circuit for
interfacing the output of the MPxx5004G to the A/D input of
the microprocessor or microcontroller. Proper decoupling of
the power supply is recommended.
Typical, minimum and maximum output curves are shown
for operation over a temperature range of 10°C to 60°C using
the decoupling circuit shown in Figure 3. The output will
saturate outside of the specified pressure range.
performance and long-term reliability. Internal reliability and
Stainless
Steel Cap
Fluorosilicone
Gel Die Coat
Die
P1
Thermoplastic
Case
Wire Bond
Lead Frame
P2
Die Bond
Differential Sensing Element
Figure 2. Cross-Sectional Diagram (Not to Scale)
MPXV5004G
Sensors
4
Freescale Semiconductor
Pressure
+5 V
OUTPUT
Vout
Vs
IPS
GND
1.0 μF
470 pF
0.01 μF
Figure 3. Recommended Power Supply Decoupling and Output Filtering
(For additional output filtering, please refer to AN1646.)
5.0
5.0
4.0
TRANSFER FUNCTION:
out = VS*[(0.2*P) + 0.2] ± 2.5% VFSS
TRANSFER FUNCTION:
out = VS*[(0.2*P) + 0.2] ± 6.25% VFSS
VS = 5.0 Vdc
V
V
4.0
3.0
2.0
VS = 5.0 Vdc
TEMP = 10 to 60°C
TEMP = 10 to 60°C
3.0
2.0
MAX
MAX
TYPICAL
TYPICAL
MIN
MIN
1.0
0
1.0
0
0
1.0
2.0
Differential Pressure (kPa)
3.0
4.0
0
1.0
2.0
3.0
4.0
Differential Pressure (kPa)
Figure 4. Output vs. Pressure Differential
at ±6.25% VFSS (without auto zero, Table 1., note 5)
Figure 5. Output vs. Pressure Differential
at ±2.5% VFSS (with auto zero, Table 1., note 5))
PRESSURE (P1)/VACUUM (P2) SIDE IDENTIFICATION TABLE
Freescale Semiconductor designates the two sides of the
The Freescale Semiconductor pressure sensor is
designed to operate with positive differential pressure
applied, P1 > P2.
The Pressure (P1) side may be identified by using the
table below.
pressure sensor as the Pressure (P1) side and the Vacuum
(P2) side. The Pressure (P1) side is the side containing
silicone gel which isolates the die from the environment.
Part Number
Case Type
Pressure (P1) Side Identifier
Side with Part Marking
MPXV5004DP
1351
482A
MPXV5004GC6U/6T1,
MPVZ5004GC6U
Side with Port Attached
MPXV5004GC7U
MPXV5004GP/GPT1
MPXV5004GVP
Side with Port Attached
Side with Port Attached
Stainless Steel Cap
Stainless Steel Cap
Stainless Steel Cap
Vertical Port Attached
Vertical Port Attached
482C
1369
1368
482
MPVZ5004G6U/6T1
MPVZ5004G7U
482B
1735
1560
MPVZ5004GW6U
MPVZ5004GW7U
MPXV5004G
Sensors
Freescale Semiconductor
5
Pressure
INFORMATION FOR USING THE SMALL OUTLINE PACKAGE (CASE 482)
MINIMUM RECOMMENDED FOOTPRINT FOR SURFACE
MOUNTED APPLICATIONS
between the board and the package. With the correct
footprint, the packages will self align when subjected to a
solder reflow process. It is always recommended to design
boards with a solder mask layer to avoid bridging and
shorting between solder pads.
Surface mount board layout is a critical portion of the total
design. The footprint for the surface mount packages must be
the correct size to ensure proper solder connection interface
0.100 TYP 8X
2.54
0.660
16.76
0.060 TYP 8X
1.52
0.300
7.62
inch
0.100 TYP 8X
2.54
mm SCALE 2:1
Figure 6. SOP Footprint (Case 482)
MPXV5004G
Sensors
6
Freescale Semiconductor
Pressure
PACKAGE DIMENSIONS
-A-
D 8 PL
0.25 (0.010)
4
1
M
S
S
A
T
B
5
8
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. DIMENSION A AND B DO NOT INCLUDE MOLD
PROTRUSION.
-B-
G
4. MAXIMUM MOLD PROTRUSION 0.15 (0.006).
5. ALL VERTICAL SURFACES 5˚ TYPICAL DRAFT.
INCHES
MIN MAX
MILLIMETERS
S
N
DIM
A
B
C
D
G
H
J
K
M
N
MIN
10.54
10.54
5.38
MAX
10.79
10.79
5.84
0.415 0.425
0.415 0.425
0.212 0.230
0.038 0.042
0.100 BSC
0.96
1.07
2.54 BSC
0.002 0.010
0.009 0.011
0.061 0.071
0.05
0.23
1.55
0˚
0.25
0.28
1.80
7˚
H
C
J
0˚
7˚
-T-
0.405 0.415
0.709 0.725
10.29
18.01
10.54
18.41
SEATING
PLANE
S
PIN 1 IDENTIFIER
K
M
CASE 482-01
ISSUE O
SMALL OUTLINE PACKAGE
SURFACE MOUNT
-A-
D 8 PL
4
M
S
S
A
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. DIMENSION A AND B DO NOT INCLUDE MOLD
PROTRUSION.
0.25 (0.010)
T
B
5
8
N
-B-
4. MAXIMUM MOLD PROTRUSION 0.15 (0.006).
5. ALL VERTICAL SURFACES 5˚ TYPICAL DRAFT.
G
1
INCHES
MIN MAX
MILLIMETERS
DIM
A
B
C
D
G
H
J
K
M
N
MIN
10.54
10.54
12.70
0.96
MAX
10.79
10.79
13.21
1.07
S
0.415 0.425
0.415 0.425
0.500 0.520
0.038 0.042
0.100 BSC
W
2.54 BSC
0.002 0.010
0.009 0.011
0.061 0.071
0.05
0.23
1.55
0˚
0.25
0.28
1.80
7˚
V
0˚
7˚
C
0.444 0.448
0.709 0.725
0.245 0.255
0.115 0.125
11.28
18.01
6.22
2.92
11.38
18.41
6.48
3.17
S
V
W
H
J
-T-
SEATING
PLANE
PIN 1 IDENTIFIER
M
K
CASE 482A-01
ISSUE A
SMALL OUTLINE PACKAGE
SURFACE MOUNT
MPXV5004G
Sensors
Freescale Semiconductor
7
Pressure
PACKAGE DIMENSIONS
–A–
NOTES:
4
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. DIMENSION A AND B DO NOT INCLUDE MOLD
PROTRUSION.
4. MAXIMUM MOLD PROTRUSION 0.15 (0.006).
5. ALL VERTICAL SURFACES 5 TYPICAL DRAFT.
6. DIMENSION S TO CENTER OF LEAD WHEN
FORMED PARALLEL.
5
–B–
8
G
D 8 PL
1
M
S
S
0.25 (0.010)
T
B
A
INCHES
MILLIMETERS
DIM
A
B
C
D
G
J
K
M
N
S
MIN
MAX
0.425
0.425
0.220
0.034
MIN
10.54
10.54
5.33
0.66
2.54 BSC
0.23
2.54
0
10.29
13.72
MAX
10.79
10.79
5.59
DETAIL X
0.415
0.415
0.210
0.026
S
N
PIN 1 IDENTIFIER
0.864
0.100 BSC
0.009
0.100
0
0.405
0.540
0.011
0.120
15
0.415
0.560
0.28
3.05
15
10.54
14.22
C
SEATING
PLANE
–T–
K
M
J
DETAIL X
CASE 482B-03
ISSUE B
SMALL OUTLINE PACKAGE
THROUGH-HOLE
NOTES:
1. DIMENSIONING AND TOLERANCING PER
ANSI Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. DIMENSION A AND B DO NOT INCLUDE
MOLD PROTRUSION.
-A-
4
5
4. MAXIMUM MOLD PROTRUSION 0.15 (0.006).
5. ALL VERTICAL SURFACES 5˚ TYPICAL DRAFT.
6. DIMENSION S TO CENTER OF LEAD WHEN
FORMED PARALLEL.
N
-B-
D 8 PL
G
M
S
S
A
INCHES
MILLIMETERS
8
0.25 (0.010)
T B
1
DIM MIN MAX MIN
MAX
10.79
10.79
13.21
0.864
A
B
C
D
G
J
K
M
N
S
0.415
0.425 10.54
0.425 10.54
0.520 12.70
DETAIL X
0.415
0.500
0.026
S
W
0.034
0.66
0.100 BSC
2.54 BSC
0.009
0.100
0˚
0.011
0.120
15˚
0.23
2.54
0˚
0.28
3.05
15˚
V
PIN 1
IDENTIFIER
0.444
0.540
0.245
0.115
0.448 11.28
0.560 13.72
11.38
14.22
6.48
3.17
C
V
W
0.255
0.125
6.22
2.92
SEATING
PLANE
-T-
K
M
J
DETAIL X
CASE 482C-03
ISSUE B
SMALL OUTLINE PACKAGE
THROUGH-HOLE
MPXV5004G
Sensors
Freescale Semiconductor
8
Pressure
PACKAGE DIMENSIONS
PAGE 1 OF 2
CASE 1351-01
ISSUE A
SMALL OUTLINE PACKAGE
SURFACE MOUNT
MPXV5004G
Sensors
Freescale Semiconductor
9
Pressure
PACKAGE DIMENSIONS
PAGE 2 OF 2
CASE 1351-01
ISSUE A
SMALL OUTLINE PACKAGE
SURFACE MOUNT
MPXV5004G
10
Sensors
Freescale Semiconductor
Pressure
PACKAGE DIMENSIONS
PAGE 1 OF 3
CASE 1368-01
ISSUE B
SMALL OUTLINE PACKAGE
SURFACE MOUNT
MPXV5004G
Sensors
Freescale Semiconductor
11
Pressure
PACKAGE DIMENSIONS
PAGE 2 OF 3
CASE 1368-01
ISSUE B
SMALL OUTLINE PACKAGE
SURFACE MOUNT
MPXV5004G
12
Sensors
Freescale Semiconductor
Pressure
PACKAGE DIMENSIONS
PAGE 3 OF 3
CASE 1368-01
ISSUE B
SMALL OUTLINE PACKAGE
SURFACE MOUNT
MPXV5004G
Sensors
Freescale Semiconductor
13
Pressure
PACKAGE DIMENSIONS
PAGE 1 OF 2
CASE 1369-01
ISSUE B
SMALL OUTLINE PACKAGE
MPXV5004G
14
Sensors
Freescale Semiconductor
Pressure
PACKAGE DIMENSIONS
PAGE 2 OF 2
CASE 1369-01
ISSUE B
SMALL OUTLINE PACKAGE
MPXV5004G
Sensors
Freescale Semiconductor
15
Pressure
PACKAGE DIMENSIONS
PAGE 1 OF 3
1560-03
ISSUE C
SMALL OUTLINE PACKAGE
MPXV5004G
16
Sensors
Freescale Semiconductor
Pressure
PACKAGE DIMENSIONS
PAGE 2 OF 3
CASE 1560-03
ISSUE D
SMALL OUTLINE PACKAGE
MPXV5004G
Sensors
Freescale Semiconductor
17
Pressure
PACKAGE DIMENSIONS
PAGE 3 OF 3
CASE 1560-03
ISSUE D
SMALL OUTLINE PACKAGE
MPXV5004G
18
Sensors
Freescale Semiconductor
Pressure
PACKAGE DIMENSIONS
PAGE 1 OF 3
CASE 1735-02
ISSUE B
SMALL OUTLINE PACKAGE
MPXV5004G
Sensors
Freescale Semiconductor
19
Pressure
PACKAGE DIMENSIONS
PAGE 2 OF 3
CASE 1735-02
ISSUE B
SMALL OUTLINE PACKAGE
MPXV5004G
20
Sensors
Freescale Semiconductor
Pressure
PACKAGE DIMENSIONS
PAGE 3 OF 3
CASE 1735-02
ISSUE B
SMALL OUTLINE PACKAGE
MPXV5004G
Sensors
Freescale Semiconductor
21
How to Reach Us:
Home Page:
www.freescale.com
Web Support:
http://www.freescale.com/support
USA/Europe or Locations Not Listed:
Freescale Semiconductor, Inc.
Technical Information Center, EL516
2100 East Elliot Road
Tempe, Arizona 85284
1-800-521-6274 or +1-480-768-2130
www.freescale.com/support
Europe, Middle East, and Africa:
Freescale Halbleiter Deutschland GmbH
Technical Information Center
Schatzbogen 7
81829 Muenchen, Germany
+44 1296 380 456 (English)
+46 8 52200080 (English)
+49 89 92103 559 (German)
+33 1 69 35 48 48 (French)
www.freescale.com/support
Information in this document is provided solely to enable system and software
implementers to use Freescale Semiconductor products. There are no express or
implied copyright licenses granted hereunder to design or fabricate any integrated
circuits or integrated circuits based on the information in this document.
Freescale Semiconductor reserves the right to make changes without further notice to
any products herein. Freescale Semiconductor makes no warranty, representation or
guarantee regarding the suitability of its products for any particular purpose, nor does
Freescale Semiconductor assume any liability arising out of the application or use of any
product or circuit, and specifically disclaims any and all liability, including without
limitation consequential or incidental damages. “Typical” parameters that may be
provided in Freescale Semiconductor data sheets and/or specifications can and do vary
in different applications and actual performance may vary over time. All operating
parameters, including “Typicals”, must be validated for each customer application by
customer’s technical experts. Freescale Semiconductor does not convey any license
under its patent rights nor the rights of others. Freescale Semiconductor products are
not designed, intended, or authorized for use as components in systems intended for
surgical implant into the body, or other applications intended to support or sustain life,
or for any other application in which the failure of the Freescale Semiconductor product
could create a situation where personal injury or death may occur. Should Buyer
purchase or use Freescale Semiconductor products for any such unintended or
unauthorized application, Buyer shall indemnify and hold Freescale Semiconductor and
its officers, employees, subsidiaries, affiliates, and distributors harmless against all
claims, costs, damages, and expenses, and reasonable attorney fees arising out of,
directly or indirectly, any claim of personal injury or death associated with such
unintended or unauthorized use, even if such claim alleges that Freescale
Japan:
Freescale Semiconductor Japan Ltd.
Headquarters
ARCO Tower 15F
1-8-1, Shimo-Meguro, Meguro-ku,
Tokyo 153-0064
Japan
0120 191014 or +81 3 5437 9125
support.japan@freescale.com
Asia/Pacific:
Freescale Semiconductor China Ltd.
Exchange Building 23F
No. 118 Jianguo Road
Chaoyang District
Beijing 100022
China
+86 10 5879 8000
support.asia@freescale.com
Semiconductor was negligent regarding the design or manufacture of the part.
For Literature Requests Only:
Freescale Semiconductor Literature Distribution Center
1-800-441-2447 or +1-303-675-2140
Fax: +1-303-675-2150
Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc.
All other product or service names are the property of their respective owners.
LDCForFreescaleSemiconductor@hibbertgroup.com
© Freescale Semiconductor, Inc. 2009. All rights reserved.
MPXV5004G
Rev. 12
09/2009
厂商 型号 描述 页数 下载

MOTOROLA

 		MZ500-11 [ Zener Diode, 6.2V V(Z), 10%, 0.4W, Silicon, Unidirectional, DO-7, MINIATURE, PLASTIC, CASE 51, 2 PIN ] 2 页

MOTOROLA

 		MZ500-4 [ 3.3V, 0.4W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-7, MINIATURE, PLASTIC, CASE 51, 2 PIN ] 2 页

TE

 		MZ5010 三重平衡混频器[ Triple-Balanced Mixer ] 3 页

TE

 		MZ5010C 三重平衡混频器[ Triple-Balanced Mixer ] 3 页

FREESCALE

 		MZ5010G 集成硅压力传感器片上信号调节，温度补偿和校准[ Integrated Silicon Pressure Sensor On-Chip Signal Conditioned, Temperature Compensated and Calibrated ] 14 页

FREESCALE

 		MZ5010GW 集成硅压力传感器片上信号调节，温度补偿和校准[ Integrated Silicon Pressure Sensor On-Chip Signal Conditioned, Temperature Compensated and Calibrated ] 14 页

ETC

 		MZ51256-25 X8 SRAM\n[ x8 SRAM ] 9 页

ETC

 		MZ51256-35 X8 SRAM\n[ x8 SRAM ] 9 页

ETC

 		MZ51256-45 X8 SRAM\n[ x8 SRAM ] 9 页

ETC

 		MZ51256-70 X8 SRAM\n[ x8 SRAM ] 9 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.189399s
