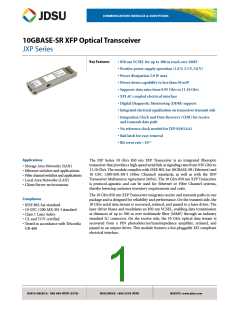

10GBASE-SR XFP Optical Transceiver
JXP Series
Key Features
• 850 nm VCSEL for up to 300 m reach over MMF
• Positive power supply operation (1.8 V, 3.3 V, 5.0 V)
• Power dissipation 2.0 W max
• Power-down capability to less than 50 mW
• Supports data rates from 9.95 Gb/s to 11.10 Gb/s
• XFI AC-coupled electrical interface
• Digital Diagnostic Monitoring (DDM) support
• Integrated electrical equalization on transceiver transmit side
• Integration Clock and Data Recovery (CDR) for receive
and transmit data path
• No reference clock needed for JXP-01SGAA1
• Bail latch for easy removal
• Bit error rate <10-12
Applications
The JXP Series 10 Gb/s 850 nm XFP Transceiver is an integrated fiberoptic
transceiver that provides a high-speed serial link at signaling rates from 9.95 Gb/s to
11.10 Gb/s. The module complies with IEEE 802.3ae 10GBASE-SR (Ethernet) and
10 GFC 1200-MX-SN-I (Fibre Channel) standards, as well as with the XFP
Transceiver Multisource Agreement (MSA). The 10 Gb/s 850 nm XFP Transceiver
is protocol-agnostic and can be used for Ethernet or Fibre Channel systems,
thereby lowering customer inventory requirements and costs.
• Storage Area Networks (SAN)
• Ethernet switches and applications
• Fibre channel switches and applications
• Local Area Networks (LAN)
• Client/Server environments
The 10 Gb/s 850 nm XFP Transceiver integrates receive and transmit paths in one
package and is designed for reliability and performance. On the transmit side, the
10 Gb/s serial data stream is recovered, retimed, and passed to a laser driver. The
laser driver biases and modulates an 850 nm VCSEL, enabling data transmission
at distances of up to 300 m over multimode fiber (MMF) through an industry
standard LC connector. On the receive side, the 10 Gb/s optical data stream is
recovered from a PIN photodetector/transimpedance amplifier, retimed, and
passed to an output driver. This module features a hot-pluggable XFI compliant
electrical interface.
Compliance
• IEEE 802.3ae standard
• 10 GFC 1200-MX-SN-I standard
• Class 1 Laser Safety
• UL and TUV certified
• Tested in accordance with Telcordia
GR-468
