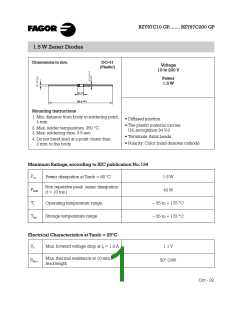

BZY97C10 GP........ BZY97C200 GP
1.5 W Zener Diodes
Dimensions in mm.
DO-41
(Plastic)
Voltage
10 to 200 V
Power
1.5 W
0.2
5
0.5
58.5
Mounting instructions
1. Min. distance from body to soldering point,
4 mm.
• Diffused junction
• The plastic material carries
U/L recognition 94 V-0
2. Max. solder temperature, 350 °C.
3. Max. soldering time, 3.5 sec.
• Terminals: Axial Leads
4. Do not bend lead at a point closer than
2 mm. to the body.
• Polarity: Color band denotes cathode
Maximum Ratings, according to IEC publication No.134
Power dissipation at Tamb = 60 oC
Ptot
1.5 W
Non repetitive peak zener dissipation
(t = 10 ms.)
PZSM
40 W
Tj
Operating temperature range
Storage temperature range
– 55 to + 175 °C
– 55 to + 175 °C
Tstg
Electrical Characteristics at Tamb = 25°C
VF
Max. forward voltage drop at IF = 1.0 A
1.1 V
Max. thermal resistance at 10 mm.
lead length
Rthj-a
50° C/W
Oct - 02
