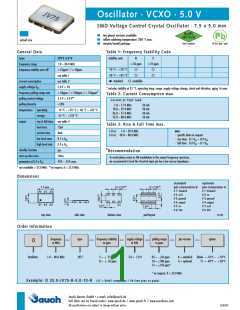

Oscillator · VCXO · 5.0 V
SMD Voltage Control Crystal Oscillator · 7.5 x 5.0 mm
RoHS
■
■
■
two pinout versions available
reflow soldering temperature: 260 °C max.
ceramic/metal package
2002/95/EC
actual size
RoHS compliant
Pb free: pins / pads
General Data
Table 1: Frequency Stability Code
type
JV75 5.0 V
1.0 ~ 80.0 MHz
25ppmꢀ / 50ppm
see table 1
stability code
B
50 ppm
O
C
25 ppm
O
frequency range
frequency stability over allꢀ
-10 °C ~ +70 °C
-40 °C ~ +85 °C
O
O
standard
O available
current consumption
supply voltage VDC
frequency pulling range min.
pulling control voltage
pulling linearity
see table 2
•
5.0 V 5ꢁ
50ppm / 100ppm / 150ppm▲
ꢀ includes stability at 25 °C, operating temp. range, supply voltage change, shock and vibration, aging 1st year.
Table 2: Current Consumption max.
Current at 15pF load:
■
2.5 V 2.0 V
<10ꢁ
1.0 ~ 17.9 MHz
18.0 ~ 35.9 MHz
36.0 ~ 51.9 MHz
52.0 ~ 80.0 MHz
20 mA
30 mA
40 mA
50 mA
temperature operating
storage
-10 °C ~ +70 °C / -40 °C ~ +85 °C
-55 °C ~ +125 °C
output
rise & fall time see table 3
Table 3: Rise & Fall Time max.
load max.
15pF
8mA
5.0 ns: 1.0 ~ 39.9 MHz
4.0 ns: 40.0 ~ 80.0 MHz
note:
current max.
- specific data on request
- rise time: 0.1 VDC ~ 0.9 VDC
- fall time: 0.9 VDC ~ 0.1 VDC
low level max. 0.1 x VDC
high level min. 0.9 x VDC
yes
■
standby function
Recommendation
start-up time max.
10ms
To avoid phase noise or FM modulation in the output frequency spectrum,
we recommend to feed the Vcontrol input pin by a low source impedance.
symmetry at 0.5 x VDC
45ꢁ ~ 55ꢁ max.
ꢀ not available > 52.0 MHz ▲on request, if < 52.0 MHz
Dimensions
standard
optional
0.1
0.1
7.5 max.
2 x 2.54
2 x 2.54
pin connection B pin connection A
# 1: Vcontrol
# 2: e/d
# 1: Vcontrol
# 2: nc
# 6 # 5 # 4
# 3: ground
# 4: output
# 5: nc
# 3: ground
# 4: output
# 5: e/d
# 1 # 2 # 3
0.1
# 1
0.1
1.4
1.8
# 6: VDD
# 6: VDD
in mm
top view
side view
bottom view
pad layout
Order Information
supply voltage
pulling range
in ppm
pin version
option
frequency
in MHz
type
frequency stability
in ppm
O
in Volt
Oscillator
1.0 ~ 80.0 MHz
JV75
C = 25 ppm
B = 50 ppm
5.0 = 5.0 V
05 = 50 ppm
10 = 100 ppm
15 = 150 ppmꢀ
B = standard blank = -10°C ~ + 70°C
A = optional T1 = -40°C ~ + 85°C
ꢀ on request, if < 52.0 MHz
Example: O 20.0-JV75-B-5.0-10-B (LF = RoHS compliant / Pb free pins or pads)
•
Jauch Quartz GmbH e-mail: info@jauch.de
full data can be found under: www.jauch.de / www.jauch.fr / www.jauchusa.com
All specifications are subject to change without notice
260209
