3SK322

型号:

3SK322

描述:

硅N沟道双栅MOS FET[ Silicon N-Channel Dual Gate MOS FET ]

品牌:

HITACHI[ HITACHI SEMICONDUCTOR ]

页数:

12 页

PDF大小:

92 K

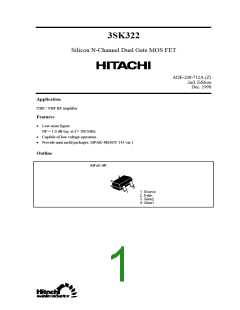

3SK322
Silicon N-Channel Dual Gate MOS FET
ADE-208-712A (Z)
2nd. Edition
Dec. 1998
Application
UHF / VHF RF amplifier
Features
·
Low noise figure.
NF = 1.0 dB typ. at f = 200 MHz
Capable of low voltage operation
Provide mini mold packages; MPAK-4R(SOT-143 var.)
·
·
Outline
3SK322
Absolute Maximum Ratings (Ta = 25°C)
Item
Symbol
VDS
Ratings
Unit
V
Drain to source voltage
Gate 1 to source voltage
Gate 2 to source voltage
Drain current
12
VG1S
VG2S
ID
±8
V
±8
V
25
mA
mW
°C
°C
Channel power dissipation
Channel temperature
Storage temperature
Pch
Tch
150
150
Tstg
–55 to +150
Attention: This device is very sensitive to electro static discharge.
It is recommended to adopt appropriate cautions when handling this transistor.
2
3SK322
Electrical Characteristics (Ta = 25°C)
Item
Symbol Min
12
Typ
Max
Unit
Test conditions
Drain to source breakdown voltage V(BR)DSX
V
ID = 200 µA , VG1S = –3 V,
VG2S = –3 V
Gate 1 to source breakdown
voltage
V(BR)G1SS ±8
V(BR) G2SS ±8
V
V
IG1 = ±10 µA, VG2S = VDS = 0
Gate 2 to source breakdown
voltage
IG2 = ±10 µA, VG1S = VDS = 0
Gate 1 cutoff current
Gate 2 cutoff current
Drain current
IG1SS
IG2SS
IDS(on)
±100
±100
10
nA
nA
mA
VG1S = ±6 V, VG2S = VDS = 0
VG2S = ±6 V, VG1S = VDS = 0
0.5
VDS = 6 V, VG1S = 0.75V,
VG2S = 3 V
Gate 1 to source cutoff voltage
Gate 2 to source cutoff voltage
Forward transfer admittance
Input capacitance
VG1S(off)
VG2S(off)
|yfs|
0
+1.0
+1.0
V
VDS = 10 V, VG2S = 3V,
ID = 100 µA
0
V
VDS = 10 V, VG1S = 3V,
ID = 100 µA
16
2.4
20
2.9
1.0
mS
pF
VDS = 6 V, VG2S = 3V,
ID = 10 mA, f = 1 kHz
Ciss
3.4
VDS = 6 V, VG2S = 3V,
ID = 10 mA, f = 1 MHz
Output capacitance
Reverse transfer capacitance
Power gain
Coss
Crss
PG
0.8
1.4
pF
pF
dB
0.023 0.04
22
25
VDS = 6 V, VG2S = 3V,
ID = 10 mA, f = 200 MHz
Noise figure
Power gain
NF
PG
1.0
15
1.8
dB
dB
12
VDS = 6 V, VG2S = 3V,
ID = 10 mA, f = 900 MHz
Noise figure
Noise figure
NF
NF
3.2
2.8
4.5
3.5
dB
dB
VDS = 6 V, VG2S = 3V,
ID = 10 mA, f = 60 MHz
Note: Marking is “ZW–”
3
3SK322
Main Characteristics
4
3SK322
5
3SK322
6
3SK322
7
3SK322
8
3SK322
9
3SK322
10
3SK322
S Parameter (VDS = 6 V, VG2S = 3 V, ID = 10 mA, ZO = 50 W)
Freq.
(MHz)
50
S11
S21
S12
S22
MAG.
0.994
0.993
0.986
0.980
0.973
0.950
0.936
0.924
0.912
0.893
0.874
0.859
0.846
0.829
0.810
0.802
0.791
0.778
0.756
0.751
ANG.
–5.8
MAG.
2.04
2.02
2.00
1.98
1.94
1.90
1.86
1.83
1.77
1.71
1.67
1.64
1.58
1.50
1.46
1.44
1.38
1.34
1.30
1.26
ANG.
173.6
167.4
161.5
155.5
149.6
142.6
137.1
131.6
126.8
121.0
115.5
111.1
106.7
102.1
97.1
MAG.
ANG.
76.9
85.7
78.2
73.5
68.7
63.9
64.3
64.5
60.9
53.5
49.3
49.0
50.2
49.3
46.6
43.7
44.7
43.6
45.1
40.7
MAG.
0.993
0.993
0.991
0.990
0.987
0.985
0.982
0.979
0.975
0.971
0.967
0.964
0.960
0.955
0.952
0.948
0.944
0.940
0.935
0.932
ANG.
–2.2
0.00116
0.00132
0.00229
0.00313
0.00427
0.00473
0.00536
0.00561
0.00562
0.00640
0.00638
0.00647
0.00667
0.00694
0.00661
0.00618
0.00622
0.00615
0.00576
0.00562
100
150
200
250
300
350
400
450
500
550
600
650
700
750
800
850
900
950
1000
–11.0
–16.8
–22.5
–27.8
–33.0
–38.3
–43.4
–48.0
–52.5
–57.3
–62.0
–66.1
–69.8
–74.2
–78.0
–81.6
–84.6
–88.5
–92.2
–4.5
–6.4
–8.5
–10.5
–12.5
–14.4
–16.2
–18.2
–20.2
–22.0
–23.9
–25.8
–27.6
–29.4
–31.2
–33.2
–35.1
–36.8
–38.5
92.7
88.9
84.2
80.2
75.9
11
3SK322
Cautions
1. Hitachi neither warrants nor grants licenses of any rights of Hitachi’s or any third party’s patent,
copyright, trademark, or other intellectual property rights for information contained in this document.
Hitachi bears no responsibility for problems that may arise with third party’s rights, including
intellectual property rights, in connection with use of the information contained in this document.
2. Products and product specifications may be subject to change without notice. Confirm that you have
received the latest product standards or specifications before final design, purchase or use.
3. Hitachi makes every attempt to ensure that its products are of high quality and reliability. However,
contact Hitachi’s sales office before using the product in an application that demands especially high
quality and reliability or where its failure or malfunction may directly threaten human life or cause risk
of bodily injury, such as aerospace, aeronautics, nuclear power, combustion control, transportation,
traffic, safety equipment or medical equipment for life support.
4. Design your application so that the product is used within the ranges guaranteed by Hitachi particularly
for maximum rating, operating supply voltage range, heat radiation characteristics, installation
conditions and other characteristics. Hitachi bears no responsibility for failure or damage when used
beyond the guaranteed ranges. Even within the guaranteed ranges, consider normally foreseeable
failure rates or failure modes in semiconductor devices and employ systemic measures such as fail-
safes, so that the equipment incorporating Hitachi product does not cause bodily injury, fire or other
consequential damage due to operation of the Hitachi product.
5. This product is not designed to be radiation resistant.
6. No one is permitted to reproduce or duplicate, in any form, the whole or part of this document without
written approval from Hitachi.
7. Contact Hitachi’s sales office for any questions regarding this document or Hitachi semiconductor
products.
12
