3SK321

型号：

3SK321

描述：

硅N沟道双栅MOS FET[ Silicon N-Channel Dual Gate MOS FET ]

品牌：

HITACHI[ HITACHI SEMICONDUCTOR ]

页数：

10 页

PDF大小：

61 K

下载PDF手册

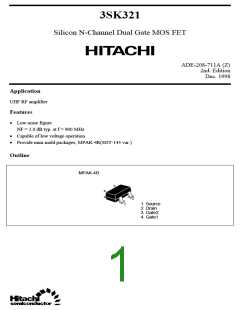

3SK321
Silicon N-Channel Dual Gate MOS FET
ADE-208-711A (Z)
2nd. Edition
Dec. 1998
Application
UHF RF amplifier
Features
•
Low noise figure.
NF = 2.0 dB typ. at f = 900 MHz
Capable of low voltage operation
Provide mini mold packages; MPAK-4R(SOT-143 var.)
•
•
Outline
MPAK-4R
3
4
2
1
1. Source
2. Drain
3. Gate2
4. Gate1
3SK321
Absolute Maximum Ratings (Ta = 25°C)
Item
Symbol
VDS
Ratings
Unit
V
Drain to source voltage
Gate 1 to source voltage
Gate 2 to source voltage
Drain current
12
VG1S
VG2S
ID
±8
V
±8
V
25
mA
mW
°C
°C
Channel power dissipation
Channel temperature
Storage temperature
Pch
Tch
150
150
Tstg
–55 to +150
Attention: This device is very sensitive to electro static discharge.
It is recommended to adopt appropriate cautions when handling this transistor.
Electrical Characteristics (Ta = 25°C)
Item
Symbol Min
V(BR)DSX 12
Typ
Max
Unit
Test conditions
Drain to source breakdown
voltage
—
—
V
ID = 200 µA , VG1S = –3 V,
VG2S = –3 V
Gate 1 to source breakdown
voltage
V(BR)G1SS ±8
V(BR) G2SS ±8
—
—
—
—
V
V
IG1 = ±10 µA, VG2S = VDS = 0
Gate 2 to source breakdown
voltage
IG2 = ±10 µA, VG1S = VDS = 0
Gate 1 cutoff current
Gate 2 cutoff current
Drain current
IG1SS
IG2SS
IDS(on)
—
—
—
—
±100
±100
10
nA
nA
mA
VG1S = ±6 V, VG2S = VDS = 0
VG2S = ±6 V, VG1S = VDS = 0
VDS = 6 V, VG1S = 0.5V,
—
0.5
V
G2S = 3 V
Gate 1 to source cutoff voltage VG1S(off)
Gate 2 to source cutoff voltage VG2S(off)
–0.5
0
—
+0.5
+1.0
—
V
VDS = 10 V, VG2S = 3V,
ID = 100 µA
—
V
VDS = 10 V, VG1S = 3V,
ID = 100 µA
Forward transfer admittance
Input capacitance
|yfs|
16
20.8
1.5
mS
pF
VDS = 6 V, VG2S = 3V,
ID = 10 mA, f = 1 kHz
Ciss
Coss
1.2
2.2
VDS = 6 V, VG2S = 3V,
ID = 10 mA, f = 1 MHz
Output capacitance
0.6
—
0.9
1.2
0.03
—
pF
pF
dB
Reverse transfer capacitance Crss
0.01
19.5
Power gain
PG
16
VDS = 4 V, VG2S = 3V,
ID = 10 mA, f = 900 MHz
Noise figure
NF
—
2.0
3
dB
Note: Marking is “ZX–”
2
3SK321
Main Characteristics
900M Hz PowerGain, Noise TestCircuit
V
V
V
D
G2
C5
G1
C6
C4
R2
C3
R1
R3
RFC
D
Output
G2
G1
L4
L3
Input
S
L1
L2
C1
C2
： Variable Capacitor（10pF M AX)
： DiskCapacitor（1000pF)
： AirCapacitor（1000pF)
： 47 kΩ
C1, C2
C3
C4～C6
R1
： 47 kΩ
R2
： 4.7 kΩ
R3
L2：
L1：
10
26
（φ1m m Copperwire）
Unit：m m
21
L4：
18
L3：
29
RFC：φ1m m Copperwire with enam el4turnsinside dia 6m m
3
3SK321
Maximum Channel Power
Dissipation Curve
Typical Output Characteristics
20
16
12
8
200
150
100
50
Pulse test
V
= 3 V
G2S
1.2 V
1.0 V
0.8 V
0.6 V
4
V
G1S
= 0.4 V
0
2
4
6
8
10
0
50
100
150
200
Drain to source voltage V
(V)
DS
Ambient Temperature Ta (°C)
Drain Current vs. Gate2 to Source Voltage
Drain Current vs. Gate1 to Source Voltage
20
16
12
8
20
16
12
8
2.0 V
V
= 6 V
3.0 V
2.5 V
V
= 6 V
DS
DS
1.5 V
2.0 V
1.5 V
Pulse test
Pulse test
1.0 V
1.0 V
V
G1S
= 0.5 V
4
4
V
= 0.5 V
3
G2S
0
0
1
2
3
4
5
1
2
4
5
Gate2 to source voltage V
(V)
Gate1 to source voltage V
(V)
G2S
G1S
4
3SK321
Forward Transfer Admittance vs.
Gate1 to Source Voltage
Power Gain vs. Drain Current
30
24
18
12
6
25
20
15
10
V
= 6 V
DS
f = 1 kHz
V
= 3.0 V
2.0 V
G2S
2.5 V
1.5 V
1.0 V
V
= 4 V
DS
5
0
V
G2S
= 3 V
0.5 V
0.8
Gate1 to source voltage V
f = 900 MHz
0
2.0
(V)
0.4
1.2
1.6
20
1
2
5
10
G1S
Drain current
I
(mA)
D
Power Gain vs. Drain to Source Voltage
Noise Figure vs. Drain Current
5
25
20
15
10
5
V
= 4 V
= 3 V
DS
V
G2S
4
3
2
f = 900 MHz
V
= 3 V
G2S
1
0
I
= 10 mA
D
f = 900 MHz
0
20
10
1
2
5
10
(mA)
2
4
6 8
Drain current
I
Drain to source voltage
V
DS
(V)
D
5
3SK321
Noise Figure vs. Drain to Source Voltage
5
4
3
2
1
V
= 3 V
= 10 mA
G2S
I
D
f = 900 MHz
0
10
2
4
6 8
Drain to source voltage
V
DS
(V)
6
3SK321
S11 Parameter vs. Frequency
S21 Parameter vs. Frequency
Scale: 0.5 / div.
1
90°
.8
1.5
60°
.6
120°
2
.4
3
30°
4
150°
.2
5
10
.2
.4 .6 .8 1.0 1.5 2 3 4 5 10
0
180°
0°
–10
–5
–4
–.2
–30°
–150°
–3
–.4
–2
–60°
–120°
–.6
–1.5
–.8
–90°
–1
Condition:
V
= 4 V , V
= 3 V
Condition:
V
= 4 V , V
= 3 V
G2S
DS
G2S
DS
I
= 10 mA , Zo = 50 Ω
I
= 10 mA , Zo = 50 Ω
D
D
100 to 1000 MHz (50 MHz step)
100 to 1000 MHz (50 MHz step)
S12 Parameter vs. Frequency
S22 Parameter vs. Frequency
Scale: 0.002/ div.
1
90°
.8
1.5
60°
.6
120°
2
.4
3
30°
150°
4
.2
5
10
.2
.4 .6 .8 1.0 1.5 2 3 4 5 10
0
180°
0°
–10
–5
–4
–.2
–30°
–150°
–3
–.4
–2
–60°
–120°
–.6
–1.5
–.8
–90°
–1
Condition:
V
= 4 V , V
= 3 V
Condition:
V
= 4 V , V
= 3 V
G2S
DS
G2S
DS
I
= 10 mA , Zo = 50 Ω
I
= 10 mA , Zo = 50 Ω
D
D
100 to 1000 MHz (50 MHz step)
100 to 1000 MHz (50 MHz step)
7
3SK321
S Parameter (VDS = 4 V, VG2S = 3 V, ID = 10 mA, ZO = 50 Ω)
Freq.
(MHz)
100
150
200
250
300
350
400
450
500
550
600
650
700
750
800
850
900
950
1000
S11
S21
S12
S22
MAG.
0.999
0.998
0.992
0.988
0.985
0.976
0.971
0.964
0.961
0.951
0.949
0.935
0.933
0.923
0.916
0.908
0.900
0.890
0.876
ANG.
–6.1
MAG.
1.98
1.97
1.96
1.96
1.94
1.92
1.91
1.88
1.87
1.86
1.86
1.81
1.78
1.77
1.75
1.72
1.70
1.67
1.65
ANG.
172.2
168.4
165.0
161.0
157.1
153.7
149.9
146.8
142.8
139.4
136.1
132.9
129.4
125.7
122.6
119.1
115.8
112.6
109.3
MAG.
ANG.
79.2
80.4
79.5
79.9
75.2
71.8
70.7
65.5
62.7
66.6
63.8
58.2
60.6
58.5
56.3
56.3
52.9
52.4
51.9
MAG.
0.989
0.987
0.986
0.984
0.981
0.978
0.975
0.972
0.968
0.963
0.960
0.956
0.950
0.945
0.941
0.936
0.930
0.924
0.919
ANG.
–4.2
0.00094
0.00189
0.00230
0.00286
0.00364
0.00353
0.00419
0.00495
0.00509
0.00530
0.00550
0.00601
0.00582
0.00572
0.00553
0.00514
0.00543
0.00506
0.00469
–9.1
–6.1
–11.9
–14.8
–17.9
–20.6
–23.2
–26.3
–29.1
–32.2
–35.0
–37.6
–40.5
–42.9
–45.8
–49.0
–51.2
–54.0
–56.4
–7.9
–9.8
–11.5
–13.4
–15.2
–17.2
–19.1
–20.8
–22.8
–24.5
–26.3
–28.0
–29.9
–31.7
–33.4
–35.2
–37.0
8
3SK321
Package Dimensions
Unit: mm
±0.2
±0.2
2.95
1.9
0.95 0.95
+ 0.1
– 0.06
0.16
+ 0.1
– 0.05
+ 0.1
0.4
0.4
– 0.05
4
1
3
0 ~ 0.1
2
+ 0.1
+ 0.1
– 0.05
0.6
0.4
– 0.05
0.85
1.8
0.95
MPAK–4R
Hitachi Code
EIAJ
—
—
JEDEC
9
Cautions
1. Hitachi neither warrants nor grants licenses of any rights of Hitachi’s or any third party’s patent,
copyright, trademark, or other intellectual property rights for information contained in this document.
Hitachi bears no responsibility for problems that may arise with third party’s rights, including
intellectual property rights, in connection with use of the information contained in this document.
2. Products and product specifications may be subject to change without notice. Confirm that you have
received the latest product standards or specifications before final design, purchase or use.
3. Hitachi makes every attempt to ensure that its products are of high quality and reliability. However,
contact Hitachi’s sales office before using the product in an application that demands especially high
quality and reliability or where its failure or malfunction may directly threaten human life or cause risk
of bodily injury, such as aerospace, aeronautics, nuclear power, combustion control, transportation,
traffic, safety equipment or medical equipment for life support.
4. Design your application so that the product is used within the ranges guaranteed by Hitachi particularly
for maximum rating, operating supply voltage range, heat radiation characteristics, installation
conditions and other characteristics. Hitachi bears no responsibility for failure or damage when used
beyond the guaranteed ranges. Even within the guaranteed ranges, consider normally foreseeable
failure rates or failure modes in semiconductor devices and employ systemic measures such as fail-
safes, so that the equipment incorporating Hitachi product does not cause bodily injury, fire or other
consequential damage due to operation of the Hitachi product.
5. This product is not designed to be radiation resistant.
6. No one is permitted to reproduce or duplicate, in any form, the whole or part of this document without
written approval from Hitachi.
7. Contact Hitachi’s sales office for any questions regarding this document or Hitachi semiconductor
products.
Hitachi, Ltd.
Semiconductor & Integrated Circuits.
Nippon Bldg., 2-6-2, Ohte-machi, Chiyoda-ku, Tokyo 100-0004, Japan
Tel: Tokyo (03) 3270-2111 Fax: (03) 3270-5109
URL
NorthAmerica
Europe
: http:semiconductor.hitachi.com/
: http://www.hitachi-eu.com/hel/ecg
Asia (Singapore)
Asia (Taiwan)
: http://www.has.hitachi.com.sg/grp3/sicd/index.htm
: http://www.hitachi.com.tw/E/Product/SICD_Frame.htm
Asia (HongKong) : http://www.hitachi.com.hk/eng/bo/grp3/index.htm
Japan
: http://www.hitachi.co.jp/Sicd/indx.htm
For further information write to:
Hitachi Semiconductor
(America) Inc.
Hitachi Europe GmbH
Hitachi Asia (Hong Kong) Ltd.
Group III (Electronic Components)
7/F., North Tower, World Finance Centre,
Harbour City, Canton Road, Tsim Sha Tsui,
Kowloon, Hong Kong
Tel: <852> (2) 735 9218
Fax: <852> (2) 730 0281
Hitachi Asia Pte. Ltd.
16 Collyer Quay #20-00
Hitachi Tower
Singapore 049318
Tel: 535-2100
Electronic components Group
Dornacher Stra§e 3
D-85622 Feldkirchen, Munich
Germany
Tel: <49> (89) 9 9180-0
Fax: <49> (89) 9 29 30 00
179 East Tasman Drive,
San Jose,CA 95134
Tel: <1> (408) 433-1990
Fax: <1>(408) 433-0223
Fax: 535-1533
Hitachi Asia Ltd.
Taipei Branch Office
3F, Hung Kuo Building. No.167,
Tun-Hwa North Road, Taipei (105)
Tel: <886> (2) 2718-3666
Fax: <886> (2) 2718-8180
Telex: 40815 HITEC HX
Hitachi Europe Ltd.
Electronic Components Group.
Whitebrook Park
Lower Cookham Road
Maidenhead
Berkshire SL6 8YA, United Kingdom
Tel: <44> (1628) 585000
Fax: <44> (1628) 778322
Copyright ' Hitachi, Ltd., 1999. All rights reserved. Printed in Japan.
厂商 型号 描述 页数 下载

ETC

 		3SK101 晶体管| MOSFET | N沟道| 20V V（ BR ） DSS |我30MA （D ） | MICRO -X\n[ TRANSISTOR | MOSFET | N-CHANNEL | 20V V(BR)DSS | 30MA I(D) | MICRO-X ] 1 页

ETC

 		3SK102 晶体管| MOSFET | N沟道| 20V V（ BR ） DSS |我30MA （D ） | MICRO -X\n[ TRANSISTOR | MOSFET | N-CHANNEL | 20V V(BR)DSS | 30MA I(D) | MICRO-X ] 1 页

ETC

 		3SK107 晶体管| MOSFET | N沟道| 20V V（ BR ） DSS |我30MA （D ） | DIP\n[ TRANSISTOR | MOSFET | N-CHANNEL | 20V V(BR)DSS | 30MA I(D) | DIP ] 11 页

ETC

 		3SK107E 晶体管| MOSFET | N沟道| 20V V（ BR ） DSS |我30MA （D ） | DIP\n[ TRANSISTOR | MOSFET | N-CHANNEL | 20V V(BR)DSS | 30MA I(D) | DIP ] 11 页

ETC

 		3SK107F 晶体管| MOSFET | N沟道| 20V V（ BR ） DSS |我30MA （D ） | DIP\n[ TRANSISTOR | MOSFET | N-CHANNEL | 20V V(BR)DSS | 30MA I(D) | DIP ] 11 页

ETC

 		3SK107G 晶体管| MOSFET | N沟道| 20V V（ BR ） DSS |我30MA （D ） | DIP\n[ TRANSISTOR | MOSFET | N-CHANNEL | 20V V(BR)DSS | 30MA I(D) | DIP ] 11 页

ETC

 		3SK108 晶体管| MOSFET | N沟道\n[ TRANSISTOR | MOSFET | N-CHANNEL ] 1 页

ETC

 		3SK108Q 晶体管| MOSFET | N沟道| 20V V（ BR ） DSS |我30MA （D ） | DIP\n[ TRANSISTOR | MOSFET | N-CHANNEL | 20V V(BR)DSS | 30MA I(D) | DIP ] 1 页

ETC

 		3SK108R 晶体管| MOSFET | N沟道| 20V V（ BR ） DSS |我30MA （D ） | DIP\n[ TRANSISTOR | MOSFET | N-CHANNEL | 20V V(BR)DSS | 30MA I(D) | DIP ] 1 页

ETC

 		3SK108S 晶体管| MOSFET | N沟道| 20V V（ BR ） DSS |我30MA （D ） | DIP\n[ TRANSISTOR | MOSFET | N-CHANNEL | 20V V(BR)DSS | 30MA I(D) | DIP ] 1 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.222218s
