LZ2353

型号：

LZ2353

描述：

三分之一型CCD传感器面积与410的k个像素[ 1/3-type CCD Area Sensors with 410 k Pixels ]

品牌：

SHARP[ SHARP ELECTRIONIC COMPONENTS ]

页数：

12 页

PDF大小：

99 K

下载PDF手册

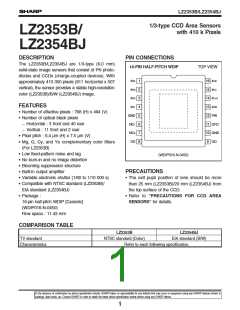

LZ2353B/LZ2354BJ
1/3-type CCD Area Sensors
with 410 k Pixels
LZ2353B/
LZ2354BJ
DESCRIPTION
PIN CONNECTIONS
The LZ2353B/LZ2354BJ are 1/3-type (6.0 mm)
solid-state image sensors that consist of PN photo-
diodes and CCDs (charge-coupled devices). With
approximately 410 000 pixels (811 horizontal x 507
vertical), the sensor provides a stable high-resolution
color (LZ2353B)/B/W (LZ2354BJ) image.
16-PIN HALF-PITCH WDIP
TOP VIEW
ØV4
ØV3
1
2
3
4
5
6
7
8
16 ØH2
15 ØH1
14 ØLH1
13 ØRS
12 PW
11 OFD
10 GND
ØV2
FEATURES
ØV1
• Number of effective pixels : 768 (H) x 494 (V)
• Number of optical black pixels
– Horizontal : 3 front and 40 rear
– Vertical : 11 front and 2 rear
• Pixel pitch : 6.4 µm (H) x 7.5 µm (V)
• Mg, G, Cy, and Ye complementary color filters
(For LZ2353B)
GND
NC1
NC2
OS
9
OD
• Low fixed-pattern noise and lag
• No burn-in and no image distortion
• Blooming suppression structure
• Built-in output amplifier
• Variable electronic shutter (1/60 to 1/10 000 s)
• Compatible with NTSC standard (LZ2353B)/
EIA standard (LZ2354BJ)
(WDIP016-N-0450)
PRECAUTIONS
• The exit pupil position of lens should be more
than 25 mm (LZ2353B)/20 mm (LZ2354BJ) from
the top surface of the CCD.
• Package :
16-pin half-pitch WDIP [Ceramic]
(WDIP016-N-0450)
• Refer to "PRECAUTIONS FOR CCD AREA
SENSORS" for details.
Row space : 11.43 mm
COMPARISON TABLE
LZ2353B
NTSC standard (Color)
LZ2354BJ
EIA standard (B/W)
TV standard
Characteristics
Refer to each following specification.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP devices shown in
catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
1
LZ2353B/LZ2354BJ
PIN DESCRIPTION
SYMBOL
PIN NAME
Output transistor drain
OD
OS
Output signals
ØRS
Reset transistor clock
Vertical shift register clock
Horizontal shift register clock
Horizontal shift register final stage clock
Overflow drain
ØV1, ØV2, ØV3, ØV4
ØH1, ØH2
ØLH1
OFD
PW
P-well
GND
Ground
NC1, NC2
No connection
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Output transistor drain voltage
Overflow drain voltage
(TA = +25 ˚C)
UNIT NOTE
SYMBOL
VOD
VOFD
VØRS
VØV
VØH
VØLH
VPW-VØV
TSTG
RATING
0 to +18
0 to +55
–0.3 to +18
VPW to +18
–0.3 to +18
–0.3 to +18
–28 to 0
V
V
V
V
V
V
Reset gate clock voltage
Vertical shift register clock voltage
Horizontal shift register clock voltage
Horizontal shift register final stage clock voltage
Voltage difference between P-well and vertical clock
Storage temperature
V
1
–40 to +85
–20 to +70
˚C
˚C
Ambient operating temperature
TOPR
NOTE :
1. The OFD clock ØOFD is excluded.
2
LZ2353B/LZ2354BJ
RECOMMENDED OPERATING CONDITIONS
PARAMETER
Ambient operating temperature
Output transistor drain voltage
SYMBOL
MIN.
TYP. MAX. UNIT NOTE
TOPR
VOD
25.0
15.0
˚C
V
V
V
V
V
14.5
5.0
21.5
16.0
19.0
Overflow drain
voltage
When DC is applied
When pulse is applied p-p level
VOFD
VØOFD
1
2
Ground
GND
0.0
P-well voltage
VPW
–10.0
–9.5
VØVL
–7.5
VØV1L, VØV2L
VØV3L, VØV4L
VØV1I, VØV2I
VØV3I, VØV4I
VØV1H, VØV3H
VØH1L, VØH2L
VØH1H, VØH2H
LOW level
–9.0
0.0
V
V
Vertical shift
register clock
INTERMEDIATE level
HIGH level
LOW level
HIGH level
14.5
–0.05
4.7
15.0
0.0
5.0
17.0
0.05
6.0
V
V
V
Horizontal shift
register clock
Horizontal shift
register final
stage clock
LOW level
HIGH level
VØLH1L
VØLH1H
–0.05
0.0
5.0
0.05
6.0
V
V
4.7
0.0
OD – 9.5
LOW level
HIGH level
VØRSL
VØRSH
V
OD – 14.0
10.0
V
V
Reset gate clock
V
fØV1, fØV2
fØV3, fØV4
fØH1, fØH2, fØLH1
fØRS
Vertical shift register clock frequency
15.73
kHz
Horizontal shift register clock frequency
Reset gate clock frequency
14.32
14.32
MHz
MHz
NOTES :
• Connect NC1 and NC2 to GND directly or through a capacitor larger than 0.047 µF.
1. When DC voltage is applied, shutter speed is 1/60-second.
2. When pulse is applied, shutter speed is less than 1/60-second.
* To apply power, first connect GND and then turn on VOFD. After turning on VOFD, turn on PW first and then turn on other
powers and pulses. Do not connect the device to or disconnect it from the plug socket while power is being applied.
3
LZ2353B/LZ2354BJ
CHARACTERISTICS FOR LZ2353B (Drive method : Field accumulation)
(TA = +25 ˚C, Operating conditions : The typical values specified in "RECOMMENDED OPERATING CONDITIONS".
Color temperature of light source : 3 200 K, IR cut-off filter (CM-500, 1 mmt) is used.)
PARAMETER
Standard output voltage
SYMBOL
VO
MIN.
700
TYP. MAX. UNIT NOTE
150
mV
%
2
3
Photo response non-uniformity
Saturation output voltage
Dark output voltage
Dark signal non-uniformity
Sensitivity
PRNU
VSAT
VDARK
DSNU
R
10
mV
mV
mV
mV
dB
%
4
0.5
0.5
350
–84
3.0
2.0
1, 5
1, 6
7
8
9
260
Smear ratio
Image lag
SMR
AI
–76
1.0
Blooming suppression ratio
Output transistor drain current
Output impedance
Dark noise
OB difference in level
Vector breakup
ABL
IOD
RO
VNOISE
1 000
10
4.0
350
0.2
8.0
mA
$
mV
mV
˚, %
%
0.3
1.0
5.0
1.5
2.0
11
1, 12
13
14
15
Line crawling
Luminance flicker
%
NOTES :
• VOFD should be adjusted to the minimum voltage such
that ABL satisfy the specification, or to the value
displayed on the device.
8. The sensor is exposed only in the central area of V/10
square with a lens at F4, where V is the vertical image
size. SMR is defined by the ratio of the output voltage
detected during the vertical blanking period to the
maximum output voltage in the V/10 square.
9. The sensor is exposed at the exposure level
corresponding to the standard conditions. AI is defined
by the ratio of the output voltage measured at the 1st
field during the non-exposure period to the standard
output voltage.
10. The sensor is exposed only in the central area of V/10
square, where V is the vertical image size. ABL is
defined by the ratio of the exposure at the standard
conditions to the exposure at a point where blooming is
observed.
1. TA = +60 ˚C
2. The average output voltage under uniform illumination.
The standard exposure conditions are defined as when
Vo is 150 mV.
3. The image area is divided into 10 x 10 segments under
the standard exposure conditions. Each segment's
voltage is the average output voltage of all pixels within
the segment. PRNU is defined by (Vmax – Vmin)/Vo,
where Vmax and Vmin are the maximum and minimum
values of each segment's voltage respectively.
4. The image area is divided into 10 x 10 segments. Each
segment's voltage is the average output voltage of all
pixels within the segment. VSAT is the minimum
segment's voltage under 10 times exposure of the
standard exposure conditions.
11. The RMS value of the dark noise (after CDS). (100 kHz
to 4.2 MHz, SC trap on.)
12. The difference of the average output voltage between
the effective area and the OB area under non-exposure
conditions.
5. The average output voltage under non-exposure
conditions.
6. The image area is divided into 10 x 10 segments under
non-exposure conditions. DSNU is defined by (Vdmax –
Vdmin), where Vdmax and Vdmin are the maximum and
minimum values of each segment's voltage respectively.
7. The average output voltage when a 1 000 lux light
source with a 90% reflector is imaged by a lens of F4,
f50 mm.
13. Observed with a vector scope when the color bar chart
is imaged under the standard exposure conditions.
14. The difference between the average output voltage of the
(Mg + Ye), (G + Cy) line and that of the (Mg + Cy), (G +
Ye) line under the standard exposure conditions.
15. The difference between the average output voltage of
the odd field and that of the even field under the
standard exposure conditions.
4
LZ2353B/LZ2354BJ
CHARACTERISTICS FOR LZ2354BJ (Drive method : Field accumulation)
(TA = +25 ˚C, Operating conditions : The typical values specified in "RECOMMENDED OPERATING CONDITIONS".
Color temperature of light source : 3 200 K, IR cut-off filter (CM-500, 1 mmt) is used.)
PARAMETER
Standard output voltage
SYMBOL
VO
MIN.
700
410
TYP. MAX. UNIT NOTE
150
mV
%
2
3
Photo response non-uniformity
Saturation output voltage
Dark output voltage
Dark signal non-uniformity
Sensitivity
PRNU
VSAT
VDARK
DSNU
R
10
mV
mV
mV
mV
4
0.5
0.5
550
1
3.0
2.0
1, 5
1, 6
7
Gamma
‹
Smear ratio
Image lag
SMR
AI
–84
–76
1.0
dB
%
8
9
Blooming suppression ratio
Output transistor drain current
Output impedance
Dark noise
ABL
IOD
RO
1 000
10
4.0
350
0.2
8.0
mA
$
mV
mV
VNOISE
0.3
1.0
11
1, 12
OB difference in level
NOTES :
• VOFD should be adjusted to the minimum voltage such
that ABL satisfy the specification, or to the value
displayed on the device.
7. The average output voltage when a 1 000 lux light
source with a 90% reflector is imaged by a lens of F4,
f50 mm.
1. TA = +60 ˚C
8. The sensor is exposed only in the central area of V/10
square with a lens at F4, where V is the vertical image
size. SMR is defined by the ratio of the output voltage
detected during the vertical blanking period to the
maximum output voltage in the V/10 square.
9. The sensor is exposed at the exposure level
corresponding to the standard conditions. AI is defined
by the ratio of the output voltage measured at the 1st
field during the non-exposure period to the standard
output voltage.
10. The sensor is exposed only in the central area of V/10
square, where V is the vertical image size. ABL is
defined by the ratio of the exposure at the standard
conditions to the exposure at a point where blooming is
observed.
2. The average output voltage under uniform illumination.
The standard exposure conditions are defined as when
Vo is 150 mV.
3. The image area is divided into 10 x 10 segments under
the standard exposure conditions. Each segment's
voltage is the average output voltage of all pixels within
the segment. PRNU is defined by (Vmax – Vmin)/Vo,
where Vmax and Vmin are the maximum and minimum
values of each segment's voltage respectively.
4. The image area is divided into 10 x 10 segments. Each
segment's voltage is the average output voltage of all
pixels within the segment. VSAT is the minimum
segment's voltage under 10 times exposure of the
standard exposure conditions.
5. The average output voltage under non-exposure
conditions.
11. The RMS value of the dark noise after CDS. (100 kHz to
4.2 MHz, SC trap on.)
6. The image area is divided into 10 x 10 segments under
non-exposure conditions. DSNU is defined by (Vdmax –
Vdmin), where Vdmax and Vdmin are the maximum and
minimum values of each segment's voltage respectively.
12. The difference between the average output voltage of
the effective area and that of the OB area under non-
exposure conditions.
5
LZ2353B/LZ2354BJ
PIXEL STRUCTURE
OPTICAL BLACK
(2 PIXELS)
1 pin
OPTICAL BLACK
(3 PIXELS)
OPTICAL BLACK
(40 PIXELS)
768 (H) x 494 (V)
OPTICAL BLACK
(11 PIXELS)
COLOR FILTER ARRAY (FOR LZ2353B)
(1, 494)
(768, 494)
Cy Ye Cy Ye Cy
Ye Cy Ye Cy Ye
Mg
Cy Ye Cy Ye Cy
Mg Mg
Cy Ye Cy Ye Cy
Mg Mg Mg
G
Mg
G
Mg
G
Mg
Ye Cy Ye Cy Ye
Mg Mg Mg
Ye Cy Ye Cy Ye
Mg Mg
G
Mg
G
G
G
G
G
G
G
G
G
G
G
Cy Ye Cy Ye Cy
Mg Mg Mg
Cy Ye Cy Ye Cy
Mg Mg
Cy Ye Cy Ye Cy
Mg Mg Mg
Ye Cy Ye Cy Ye
Mg Mg
Ye Cy Ye Cy Ye
Mg Mg Mg
Ye Cy Ye Cy Ye
Mg Mg
G
G
G
G
G
G
G
G
G
G
ODD
field
EVEN
field
G
G
G
G
G
(1, 1)
(768, 1)
6
LZ2353B/LZ2354BJ
TIMING CHART
(ODD FIELD)
VERTICAL TRANSFER TIMING
Shutter speed
1/2 000 s
525
1
10
HD
VD
ØV1
ØV2
ØV3
ØV4
ØOFD
489 491 493 OB1
OB1 OB3 OB5 OB7 OB9OB11
2
4
6
8
10 12 14 16
+
+
+
+
+
+
+
+
+
+
1
+
+
+
+
9
+
+
+
+
490 492 494 OB2
OB2 OB4 OB6 OB8OB10
3
5
7
11 13 15 17
OS
(EVEN FIELD)
263
272
HD
VD
ØV1
ØV2
ØV3
ØV4
ØOFD
488 490 492 494 OB2
OB2 OB4 OB6 OB8OB10
1
3
5
7
9
11 13 15
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
489 491 493 OB1
OB1 OB3 OB5 OB7 OB9OB11
2
4
6
8
10 12 14 16
OS
HORIZONTAL TRANSFER TIMING
910, 1
91
HD
ØH1
ØLH1
ØH2
ØRS
OS
PRE SCAN (22)
OB (3)
OUTPUT (768) 1πππ
π768
OB (40)
42
74
ØV1
ØV2
ØV3
58
90
34
82
50
98
ØV4
66
86
ØOFD
7
LZ2353B/LZ2354BJ
READOUT TIMING
(ODD FIELD)
1
91
910, 1
91
HD
336
404
42 74
42 74
ØV1
ØV2
ØV3
58 90
208
644
58 90
82
404
472
34 82
240
50
98
50
98
ØV4
(EVEN FIELD)
1
91
910, 1
91
HD
336
404
404
42 74
58 90
ØV1
ØV2
208
90
472
34 82
50
240
82
98
ØV3
ØV4
644
98
8
LZ2353B/LZ2354BJ
SYSTEM CONFIGURATION EXAMPLE
+
+
OD
GND
OFD
PW
OS
NC2
NC1
GND
ØV1
ØRS
ØLH1
ØH1
ØV2
ØV3
ØH2
ØV4
+
POFD
VMb
VL
VOFDH
VH3BX
OFDX
V2X
V2
V4
V1X
NC
V3B
V3A
V1B
V1A
VMa
VH
VH1AX
V3X
VDD
+
GND
VH3AX
V4X
VH1BX
+
+
9
PACKAGES FOR CCD AND CMOS DEVICES
PACKAGE
(Unit : mm)
16 WDIP (WDIP016-N-0450)
Center of effective imaging area
and center of package
±0.15
12.20
±0.10
±0.45
0.85
10.50
(◊2)
(◊1 : Reference area)
(◊2 : Lid's size)
16
9
Glass Lid
¬
CCD
CCD
Package (Cerdip)
1
8
0.04
(◊
1)
Cross Section A-A'
MAX.
4-0.20R
±0.15
6.10
MAX.
Rotation error of die : ¬ = 1.5˚
9.2
2.5
A
A'
TYP.
±0.05
P-1.27
0.25
0.25
M
±0.25
TYP.
TYP.
11.43
0.30
0.46
10
PRECAUTIONS FOR CCD AREA SENSORS
PRECAUTIONS FOR CCD AREA SENSORS
(In the case of plastic packages)
1. Package Breakage
– The leads of the package are fixed with
package body (plastic), so stress added to a
lead could cause a crack in the package
body (plastic) in the jointed part of the lead.
In order to prevent the package from being broken,
observe the following instructions :
1) The CCD is a precise optical component and
the package material is ceramic or plastic.
Therefore,
Glass cap
Package
ø Take care not to drop the device when
mounting, handling, or transporting.
Lead
Fixed
ø Avoid giving a shock to the package.
Especially when leads are fixed to the socket
or the circuit board, small shock could break
the package more easily than when the
package isn’t fixed.
Stand-off
2) When applying force for mounting the device or
any other purposes, fix the leads between a
joint and a stand-off, so that no stress will be
given to the jointed part of the lead. In addition,
when applying force, do it at a point below the
stand-off part.
3) When mounting the package on the housing,
be sure that the package is not bent.
– If a bent package is forced into place
between a hard plate or the like, the pack-
age may be broken.
4) If any damage or breakage occurs on the sur-
face of the glass cap, its characteristics could
deteriorate.
(In the case of ceramic packages)
– The leads of the package are fixed with low
melting point glass, so stress added to a
lead could cause a crack in the low melting
point glass in the jointed part of the lead.
Therefore,
ø Do not hit the glass cap.
ø Do not give a shock large enough to cause
distortion.
ø Do not scrub or scratch the glass surface.
– Even a soft cloth or applicator, if dry, could
cause dust to scratch the glass.
Low melting point glass
Lead
2. Electrostatic Damage
As compared with general MOS-LSI, CCD has
lower ESD. Therefore, take the following anti-static
measures when handling the CCD :
Fixed
1) Always discharge static electricity by grounding
the human body and the instrument to be used.
To ground the human body, provide resistance
of about 1 M$ between the human body and
the ground to be on the safe side.
Stand-off
2) When directly handling the device with the
fingers, hold the part without leads and do not
touch any lead.
11
PRECAUTIONS FOR CCD AREA SENSORS
3) To avoid generating static electricity,
a. do not scrub the glass surface with cloth or
plastic.
ø The contamination on the glass surface
should be wiped off with a clean applicator
soaked in Isopropyl alcohol. Wipe slowly and
gently in one direction only.
b. do not attach any tape or labels.
c. do not clean the glass surface with dust-
cleaning tape.
– Frequently replace the applicator and do not
use the same applicator to clean more than
one device.
4) When storing or transporting the device, put it in
a container of conductive material.
◊ Note : In most cases, dust and contamination
are unavoidable, even before the device
is first used. It is, therefore, recommended
that the above procedures should be
taken to wipe out dust and contamination
before using the device.
3. Dust and Contamination
Dust or contamination on the glass surface could
deteriorate the output characteristics or cause a
scar. In order to minimize dust or contamination on
the glass surface, take the following precautions :
1) Handle the CCD in a clean environment such
as a cleaned booth. (The cleanliness level
should be, if possible, class 1 000 at least.)
2) Do not touch the glass surface with the fingers.
If dust or contamination gets on the glass
surface, the following cleaning method is
recommended :
4. Other
1) Soldering should be manually performed within
5 seconds at 350 °C maximum at soldering iron.
2) Avoid using or storing the CCD at high tem-
perature or high humidity as it is a precise
optical component. Do not give a mechanical
shock to the CCD.
ø Dust from static electricity should be blown
off with an ionized air blower. For anti-
electrostatic measures, however, ground all
the leads on the device before blowing off
the dust.
3) Do not expose the device to strong light. For
the color device, long exposure to strong light
will fade the color of the color filters.
12
厂商 型号 描述 页数 下载

YAGEO

 		LZ200M0150ST [ Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 150uF, Through Hole Mount ] 1 页

YAGEO

 		LZ200M0270ST [ Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 270uF, Through Hole Mount ] 1 页

YAGEO

 		LZ200M0560ST [ Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 560uF, Through Hole Mount ] 1 页

ETC

 		LZ2018 线阵CCD图像阵列\n[ Linear CCD Image Array ] 4 页

ETC

 		LZ2019 线阵CCD图像阵列\n[ Linear CCD Image Array ] 4 页

YEASHIN

 		LZ20V 500毫瓦LL- 34密封式玻璃齐纳稳压器[ 500 mW LL-34 Hermetically Sealed Glass Zener Voltage Regulators ] 4 页

EBMPAPST

 		LZ210 特殊部位 - TUBEAXIAL范[ SPECIAL PARTS - TUBEAXIAL FAN ] 1 页

ETC

 		LZ2111J 面阵CCD图像阵列\n[ Area CCD Image Array ] 7 页

ETC

 		LZ2112J 面阵CCD图像阵列\n[ Area CCD Image Array ] 7 页

SHARP

 		LZ2113Y [ Analog Circuit, 1 Func, CDIP20, WINDOWED, CERAMIC, DIP-20 ] 1 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.210133s
