4N35_05

型号：

4N35_05

描述：

兼容标准TTL集成电路[ COMPATIBLE WITH STANDARD TTL INTEGRATED CIRCUITS ]

品牌：

TI[ TEXAS INSTRUMENTS ]

页数：

9 页

PDF大小：

135 K

下载PDF手册

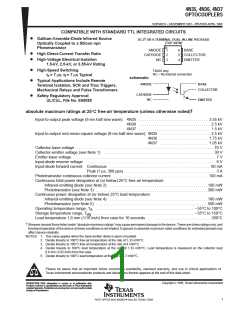

4N35, 4N36, 4N37
OPTOCOUPLERS
SOES021C – NOVEMBER 1981 – REVISED APRIL 1998
COMPATIBLE WITH STANDARD TTL INTEGRATED CIRCUITS
Gallium-Arsenide-Diode Infrared Source
Optically Coupled to a Silicon npn
Phototransistor
†
DCJ OR 6-TERMINAL DUAL-IN-LINE PACKAGE
(TOP VIEW)
ANODE
CATHODE
NC
BASE
1
2
3
6
5
4
High Direct-Current Transfer Ratio
COLLECTOR
EMITTER
High-Voltage Electrical Isolation
1.5-kV, 2.5-kV, or 3.55-kV Rating
†
High-Speed Switching
4N35 only
NC – No internal connection
t = 7 µs, t = 7 µs Typical
r
f
schematic
Typical Applications Include Remote
Terminal Isolation, SCR and Triac Triggers,
Mechanical Relays and Pulse Transformers
ANODE
BASE
COLLECTOR
CATHODE
NC
Safety Regulatory Approval
UL/CUL, File No. E65085
EMITTER
†
absolute maximum ratings at 25°C free-air temperature (unless otherwise noted)
Input-to-output peak voltage (8-ms half sine wave): 4N35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.55 kV
4N36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5 kV
4N37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5 kV
Input-to-output root-mean-square voltage (8-ms half sine wave): 4N35 . . . . . . . . . . . . . . . . . . . . . . . . . 2.5 kV
4N36 . . . . . . . . . . . . . . . . . . . . . . . . 1.75 kV
4N37 . . . . . . . . . . . . . . . . . . . . . . . . 1.05 kV
Collector-base voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 V
Collector-emitter voltage (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 V
Emitter-base voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Input-diode reverse voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 V
Input-diode forward current: Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 mA
Peak (1 µs, 300 pps) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 A
Phototransistor continuous collector current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 mA
Continuous total power dissipation at (or below) 25°C free-air temperature:
Infrared-emitting diode (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 mW
Phototransistor (see Note 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300 mW
Continuous power dissipation at (or below) 25°C lead temperature:
Infrared-emitting diode (see Note 4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 mW
Phototransistor (see Note 5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500 mW
Operating temperature range, T
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –55°C to 100°C
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –55°C to 150°C
A
Storage temperature range, T
stg
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C
†
Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may
affect device reliability.
NOTES: 1. This value applies when the base-emitter diode is open-circulated.
2. Derate linearly to 100°C free-air temperature at the rate of 1.33 mW/°C.
3. Derate linearly to 100°C free-air temperature at the rate of 4 mW/°C.
4. Derate linearly to 100°C lead temperature at the rate of 1.33 mW/°C. Lead temperature is measured on the collector lead
0.8 mm (1/32 inch) from the case.
5. Derate linearly to 100°C lead temperature at the rate of 6.7 mW/°C.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Copyright 1998, Texas Instruments Incorporated
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
1
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
4N35, 4N36, 4N37
OPTOCOUPLERS
SOES021C – NOVEMBER 1981 – REVISED APRIL 1998
electrical characteristics at 25°C free-air temperature (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
V
†
70
†
30
†
7
V
V
V
Collector-base breakdown voltage
Collector-emitter breakdown voltage
Emitter-base breakdown voltage
Input diode static reverse current
Input-to-output current
I
I
I
= 100 µA,
= 10 mA,
= 100 µA,
I
E
I
B
I
C
= 0,
= 0,
= 0,
I
F
I
F
I
F
= 0
= 0
= 0
(BR)CBO
(BR)CEO
(BR)EBO
C
C
E
V
V
†
10
I
R
V
V
V
= 6 V
µA
mA
R
I
IO
= rated peak value,
t = 8 ms
100
IO
CE
CE
†
†
= 10 V,
I
= 10 mA,
= 10 mA,
I
= 0
10
F
F
B
B
V
T
= 10 V,
= –55°C
I
I
= 0,
4
I
On-state collector current
mA
A
C(on)
V
T
A
= 10 V,
I
F
= 10 mA,
I
B
= 0,
CE
= 100°C
†
4
V
= 10 V,
= 30 V,
I
I
= 0
I
I
= 0
1
50
nA
CE
CE
F
B
I
Off-state collector current
V
T
A
= 0,
= 0,
C(off)
F
B
†
500
µA
= 100°C
h
FE
Transistor static forward current transfer ratio
V
CE
= 5 V,
I
C
= 10 mA,
I
F
= 0
500
†
†
†
†
†
†
†
I
I
I
I
= 10 mA
= 10 mA,
= 10 mA,
= 0.5 mA,
0.8
0.9
0.7
1.5
1.7
1.4
0.3
F
F
F
C
V
Input diode static forward voltage
T
= –55°C
= 100°C
V
F
A
T
A
V
Collector-emitter saturation voltage
Input-to-output internal resistance
Input-to-output capacitance
I
F
= 10 mA,
I
= 0 mA
V
Ω
CE(sat)
B
11†
10
r
IO
V
= 500 V, See Note 6
IO
IO
†
C
V
= 0,
f = 1 MHz,
See Note 6
1
2.5
pF
io
†
JEDEC registered data
NOTE 6: These parameters are measured between both input-diode leads shorted together and all the phototransistor leads shorted together.
†
switching characteristics at 25°C free-air temperature
PARAMETER
TEST CONDITIONS
= 10 V, = 2 mA,
MIN
TYP
7
MAX
10
UNIT
t
Time-on time
Turn-off time
V
I
on
CC
= 100 Ω,
C(on)
See Figure 1
µs
t
R
7
10
off
L
†
JEDEC registered data
2
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
4N35, 4N36, 4N37
OPTOCOUPLERS
SOES021C – NOVEMBER 1981 – REVISED APRIL 1998
PARAMETER MEASUREMENT INFORMATION
47 Ω
Input
Input
0 V
Output
(see Note B)
t
on
t
off
Output
+
–
90%
R
= 100 Ω
L
V
CC
= 10 V
10%
TEST CIRCUIT
VOLTAGE WAVEFORMS
NOTES: A. The input waveform is supplied by a generator with the following characteristics: Z = 50 Ω, t ≤ 15 ns, duty cycle
1%,
O
r
t
w
= 100 µs.
B. The output waveform is monitored on an oscilloscope with the following characteristics: t ≤ 12 ns, R ≥ 1 MΩ, C ≤ 20 pF.
in in
r
Figure 1. Switching Times
TYPICAL CHARACTERISTICS
TRANSISTOR STATIC FORWARD
CURRENT TRANSFER RATIO (NORMALIZED)
OFF-STATE COLLECTOR CURRENT
vs
vs
ON-STATE COLLECTOR CURRENT
FREE-AIR TEMPERATURE
10,000
4,000
1.6
1.4
V
= 10 V
= 0
= 0
V
= 5 V
CE
CE
= 0
I
B
I
F
I
F
T = 25°C
A
1,000
400
1.2
1
100
40
0.8
10
4
0.6
0.4
1
0.2
0
Normalized to 1 V
at I = 1 mA
C
0.4
0.1
0
10 20 30 40 50 60 70 80 90 100
0.1 0.2 0.4
1
2
4
10 20 40
100
T
A
– Free-Air Temperature – °C
I
– On-State Collector Current – mA
C(on)
Figure 2
Figure 3
3
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
4N35, 4N36, 4N37
OPTOCOUPLERS
SOES021C – NOVEMBER 1981 – REVISED APRIL 1998
TYPICAL CHARACTERISTICS
COLLECTOR CURRENT
vs
INPUT-DIODE FORWARD
MODULATION FREQUENCY
CONDUCTION CHARACTERISTICS
160
140
120
100
80
10
4
V
= 10 V
= 0
= 25°C
CC
I
T
B
A
T
= 25°C
= 70°C
A
R
= 100 Ω
L
2
1
R
= 1 Ω
L
0.4
T
A
0.2
0.1
60
R
= 475 Ω
L
40
0.04
20
0
0.02
0.01
T
= 25°C
A
1
4
10
40
100
400 1000
0
0.2 0.4 0.6 0.8
1
1.2 1.4 1.6 1.8
2
V
F
– Forward Voltage – V
f
– Modulation Frequency – kHz
mod
Figure 4
Figure 5
COLLECTOR CURRENT
vs
COLLECTOR-EMITTER VOLTAGE
COLLECTOR CURRENT
vs
INPUT-DIODE FORWARD CURRENT
60
50
40
30
20
10
100
V
= 10 V
CE
= 0
I
T
= 0
= 25°C
B
A
I
T
B
40
= 25°C
A
See Note A
10
4
Max Continuous
Power Dissipation
1
I
= 20 mA
F
0.4
I
I
= 15 mA
= 10 mA
F
0.1
F
0.04
I
F
= 5 mA
0
0.01
0
2
4
6
8
10 12 14 16 18 20
0.1
0.4
1
4
10
40
100
V
CE
– Collector-Emitter Voltage – V
I
F
– Input-Diode Forward Current – mA
NOTE A. Pulse operation of input diode is required for operation
beyond limits shown by dotted lines.
Figure 6
Figure 7
4
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
4N35, 4N36, 4N37
OPTOCOUPLERS
SOES021C – NOVEMBER 1981 – REVISED APRIL 1998
TYPICAL CHARACTERISTICS
ON-STATE COLLECTOR CURRENT
(RELATIVE TO VALUE AT 25°C)
vs
FREE-AIR TEMPERATURE
1.6
1.4
1.2
1
V
= 10 V
= 0
= 10 mA
CE
I
B
I
F
See Note A
0.8
0.6
0.4
0.2
0
–75 –50 –25
0
25
50
75
100 125
T
A
– Free-Air Temperature – °C
NOTE A. These parameters were measured using pulse
techniques, t = 1 ms, duty cycle ≤ 2 %.
w
Figure 8
5
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
4N35, 4N36, 4N37
OPTOCOUPLERS
SOES021C – NOVEMBER 1981 – REVISED APRIL 1998
APPLICATION INFORMATION
The devices consist of a gallium-arsenide infrared-emitting diode and an npn silicon phototransistor. Each
device is available in a 6-terminal plastic dual-in-line package, shown in Figure 9, or in a DCJ plastic dual
surface-mount optocoupler package (see Mechanical Data).
0.370 (9,40)
0.330 (8,38)
6
5
4
Index Dot
(see Note B)
1
2
3
(see Note C)
C
C
L
L
0.300 (7,62) T.P.
(see Note A)
0.215 (5,46)
0.115 (2,92)
0.070 (1,78)
0.020 (0,51)
0.260 (6,61)
0.240 (6,09)
0.070 (1,78) MAX
6 Places
Seating Plane
105°
90°
0.040 (1,01) MIN
0.090 (2,29)
0.050 (1,27)
4 Places
0.021 (0,534)
0.015 (0,381)
6 Places
0.012 (0,305)
0.008 (0,203)
0.150 (3,81)
0.125 (3,17)
0.100 (2,54) T.P.
(see Note A)
NOTES: A. Terminals are within 0.005 (0,13) radius of true position (T.P.) with maximum material condition and unit installed.
B. Terminal 1 identified by index dot.
C. The dimensions given fall within JEDEC MO-001 AM dimensions.
D. All linear dimensions are in inches (millimeters).
Figure 9. Plastic Dual-in-Line Package
6
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
4N35, 4N36, 4N37
OPTOCOUPLERS
SOES021C – NOVEMBER 1981 – REVISED APRIL 1998
MECHANICAL DATA
DCJ (R-PDSO-G6)
PLASTIC DUAL SMALL-OUTLINE OPTOCOUPLER
0.090 (2,29)
0.050 (1,27)
0.100 (2,54)
4
0.070 (1,78)
0.045 (1,14)
6
0.405 (10,29)
0.385 (9,78)
0.008 (0,20) NOM
0.260 (6,60)
0.240 (6,10)
Gage Plane
1
3
0.370 (9,40)
0.330 (8,38)
0.010 (0,25)
0°–5°
0.030 (0,76) MIN
0.150 (3,81) MAX
Seating Plane
0.004 (0,10)
0.020 (0,51) MAX
4073328/A 10/96
NOTES: A. All linear dimensions are in inches (millimeters)
B. This drawing is subject to change without notice.
C. Terminal 1 identified by index dot.
7
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
PACKAGE OPTION ADDENDUM
www.ti.com
8-Apr-2005
PACKAGING INFORMATION
Orderable Device
Status (1)
Package Package
Pins Package Eco Plan (2) Lead/Ball Finish MSL Peak Temp (3)
Qty
Type
PDIP
OPTO
PDIP
PDIP
Drawing
4N35
4N35DCJ
4N36
OBSOLETE
OBSOLETE
OBSOLETE
OBSOLETE
N
DCJ
N
6
6
6
6
TBD
TBD
TBD
TBD
Call TI
Call TI
Call TI
Call TI
Call TI
Call TI
Call TI
Call TI
4N37
N
(1) The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in
a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
Eco Plan
-
The planned eco-friendly classification: Pb-Free (RoHS) or Green (RoHS
&
no Sb/Br)
-
please check
http://www.ti.com/productcontent for the latest availability information and additional product content details.
TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements
for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered
at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame
retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material)
(3)
MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder
temperature.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is
provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the
accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take
reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on
incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited
information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI
to Customer on an annual basis.
Addendum-Page 1
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications,
enhancements, improvements, and other changes to its products and services at any time and to discontinue
any product or service without notice. Customers should obtain the latest relevant information before placing
orders and should verify that such information is current and complete. All products are sold subject to TI’s terms
and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its hardware products to the specifications applicable at the time of sale in
accordance with TI’s standard warranty. Testing and other quality control techniques are used to the extent TI
deems necessary to support this warranty. Except where mandated by government requirements, testing of all
parameters of each product is not necessarily performed.
TI assumes no liability for applications assistance or customer product design. Customers are responsible for
their products and applications using TI components. To minimize the risks associated with customer products
and applications, customers should provide adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right,
copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or process
in which TI products or services are used. Information published by TI regarding third-party products or services
does not constitute a license from TI to use such products or services or a warranty or endorsement thereof.
Use of such information may require a license from a third party under the patents or other intellectual property
of the third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of information in TI data books or data sheets is permissible only if reproduction is without
alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction
of this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable for
such altered documentation.
Resale of TI products or services with statements different from or beyond the parameters stated by TI for that
product or service voids all express and any implied warranties for the associated TI product or service and
is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.
Following are URLs where you can obtain information on other Texas Instruments products and application
solutions:
Products
Applications
Audio
Amplifiers
amplifier.ti.com
www.ti.com/audio
Data Converters
dataconverter.ti.com
Automotive
www.ti.com/automotive
DSP
dsp.ti.com
Broadband
Digital Control
Military
www.ti.com/broadband
www.ti.com/digitalcontrol
www.ti.com/military
Interface
Logic
interface.ti.com
logic.ti.com
Power Mgmt
Microcontrollers
power.ti.com
Optical Networking
Security
www.ti.com/opticalnetwork
www.ti.com/security
www.ti.com/telephony
www.ti.com/video
microcontroller.ti.com
Telephony
Video & Imaging
Wireless
www.ti.com/wireless
Mailing Address:
Texas Instruments
Post Office Box 655303 Dallas, Texas 75265
Copyright 2005, Texas Instruments Incorporated
厂商 型号 描述 页数 下载

MOTOROLA

 		4N30 标准通孔CASE 730A -04[ STANDARD THRU HOLE CASE 730A-04 ] 6 页

TOSHIBA

 		4N30 光电晶体管（ AC LINE /数字逻辑隔离器）[ PHOTO TRANSISTOR (AC LINE/DIGITAL LOGIC ISOLATOR) ] 5 页

QT

 		4N30 通用6 -PIN PHOTODARLINGTON光耦合器[ GENERAL PURPOSE 6-PIN PHOTODARLINGTON OPTOCOUPLERS ] 6 页

EVERLIGHT

 		4N30 6 PIN PHOTODARLINGTON PHOTOCOUPLER[ 6 PIN PHOTODARLINGTON PHOTOCOUPLER ] 13 页

ISOCOM

 		4N30 光耦合隔离器PHOTODARLINGTON输出[ OPTICALLY COUPLED ISOLATOR PHOTODARLINGTON OUTPUT ] 3 页

FAIRCHILD

 		4N30 通用6引脚光电复合光耦[ General Purpose 6-Pin Photodarlington Optocoupler ] 13 页

NJSEMI

 		4N30 光子耦合型隔离器[ Photon Coupled Isolator ] 1 页

TOSHIBA

 		4N30(TP1) [ Optocoupler - Transistor Output, 1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER, DIP-6 ] 5 页

TOSHIBA

 		4N30(TP4) [ Optocoupler - Transistor Output, 1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER, DIP-6 ] 5 页

TOSHIBA

 		4N30(TP5) [ Optocoupler - Transistor Output, 1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER, DIP-6 ] 5 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.263044s
