CZSH-4

型号:

CZSH-4

描述:

肖特基势垒整流器[ SCHOTTKY BARRIER RECTIFIER ]

品牌:

CENTRAL[ CENTRAL SEMICONDUCTOR CORP ]

页数:

2 页

PDF大小:

108 K

TM
Central

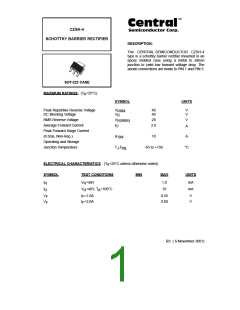

CZSH-4
Semiconductor Corp.
SCHOTTKY BARRIER RECTIFIER
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CZSH-4
type is a schottky barrier rectifier mounted in an
epoxy molded case using a metal to silicon
junction to yield low forward voltage drop. The
anode connections are made to PIN 1 and PIN 3.
SOT-223 CASE
MAXIMUM RATINGS (T =25°C)
A
SYMBOL
UNITS
Peak Repetitive Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Forward Current
Peak Forward Surge Current
(8.3ms, Non-Rep.)
V
V
V
40
40
28
V
V
V
RRM
R
R(RMS)
I
2.0
O
A
I
10
A
FSM
Operating and Storage
Junction Temperature
T ,T
J stg
-65 to +150
°C
ELECTRICAL CHARACTERISTICS (T =25°C unless otherwise noted)
A
SYMBOL
TEST CONDITIONS
V =40V
MIN
MAX
UNITS
I
I
1.0
10
mA
mA
R
R
V =40V, T =100°C
R
R
A
V
V
I =1.0A
0.55
0.60
V
V
F
F
F
I =2.0A
F
R3 ( 6-November 2001)
TM
Central
CZSH-4
Semiconductor Corp.
SCHOTTKY BARRIER RECTIFIER
SOT-223 CASE - MECHANICAL OUTLINE
LEAD CODE:
1) Anode
2) Cathode
3) Anode
4) Cathode
R3 ( 6-November 2001)
