MZ12GW

型号：

MZ12GW

描述：

10千帕未补偿硅压力传感器[ 10 kPa Uncompensated Silicon Pressure Sensors ]

品牌：

FREESCALE[ Freescale ]

页数：

14 页

PDF大小：

236 K

下载PDF手册

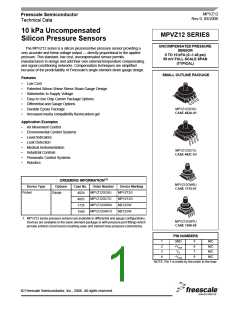

MPVZ12
Rev 0, 09/2006
Freescale Semiconductor
Technical Data
10 kPa Uncompensated
Silicon Pressure Sensors
The MPVZ12 series is a silicon piezoresistive pressure sensor providing a
very accurate and linear voltage output — directly proportional to the applied
pressure. This standard, low cost, uncompensated sensor permits
manufacturers to design and add their own external temperature compensating
and signal conditioning networks. Compensation techniques are simplified
because of the predictability of Freescale's single element strain gauge design.
MPVZ12 SERIES
UNCOMPENSATED PRESSURE
SENSOR
0 TO 10 kPA (0–1.45 psi)
55 mV FULL SCALE SPAN
(TYPICAL)
SMALL OUTLINE PACKAGE
Features
•
•
•
•
•
•
•
Low Cost
Patented Silicon Shear Stress Strain Gauge Design
Ratiometric to Supply Voltage
Easy to Use Chip Carrier Package Options
Differential and Gauge Options
Durable Epoxy Package
MPVZ12GC6U
CASE 482A-01
Increased media compatibility fluorocarbon gel
Application Examples
•
•
•
•
•
•
•
•
Air Movement Control
Environmental Control Systems
Level Indicators
Leak Detection
Medical Instrumentation
Industrial Controls
MPVZ12GC7U
CASE 482C-03
Pneumatic Control Systems
Robotics
ORDERING INFORMATION(1)
MPVZ12GW6U
CASE 1735-01
Device Type
Ported
Options
Gauge
Case No.
482A
Order Number
MPVZ12GC6U
MPVZ12GC7U
MPVZ12GW6U
MPVZ12GW7U
Device Marking
MPVZ12G
MPVZ12G
482C
MZ12GW
1735
MZ12GW
1560
1. MPVZ12 series pressure sensors are available in differential and gauge configurations.
Devices are available in the basic element package or with pressure port fittings which
provide printed circuit board mounting ease and barbed hose pressure connections.
MPVZ12GW7U
CASE 1560-02
PIN NUMBERS
1
2
3
4
GND
+Vout
Vs
5
6
7
8
N/C
N/C
N/C
N/C
–Vout
NOTE: Pin 1 is noted by the notch in the lead.
© Freescale Semiconductor, Inc., 2006. All rights reserved.
+VS
3
2
4
+VOUT
Sensing
Element
–VOUT
1
GND
Figure 1. Uncompensated Pressure Sensor Schematic
VOLTAGE OUTPUT VERSUS APPLIED DIFFERENTIAL PRESSURE
The output voltage of the differential or gauge sensor
increases with increasing pressure applied to the pressure
side (P1) relative to the vacuum side (P2). Similarly, output
voltage increases as increasing vacuum is applied to the
vacuum side (P2) relative to the pressure side (P1).
Table 1. Maximum Ratings(1)
Rating
Symbol
PMAX
PBURST
TSTG
Value
75
Unit
kPa
kPa
°C
Maximum Pressure (P1 > P2)
Burst Pressure (P1 > P2)
Storage Temperature
100
–40 to +125
–40 to +125
Operating Temperature
TA
°C
1. Exposure beyond the specified limits may cause permanent damage or degradation to the device.
MPVZ12
Sensors
Freescale Semiconductor
2
Table 2. Operating Characteristics (VS = 3.0 Vdc, TA = 25°C unless otherwise noted, P1 > P2)
Characteristic
Differential Pressure Range(1)
Symbol
POP
VS
Min
0
Typ
—
Max
10
Unit
kPa
Supply Voltage(2)
—
3.0
6.0
55
6.0
—
Vdc
Supply Current
Io
—
mAdc
mV
Full Scale Span(3)
VFSS
Voff
45
70
Offset(4)
0
20
35
mV
Sensitivity
∆V/∆P
—
—
5.5
—
—
mV/kPa
%VFSS
%VFSS
%VFSS
%VFSS/°C
µV/°C
%Zin/°C
W
Linearity(5)
–0.5
—
0.5
—
Pressure Hysteresis6 (0 to 10 kPa)
Temperature Hysteresis(5) (–40°C to +125°C)
Temperature Coefficient of Full Scale Span(5)
Temperature Coefficient of Offset(5)
Temperature Coefficient of Resistance(5)
Input Impedance
—
±0.1
±0.5
—
—
—
—
TCVFSS
TCVoff
TCR
Zin
–0.22
—
–0.16
—
±15
—
0.28
400
750
—
0.34
550
1250
—
—
Output Impedance
Zout
tR
—
W
Response Time(6) (10% to 90%)
Warm-Up Time(7)
1.0
20
ms
—
—
—
ms
Offset Stability(8)
—
—
±0.5
—
%VFSS
1. 1.0 kPa (kiloPascal) equals 0.145 psi.
2. Device is ratiometric within this specified excitation range. Operating the device above the specified excitation range may induce additional
error due to device self-heating.
3. Full Scale Span (VFSS) is defined as the algebraic difference between the output voltage at full rated pressure and the output voltage at the
minimum related pressure.
4. Offset (VOFF) is defined as the output voltage at the minimum rated pressure.
5. Accuracy (error budget) consists of the following:
• Linearity:
Output deviation from a straight line relationship with pressure, using end point method, over the specified
pressure range.
• Temperature Hysteresis: Output deviation at any temperature within the operating temperature range, after the temperature is cycled to
and from the minimum or maximum operating temperature points, with zero differential pressure applied.
• Pressure Hysteresis:
Output deviation at any pressure with the specified range, when this pressure is cycled to and from the minimum
or maximum rated pressure at 25°C.
• TcSpan:
• TcOffset:
• TCR:
Output deviation at full rated pressure over the temperature range of 0 to 85°C, relative to 25°C.
Output deviation with minimum rated pressure applied, over the temperature range of 0 to 85°C, relative to 25°C.
Z
deviation with minimum rated pressure applied, over the temperature range of -40°C to ±125°C, relative to
IN
25°C.
6. Response Time is defined as the time form the incremental change in the output to go from 10% to 90% of its final value when subjected to
a specified step change in pressure.
7. Warm-up Time is defined as the time required for the product to meet the specified output voltage after the pressure is stabilized.
8. Offset stability is the product’s output deviation when subjected to 1000 hours of Pulsed Pressure, Temperature Cycling with Bias Test.
MPVZ12
Sensors
Freescale Semiconductor
3
TEMPERATURE COMPENSATION
LINEARITY
Figure 2 shows the typical output characteristics of the
MPVZ12 series over temperature.
Linearity refers to how well a transducer's output follows
the equation: Vout = Voff + sensitivity x P over the operating
pressure range (Figure 3). There are two basic methods for
calculating nonlinearity: (1) end point straight line fit or (2) a
least squares best line fit. While a least squares fit gives the
“best case” linearity error (lower numerical value), the
calculations required are burdensome.
Conversely, an end point fit will give the “worst case” error
(often more desirable in error budget calculations) and the
calculations are more straightforward for the user.
Freescale’s specified pressure sensor linearities are based
on the end point straight line method measured at the
midrange pressure.
Because this strain gauge is an integral part of the silicon
diaphragm, there are no temperature effects due to
differences in the thermal expansion of the strain gauge and
the diaphragm, as are often encountered in bonded strain
gauge pressure sensors. However, the properties of the
strain gauge itself are temperature dependent, requiring that
the device be temperature compensated if it is to be used
over an extensive temperature range.
Temperature compensation and offset calibration can be
achieved rather simply with additional resistive components,
or by designing your system using the MPX2010D series
sensor.
Several approaches to external temperature
compensation over both –40 to +125°C and 0 to +80°C
ranges are presented in Applications Note AN840.
80
+25°C
VS = 3 VDC
70
P1 > P2
-40°C
60
50
Span
Range
(Typ)
40
30
20
10
+125°C
Offset
(Typ)
0
PSI
kPa
0
0.3
2.0
0.6
4.0
0.9
6.0
1.2
8.0
1.5
10
Pressure Differential
Figure 2. Output versus Pressure Differential
70
Linearity
60
50
Actual
40
Span
(VFSS)
30
20
10
0
Theoretical
Offset
(Voff)
0
Max
POP
Pressure (kPA)
Figure 3. Linearity Specification Comparison
MPVZ12
Sensors
4
Freescale Semiconductor
Stainless
Steel Cap
Die
Gel Die Coat
P1
Thermoplastic
Wire Bond
Case
Lead Frame
P2
Die Bond
Differential Sensing
Element
Figure 4. Cross-Sectional Diagram (not to scale)
Figure 4 illustrates the differential or gauge configuration
Operating characteristics, internal reliability and
qualification tests are based on use of dry clean air as the
pressure media. Media other than dry clean air may have
adverse effects on sensor performance and long term
reliability. Contact the factory for information regarding media
compatibility in your application.
in the basic chip carrier (applicable to cases 482, 1560 and
1735). A gel isolates the die surface and wire bonds from the
environment, while allowing the pressure signal to be
transmitted to the silicon diaphragm.
PRESSURE (P1)/VACUUM (P2) SIDE IDENTIFICATION TABLE
Freescale designates the two sides of the pressure sensor
as the Pressure (P1) side and the Vacuum (P2) side. The
Pressure (P1) side is the side containing gel which isolates
the die from the environment. The Freescale MPVZ12 series
is designed to operate with positive differential pressure
applied, P1 > P2.
Pressure (P1) Side
Part Number
Case Type
Identifier
MPVZ12GC6U
Top with Port Attached
482A
98ASB17757C
The Pressure (P1) side may be identified by using the
following table
MPVZ12GC7U
MPVZ12GW6U
MPVZ12GW7U
482C
98ASB17759C
Top with Port Attached
Top with Port Attached
Top with Port Attached
1735
98ASA10686D
1560
98ASA10611D
MPVZ12
Sensors
Freescale Semiconductor
5
PACKAGE DIMENSIONS
–A–
D 8 PL
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. DIMENSION A AND B DO NOT INCLUDE MOLD
PROTRUSION.
4. MAXIMUM MOLD PROTRUSION 0.15 (0.006).
5. ALL VERTICAL SURFACES 5 TYPICAL DRAFT.
4
M
S
S
0.25 (0.010)
T
B
A
5
8
N
–B–
G
INCHES
MILLIMETERS
1
DIM
A
B
C
D
MIN
MAX
0.425
0.425
0.520
0.042
MIN
10.54
10.54
12.70
0.96
MAX
10.79
10.79
13.21
1.07
0.415
0.415
0.500
0.038
S
W
G
H
J
K
M
N
S
V
W
0.100 BSC
2.54 BSC
0.002
0.009
0.061
0
0.010
0.011
0.071
7
0.05
0.23
1.55
0
0.25
0.28
1.80
7
V
0.444
0.709
0.245
0.115
0.448
0.725
0.255
0.125
11.28
18.01
6.22
2.92
11.38
18.41
6.48
3.17
C
H
J
–T–
SEATING
PLANE
PIN 1 IDENTIFIER
M
K
CASE 482A-01
ISSUE A
SMALL OUTLINE PACKAGE
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
–A–
2. CONTROLLING DIMENSION: INCH.
3. DIMENSION A AND B DO NOT INCLUDE MOLD
PROTRUSION.
4
5
4. MAXIMUM MOLD PROTRUSION 0.15 (0.006).
5. ALL VERTICAL SURFACES 5 TYPICAL DRAFT.
6. DIMENSION S TO CENTER OF LEAD WHEN
FORMED PARALLEL.
N
–B–
D 8 PL
G
M
S
S
INCHES
MILLIMETERS
8
0.25 (0.010)
T
B
A
1
DIM
A
B
C
D
MIN
MAX
0.425
0.425
0.520
0.034
MIN
10.54
10.54
12.70
0.66
MAX
10.79
10.79
13.21
0.864
0.415
0.415
0.500
0.026
DETAIL X
S
W
G
J
K
M
N
S
0.100 BSC
2.54 BSC
0.009
0.100
0
0.011
0.120
15
0.23
2.54
0
0.28
3.05
15
PIN 1
IDENTIFIER
V
0.444
0.540
0.245
0.115
0.448
0.560
0.255
0.125
11.28
13.72
6.22
2.92
11.38
14.22
6.48
3.17
C
V
W
SEATING
PLANE
–T–
K
M
J
DETAIL X
CASE 482C-03
ISSUE B
SMALL OUTLINE PACKAGE
MPVZ12
Sensors
Freescale Semiconductor
6
PACKAGE DIMENSIONS
CASE 1735-01
ISSUE A
SMALL OUTLINE PACKAGE
MPVZ12
Sensors
Freescale Semiconductor
7
PACKAGE DIMENSIONS
CASE 1735-01
ISSUE A
SMALL OUTLINE PACKAGE
MPVZ12
Sensors
8
Freescale Semiconductor
PACKAGE DIMENSIONS
CASE 1735-01
ISSUE A
SMALL OUTLINE PACKAGE
MPVZ12
Sensors
Freescale Semiconductor
9
PACKAGE DIMENSIONS
CASE 1560-02
ISSUE C
SMALL OUTLINE PACKAGE
MPVZ12
Sensors
10
Freescale Semiconductor
PACKAGE DIMENSIONS
CASE 1560-02
ISSUE C
SMALL OUTLINE PACKAGE
MPVZ12
Sensors
Freescale Semiconductor
11
PACKAGE DIMENSIONS
CASE 1560-02
ISSUE C
SMALL OUTLINE PACKAGE
MPVZ12
Sensors
12
Freescale Semiconductor
NOTES
MPVZ12
Sensors
Freescale Semiconductor
13
How to Reach Us:
Home Page:
www.freescale.com
E-mail:
support@freescale.com
USA/Europe or Locations Not Listed:
Freescale Semiconductor
Technical Information Center, CH370
1300 N. Alma School Road
Chandler, Arizona 85224
+1-800-521-6274 or +1-480-768-2130
support@freescale.com
Europe, Middle East, and Africa:
Freescale Halbleiter Deutschland GmbH
Technical Information Center
Schatzbogen 7
81829 Muenchen, Germany
+44 1296 380 456 (English)
+46 8 52200080 (English)
+49 89 92103 559 (German)
+33 1 69 35 48 48 (French)
support@freescale.com
Information in this document is provided solely to enable system and software
implementers to use Freescale Semiconductor products. There are no express or
implied copyright licenses granted hereunder to design or fabricate any integrated
circuits or integrated circuits based on the information in this document.
Freescale Semiconductor reserves the right to make changes without further notice to
any products herein. Freescale Semiconductor makes no warranty, representation or
guarantee regarding the suitability of its products for any particular purpose, nor does
Freescale Semiconductor assume any liability arising out of the application or use of any
product or circuit, and specifically disclaims any and all liability, including without
limitation consequential or incidental damages. “Typical” parameters that may be
provided in Freescale Semiconductor data sheets and/or specifications can and do vary
in different applications and actual performance may vary over time. All operating
parameters, including “Typicals”, must be validated for each customer application by
customer’s technical experts. Freescale Semiconductor does not convey any license
under its patent rights nor the rights of others. Freescale Semiconductor products are
not designed, intended, or authorized for use as components in systems intended for
surgical implant into the body, or other applications intended to support or sustain life,
or for any other application in which the failure of the Freescale Semiconductor product
could create a situation where personal injury or death may occur. Should Buyer
purchase or use Freescale Semiconductor products for any such unintended or
unauthorized application, Buyer shall indemnify and hold Freescale Semiconductor and
its officers, employees, subsidiaries, affiliates, and distributors harmless against all
claims, costs, damages, and expenses, and reasonable attorney fees arising out of,
directly or indirectly, any claim of personal injury or death associated with such
unintended or unauthorized use, even if such claim alleges that Freescale
Japan:
Freescale Semiconductor Japan Ltd.
Headquarters
ARCO Tower 15F
1-8-1, Shimo-Meguro, Meguro-ku,
Tokyo 153-0064
Japan
0120 191014 or +81 3 5437 9125
support.japan@freescale.com
Asia/Pacific:
Freescale Semiconductor Hong Kong Ltd.
Technical Information Center
2 Dai King Street
Tai Po Industrial Estate
Tai Po, N.T., Hong Kong
+800 2666 8080
support.asia@freescale.com
For Literature Requests Only:
Freescale Semiconductor Literature Distribution Center
P.O. Box 5405
Semiconductor was negligent regarding the design or manufacture of the part.
Denver, Colorado 80217
Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc.
All other product or service names are the property of their respective owners.
1-800-441-2447 or 303-675-2140
Fax: 303-675-2150
© Freescale Semiconductor, Inc. 2006. All rights reserved.
LDCForFreescaleSemiconductor@hibbertgroup.com
MPVZ12
Rev. 0
09/2006
厂商 型号 描述 页数 下载

MIC

 		MZ1.0GD100V-2.5 稳压二极管[ ZENER DIODE ] 3 页

MIC

 		MZ1.0GD10V-25 稳压二极管[ ZENER DIODE ] 3 页

MIC

 		MZ1.0GD11V-23 稳压二极管[ ZENER DIODE ] 3 页

MIC

 		MZ1.0GD12V-21 稳压二极管[ ZENER DIODE ] 3 页

MIC

 		MZ1.0GD13V-19 稳压二极管[ ZENER DIODE ] 3 页

MIC

 		MZ1.0GD15V-17 稳压二极管[ ZENER DIODE ] 3 页

MIC

 		MZ1.0GD16V-15.5 稳压二极管[ ZENER DIODE ] 3 页

MIC

 		MZ1.0GD18V-14 稳压二极管[ ZENER DIODE ] 3 页

MIC

 		MZ1.0GD20V-12.5 稳压二极管[ ZENER DIODE ] 3 页

MIC

 		MZ1.0GD22V-11.5 稳压二极管[ ZENER DIODE ] 3 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.219370s
