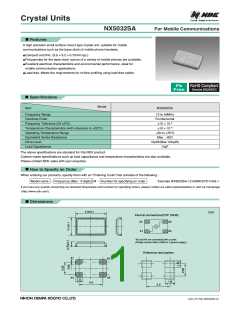

Crystal Units
For Mobile Communications
NX5032SA
Features
n
A high precision small surface-mount type crystal unit, suitable for mobile
communications such as the base clock of mobile phone handsets.
Compact and thin. (5.0 ꢁ 3.2 ꢁ 0.75mm typ.℃
l
l
Frequencies for the base clock source of a variety of mobile phones are available.
Excellent electrical characteristics and environmental performance, ideal for
l
mobile communication applications.
Lead-free. Meets the requirements for re-flow profiling using lead-free solder.
l
Pb
Free
Specifications
n
Model
NX5032SA
Item
Frequency Range
12 to 40MHz
Fundamental
Overtone Order
−6
Frequency Tolerance (25 3ꢀ℃
10 ꢁ 10
−6
Temperature Characteristics (with reference to +25°C℃
Operating Temperature Range
Equivalent Series Resistance
Drive Level
10 ꢁ 10
−20 to +75ꢀ
Max. : 40Ω
10μW(Max:100μW℃
10pF
Load Capacitance
The above specifications are standard for this NDK product.
Custom-made specifications such as load capacitance and temperature characteristics are also available.
Please contact NDK sales with your enquiries.
How to Specify an Order
n
When ordering our products, specify them with an “Ordering Code” that consists of the following :
Model name - Frequency (Max : 9 digits℃ M - Number for specifying an order
Example NX5032SA-12.000M-STD-CSG-1
If you have any queries concerning our standard frequencies and numbers for specifying orders, please contact our sales representatives or visit our homepage
(http://www.ndk.com/℃.
Dimensions
n
4.9 0.1
mm
Internal connections(TOP VIEW℃
#4
#3
#1
#2
*#2 and #4 are connected with a cover.
(Please connect with a GND or a power supply.℃
Reference land pattern
#1
#4
#2
#3
1.2
1 .6
3.5
3.5
cu31_071108_NX5032SA_e1
