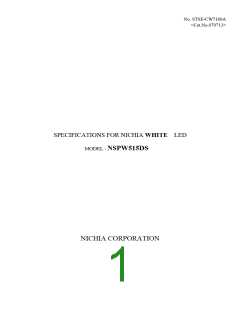

No. STSE-CW7160A
<Cat.No.070713>
SPECIFICATIONS FOR NICHIA WHITE LED
MODEL : NSPW515DS
NICHIA CORPORATION
Nichia STSE-CW7160A
<Cat.No.070713>
1.SPECIFICATIONS
(1) Absolute Maximum Ratings
Item
(Ta=25°C)
Unit
mA
Symbol
IF
Absolute Maximum Rating
Forward Current
30
100
Pulse Forward Current
Reverse Voltage
IFP
mA
VR
5
V
Power Dissipation
Operating Temperature
Storage Temperature
Soldering Temperature
PD
105
mW
°C
Topr
Tstg
Tsld
-30 ~ + 85
-40 ~ +100
°C
265°C for 10sec.
<
<
IFP Conditions
:
Pulse Width
10msec. and Duty
1/10
=
=
(2) Initial Electrical/Optical Characteristics
Item Symbol Condition
Forward Voltage
(Ta=25°C)
Typ.
Max.
Unit
V
VF
IR
Iv
-
IF=20[mA]
VR= 5[V]
(3.2)
-
3.5
50
-
Reverse Current
µA
cd
-
Luminous Intensity
IF=20[mA]
IF=20[mA]
IF=20[mA]
(2.30)
0.31
0.32
ꢀ
x
y
-
Chromaticity Coordinate
-
-
-
ꢀPlease refer to CIE 1931 chromaticity diagram.
(3) Ranking
(Ta=25°C)
Item
Symbol Condition
Min.
2.32
1.61
1.16
Max.
3.22
2.32
1.61
Unit
cd
Rank W
Rank V
Rank U
Iv
Iv
Iv
IF=20[mA]
IF=20[mA]
IF=20[mA]
Luminous Intensity
cd
cd
ꢀLuminous Intensity Measurement allowance is ± 10%.
Color Ranks
Rank a0
(IF=20mA,Ta=25°C)
Rank b1
x
y
0.280
0.248
0.264
0.267
0.283
0.305
0.296
0.276
x
y
0.287
0.295
0.283
0.305
0.330
0.360
0.330
0.339
Rank b2
Rank c0
x
y
0.296
0.276
0.287
0.295
0.330
0.339
0.330
0.318
x
y
0.330
0.318
0.330
0.360
0.361
0.385
0.356
0.351
ꢀColor Coordinates Measurement allowance is ± 0.01.
ꢀBasically, a shipment shall consist of the LEDs of a combination of the above ranks.
The percentage of each rank in the shipment shall be determined by Nichia.
2.INITIAL OPTICAL/ELECTRICAL CHARACTERISTICS
Please refer to figure’s page.
-1-
Nichia STSE-CW7160A
<Cat.No.070713>
3.OUTLINE DIMENSIONS AND MATERIALS
Please refer to figure’s page.
Material as follows ;
Resin(Mold) : Epoxy Resin (over Phosphor)
Lens Color
Leadframe
:
:
Milky (Diffusion type)
Ag plating Copper Alloy
4.PACKAGING
· The LEDs are packed in cardboard boxes after packaging in anti-electrostatic bags.
Please refer to figure’s page.
The label on the minimum packing unit shows ; Part Number, Lot Number, Ranking, Quantity
· In order to protect the LEDs from mechanical shock, we pack them in cardboard boxes for transportation.
· The LEDs may be damaged if the boxes are dropped or receive a strong impact against them,
so precautions must be taken to prevent any damage.
· The boxes are not water resistant and therefore must be kept away from water and moisture.
· When the LEDs are transported, we recommend that you use the same packing method as Nichia.
5.LOT NUMBER
The first six digits number shows lot number.
The lot number is composed of the following characters;
ꢁꢂꢃꢃꢃꢃ- Uꢄ
ꢁ - Year
( 6 for 2006, 7 for 2007 )
ꢂ - Month ( 1 for Jan., 9 for Sep., A for Oct., B for Nov. )
ꢃꢃꢃꢃ - Nichia's Product Number
U - Ranking by Color Coordinates
ꢄ - Ranking by Luminous Intensity
-2-
Nichia STSE-CW7160A
<Cat.No.070713>
6.RELIABILITY
(1) TEST ITEMS AND RESULTS
Standard
Number of
Test Item
Resistance to
Test Method
JEITA ED-4701
300 302
Test Conditions
Note
Damaged
0/50
Tsld=260 ± 5°C, 10sec.
1 time
Soldering Heat
Solderability
3mm from the base of the epoxy bulb
JEITA ED-4701
300 303
Tsld=235 ± 5°C,
(using flux)
5sec.
1 time
0/50
0/50
0/50
0/50
0/50
0/50
0/50
0/50
0/50
0/50
0/50
over 95%
100 cycles
Temperature Cycle
JEITA ED-4701
100 105
-40°C ~ 25°C ~ 100°C ~ 25°C
30min. 5min. 30min. 5min.
25°C ~ 65°C ~ -10°C
90%RH 24hrs./1cycle
Load 5N (0.5kgf)
Moisture Resistance Cyclic
JEITA ED-4701
200 203
10 cycles
Terminal Strength
(bending test)
JEITA ED-4701
400 401
No noticeable
damage
0° ~ 90° ~ 0° bend 2 times
Load 10N (1kgf)
Terminal Strength
(pull test)
JEITA ED-4701
400 401
No noticeable
damage
10 ± 1 sec.
High Temperature Storage
JEITA ED-4701
200 201
Ta=100°C
1000hrs.
Temperature Humidity
Storage
JEITA ED-4701
100 103
Ta=60°C, RH=90%
Ta=-40°C
1000hrs.
1000hrs.
1000hrs.
500hrs.
Low Temperature Storage
JEITA ED-4701
200 202
Steady State Operating Life
Ta=25°C, IF=30mA
60°C, RH=90%, IF=20mA
Ta=-30°C, IF=20mA
Steady State Operating Life
of High Humidity Heat
Steady State Operating Life
of Low Temperature
1000hrs.
(2) CRITERIA FOR JUDGING DAMAGE
Criteria for Judgement
Min.
Max.
Item
Symbol Test Conditions
Forward Voltage
Reverse Current
Luminous Intensity
VF
IR
IF=20mA
VR=5V
-
U.S.L.*)ꢃ1.1
U.S.L.*)ꢃ2.0
-
-
IV
IF=20mA
L.S.L.**)ꢃ0.7
*) U.S.L. : Upper Standard Level
**) L.S.L. : Lower Standard Level
-3-
Nichia STSE-CW7160A
<Cat.No.070713>
7.CAUTIONS
The LEDs are devices which are materialized by combining Blue LEDs and special phosphors.
Consequently, the color of the LEDs is changed a little by an operating current.
Care should be taken after due consideration when using LEDs.
(1) Lead Forming
· When forming leads, the leads should be bent at a point at least 3mm from the base of the epoxy bulb.
Do not use the base of the leadframe as a fulcrum during lead forming.
· Lead forming should be done before soldering.
· Do not apply any bending stress to the base of the lead. The stress to the base may damage the LED’s
characteristics or it may break the LEDs.
· When mounting the LEDs onto a printed circuit board, the holes on the circuit board should be exactly
aligned with the leads of the LEDs. If the LEDs are mounted with stress at the leads, it causes
deterioration of the epoxy resin and this will degrade the LEDs.
(2) Storage
· The LEDs should be stored at 30°C or less and 70%RH or less after being shipped from Nichia and
the storage life limits are 3 months.
If the LEDs are stored for 3 months or more, they can be stored
for a year in a sealed container with a nitrogen atmosphere and moisture absorbent material.
· Nichia LED leadframes are silver plated copper alloy. The silver surface may be affected by
environments which contain corrosive substances. Please avoid conditions which may cause the LED
to corrode, tarnish or discolor. This corrosion or discoloration may cause difficulty during soldering
operations. It is recommended that the LEDs be used as soon as possible.
· Please avoid rapid transitions in ambient temperature, especially, in high humidity environments where
condensation can occur.
(3) Static Electricity
· Static electricity or surge voltage damages the LEDs.
It is recommended that a wrist band or an anti-electrostatic glove be used when handling the LEDs.
· All devices, equipment and machinery must be properly grounded. It is recommended that precautions
be taken against surge voltage to the equipment that mounts the LEDs.
· When inspecting the final products in which LEDs were assembled, it is recommended to check
whether the assembled LEDs are damaged by static electricity or not.
It is easy to find
static-damaged LEDs by a light-on test or a VF test at a lower current (below 1mA is recommended).
· Damaged LEDs will show some unusual characteristics such as the leak current remarkably
increases, the forward voltage becomes lower, or the LEDs do not light at the low current.
Criteria : (VF > 2.0V at IF=0.5mA)
-4-
Nichia STSE-CW7160A
<Cat.No.070713>
(4) Soldering Conditions
· Nichia LED leadframes are silver plated copper alloy.
This substance has a low
thermal coefficient (easily conducts heat).
Careful attention should be paid during soldering.
· Solder the LED no closer than 3mm from the base of the epoxy bulb.
of the tie bar is recommended.
Soldering beyond the base
· Recommended soldering conditions
Dip Soldering
120°C Max.
60 seconds Max.
260°C Max.
Hand Soldering
Pre-Heat
Temperature
Soldering Time
Position
350°C Max.
3 seconds Max.
No closer than 3 mm from the
base of the epoxy bulb.
Pre-Heat Time
Solder Bath
Temperature
Dipping Time
10 seconds Max.
Dipping Position No lower than 3 mm from the
base of the epoxy bulb.
· Although the recommended soldering conditions are specified in the above table, dip or hand
soldering at the lowest possible temperature is desirable for the LEDs.
· A rapid-rate process is not recommended for cooling the LEDs down from the peak temperature.
· Dip soldering should not be done more than one time.
· Hand soldering should not be done more than one time.
· Do not apply any stress to the lead particularly when heated.
· The LEDs must not be repositioned after soldering.
· After soldering the LEDs, the epoxy bulb should be protected from mechanical shock or vibration until
the LEDs return to room temperature.
· Direct soldering onto a PC board should be avoided.
from warping of the PC board or from the clinching and cutting of the leadframes.
absolutely necessary, the LEDs may be mounted in this fashion but the User will assume responsibility
for any problems. Direct soldering should only be done after testing has confirmed that no damage,
such as wire bond failure or resin deterioration, will occur. Nichia’s LEDs should not be soldered
Mechanical stress to the resin may be caused
When it is
directly to double sided PC boards because the heat will deteriorate the epoxy resin.
· When it is necessary to clamp the LEDs to prevent soldering failure, it is important to minimize
the mechanical stress on the LEDs.
· Cut the LED leadframes at room temperature.
cause failure of the LEDs.
Cutting the leadframes at high temperatures may
(5) Heat Generation
· Thermal design of the end product is of paramount importance.
Please consider the heat generation
of the LED when making the system design. The coefficient of temperature increase per input
electric power is affected by the thermal resistance of the circuit board and density of LED
placement on the board, as well as other components. It is necessary to avoid intense heat generation
and operate within the maximum ratings given in this specification.
· The operating current should be decided after considering the ambient maximum temperature of LEDs.
(6) Cleaning
· It is recommended that isopropyl alcohol be used as a solvent for cleaning the LEDs. When using
other solvents, it should be confirmed beforehand whether the solvents will dissolve the resin or not.
Freon solvents should not be used to clean the LEDs because of worldwide regulations.
· Do not clean the LEDs by the ultrasonic. When it is absolutely necessary, the influence of ultrasonic
cleaning on the LEDs depends on factors such as ultrasonic power and the assembled condition.
Before cleaning, a pre-test should be done to confirm whether any damage to the LEDs will occur.
-5-
Nichia STSE-CW7160A
<Cat.No.070713>
(7) Safety Guideline for Human Eyes
· In 1993, the International Electric Committee (IEC) issued a standard concerning laser product safety
(IEC 825-1). Since then, this standard has been applied for diffused light sources (LEDs) as well
as lasers.
In 1998 IEC 60825-1 Edition 1.1 evaluated the magnitude of the light source.
In 2001 IEC 60825-1 Amendment 2 converted the laser class into 7 classes for end products.
Components are excluded from this system. Products which contain visible LEDs are now classified
as class 1. Products containing UV LEDs are class 1M. Products containing LEDs can be classified
as class 2 in cases where viewing angles are narrow, optical manipulation intensifies the light, and/or the
energy emitted is high. For these systems it is recommended to avoid long term exposure.
It is also recommended to follow the IEC regulations regarding safety and labeling of products.
(8) Others
· NSPW515DS complies with RoHS Directive.
· Care must be taken to ensure that the reverse voltage will not exceed the absolute maximum rating
when using the LEDs with matrix drive.
· Flashing lights have been known to cause discomfort in people; you can prevent this by taking
precautions during use.
incorporated into it.
Also, people should be cautious when using equipment that has had LEDs
· The LEDs described in this brochure are intended to be used for ordinary electronic equipment (such
as office equipment, communications equipment, measurement instruments and household appliances).
Consult Nichia’s sales staff in advance for information on the applications in which exceptional quality
and reliability are required, particularly when the failure or malfunction of the LEDs may directly
jeopardize life or health (such as for airplanes, aerospace, submersible repeaters, nuclear reactor
control systems, automobiles, traffic control equipment, life support systems and safety devices).
· User shall not reverse engineer by disassembling or analysis of the LEDs without having prior written
consent from Nichia.
When defective LEDs are found, the User shall inform Nichia directly before
disassembling or analysis.
· The formal specifications must be exchanged and signed by both parties before large volume purchase begins.
· The appearance and specifications of the product may be modified for improvement without notice.
-6-
Nichia STSE-CW7160A
<Cat.No.070713>
ICI Chromaticity Diagram
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
520
530
540
510
550
560
570
500
580
590
600
c0
b2
610
620
b1
a0
490
630
480
470
460
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0
x
½ Color Coordinates Measurement allowance is ± 0.01.
-7-
ꢀ Forward Voltage vs.
ꢀ Forward Current vs.
ꢀ Duty Ratio vs.
Allowable Forward Current
Forward Current
Relative Luminosity
5
200
200
Ta=25°C
Ta=25°C
4
Ta=25°C
100
50
100
3
2
1
0
20
10
5
50
30
20
1
10
2.0 2.5 3.0 3.5 4.0 4.5 5.0
Forward Voltage VF (V)
0
20 40 60 80 100 120
Forward Current IFP (mA)
1
5
10 20
50 100
Duty Ratio (%)
ꢀ Ambient Temperature vs.
ꢀ Ambient Temperature vs.
ꢀ Ambient Temperature vs.
Forward Voltage
Relative Luminosity
Allowable Forward Current
5.0
2.0
40
30
20
I
I
=60mA
=20mA
FP
FP
IFP=20mA
4.6
4.2
3.8
3.4
3.0
2.6
2.2
IFP=5mA
1.0
0.5
10
8.5
0.2
0
-40 -20
0
20 40 60 80 100
-40 -20
0
20 40 60 80 100
0
20
40
60
80 100
Ambient Temperature Ta (°C)
Ambient Temperature Ta (°C)
Ambient Temperature Ta (°C)
Model
NSPWxxxx
Title CHARACTERISTICS
NICHIA CORPORATION
No.
070620767141
ꢀ Forward Current vs.
ꢀ Spectrum
Chromaticity Coordinate
0.34
1.2
1.0
0.8
0.6
0.4
0.2
0
Ta=25°C
Ta=25°C
IF=20mA
1mA
0.33
5mA
20mA
50mA
0.32
0.31
0.30
100mA
350
450
550
650
750
0°
0.29 0.30
0.31
0.32 0.33
Wavelength λ (nm)
x
ꢀ Ambient Temperature vs.
ꢀ Directivity
Chromaticity Coordinate
10°
1.0
20°
0.34
30°
Ta=25°C
IFP=20mA
IFP=20mA
40°
-30°C
0.33
0.32
50°
0°C
25°C
60°
70°
80°
0.5
50°C
0.31
0.30
85°C
0
90°
1.0
90°
60°
30°
0°
0.5
0.29 0.30 0.31
0.32 0.33
Radiation Angle
x
Model
NSPW515D(S)
Title CHARACTERISTICS
NICHIA CORPORATION
No.
070620767371
Anode
1.5MAX.
Cathode
Stopper
1
7.3
8.3
φ 5.6
12.1 ± 0.5
(2)
28.6 ± 1
1
ITEM
MATERIALS
RESIN
Epoxy Resin (over Phosphor)
Milky (Diffusion type)
LENS COLOR
LEAD FRAME
Ag Plating Copper Alloy
Remark:
Please note that the bare copper alloy showing at the cut end
of the lead frame may be corroded under certain conditions.
LEDs have some sharp edges and points, particularly lead
frames. Please handle with care so as to avoid injuries.
Unit
mm
NSPW515DS
Model
Title
3/1
Scale
OUTLINE DIMENSIONS
NICHIA CORPORATION
Allow
±0.2
No.
070620767381
Print
NICHIA
Cardboard
XXXX LED
TYPE NxPxxxxxx
Anti-electrostatic bag
LOT
QTY
xxxxxx-U„
pcs
RoHS
NICHIA CORPORATION
491OKA,KAMINAKA,ANAN,TOKUSHIMA,JAPAN
CAUTION TO
ELECTROSTATIC DAMAGE
静電気に注意
The quantity is printed on this bag.
Label
NICHIA
XXXX LED
Cardboard
TYPE
LOT
QTY
NxPxxxxxx
xxxxxx-U„
PCS
RoHS
NICHIA CORPORATION
491 OKA, KAMINAKA, ANAN, TOKUSHIMA, JAPAN
Cardboard box
360¯135¯215¯4t
NxPxxxxxx
PACKING
Model
Title
NICHIA CORPORATION
½ One box contains 8 bags at maximum.
No.
070508659112
Cardboard
Print
NICHIA
Anti-electrostatic bag
XXXX LED
TYPE NxPxxxxxx
LOT
QTY
xxxxxx-U„
pcs
RoHS
NICHIA CORPORATION
491OKA,KAMINAKA,ANAN,TOKUSHIMA,JAPAN
The quantity is printed on this bag.
CAUTION TO
ELECTROSTATIC DAMAGE
静電気に注意
Cardboard box A
Label
NICHIA
XXXX LED
TYPE
LOT
QTY
NxPxxxxxx
xxxxxx-U„
PCS
RoHS
NICHIA CORPORATION
491 OKA, KAMINAKA, ANAN, TOKUSHIMA, JAPAN
Cardboard
½ Put this label on the cardboard box B.
Cardboard box B
360¯135¯215¯4t
NxPxxxxxx
PACKING
Model
Title
NICHIA CORPORATION
½ The cardboard box B contains
2 cardboard box A at maximum.
No.
070508659122
Cardboard
Print
NICHIA
Anti-electrostatic bag
XXXX LED
TYPE NxPxxxxxx
LOT
QTY
xxxxxx-U„
pcs
RoHS
NICHIA CORPORATION
491OKA,KAMINAKA,ANAN,TOKUSHIMA,JAPAN
The quantity is printed on this bag.
CAUTION TO
ELECTROSTATIC DAMAGE
静電気に注意
Label
NICHIA
Cardboard
XXXX LED
TYPE
LOT
QTY
NxPxxxxxx
xxxxxx-U„
PCS
RoHS
NICHIA CORPORATION
491 OKA, KAMINAKA, ANAN, TOKUSHIMA, JAPAN
Cardboard box
425¯135¯355¯4t
NxPxxxxxx
PACKING
Model
Title
½ One box contains 20 bags at maximum.
NICHIA CORPORATION
No.
070508659132
Print
Cardboard
NICHIA
XXXX LED
TYPE NxPxxxxxx
Anti-electrostatic bag
LOT
QTY
xxxxxx-U„
pcs
RoHS
NICHIA CORPORATION
491OKA,KAMINAKA,ANAN,TOKUSHIMA,JAPAN
The quantity is printed on this bag.
CAUTION TO
ELECTROSTATIC DAMAGE
静電気に注意
Cardboard box A
Label
NICHIA
XXXX LED
TYPE
LOT
QTY
NxPxxxxxx
xxxxxx-U„
PCS
Cardboard
RoHS
NICHIA CORPORATION
491 OKA, KAMINAKA, ANAN, TOKUSHIMA, JAPAN
½ Put this label on the cardboard box B.
Cardboard box B
425¯135¯355¯4t
NxPxxxxxx
PACKING
Model
Title
NICHIA CORPORATION
½ The cardboard box B contains 4 cardboard box A at maximum.
No.
070508659142
厂商 型号 描述 页数 下载

ETC

 		NXP - 12号的铝制车身绘（ RAL 7032 ） 78 页

NEUTRIK

 		NXP-RM-AES [ XIRIUM PRO US Receiver RX Digital AES/EBU Output Module, including NKXPF-5-15-3 ] 2 页

NEUTRIK

 		NXP-RM-AES-PI [ XIRIUM PRO US Receiver RX Digital AES/EBU Output Module, including NKXPF-5-15-3 ] 2 页

NEUTRIK

 		NXP-RM-DANTE [ XIRIUM PRO US Receiver RX Digital DANTE Output Module, including NKXPF-5-15-3 ] 2 页

NEUTRIK

 		NXP-RM-DANTE-PI [ XIRIUM PRO US Receiver RX Digital DANTE Output Module, including NKXPF-5-15-3 ] 2 页

NEUTRIK

 		NXP-RM-RP [ XIRIUM PRO US Receiver RX Repeater Module, including NKXPF-5-15-3 ] 1 页

NEUTRIK

 		NXP-RM-RP-PI [ XIRIUM PRO US Receiver RX Repeater Module, including NKXPF-5-15-3 ] 1 页

NEUTRIK

 		NXP-TM-AES [ XIRIUM PRO US Transmitter TX Digital AES/EBU Input Module, including NKXPF-5-15-3 ] 2 页

NEUTRIK

 		NXP-TM-AES-PI [ XIRIUM PRO US Transmitter TX Digital AES/EBU Input Module, including NKXPF-5-15-3 ] 2 页

NEUTRIK

 		NXP-TM-ANA [ XIRIUM PRO US Transmitter TX Analog Line Input Module, including NKXPF-5-15-3 ] 2 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.300288s
