IZ1223M

型号：

IZ1223M

描述：

带触摸的语气和标点符号功能基本功能的8位LCD计算器[ BASIC FUNCTION 8-DIGITS LCD CALCULATOR WITH TOUCH TONE AND PUNCTUATION FUNCTION ]

品牌：

INTEGRAL[ INTEGRAL CORP. ]

页数：

8 页

PDF大小：

132 K

下载PDF手册

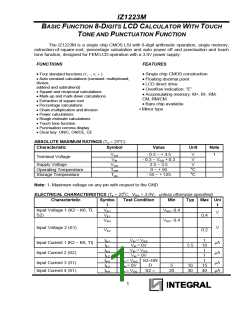

IZ1223M
BASIC FUNCTION 8-DIGITS LCD CALCULATOR WITH TOUCH
TONE AND PUNCTUATION FUNCTION
The IZ1223M is a single chip CMOS LSI with 8-digit arithmetic operation, single memory,
extraction-of-square-root, percentage calculation and auto power off and punctuation and touch
tone function, designed for FEM LCD operation with a 3.0V power supply.
FUNCTIONS
FEATURES
• Four standard functions (+, -, ×, ÷ )
• Auto constant calculations (constant: multiplicand,
divisor,
• Single chip CMOS construction
• Floating decimal point
• LCD direct drive
• Overflow indication: “E”
• Accumulating memory: M+, M-, RM,
CM, RM/CM
addend and subtrahend)
• Square and reciprocal calculations
• Mark-up and mark-down calculations
• Extraction of square root
• Percentage calculations
• Chain multiplication and division
• Power calculations
• Bare chip available
• Mirror type
• Rough estimate calculations
• Touch tone function
• Punctuation comma display
• Clear key: ON/C, ON/CE, CE
ABSOLUTE MAXIMUM RATINGS (Ta = 25oC)
Characteristic
Symbol
Value
Unit
Note
VGG
VIN
VGG
TOPR
Tstg
- 0.3 ~ + 3.5
- 0.3 ~ VGG + 0.3
2.5 ~ 3.5
V
V
1
Terminal Voltage
Supply Voltage
Operating Temperature
Storage Temperature
V
0 ~ + 50
- 55 ~ + 125
oC
oC
Note: 1. Maximum voltage on any pin with respect to the GND
ELECTRICAL CHARACTERISTICS (Ta = 25oC, VGG = 3.0V, unless otherwise specified)
Characteristic
Symbo
l
Test Condition
Min
Typ Max Uni
t
Input Voltage 1 (K2 ~ K6, TI,
S2)
VIH1
VIL1
VIH2
VGG - 0.4
VGG - 0.4
V
0.4
Input Voltage 2 (S1)
V
VIL2
0.2
IIH1
IIL1
IIH2
IIL2
IIH3
IIL3
IIH4
VIN = VGG
VIN = 0V
VIN = VGG
1
10
1
1
1
Input Current 1 (K2 ~ K6, TI)
Input Current 2 (S2)
A
5.5
A
VIN = 0V
VIN = VGG S2=GN
VIN = 0V
Input Current 3 (S1)
Input Current 4 (S1)
A
A
D
5
20
10
30
15
40
VIN = VGG
S2 =
1
IZ1223M
Characteristic
Symbo
Test Condition
Min
Typ Max Uni
l
t
VGG
VIN = 0V
without load
IIL4
VOH1
1
Output Voltage 1 (P1, P2,
A2~A5)
VGG -
0.15
V
VOL1
VOA
VOB
0.15
2.95
1.50 1.70
I
OUT = 15µA
Output Voltage 2 (H1 ~ H3,
a1 ~ a9, b1 ~ b8, c1
~ c8)
without load
without load
2.80
1.30
V
VOC
Fd
without load
0
0.20
V
GG = 3V while
Display Frequency
Touch Tone (PO)
Output Drive Current
50
3
75
Hz
display is on,
GG = 3V, VOL =
0.5V, TI =3V
GG = 3V, VOL =
V
IOL
IOH
mA
V
-3
0.5V, TI =3V
Display off, VGG
3V
=
IOFF (1)
0.1
30
Dissipation
V
GG = 3V while
Idis (2)
20
A
display is on,
NOTE: 1) Measured by the next test circuit after power supply automatically turns off.
2) Measured by the next test circuit while “0” is being displayed after auto clear operation and while
key is not being depressed.
OUTPUT WAVEFORM 1; Hi (i = 1, 2, 3)
OUTPUT WAVEFORM 2; ai, bi, ci, (i = 1, 2, ... , 8)
FUNCTIONAL DESCRIPTION
Decimal point system
Complete floating decimal point system.
Integral number : 8 digits leading zero suppression. Zero shift.
Symbols
: - : negative number display
E : error display
M : memory display
, : punctuation comma
: touch tone indicator
2
IZ1223M
Error detections
• System errors occur when:
1) The integral part of any memory calculation result exceeds 8 digits.
2) The division by zero.
3) The extraction of square root of a negative number.
• Rough estimate calculation error
When the integral part of the result of any standard functions, percentage, square, reciprocal,
or power calculations exceed 8 digits.
Error indication
• System error
“0” is indicated in the 1-digit position and “E” in the sign-digit position.
• Rough estimate calculation error
The high-order 8-digit calculation result is indicated together with “E”.
The decimal point is indicated in the position corresponding to a calculation result of time 10-8,
and no zero shift is performed
Error release
• System error
A system error can be release by the ON/C or ON/CE key.
• Rough estimate calculation error
A rough estimate calculation error can be released by the ON/C, ON/CE, CE key.
A calculation result is not cleared by ON/CE, CE key but is retained.
Number entry
Numerical can be entered up to 8 digits. Numerical entries equal to 9 digits or more are ignored.
Memory protection
In any error detection, the memory content is retained.
Memory indication
If the memory content is not zero, “M” is indicated in the sign-digit position.
Doubler key depression
The order of the priority when two keys are being depressed simultaneously, is as follows:
3
IZ1223M
5
6
0
4
.
9
-
8
RM/CM
OFF
=
ON/C
M +
ON/CE
x
.
.
1
3
2
CM
7
CE
+
M -
%
RM
+/-
When the OFF and ON/C key are depressed simultaneously, the OFF key is given priority.
Key bounce protection
Front edge
Down to 1 word and up to about 3 words.
Trailing edge
9 words
1 word is 3.3ms when display frequency is fd = 100Hz.
DISPLAY FONTS
• Numericals font
Sigh font
,
LCD connector
,
.
,
.
,
,
,
.
.
.
.
.
.
H2 H3 a9
a5 c4 b4
c8 b8 a8 c7 b7
c6 b6
a4 c3 b3
c2 b2
c1 b1
a2 a1 H1
a7
a6
a3
c5 b5
4
IZ1223M
,
, , , ,
H1
H2
H3
a9 c8
a8
b8 c7
a7
b7
c6 b6 c5
a6
c1
a3
c3 b3
a2
b2
a1
b1
b5
a5 c4
c2
a4
b4
AUTO POWER OFF
Power automatically turns off after 9 - 11 minutes pass from the last key pressure. (S1 = Low, S2 =
High)
ON/C KEY
All operations except memory content are cleared by ON/C key.
TOUCH TONE ( ) KEY
• When power is ON, the touch tone function is enable and the beep sound is generated output
during 125ms and sing is displayed on LCD.
• Selection of touch tone function is toggled by touch tone key.
• Output wave form.
ft = 2KHz
- VOA
- VOC
125 ms
MARK-UP AND MARK-DOWN CALCULATION
Mark-up and mark-down calculation are performed as follows.
ENTRY
DISPLAY
A
±
B
%
A
x
B
%
+OR-
=
A
A
B
A
A
B
A ± AB/100
AB/100
AB/100
A+AB/100 OR A --AB/100
5
IZ1223M
APPLICATION CIRCUIT
GND
33
µ
6
IZ1223M
PAD DIAGRAM
7
IZ1223M
PIN DESCRIPTION
Pa
d
Pad I/O
Name
Description
Pad
No.
Pad
Name
I/O
Description
1
PO
K4
K6
K5
P1
P2
A5
A4
A3
A2
K2
K3
Ti
O
Piezo output
Key input
23
a7
O
Display output
Display output
Display output
Display output
Display output
Display output
Display output
Display output
Display output
Display output
Display output
Display output
Display output
Display output
Display output
Display output
Display output
Display output
Display output
COMMON 1
2
I
I
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
c6
b6
a6
c5
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
3
Key input
4
I
Key input
5
O
O
O
O
O
O
I
Strobe output
Strobe output
Strobe output
Strobe output
Strobe output
Strobe output
Key input
6
b5
a5
c4
7
8
9
b4
a4
c3
10
11
12
13
14
15
16
17
18
19
20
21
22
I
Key input
b3
a3
c2
I
Test input
GND
H3
H2
a9
Ground
O
O
O
O
O
O
O
O
COMMON 3
COMMON 2
Display output
Display output
Display output
Display output
Display output
Display output
b2
a2
c1
c8
b1
a1
H1
VGG
TST
b8
a8
c7
Power supply
Test
b7
I
8
