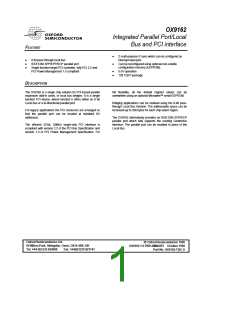

OX9162

Integrated Parallel Port/Local

Bus and PCI interface

FEATURE

·

2 multi-purpose IO pins which can be configured as

interrupt input pins

·

8 bit pass-through local bus

IEEE1284 SPP/EPP/ECP parallel port

Single function target PCI controller, fully PCI 2.2 and

PCI Power Management 1.0 compliant

·

Can be reconfigured using optional non-volatile

configuration memory (EEPROM)

5.0V operation

·

128 TQFP package

DESCRIPTION

The OX9162 is a single chip solution for PCI-based parallel

expansion add-in cards, or local bus bridges. It is a single

function PCI device, where function 0 offers either an 8 bit

Local Bus or a bi-directional parallel port.

full flexibility, all the default register values can be

overwritten using an optional Microwire^TMserial EEPROM.

Bridging applications can be realised using the 8-bit pass-

through Local Bus function. The addressable space can be

increased up to 256 bytes for each chip-select region.

For legacy applications the PCI resources are arranged so

that the parallel port can be located at standard I/O

addresses.

The OX9162 alternatively provides an IEEE1284 EPP/ECP

parallel port which fully supports the existing Centronics

interface. The parallel port can be enabled in place of the

Local Bus.

The efficient 32-bit, 33MHz target-only PCI interface is

compliant with version 2.2 of the PCI Bus Specification and

version 1.0 of PCI Power Management Specification. For

Oxford Semiconductor Ltd.

69 Milton Park, Abingdon, Oxon, OX14 4RX, UK

Tel: +44 (0)1235 824900

Ó Oxford Semiconductor 1999

OX9162 1.0 PRELIMINARY – October 1999

Part No. OX9162-TQC-A

Fax: +44(0)1235 821141

OX9162

OXFORD SEMICONDUCTOR LTD.

CONTENTS

6.3

REGISTER DESCRIPTION.................................. 22

PARALLEL PORT DATA REGISTER ‘PDR’... 22

ECP FIFO ADDRESS / RLE............................ 22

DEVICE STATUS REGISTER ‘DSR’ .............. 22

DEVICE CONTROL REGISTER ‘DCR’........... 23

EPP ADDRESS REGISTER ‘EPPA’ ............... 23

EPP DATA REGISTERS ‘EPPD1-4’ ............... 23

ECP DATA FIFO............................................... 23

TEST FIFO........................................................ 23

CONFIGURATION A REGISTER.................... 23

CONFIGURATION B REGISTER.................... 24

EXTENDED CONTROL REGISTER ‘ECR’ .... 24

6.3.1

6.3.2

6.3.3

6.3.4

6.3.5

6.3.6

6.3.7

6.3.8

6.3.9

6.3.10

6.3.11

1

2

3

PIN INFORMATION...................................3

PIN DESCRIPTIONS.................................4

CONFIGURATION & OPERATION............8

4

PCI TARGET CONTROLLER....................9

OPERATION............................................................9

CONFIGURATION SPACE ....................................9

PCI CONFIGURATION SPACE REGISTER

10

ACCESSING LOGICAL FUNCTIONS.................11

PCI ACCESS TO 8-BIT LOCAL BUS ..............11

PCI ACCESS TO PARALLEL PORT...............11

ACCESSING LOCAL CONFIGURATION

4.1

4.2

4.2.1

MAP

4.3

4.3.1

4.3.2

4.4

7

7.1

7.2

7.2.1

7.2.2

SERIAL EEPROM ...................................25

SPECIFICATION................................................... 25

EEPROM DATA ORGANISATION...................... 25

ZONE0: HEADER............................................. 25

ZONE1: LOCAL CONFIGURATION

REGISTERS........................................................................ 27

REGISTERS........................................................................12

4.4.1 LOCAL CONFIGURATION AND CONTROL

REGISTER ‘LCC’ (OFFSET 0X00) ....................................12

4.4.2 MULTI-PURPOSE I/O CONFIGURATION

REGISTER ‘MIC’ (OFFSET 0X04).....................................13

4.4.3 LOCAL BUS TIMING PARAMETER REGISTER

1 ‘LT1’ (OFFSET 0X08): .....................................................13

4.4.4 LOCAL BUS TIMING PARAMETER/BAR

SIZING REGISTER 2 ‘LT2’ (OFFSET 0X0C):...................15

4.4.5 GLOBAL INTERRUPT STATUS AND

CONTROL REGISTER ‘GIS’ (OFFSET 0X10).................16

7.2.3

7.2.4

7.2.5

ZONE2: IDENTIFICATION REGISTERS........ 28

ZONE3: PCI CONFIGURATION REGISTERS28

ZONE4: FUNCTION ACCESS......................... 28

8

OPERATING CONDITIONS.....................30

9

9.1

9.2

DC ELECTRICAL CHARACTERISTICS..30

NON-PCI I/O BUFFERS....................................... 30

PCI I/O BUFFERS................................................. 31

10

AC ELECTRICAL CHARACTERISTICS

32

4.5

PCI INTERRUPTS.................................................17

POWER MANAGEMENT......................................18

POWER MANAGEMENT USING MIO ............18

10.1 PCI BUS ................................................................ 32

10.2 LOCAL BUS.......................................................... 32

4.6

4.6.1

11

12

TIMING WAVEFORMS ........................34

ERRATA 1 – IMMEDIATE POWER

5

5.1

5.2

5.3

LOCAL BUS ...........................................19

OVERVIEW............................................................19

OPERATION..........................................................19

CONFIGURATION & PROGRAMMING ..............20

DOWN FILTERING.........................................39

6

BI-DIRECTIONAL PARALLEL PORT......21

OPERATION AND MODE SELECTION..............21

SPP MODE........................................................21

PS2 MODE ........................................................21

EPP MODE........................................................21

ECP MODE........................................................21

PARALLEL PORT INTERRUPT..........................21

6.1

6.1.1

6.1.2

6.1.3

6.1.4

6.2

Data Sheet Revision 1.1 PRELIMINARY

Page 2

OX9162

OXFORD SEMICONDUCTOR LTD.

PIN INFORMATION

1

128 pin TQFP

96

92

88

84

80

76

72

68

65

NC

97

64

NC

EE_SK

LBCS1

LBWR

LBRST

NC

LBRST#

100

104

108

112

116

120

124

128

LBCLK

NC

MIO1

NC

MODE

NC

60

56

52

48

44

40

NC

AD0

AD1

GND ac

AD2

AD3

VDD dc

GND dc

NC

AD4

Z_INTA

Z_RESET

GND dc

PCI_CLK

VDD dc

Z_PME

AD31

NC

AD30

AD29

GND ac

AD28

AD27

AD26

GND ac

VDD ac

AD25

AD24

Z_CBE3

NC

AD5

GND ac

VDD ac

AD6

AD7

NC

Z_CBE0

AD8

GND ac

AD9

AD10

NC

36

33

NC

AD11

AD12

NC

1

4

8

12

16

20

24

28

32

Data Sheet Revision 1.1 PRELIMINARY

Page 3

OX9162

OXFORD SEMICONDUCTOR LTD.

PIN DESCRIPTIONS

2

Mode

Dir¹

Name

Description

Parallel

PCI interface

Local Bus

115,117,118,120,121,122,125,126, P_I/O AD[31:0]

3,5,6,7,10,11,12,13,27,28,29,34,35

Multiplexed PCI Address/Data bus

,38,39,41,45,46,49,50,55,56,58,59

127, 14, 26 ,42

P_I

P_O

P_I

C/BE[3:0]#

CLK

FRAME#

DEVSEL#

IRDY#

PCI Command/Byte enable

PCI system clock

Cycle Frame

Device Select

Initiator ready

112

15

20

18

19

22

25

P_O

P_I/O PAR

TRDY#

STOP#

Target ready

Target Stop request

Parity

24

P_O

SERR#

System error

23

P_I/O PERR#

Parity error

2

P_I

IDSEL

RST#

Initialisation device select

PCI system reset

PCI interrupt

110

109

114

P_OD INTA#

P_OD PME#

Power management event

Data Sheet Revision 1.1 PRELIMINARY

Page 4

OX9162

OXFORD SEMICONDUCTOR LTD.

Mode

Dir¹

Name

Description

Parallel

Local Bus

N/A

Local Bus

62

61

83

O

LBRST

LBRST#

LBDOUT

Local bus active-high reset

Local bus active-low reset

Local bus data out enable. This pin can be used by external

transceivers; it is high when LBD[7:0] are in output mode and

low when they are in input mode.

101

99, 91

O

LBCLK

LBCS[1:0]#

Buffered PCI clock. Can be enabled / disabled by software

Local bus active-low Chip-Select (Intel mode)

O

LBDS[1:0]#

LBWR#

Local bus active-low Data-Strobe (Motorola mode)

Local Bus active-low write-strobe (Intel mode)

63

85

O

LBRDWR#

LBRD#

Local Bus Read-not-Write control (Motorola mode)

Local Bus active-low read-strobe (Intel mode)

O

Hi

Permanent high (Motorola mode)

Local bus address signals

77,78,79,82,

87,88,89,90

66,67,68,71,

72,73,74,76

LBA[7:0]

I/O

LBD[7:0]

Local bus data signals

Data Sheet Revision 1.1 PRELIMINARY

Page 5

OX9162

OXFORD SEMICONDUCTOR LTD.

Mode

Dir¹

Name

Description

Parallel

Parallel port

85

Local Bus

N/A

I

ACK#

Acknowledge (SPP mode). ACK# is asserted (low) by the

peripheral to indicate that a successful data transfer has

taken place.

I

INTR#

PE

BUSY

Identical function to ACK# (EPP mode).

77

78

Paper Empty. Activated by printer when it runs out of paper.

Busy (SPP mode). BUSY is asserted (high) by the peripheral

when it is not ready to accept data

I

WAIT#

Wait (EPP mode). Handshake signal for interlocked IEEE

1284 compliant EPP cycles.

87

OD

SLIN#

Select (SPP mode). Asserted by host to select the peripheral

O

ADDRSTB#

Address strobe (EPP mode) provides address read and write

strobe

79

82

88

I

SLCT

ERR#

INIT#

Peripheral selected. Asserted by peripheral when selected.

Error. Held low by the peripheral during an error condition.

Initialise (SPP mode). Commands the peripheral to initialise.

OD

O

OD

INIT#

AFD#

Initialise (EPP mode). Identical function to SPP mode.

Auto Feed (SPP mode, open-drain)

89

90

O

OD

DATASTB#

STB#

Data strobe (EPP mode) provides data read and write strobe

Strobe (SPP mode). Used by peripheral to latch data

currently available on PD[7:0]

O

WRITE#

PD[7:0]

Write (EPP mode). Indicates a write cycle when low and a

read cycle when high

Parallel data bus

66,67,68,71,

72,73,74,76

I/O

Data Sheet Revision 1.1 PRELIMINARY

Page 6

OX9162

OXFORD SEMICONDUCTOR LTD.

Mode

Dir¹

Name

Description

Parallel

Multi-purpose & External interrupt pins

104, 65 I/O

Local Bus

MIO[1:0]

Multi-purpose I/O pins. Can drive high or low, or assert a PCI

interrupt

EEPROM pins

98

94

96

O

IU

EE_CK

EE_CS

EE_DI

EEPROM clock

EEPROM active-high Chip Select

EEPROM data in. When the serial EEPROM is connected,

this pin should be pulled up using 1-10k resistor. When the

EEPROM is not used the internal pull-up is sufficient.

EEPROM data out.

95

Miscellaneous pins

107

O

EE_DO

ID

I

MODE

TEST

Mode selection: Parallel Port (0) or Local Bus (1)

Test Pin : should be held low at all times

93

Power and ground²

9, 31, 47, 70, 124

17, 54, 81, 113

V

AC VDD

DC VDD

Supplies power to output buffers in switching (AC) state

Power supply. Supplies power to core logic, input buffers

and output buffers in steady state

4, 8, 21, 30, 40, 48, 57,

69, 75, 86, 119, 123

16, 53, 80, 111

G

AC GND

DC GND

Supplies GND to output buffers in switching (AC) state

Ground (0 volts). Supplies GND to core logic, input buffers

and output buffers in steady state

Table 1: Pin Descriptions

Note 1: Direction key:

I

Input

P_I

PCI input

ID

O

Input with internal pull-down

Output

P_O

P_I/O

PCI output

PCI bi-directional

I/O

OD

NC

Z

Bi-directional

Open drain

No connect

P_OD PCI open drain

G

V

Ground

5.0V power

High impedance

Note 2: Power & Ground

There are two GND and two VDD rails internally. One set of rails supply power and ground to output buffers while in switching

state (called AC power) and another rail supply the core logic, input buffers and output buffers in steady-state (called DC rail).

The rails are not connected internally. This precaution reduces the effects of simultaneous switching outputs and undesirable RF

radiation from the chip. Further precaution is taken by segmenting the GND and VDD AC rails to isolate the PCI and Local Bus

pins.

Data Sheet Revision 1.1 PRELIMINARY

Page 7

OX9162

OXFORD SEMICONDUCTOR LTD.

CONFIGURATION & OPERATION

3

The OX9162 is a single function, target-only PCI device,

compliant with the PCI Local Bus Specification, Revision

2.2 and PCI Power Management Specification, Revision

1.0.

addresses in the usual fashion, with the improved data

throughput provided by PCI.

There are a set of Local configuration registers that can be

used to enable signals and interrupts, and configure local

bus timings. These can be set up by drivers or from the

EEPROM.

The function selected is configured by the Mode pin. It

should be tied low for parallel port operation, or tied high

for local bus operation.

All registers default after reset to suitable values for typical

applications. However, all identification, control and timing

registers can be redefined using an optional serial

EEPROM. As an additional enhancement, the EEPROM

can be used to program the parallel port or local bus,

allowing pre-configuration, without requiring driver

changes.

The OX9162 is configured by system start-up software

during the bootstrap process that follows bus reset. The

system scans the bus and reads the vendor and device

identification codes from any devices it finds. It then loads

device-driver software according to this information and

configures the I/O, memory and interrupt resources. Device

drivers can then access the functions at the assigned

Data Sheet Revision 1.1 PRELIMINARY

Page 8

OX9162

OXFORD SEMICONDUCTOR LTD.

PCI TARGET CONTROLLER

4

The OX9162 will complete all transactions as disconnect-

with-data, i.e. the device will assert the STOP# signal

alongside TRDY#, to ensure that the Bus Master does not

continue with a burst access. The exception to this is Retry,

which will be signalled in response to any access while the

OX9162 is reading from the serial EEPROM.

4.1 Operation

The OX9162 responds to the following PCI transactions:-

·

Configuration access: The OX9162 responds to type 0

configuration reads and writes if the IDSEL signal is

asserted and the bus address is selecting the

configuration registers for function 0. The device will

respond to the configuration transaction by asserting

DEVSEL#. Data transfer then follows. Any other

configuration transaction will be ignored by the

OX9162.

The OX9162 performs medium-speed address decoding as

defined by the PCI specification. It asserts the DEVSEL#

bus signal two clocks after FRAME# is first sampled low on

all bus transaction frames which address the chip. Fast

back-to-back transactions are supported by the OX9162 as

a target, so a bus master can perform faster sequences of

write transactions to the parallel port or local bus when an

inter-frame turn-around cycle is not required.

·

IO reads/writes: The address is compared with the

addresses reserved in the I/O Base Address Registers

(BARs). If the address falls within one of the assigned

ranges, the device will respond to the IO transaction

by asserting DEVSEL#. Data transfer follows this

address phase. For all modes, only byte accesses are

possible to the function BARs (excluding the local

configuration registers for which WORD, DWORD

access is supported). For IO accesses to these

regions, the controller compares AD[1:0] with the byte-

enable signals as defined in the PCI specification. The

access is always completed; however if the correct BE

signal is not present the transaction will have no

effect.

The device supports any combination of byte-enables to

the PCI Configuration Registers and the Local

Configuration registers (see Base Address 2 and 3). If a

byte-enable is not asserted, that byte is unaffected by a

write operation and undefined data is returned upon a read.

The OX9162 performs parity generation and checking on

all PCI bus transactions as defined by the standard. If a

parity error occurs during the PCI bus address phase, the

device will report the error in the standard way by asserting

the SERR# bus signal. However if that address/command

combination is decoded as a valid access, it will still

complete the transaction as though the parity check was

correct.

·

Memory reads/writes: These are treated in the same

way as I/O transactions, except that the memory

ranges are used. Memory access to single-byte

regions is always expanded to DWORDs in the

OX9162. In other words, OX9162 reserves a DWORD

per byte in single-byte regions. The device allows the

user to define the active byte lane using LCC[4:3] so

that in Big-Endian systems the hardware can swap the

byte lane automatically. For Memory mapped access

in single-byte regions, the OX9162 compares the

asserted byte-enable with the selected byte-lane in

LCC[4:3] and completes the operation if a match

occurs, otherwise the access will complete normally

on the PCI bus, but it will have no effect on either the

parallel port or the local bus controller.

The OX9162 does not support any kind of caching or data

buffering, other than that in the parallel port. In general,

registers on the local bus can not be pre-fetched because

there may be side-effects on read.

4.2 Configuration space

The OX9162 is

a single function device, with one

configuration space. All required fields in the standard

header are implemented, plus the Power Management

Extended Capability register set. The format of the

configuration space is shown in Table 2 overleaf.

In general, writes to any registers that are not implemented

are ignored, and all reads from unimplemented registers

return 0.

·

All other cycles (64-bit, special cycles, reserved

encoding etc.) are ignored.

Data Sheet Revision 1.1 PRELIMINARY

Page 9

OX9162

OXFORD SEMICONDUCTOR LTD.

4.2.1 PCI Configuration Space Register map

Configuration Register Description

Offset

Address

00h

31

16

15

0

Device ID

Status

Vendor ID

Command

04h

Class Code

Header Type

Base Address Register 0 (BAR0) - Function in I/O space

Base Address Register 1 (BAR 1) - Function in I/O space

Revision ID

Reserved

08h

0Ch

10h

BIST¹

Reserved

14h

Base Address Register 2 (BAR 2) – Local Configuration Registers in IO space

18h

Base Address Register 3 (BAR3) – Local Configuration Registers in Memory space

1Ch

20h

Base Address Register 4 (BAR4) – Function in Memory Space

Reserved

24h

28h

Subsystem ID

Subsystem Vendor ID

Cap_Ptr

2Ch

30h

34h

Reserved

38h

Reserved

Interrupt Pin

Next Ptr

Interrupt Line

Cap_ID

3Ch

40h

Power Management Capabilities (PMC)

Reserved

PMC Control/Status Register (PMCSR)

44h

Table 2: PCI Configuration space

Register name

Reset value

Parallel Port

0x1415

Program read/write

Local Bus

Vendor ID

Device ID

Command

Status

W

R

0x8401

0x8403

0x0000

0x0290

-

R/W

R

R/W

R

W(bit 4)

Revision ID

Class code

Header type

BAR 0

BAR 1

BAR 2

BAR 3

BAR 4

Subsystem VID

Subsystem ID

Cap ptr.

0x00

-

W

-

0x068000

0x070103

0x00

0x00000001

0x00000000

Reserved

0x1415

0x00000000

W

-

0x0001

0x40

R

Interrupt line

Interrupt pin

Cap ID

0x00

0x01

-

W

-

R/W

R

Next ptr.

0x00

-

R

PM capabilities

PMC control/

status register

0x6C01

0x0000

W

-

R

R/W

Table 3: PCI configuration space default values

Data Sheet Revision 1.1 PRELIMINARY

Page 10

OX9162

OXFORD SEMICONDUCTOR LTD.

4.3 Accessing logical functions

Access to the local bus and parallel port is achieved via standard I/O and memory mapping, at addresses defined by the Base

Address Registers (BARs) in configuration space. The BARs are configured by the system to allocate blocks of I/O and memory

space to the logical function, according to the size required by the function. The addresses allocated can then be used to access

the function. The mapping of these BARs is shown in Table 4.

BAR

Function 0

Local Bus

Parallel Port

0

1

2

3

4

5

CS0 (I/O mapped)

CS1 (I/O mapped)

Local configuration registers (I/O mapped

Local configuration registers (memory mapped)

All CS (memory mapped

Parallel port base registers (I/O mapped)

Parallel port extended registers (I/O mapped)

Unused

Table 4: Base Address Register definition

Local Bus

Chip-Select

PCI Offset from BAR 1 in

Function1 (Memory space)

Lower Address Upper Limit

4.3.1 PCI access to 8-bit local bus

When the local bus is enabled (Mode 1), the function

reserves two blocks of I/O space (BAR0 for chip select 0,

BAR1 for chip select 1) and a block of memory space

(BAR4 for chip selects 0 and 1). Each I/O block size is user

definable in the range of 4 to 256 bytes; the memory range

is fixed at 4K bytes.

LBCS0# (LBDS0#)

LBCS1# (LBDS1#)

000h

400h

3FCh

7FCh

Table 5: PCI address map for local bus (memory)

Note: The description given for I/O and memory accesses

is for an Intel-type configuration for the Local Bus. For

Motorola-type configuration, the chip select pins are

redefined to data strobe pins. In this mode the Local Bus

offers up to 8 address lines and two data-strobe pins.

I/O space

In order to minimise the usage of IO space, the block sizes

for BAR0 and BAR1 are user definable in the range of 4 to

256 bytes.

The 8-bit Local Bus has eight address lines (LBA[7:0])

which correspond to the maximum IO address space. If the

maximum allowable block size is allocated to the IO space

(i.e. 256 bytes), then as access in IO space is byte aligned,

LBA[7:0] equal PCI AD[7:0] respectively. When the user

selects an address range which is less than 256 bytes, the

corresponding upper address lines will be set to logic zero.

4.3.2 PCI access to parallel port

When the parallel port is enabled (Mode 0), access to the

port works via BAR definitions as usual with two I/O BARs

corresponding to the two sets of registers defined to

operate an IEEE1284 ECP/EPP and bi-directional Parallel

Port.

The user can change the I/O space block size of BAR0 or

BAR1 as for the local bus mode by over-writing the default

values using the serial EEPROM (see section 4.4).

Memory Space:

The memory base address registers have an allocated

fixed size of 4K bytes in the address space. Since the

Local Bus has 8 address lines and the OX9162 only

implements DWORD aligned accesses in memory space,

the 256 bytes of addressable space per chip select is

expanded to 1K. Unlike an I/O access (where access to

Legacy parallel ports expect the upper register set to be

mapped 0x400 above the base block, therefore if the BARs

are fixed with this relationship, generic parallel port drivers

can be used to operate the device in all modes.

Example: BAR0 = 0x00000379 (8 bytes at address 0x378)

BAR1 = 0x00000779 (8 bytes at address 0x778)

If this relationship is not used, custom drivers will be

needed.

BAR0, BAR1 determines chip-select decoding) for

a

memory access the internal chip-select decoding logic

uses the field PCI AD[10] to decode into 2 chip-select

regions. When the Local Bus is accessed in memory

space, A[9:2] are asserted on LBA[7:0]. The chip-select

regions are defined below.

Data Sheet Revision 1.1 PRELIMINARY

Page 11

OX9162

OXFORD SEMICONDUCTOR LTD.

4.4 Accessing Local configuration registers

The local configuration registers are a set of device specific registers which can always be accessed. They are mapped to the

I/O and memory addresses set up in BAR2 and BAR3, with the offsets defined for each register. I/O or memory accesses can be

byte, word or dword accessed, however on little-endian systems such as Intel 80x86 the byte order will be reversed.

4.4.1 Local Configuration and Control register ‘LCC’ (Offset 0x00)

This register defines control of ancillary functions such as Power Management, endian selection and the serial EEPROM. The

individual bits are described below.

Bits

Description

Read/Write

EEPROM

Reset

PCI

0

2:1

4:3

Mode. This bit returns the state of the Mode pin.

Reserved

Endian Byte-Lane Select for memory access to 8-bit peripherals.

-

R

X

00

W

RW

00 = Select Data[7:0]

10 = Select Data[23:16]

01 = Select Data[15:8]

11 = Select Data[31:24]

Memory access to OX9162 is always DWORD aligned. When accessing

8-bit regions this option selects the active byte lane. As both PCI and PC

architectures are little endian, the default value will be used by systems,

however, some non-PC architectures may need to select the byte lane.

Power-down filter time. These bits define a value of an internal filter time

for power-down interrupt request in power management circuitry in

Function0. Once Function0 is ready to go into power down mode,

OX9162 will wait for the specified filter time and if Function0 is still in

power-down request mode, it can assert a PCI interrupt (see section

4.6).

7:5

W

RW

000

000 = power-down request disabled

001 = 4 seconds

010 = 129 seconds

011 = 518 seconds

1XX = Immediate

10:8

Reserved: Power management test bits. The device driver must write

zero to these bits

-

R

000

22:11

23

24

Reserved.

-

W

-

R

RW

0000h

0

Parallel port Input (glitch) filters. Enabled when ‘1’

EEPROM Clock. For PCI read or write to the EEPROM , toggle this bit to

generate an EEPROM clock (EE_CK pin).

25

26

EEPROM Chip Select. When 1 the EEPROM chip-select pin EE_CS is

activated (high). When 0 EE_CS is de-active (low).

EEPROM Data Out. For writes to the EEPROM, this output bit is the

input-data of the EEPROM. This bit is output on EE_DO and clocked into

the EEPROM by EE_CK.

-

RW

0

27

EEPROM Data In. For reads from the EEPROM, this input bit is the

output-data of the EEPROM connected to EE_DI pin.

EEPROM Valid. A 1 indicates that a valid EEPROM program is present

Reload configuration from EEPROM. Writing a 1 to this bit re-loads the

configuration from EEPROM. This bit is self-clearing after EEPROM read

Reserved

-

R

X

28

29

-

R

RW

X

0

30

31

-

R

0

Reserved

Data Sheet Revision 1.1 PRELIMINARY

Page 12

OX9162

OXFORD SEMICONDUCTOR LTD.

4.4.2 Multi-purpose I/O Configuration register ‘MIC’ (Offset 0x04)

This register configures the operation of the multi-purpose I/O pins ‘MIO[1:0] as follows.

Bits

Description

Read/Write

EEPROM

Reset

PCI

1:0

MIO0 Configuration Register

W

RW

00

00 -> MIO0 is a non-inverting input pin

01 -> MIO0 is an inverting input pin

10 -> MIO0 is an output pin driving ‘0’

11 -> MIO0 is an output pin driving ‘1’

3:2

MIO1 Configuration Register

W

RW

00

00 -> MIO1 is a non-inverting input pin

01 -> MIO1 is an inverting input pin

10 -> MIO1 is an output pin driving ‘0’

11 -> MIO1 is an output pin driving ‘1’

4

5

MIO0_PME Enable. A value of ‘1’ enables MIO0 pin to set the

PME_Status in PMCSR register, and hence assert the PME# pin if

enabled. A value of ‘0’ disables MIO0 from setting the PME_Status bit.

MIO1_PME Enable. A value of ‘1’ enables MIO1 pin to set the

PME_Status in PMCSR register, and hence assert the PME# pin if

enabled. A value of ‘0’ disables MIO1 from setting the PME_Status bit.

MIO0 Power Down Request: A ‘1’ enables MIO0 to control the power

down request filter.

W

RW

0

6

W

-

RW

R

0

7

MIO1 Power Down Request: A ‘1’ enables MIO1 to control the power

down request filter.

Reserved

31:8

00

4.4.3 Local Bus Timing Parameter register 1 ‘LT1’ (Offset 0x08):

The Local Bus Timing Parameter registers (LT1 and LT2) define the operation and timing parameters used by the Local Bus.

The timing parameters are programmed in 4-bit registers to define the assertion/de-assertion of the Local Bus control signals.

The value programmed in these registers defines the number of PCI clock cycles after a Reference Cycle when the events

occur, where the reference Cycle is defined as two clock cycles after the master asserts the IRDY# signal. The following

arrangement provides a flexible approach for users to define the desired bus timing of their peripheral devices. The timings refer

to I/O or Memory mapped accesses.

Bits

Description

Read/Write

EEPROM

Reset

PCI

3:0

Read Chip-select Assertion (Intel-type interface). Defines the number of

clock cycles after the Reference Cycle when the LBCS[1:0]# pins are

asserted (low) during a read operation from the Local Bus.¹

W

RW

0h

These bits are unused in Motorola-type interface.

7:4

Read Chip-select De-assertion (Intel-type interface). Defines the number

of clock cycles after the Reference Cycle when the LBCS[1:0]# pins are

de-asserted (high) during a read from the Local Bus. ¹

RW

3h

(2h for

parallel port)

These bits are unused in Motorola-type interface.

11:8

Write Chip-select Assertion (Intel-type interface). Defines the number of

clock cycles after the Reference Cycle when the LBCS[1:0]# pins are

asserted (low) during a write operation to the Local Bus. ¹

0h

Data Sheet Revision 1.1 PRELIMINARY

Page 13

OX9162

OXFORD SEMICONDUCTOR LTD.

Bits

Description

Read/Write

EEPROM

Reset

PCI

These bits are unused in Motorola-type interface.

15:12

Write Chip-select De-assertion (Intel-type interface). Defines the number

of clock cycles after the reference cycle when the LBCS[1:0]# pins are

de-asserted (high) during a write operation to the Local Bus. ¹

W

RW

2h

Read-not-Write De-assertion during write cycles (Motorola-type

interface). Defines the number of clock cycles after the reference cycle

when the LBRDWR# pin is de-asserted (high) during a write to the Local

Bus. ¹

19:16

23:20

27:24

31:28

Read Control Assertion (Intel-type interface). Defines the number of

clock cycles after the Reference Cycle when the LBRD# pin is asserted

(low) during a read from the Local Bus. ¹

W

RW

0h

(1h for

parallel port)

Read Data-strobe Assertion (Motorola-type interface). Defines the

number of clock cycles after the Reference Cycle when the LBDS[1:0]#

pins are asserted (low) during a read from the Local Bus. ¹

Read Control De-assertion (Intel-type interface). Defines the number of

clock cycles after the Reference Cycle when the LBRD# pin is de-

asserted (high) during a read from the Local Bus. ¹

3h

(2h for

parallel port)

Read Data-strobe De-assertion (Motorola-type interface). Defines the

number of clock cycles after the Reference Cycle when the LBDS[1:0]#

pins are de-asserted (high) during a read from the Local Bus. ¹

Write Control Assertion (Intel-type interface). Defines the number of

clock cycles after the Reference Cycle when the LBWR# pin is asserted

(low) during a write to the Local Bus. ¹

0h

(1h for

parallel port)

Write Data-strobe Assertion (Motorola-type interface). Defines the

number of clock cycles after the Reference Cycle when the LBDS[1:0]#

pins are asserted (low) during a write to the Local Bus. ¹

Write Control De-assertion (Intel-type interface). Defines the number of

clock cycles after the Reference Cycle when the LBWR# pin is de-

asserted (high) during a write to the Local Bus. ¹

2h

Write Data-strobe De-assertion (Motorola-type interface). Defines the

number of clock cycles after the Reference Cycle when the LBDS[1:0]#

pins are de-asserted (high) during a write cycle to the Local Bus. ¹

Note 1:

Only values in the range of 0h to Ah (0-10 decimal) are valid. Other values are reserved. See notes in the following page.

Data Sheet Revision 1.1 PRELIMINARY

Page 14

OX9162

OXFORD SEMICONDUCTOR LTD.

4.4.4 Local Bus Timing Parameter/Bar sizing register 2 ‘LT2’ (Offset 0x0C):

Bits

Description

Read/Write

EEPROM

Reset

PCI

3:0

Write Data Bus Assertion. This register defines the number of clock

cycles after the Reference Cycle when the LBD pins actively drive the

data bus during a write operation to the Local Bus. ¹

Write Data Bus De-assertion. This register defines the number of clock

cycles after the Reference Cycle when the LBD pins go high-impedance

during a write operation to the Local Bus. ^1,2

Read Data Bus Assertion. This register defines the number of clock

cycles after the Reference Cycle when the LBD pins actively drive the

data bus at the end of a read operation from the Local Bus. ¹

Read Data Bus De-assertion. This register defines the number of clock

cycles after the Reference Cycle when the LBD pins go high-impedance

during at the beginning of a read cycle from the Local Bus. ¹

Reserved.

W

RW

0h

Fh

7:4

RW

11:8

15:12

4h

(2h for

parallel port)

0h

19:16

22:20

-

W

R

0h

‘010’

IO Space Block Size of BAR0

000 = Reserved

001 = 4 Bytes

010 = 8 Bytes

011 = 16 Bytes

Reserved

IO Space Block Size of BAR1

000 = Reserved

001 = 4 Bytes

010 = 8 Bytes

011 = 16 Bytes

Reserved

Local Bus Software Reset. When this bit is a 1 the Local Bus reset pin is

activated. When this bit is a 0 the Local Bus reset pin is de-activated. ²

Local Bus Clock Enable. When this bit is a 1 the Local Bus clock (LBCK)

pin is enabled. When this bit is a 0 LBCK pin is permanently low. The

Local Bus Clock is a buffered PCI clock.

Bus Interface Type. When low (=0) the Local Bus is configured to Intel-

type operation, otherwise it is configured to Motorola-type operation.

Note that when Mode[1:0] is ‘01’, this bit is hard wired to 0.

100 = 32 Bytes

101 = 64 Bytes

110 = 128 Bytes

111 = 256 Bytes

23

26:24

-

W

R

0h

‘010’

(‘001’ for

parallel port)

100 = 32 Bytes

101 = 64 Bytes

110 = 128 Bytes

111 = 256 Bytes

28:27

29

-

R

RW

000

0

30

31

W

RW

0

Note 1:

Only values in the range of 0 to Ah (0-10 decimal) are valid. Other values are reserved as writing higher values causes the PCI interface to retry all

accesses to the Local Bus as it is unable to complete the transaction in 16 PCI clock cycles.

Note 2:

Local Bus and the Parallel Port are all reset with PCI reset. In Addition, the user can issue the Software Reset Command.

Data Sheet Revision 1.1 PRELIMINARY

Page 15

OX9162

OXFORD SEMICONDUCTOR LTD.

4.4.5 Global Interrupt Status and Control Register ‘GIS’ (Offset 0x10)

Bits

Description

Read/Write

EEPROM

Reset

PCI

1:0

2

Reserved

-

R

0x0h

X

MIO0 This bit reflects the state of the internal MIO[0]. The internal MIO[0]

reflects the non-inverted or inverted state of MIO0 pin.

MIO1 This bit reflects the state of the internal MIO[0]. The internal MIO[0]

reflects the non-inverted or inverted state of MIO0 pin.

Reserved

3

-

R

X

17-4

18

-

W

R

RW

0

MIO0 INTA enable

1 for local bus

mode

When set (1) allows MIO0 to assert a PCI interrupt on the INTA line. State of

MIO0 that causes an interrupt is dependant upon the polarity set by MIC(1:0)

0 for parallel port

19

MIO1 INTA enable

W

RW

1 for local bus

mode

When set (1) allows MIO1 to assert a PCI interrupt on the INTA line. State of

MIO1 that causes an interrupt is dependant upon the polarity set by MIC(3:2)

0 for parallel port

20

21

Power-down Interrupt This is a sticky bit. When set, it indicates a power-down

request issued and would normally have asserted a PCI interrupt if bit 21 was

set (see section 7.9). Reading this bit clears it.

Power-down interrupt enable. When ‘1’ a power down request is allowed to

generate an interrupt.

-

R

X

0

W

RW

22

23

Parallel Port Mode only : Parallel port interrupt status

Parallel Port Mode only : Parallel port interrupt enable

-

W

R

RW

0

1 for parallel port

mode

0 for local bus

31:24 Reserved

-

R

000h

Data Sheet Revision 1.1 PRELIMINARY

Page 16

OX9162

OXFORD SEMICONDUCTOR LTD.

4.5 PCI Interrupts

Interrupts in PCI systems are level-sensitive and can be

shared. There are three sources of interrupt in the OX9162,

two from Multi-Purpose IO pins (MIO1 to MIO0) and one

from the parallel port. The Local Bus uses the MIO pins to

pass interrupts to the PCI controller.

2 to 255

Reserved

Table 6: ‘Interrupt pin’ definition

During the system initialisation process and PCI device

configuration, system-specific software reads the interrupt

pin field to determine which (if any) interrupt pin is used by

the function. It programmes the system interrupt router to

logically connect this PCI interrupt pin to a system-specific

interrupt vector (IRQ). It then writes this routing information

to the Interrupt Line field in the function’s PCI configuration

space. Device driver software must then hook the interrupt

using the information in the Interrupt Line field.

All interrupts are routed to the PCI interrupt pin INTA#. The

default routing asserts Function0 interrupts on INTA#. This

default routing may be modified (to disable interrupts) by

writing to the Interrupt Pin field in the configuration

registers using the serial EEPROM facility. The Interrupt

Pin field is normally considered a hard-wired read-only

value in PCI. It indicates to system software which PCI

interrupt pin (if any) is used by a function. The interrupt pin

may only be modified using the serial EEPROM facility,

and card developers must not set any value which violates

the PCI specification. Note that OX9162 only has one PCI

interrupt pin - INTA#. If in doubt, the default routings

should be used. Table 6 relates the Interrupt Pin field to the

device pin used.

Interrupt status for all sources of interrupt is available using

the GIS register in the Local Configuration Register set,

which can be accessed using I/O or Memory accesses.

All interrupts can be enabled / disabled individually using

the GIS register set in the Local configuration registers.

When an MIO pin is enabled, an external device can assert

a PCI interrupt by driving that pin. The sense of the MIO

external interrupt pins (active-high or active-low) is defined

in the MIC register. The parallel port can also assert an

interrupt.

Interrupt Pin

Device Pin used

None

0

1

INTA#

Data Sheet Revision 1.1 PRELIMINARY

Page 17

OX9162

OXFORD SEMICONDUCTOR LTD.

4.6 Power Management

the MIO state that asserts the INTA line (if that option were

to be enabled). This means that when the external device

is not interrupting it will begin the powerdown cycle. For

greater flexibility in the generation of the power down

request,, a powerdown filter is also available to ensure that

the relevant MIO pins remain stable for a selectable period

before a powerdown request is issued.

The OX9162 is compliant with PCI Power Management

Specification Revision 1.0. The function implements its own

set of Power Management registers and supports the

power states D0, D2 and D3. Power management is

accomplished by power-down and power-up requests,

asserted via interrupts and the PME# pin respectively. The

PME# pin is de-asserted when the sticky PME_Status bit is

cleared in both functions.

Function0 implements the PCI Power Management power-

states D0, D2 and D3. Whenever the device driver

changes the power-state to state D2 or D3, Function0

takes the following actions:-

Power-down request is not defined by Power Management

1.0. It is a device-specific feature and requires a bespoke

device driver implementation. The device driver can either

implement the power-down itself or use a special interrupt

and power-down features offered by the device to

determine when the device is ready for power-down.

·

The Local Bus clock pin, LBCK, is disabled regardless

of the programmed value in LT2[30].

The PCI interrupt for Function0 is disabled.

Access to I/O or Memory BARs of Function0 is

disabled.

·

However, access to the configuration space is still enabled.

The device driver can optionally assert/de-assert any of its

selected (design dependant) MIO pins to switch off VCC,

disable other external clocks, or activate shut-down modes

to any external devices on the Local Bus.

The PME# pin can, in certain cases, activate the PME#

signal when power is removed from the device, which will

cause the PC to wake up from Low-power state D3(cold).

To ensure full cross-compatibility with system board

implementations, use of an isolator FET is recommended.

If Power Management capabilities are not required, the

PME# pin can be treated as no-connect.

Function0 can issue a wake up request by using the MIO

pins. When MIC[7] or MIC[6] is set, rising or falling edge of

the relevant MIO pin will cause Function0 to issue a wake

up request by setting PME_Status = (PMCSR[15]), if it is

enabled by PMCSR[8] of Function0. PME_Status is a

sticky bit which will be cleared by writing a ‘1’ to it. After a

wake up event is signalled, the device driver is expected to

return the function to the D0 power-state.

4.6.1 Power Management using MIO

The power-down request for the Local Bus is application-

dependent. Provided that the necessary enables have

been set in the local registers, the multi-purpose I/O pins

MIO(1:0) can be used to generate a powerdown request.

The MIO state that governs powerdown is the inverse of

Data Sheet Revision 1.1 PRELIMINARY

Page 18

OX9162

OXFORD SEMICONDUCTOR LTD.

LOCAL BUS

5

provide suitable set up and hold times for common

peripheral devices. However, all the timings can be

increased / decreased independently in multiples of PCI

clock cycles. This feature enables the card designer to

override the length of read or write operations, the address

and chip-select set-up and hold timing, and the data bus

hold timing so that add-in cards can be configured to suit

different speed peripheral devices connected to the Local

Bus. The designer can also program the data bus to

remain in the high impedance state or actively drive the

bus during idle periods.

5.1 Overview

The OX9162 in Mode 1 acts as a bridge from PCI to an 8-

bit Local Bus.

The Local Bus is comprised of a bi-directional 8-bit data

bus, an 8-bit address bus, up to two chip selects, and a

number of control signals that allow for easy interfacing to

standard peripherals. It also provides two active-high or

active-low interrupt inputs (by configuring the MIO pins).

The local bus is configured by LT1 and LT2 (see sections

4.4.3 & 4.4.4) in the Local Configuration Register space. By

programming these registers the card developer can alter

the characteristics of the local bus to suit the

characteristics of the peripheral devices being used.

The local bus will always return to an idle state, where no

chip-select (data-strobe in Motorola mode) signal is active,

between adjacent accesses. During read cycles the local

bus interface latches data from the bus on the rising edge

of the clock where LBRD# (LBDS[1:0]# in Motorola mode)

goes high. Card designers should ensure that their

peripherals provide the OX9162 with the specified data set-

up and hold times with respect to this clock edge.

5.2 Operation

The local bus can be accessed via I/O and memory space.

The mapping to the devices will vary with the application,

but the bus is fully configurable to facilitate simple

development.

The local bus cannot accept burst transfers from the PCI

bus. If a burst transfer is attempted the PCI interface will

signal 'disconnect with data' on the first data phase. The

local bus does accept 'fast back-to-back' transactions from

PCI.

The operation of the local bus is synchronised to the PCI

bus clock. The clock signal is output on pin LBCLK if it has

been enabled by setting LT2[30].

A PCI target must complete the transaction within 16 PCI

clock cycles from assertion of the FRAME# signal,

otherwise it should signal a retry. During a read operation

from the Local Bus, OX9162 waits for master-ready signal

(IRDY#) and computes the number of remaining cycles to

the de-assertion of the read control signal. If the total

number of PCI clock cycles for that frame is greater than

16 clock cycles, OX9162 will post a retry. The master

would normally return immediately and complete the

operation in the following frame.

The eight bit bi-directional pins LBD[7:0] drive the output

data onto the bus during local bus write cycles. For reads,

the device latches the data read from these pins at the end

of the cycle.

The local bus address is placed on pins LBA[7:0] at the

start of each local bus cycle and will remain latched until

the start of the subsequent cycle. If the maximum

allowable block size (256 bytes) is allocated to the local

bus in I/O space, then as access in I/O space is byte

aligned, AD[7:0] are asserted on LBA[7:0]. If a smaller

address range is selected, the corresponding upper

address lines will be set to logic zero.

The control bus is comprised of up to two chip-select

signals LBCS[1:0]#, a read strobe LBRD# and a write

strobe LBWR#, in Intel-type interfaces. For Motorola-type

interfaces, LBWR# is re-defined to perform read/write

control signal (LBRDWR#) and the chip-select signals

(LBCS[1:0]#) are re-defined to data-strobe (LBDS[1:0]#).

A reference cycle is defined, as two PCI clock cycles after

the master asserts the IRDY# signal for the first tstate in

the first cycle after the reference cycle, with offsets to

Data Sheet Revision 1.1 PRELIMINARY

Page 19

OX9162

OXFORD SEMICONDUCTOR LTD.

means that I/O space can be allocated efficiently by the

system, whatever the application.

5.3 Configuration & Programming

The configuration registers for the local bus controller are

described in sections 4.4.3 & 4.4.4. The values of these

registers after reset allow the host system to identify the

function and configure its base address registers.

Alternatively many of the default values can be re-

programmed during device initialisation through use of the

optional serial EEPROM (see section 7).

The memory space block is always 4K bytes, and always

divided into two chip-select regions of 2K byte each (only

the bottom 1K of each is accessible).

A

soft reset facility is provided so software can

independently reset the peripherals on the local bus. The

local bus reset signals, LBRST and LBRST#, are always

active during

configuration register bit LT2[29] is set to 1.

a PCI bus reset and also when the

There is one I/O block space defined for each chip select.

The I/O space blocks can be varied in size from 4 bytes to

256 bytes (8 bytes is the default) by setting LT2[22:20]

(BAR 0) and LT2[26:24] (BAR 1). Varying the block size

The clock enable bit, when set, enables a copy of the PCI

bus clock output on the local bus pin LBCLK.

Data Sheet Revision 1.1 PRELIMINARY

Page 20

OX9162

OXFORD SEMICONDUCTOR LTD.

BI-DIRECTIONAL PARALLEL PORT

6

INTR#, DATASTB#, WAIT#, ADDRSTB# and WRITE#

respectively.

6.1 Operation and Mode selection

The OX9162 offers a compact, low power, IEEE-1284

compliant host-interface parallel port, designed to interface

to many peripherals such as printers, scanners and

external drives. It supports compatibility modes, SPP,

NIBBLE, PS2, EPP and ECP modes. The register set is

compatible with the MicrosoftÒ register definition. To

enable the parallel port function, the Mode & Test pins

should be set to ‘00’. The system can access the parallel

port via two 8-byte blocks of I/O space; BAR0 contains the

address of the basic parallel port registers, BAR1 contains

the address of the upper registers. These are referred to as

the ‘lower block’ and ‘upper block’ in this section. If the

upper block is located at an address 0x400 above the

lower block, generic PC device drivers can be used to

configure the port, as the addressable registers of legacy

parallel ports always have this relationship. If not, a custom

driver will be needed.

An EPP port access begins with the host reading or writing

to one of the EPP port registers. The device automatically

buffers the data between the I/O registers and the parallel

port depending on whether it is a read or a write cycle.

When the peripheral is ready to complete the transfer it

takes the WAIT# status line high. This allows the host to

complete the EPP cycle.

If a faulty or disconnected peripheral failed to respond to an

EPP cycle the host would never see a rising edge on

WAIT#, and subsequently lock up. A built-in time-out facility

is provided in order to prevent this from happening. It uses

an internal timer which aborts the EPP cycle and sets a

flag in the PSR register to indicate the condition. When the

parallel port is not in EPP mode the timer is switched off to

reduce current consumption. The host time-out period is

10ms as specified with the IEEE-1284 specification.

The register set is compatible with the MicrosoftÒ register

definition. Assuming that the upper block is located 400h

above the lower block, the registers are found at offset

000-007h and 400-402h.

6.1.1 SPP mode

SPP (output-only) is the standard implementation of a

simple parallel port. In this mode, the PD lines always drive

the value in the PDR register. All transfers are done under

software control. Input must be performed in nibble mode.

6.1.4 ECP mode

Generic device driver-software may use the address in I/O

space encoded in BAR0 of function 1 to access the parallel

port. The default configuration allocates 8 bytes to BAR0 in

I/O space.

The Extended Capabilities Port ‘ECP’ mode is entered

when ECR[7:5] is set to ‘011’. ECP mode is compatible

with MicrosoftÒ register definition of ECP, and IEEE-1284

bus protocol and timing. This implementation of the ECP

port supports the optional decompression of received

compressed data, but does not compress transmit data.

6.1.2 PS2 mode

This mode is also referred to as bi-directional or compatible

parallel port. In this mode, directional control of the PD

lines is possible by setting & clearing DCR[5]. Otherwise

operation is similar to SPP mode.

Assuming that the upper block is located 400h above the

lower block, the registers are found at offset 000-007h and

400-402h.

6.2 Parallel port interrupt

6.1.3 EPP mode

The parallel port interrupt is asserted on INTA#. It is

enabled by setting DCR[4]. When DCR[4] is set, an

interrupt is asserted on the rising edge of the ACK#

(INTR#) pin and held until the status register is read, which

resets the INT# status bit (DSR[2]).

To use the Enhanced Parallel Port ‘EPP’ the mode bits

(ECR[7:5]) must be set to ‘100’. The EPP address and data

port registers are compatible with the IEEE 1284 definition.

A write or read to one of the EPP port registers is passed

through the parallel port to access the external peripheral.

In EPP mode, the STB#, INIT#, AFD# AND SLIN# pins

change from open-drain outputs to active push-pull (totem

pole) drivers (as required by IEEE 1284) and the pins

ACK#, AFD#, BUSY, SLIN# and STB# are redefined as

Data Sheet Revision 1.1 PRELIMINARY

Page 21

OX9162

OXFORD SEMICONDUCTOR LTD.

6.3 Register Description

The parallel port registers are described below. (NB it is assumed that the upper block is placed 400h above the lower block).

Register

Name

Address R/W

Offset

Bit 7

Bit 6

Bit 5

Bit 4

Bit 3

Bit 2

Bit 1

Bit 0

SPP (Compatibility Mode) Registers

PDR

ecpAFifo

DSR

(EPP mode)

000h

001h

R/W

R

Parallel Port Data Register

ECP FIFO : Address / RLE

nBUSY

ACK#

PE

SLCT

ERR#

INT#

1

Timeout

(Other modes)

001h

002h

003h

004h

005h

006h

007h

400h

401h

402h

403h

R

nBUSY

0

ACK#

0

PE

DIR

SLCT

ERR#

INT#

INIT#

1

DCR

EPPA ¹

EPPD1 ¹

EPPD2 ¹

EPPD3 ¹

EPPD4 ¹

EcpDFifo

TFifo

R/W

R

INT_EN nSLIN#

EPP Address Register

EPP Data 1 Register

EPP Data 2 Register

EPP Data 3 Register

EPP Data 4 Register

ECP Data FIFO

nAFD#

nSTB#

Test FIFO

CnfgA

CnfgB

ECR

Configuration A Register – always 90h

‘000000’

R

R/W

-

0

int

Mode[2:0]

Must write ‘00001’

Reserved

-

Table 7: Parallel port register set

Note 1 : These registers are only available in EPP mode.

Note 2 : Prefix ‘n’ denotes that a signal is inverted at the connector. Suffix ‘#’ denotes active-low signalling

The reset state of PDR, EPPA and EPPD1-4 is not determinable (i.e. 0xXX). The reset value of DSR is ‘XXXXX111’. DCR and

ECR are reset to ‘0000XXXX’ and ‘00000001’ respectively.

6.3.1 Parallel port data register ‘PDR’

6.3.3 Device status register ‘DSR’

PDR is located at offset 000h in the lower block. It is the

standard parallel port data register. Writing to this register

in mode 000 will drive data onto the parallel port data lines.

In all other modes the drivers may be tri-stated by setting

the direction bit in the DCR. Reads from this register return

the value on the data lines.

DSR is located at offset 001h in the lower block. It is a read

only register showing the current state of control signals

from the peripheral. Additionally in EPP mode, bit 0 is set

to ‘1’ when an operation times out (see section 6.1.3)

DSR[0]:

EPP mode: Timeout

logic 0 Þ Timeout has not occurred.

logic 1 Þ Timeout has occurred (Reading this bit clears it).

6.3.2 ECP FIFO Address / RLE

A data byte written to this address will be interpreted as an

address if bit(7) is set, otherwise an RLE count for the next

data byte. Count = bit(6:0) + 1.

Other modes: Unused

This bit is permanently set to 1.

DSR[1]: Unused

This bit is permanently set to 1.

Data Sheet Revision 1.1 PRELIMINARY

Page 22

OX9162

OXFORD SEMICONDUCTOR LTD.

DSR[2]: INT#

DCR[3]: nSLIN#

logic 0 Þ A parallel port interrupt is pending.

logic 1 Þ No parallel port interrupt is pending.

logic 0 Þ Set SLIN# output to high (inactive).

logic 1 Þ Set SLIN# output to low (active).

This bit is activated (set low) on a rising edge of the ACK#

pin. It is de-activated (set high) after reading the DSR.

During an EPP address or data cycle the ADDRSTB# pin is

driven by the EPP controller, otherwise it is inactive.

DSR[3]: ERR#

logic 0 Þ The ERR# input is low.

logic 1 Þ The ERR# input is high.

DCR[4]: ACK Interrupt Enable

logic 0 Þ ACK interrupt is disabled.

logic 1 Þ ACK interrupt is enabled.

DSR[4]: SLCT

DCR[5]: DIR

logic 0 Þ The SLCT input is low.

logic 1 Þ The SLCT input is high.

logic 0 Þ PD port is output.

logic 1 Þ PD port is input.

DSR[5]: PE

logic 0 Þ The PE input is low.

logic 1 Þ The PE input is high.

This bit is overridden during an EPP address or data cycle,

when the direction of the port is controlled by the bus

access (read/write)

DCR[7:6]: Reserved

These bits are reserved and always set to “00”.

DSR[6]: ACK#

logic 0 Þ The ACK# input is low.

logic 1 Þ The ACK# input is high.

6.3.5 EPP address register ‘EPPA’

DSR[7]: nBUSY

logic 0 Þ The BUSY input is high.

logic 1 Þ The BUSY input is low.

EPPA is located at offset 003h in lower block, and is only

used in EPP mode. A byte written to this register will be

transferred to the peripheral as an EPP address by the

hardware. A read from this register will transfer an address

from the peripheral under hardware control.

6.3.4 Device control register ‘DCR’

DCR is located at offset 002h in the lower block. It is a

read-write register which controls the state of the peripheral

inputs and enables the peripheral interrupt. When reading

this register, bits 0 to 3 reflect the actual state of STB#,

AFD#, INIT# and SLIN# pins respectively. When in EPP

mode, the WRITE#, DATASTB# AND ADDRSTB# pins are

driven by the EPP controller, although writes to this register

will override the state of the respective lines.

6.3.6 EPP data registers ‘EPPD1-4’

The EPPD registers are located at offset 004h-007h of the

lower block, and are only used in EPP mode. Data written

or read from these registers is transferred to/from the

peripheral under hardware control.

6.3.7 ECP Data FIFO

DCR[0]: nSTB#

logic 0 Þ Set STB# output to high (inactive).

logic 1 Þ Set STB# output to low (active).

Hardware transfers data from this 16 bytes deep FIFO to

the peripheral when DCR(5) = ‘0’. When DCR(5) = ‘1’

hardware transfers data from the peripheral to this FIFO.

During an EPP address or data cycle the WRITE# pin is

driven by the EPP controller, otherwise it is inactive.

6.3.8 Test FIFO

Used by the software in conjunction with the full and empty

flags to determine the depth of the FIFO and interrupt

levels.

DCR[1]: nAFD#

logic 0 Þ Set AFD# output to high (inactive).

logic 1 Þ Set AFD# output to low (active).

6.3.9 Configuration A register

During an EPP address or data cycle the DATASTB# pin is

driven by the EPP controller, otherwise it is inactive.

ECR[7:5] must be set to ‘111’ to access this register.

Interrupts generated will always be level, and the ECP port

only supports an impID of ‘001’.

DCR[2]: INIT#

logic 0 Þ Set INIT# output to low (active).

logic 1 Þ Set INIT# output to high (inactive).

Data Sheet Revision 1.1 PRELIMINARY

Page 23

OX9162

OXFORD SEMICONDUCTOR LTD.

6.3.10 Configuration B register

ECR[7:5] must be set to ‘111’ to access this register. Read

only, all bits will be set to 0, except for bit[6] which will

reflect the state of the interrupt.

logic 0 Þ FIFO has at least one free byte

FIFO completely full

When DCR[5} = ‘1’

logic 0 Þ FIFO has at least one free byte

logic 1 Þ FIFO full

6.3.11 Extended control register ‘ECR’

The Extended control register is located at offset 002h in

upper block. It is used to configure the operation of the

parallel port.

ECR[2]: serviceIntr - read

When DCR[5} = ‘0’

logic 1 Þ writeIntrThreshold (8) free bytes or more in

FIFO

When DCR[5} = ‘1’

logic 1 Þ readIntrThreshold (8) bytes or more in FIFO

ECR[4:0]: Reserved - write

These bits are reserved and must always be set to

“00001”.

ECR[7:5]: Mode – read / write

These bits define the operational mode of the parallel port.

ECR[0]: Empty - read

When DCR[5} = ‘0’

logic ‘000’

logic ‘001’

logic ‘010’

logic ‘011’

logic ‘100’

logic ‘101’

logic ‘110’

logic ‘111’

SPP

PS2

Reserved

ECR

EPP

Reserved

Test

logic 0 Þ FIFO contains at least one byte

logic 1 Þ FIFO completely empty

When DCR[5} = ‘1’

logic 0 Þ FIFO contains at least one byte

logic 1 Þ FIFO contains less than one byte

ECR[1]: Full - read

When DCR[5} = ‘0’

Config

Data Sheet Revision 1.1 PRELIMINARY

Page 24

OX9162

OXFORD SEMICONDUCTOR LTD.

7

SERIAL EEPROM

7.1 Specification

7.2 EEPROM Data Organisation

The OX9162 can be configured using an optional serial

electrically-erasable programmable read only memory

(EEPROM). If the EEPROM is not present, the device will

remain in its default configuration after reset. Although this

may be adequate for some applications, many will benefit

from the degree of programmability afforded by this

feature. The EEPROM also allows configuration accesses

to the local bus (or parallel port), which can be useful for

default set ups.

The serial EEPROM data is divided in five zones. The size

of each zone is an exact multiple of 16-bit WORDs. Zone0

is allocated to the header. A valid EEPROM program must

contain a header. The EEPROM can be programmed from

the PCI bus. Once the programming is complete, the

device driver should either reset the PCI bus or set

LCC[29] to reload the OX9162 registers from the serial

EEPROM. The general EEPROM data structure is shown

in Table 8.

The EEPROM interface is based on the 93C46/56 serial

EEPROM devices which have a proprietary serial interface

known as Microwire^TM. The interface has four pins which

supply the memory device with a clock, a chip-select, and

serial data input and output lines. In order to read from

such a device, a controller has to output serially a read

command and address, then input serially the data. The

93C46/56 and compatible devices have a 16-bit data word

format but differ in memory size (and number of address

bits).

DATA Size (Words) Description

Zone

0

1

2

3

4

One

Header

One or more

One to four

Two or more

Multiples of 2

Local Configuration Registers

Identification Registers

PCI Configuration Registers

Function Access

Table 8: EEPROM data format

7.2.1 Zone0: Header

The OX9162 incorporates a controller module which reads

data from the serial EEPROM and writes data into the

configuration register space. It performs this operation in a

sequence which starts immediately after a PCI bus reset

and ends either when the controller finds no EEPROM is

present or when it reaches the end of its data. NOTE: that

any attempted PCI access while data is being downloaded

from the serial EEPROM will result in a retry. The operation

of this controller is described below. Following device

configuration, driver software can access the serial

EEPROM through four bits in the device-specific Local

Configuration Register LCC[27:24]. Software can use this

register to manipulate the device pins in order to read and

modify the EEPROM contents.

The header identifies the EEPROM program as valid.

Bits Description

15:4 These bits should return 0x840 to identify a valid

program. Once the OX9162 reads 0x840 from

these bits, it sets LCC[28] to indicate that a valid

EEPROM program is present.

3

2

1

0

1 = Zone1 (Local Configuration) exists

0 = Zone1 does not exist

1 = Zone2 (Identification) exists

0 = Zone2 does not exist

1 = Zone3 (PCI Configuration) exists

0 = Zone3 does not exist

1 = Zone4 (Function Access) exists

0 = Zone4 does not exist

Note that 93C46 and 93C56 EEPROM devices offer 128

and 256 bytes of programmable data respectively.

A WindowsÒ based utility to program the EEPROM is

available. For further details please contact Oxford

Semiconductor (see back cover).

The programming data for each zone follows the

proceeding zone if it exists. For example a Header value of

0x840F indicates that all zones exist and they follow one

another in sequence, while 0x8405 indicates that only

Zones 2 and 4 exist where the header data is followed by

Zone2 WORDs, and since Zone3 is missing Zone2

WORDs are followed by Zone4 WORDs.

Microwire^TMis a trade mark of National Semiconductor. For

a description of Microwire^TM, please refer to National

Semiconductor data manuals.

Data Sheet Revision 1.1 PRELIMINARY

Page 25

OX9162

OXFORD SEMICONDUCTOR LTD.

Data Sheet Revision 1.1 PRELIMINARY

Page 26

OX9162

OXFORD SEMICONDUCTOR LTD.

7.2.2 Zone1: Local Configuration Registers

The Zone1 region of EEPROM contains the program value

of the vendor-specific Local Configuration Registers using

one or more configuration WORDs. Registers are selected

using a 7-bit byte-offset field. This offset value is the offset

from Base Address Registers in I/O or memory space (see

section 4.4).

Bits Description

15

‘0’ = There are no more Configuration WORDs

to follow in Zone1. Move to the next available

zone or end EEPROM program if no more zones

are enabled in the Header.

‘1’ = There is another Configuration WORD to

follow for the Local Configuration Registers.

14:8 These seven bits define the byte-offset of the

Local configuration register to be programmed.

For example the byte-offset for LT2[23:16] is

0x0E.

Note: Not all of the registers in the Local Configuration Register set are

writable by EEPROM. If bit3 of the header is set, Zone1

configuration WORDs follow the header declaration. The

format of configuration WORDs for the Local Configuration

Registers in Zone1 are described in Table 9.

7:0 8-bit value of the register to be programmed

Table 9: Zone 1 data format

Data Sheet Revision 1.1 PRELIMINARY

Page 27

OX9162

OXFORD SEMICONDUCTOR LTD.

7.2.3 Zone2: Identification Registers

Bits Description

15

‘0’ = This is the last configuration WORD in for

the selected function in the Function-Header.

‘1’ = There is another WORD to follow for this

function.

The Zone2 region of EEPROM contains the program value

for Vendor ID and Subsystem Vendor ID. The format of

Device Identification configuration WORDs are described in

Table 10.

14:8 These seven bits define the byte-offset of the PCI

configuration register to be programmed. For

example the byte-offset of the Interrupt Pin

register is 0x3D. Offset values are tabulated in

section 4.2.

Bits Description

15

‘0’ = There are no more Zone2 (Identification)

bytes to program. Move to the next available

zone or end EEPROM program if no more zones

are enabled in the Header.

7:0 8-bit value of the register to be programmed

Table 12: Zone 3 data format (data)

‘1’ = There is another Zone2 (Identification) byte

to follow.

14:8 0x00 = Vendor ID bits [7:0].

0x01 = Vendor ID bits [15:8].

Table 13 shows which PCI Configuration registers are

writable from the EEPROM for each function.

0x02 = Subsystem Vendor ID [7:0].

0x03 = Subsystem Vendor ID [15:8].

0x03 to 0x7F = Reserved.

7:0 8-bit value of the register to be programmed

Offset Bits Description

0x02

0x03

0x06

0x09

0x0A

0x0B

0x2E

0x2F

0x3D

0x42

7:0 Device ID bits 7 to 0.

7:0 Device ID bits 15 to 8.

3:0 Must be ‘0000’.

Table 10: Zone 2 data format

7.2.4 Zone3: PCI Configuration Registers

4

Extended Capabilities.

7:5 Must be ‘000’.

The Zone3 region of EEPROM contains any changes

required to the PCI Configuration registers (with the

exception of Vendor ID and Subsystem Vendor ID which

are programmed in Zone2). This zone consists of a

function header WORD, and one or more configuration

WORDs for that function. The function header is described

in Table 11.

7:0 Class Code bits 7 to 0.

7:0 Class Code bits 15 to 8.

7:0 Class Code bits 23 to 16.

7:0 Subsystem ID bits 7 to 0.

7:0 Subsystem ID bits 15 to 8.

7:0 Interrupt pin.

7:0 Power Management Capabilities

bits 7 to 0.

7:0 Power Management Capabilities

bits 15 to 8.

Bits Description

0x43

15

‘0’ = End of Zone 3.

‘1’ = Define this function header.

Table 13: EEPROM-writable PCI configuration registers

14:3 Reserved. Write zeros.

2:0 Function number for the following configuration

WORD(s).

‘000’ = Function0

Other values = Reserved.

7.2.5 Zone4: Function Access

Zone 4 allows a device on the local bus (or the parallel

port) to be configured, prior to PCI access. This can be

useful for patching designs to work with generic drivers,

enabling interrupts, etc. Each 8-bit (function) access is

equivalent to accessing the function through I/O bars 0 and

1, with the exception that a function read access does not

Table 11: Zone 3 data format (Function Header)

The subsequent WORDs for each function contain the

address offset and a byte of programming data for the PCI

Configuration Space belonging to the function number

selected by the proceeding Function-Header. The format of

configuration WORDs for the PCI Configuration Registers

are described below.

return any data (discarded). Each entry in zone

4

comprises 2 16 bit words. The format is as shown in Table

14.

Data Sheet Revision 1.1 PRELIMINARY

Page 28

OX9162

OXFORD SEMICONDUCTOR LTD.

1^stWORD of FUNCTION ACCESS PAIR

Word

Bits Description

15

‘1’ - another WORD to follow

14:12 BAR number to access

000 for BAR 0

001 for BAR 1

others reserved

11

‘0’ : Read access (data discarded)

‘1’ : Write access

10:8 Reserved – write 0’s

7:0

I/O address to access

This is the location (I/O offset from

the relevant Base Address) that

needs to be written/read.

2^ndWORD of FUNCTION ACCESS PAIR

Word

Bits Description

15 ‘1’ another function access

–

WORD pair to follow.

‘0’ – no more function access

pairs. End EEPROM program.

14:8 Reserved – write 0’s

7:0 Data to be written to location.

Field unused for function access

READS.

Data Sheet Revision 1.1 PRELIMINARY

Page 29

OX9162

OXFORD SEMICONDUCTOR LTD.

OPERATING CONDITIONS

8

Symbol

V_DD

V_IN

I_IN

T_STG

Parameter

Min

-0.3

Max

7.0

V_DD+ 0.3

+/- 10

125

Units

V

mA

°C

DC supply voltage

DC input voltage

DC input current

Storage temperature

-40

Table 14: Absolute maximum ratings

Symbol

V_DD

T_C

Parameter

DC supply voltage

Temperature

Min

4.5

0

Max

5.5

70

Units

V

°C

Table 15: Recommended operating conditions

9

DC ELECTRICAL CHARACTERISTICS

9.1 Non-PCI I/O Buffers

Symbol Parameter

Condition

Commercial

TTL Interface ¹

TTL Schmitt trig

TTL Interface ¹

TTL Schmitt trig

Min

4.75

2.0

Max

5.25

Units

V

V_DD

V_IH

Supply voltage

Input high voltage

2.0

V_IL

Input low voltage

0.8

5.0

10.0

10

V

C_IL

C_OL

I_IH

Cap of input buffers

pF

mA

V

mA

Cap of output buffers

Input high leakage current

Input low leakage current

Output high voltage

Output low voltage

V_in= V_DD

V_in= V_SS

I_OH= 1 mA

I_OH= 4 mA ²

I_OL= 1 mA

I_OL= 4 mA ²

-10

I_IL

10

V_DD– 0.05

V_OH

V_OL

I_OZ

2.4

0.05

0.4

10

Output low voltage

3-state output leakage current

-10

Symbol Parameter

Typical

Max

Units

Operating supply current in

normal mode

TBD

I_CC

mA

Operating supply current in

Power-down mode

TBD

Table 16: Characteristics of non-PCI I/O buffers

Note 1:

Note 2:

All input buffers are TTL with the exception of PCI buffers

and I are 12 mA for PD/LBDB[7:0] and other Parallel Port Outputs. They are 4 mA for all other non-PCI outputs

I

OH

OL

Data Sheet Revision 1.1 PRELIMINARY

Page 30

OX9162

OXFORD SEMICONDUCTOR LTD.

9.2 PCI I/O Buffers

Symbol

Parameter

Condition

Min

Max

Unit

DC Specifications

V_CC

V_IL

V_IH

I_IL

I_IH

V_OL

V_OH

C_IN

C_CLK

C_IDSEL

L_PIN

Supply voltage

Input low voltage

Input high voltage

Input low leakage current

4.75

-0.5

2.0

5.25

0.8

V_CC+ 0.5

-70

70

0.55

V

mA

V

V_IN= 0.5V

Input high leakage current V_IN= 2.7V

Output low voltage

Input pin capacitance

CLK pin capacitance

IDSEL pin capacitance

Pin inductance

I_OUT= -2 mA

I_OUT= 3 mA, 6mA

2.4

5

V

10

12

8

pF

nH

10

AC Specifications

Switching current

high

-44

0 < V_OUT1.4

I_OH(AC)

-44 (V_OUT- 1.4)/0.024

mA

1.4 < V_OUT2.4

Eq. A

-142

3.1 < V_OUTV_CC

V_OUT= 3.1

(Test point)

Switching current

95

V_OUT2.2

I_OL(AC)

low

2.2 > V_OUT> 0.55

0.71 > V_OUT> 0

V_OUT= 0.71

V_OUT/ 0.023

Eq. B

206

(Test point)

I_CL

I_HL

Low clamp current

-5 < V_IN< -1

-25 + (V_IN+1)/

0.015

25+ (V_IN-V_CC-1)/

mA

High clamp current

V_CC+4

V_CC+1

<

V_IN

<

0.015

Slew_R

Slew_F

Output rise slew rate

Output fall slew rate

0.4V to 2.4V

2.4V to 0.4V

1

5

V/nS

Table 17: Characteristics of PCI I/O buffers

Eq. A :

Eq. B :

I_OH= 11.9 * (V_OUT- 5.25) * (V_OUT+ 2.45)

I_OL= 78.5 * V_OUT* (4.4 - V_OUT

for 3.1 < V_OUTV_CC

for 0.71 > V_OUT> 0

)

Data Sheet Revision 1.1 PRELIMINARY

Page 31

OX9162

OXFORD SEMICONDUCTOR LTD.

10 AC ELECTRICAL CHARACTERISTICS

10.1 PCI Bus

The timings for PCI pins comply with PCI Specification for the 5.0 Volt signalling environment.

10.2 Local Bus

By default, the Local bus control signals change state in the cycle immediately following the reference cycle, with offsets to

provide setup and hold times for common peripherals in Intel mode. The tables below show these default values; however each

of these can be increased or decreased by an number of PCI clock cycles by adjusting the parameters in registers LT1 and LT2.

Symbol Parameter

Min

Max

Units

t_ref

t_za

t_ard

t_zrcs1

t_zrcs2

t_csrd

t_rdcs

t_zrd1

t_zrd2

t_drd

IRDY# falling to reference LBCLK

Reference LBCLK to Address Valid

Address Valid to LBRD# falling

Reference LBCLK to LBCS# falling

Reference LBCLK to LBCS# rising

LBCS# falling to LBRD# falling

Nominally 2 PCI clock cycles

TBD

ns

LBRD# rising to LBCS# rising

Reference LBCLK to LBRD# falling

Reference LBCLK to LBRD# rising

Data bus floating to LBRD# falling

Reference LBCLK to data bus floating at the start of the read

transaction

t_zd1

t_zd2

Reference LBCLK to data bus driven by OX9162 at the end of the read

transaction

TBD

ns

t_sd

t_hd

Data bus valid to LBRD# rising

Data bus valid after LBRD# rising

TBD

ns

Table 18: Read operation from Intel-type Local Bus

Symbol Parameter

Min

Max

Units

t_ref

t_za

t_awr

t_zwcs1

t_zwcs2

t_cswr

t_wrcs

t_zwr1

t_zwr2

t_zdv

IRDY# falling to reference LBCLK

Reference LBCLK to Address Valid

Address Valid to LBWR# falling

Reference LBCLK to LBCS# falling

Reference LBCLK to LBCS# rising

LBCS# falling to LBWR# falling

Nominally 2 PCI clock cycles

TBD

ns

LBWR# rising to LBCS# rising

Reference LBCLK to LBWR# falling

Reference LBCLK to LBWR# rising

Reference LBCLK to data bus valid

Reference LBCLK to data bus high-impedance

LBWR# rising to data bus invalid

t_zdf

t_wrdi

Table 19: Write operation to Intel-type Local Bus

Data Sheet Revision 1.1 PRELIMINARY

Page 32

OX9162

OXFORD SEMICONDUCTOR LTD.

Symbol Parameter

Min

Max

Units

t_ref

t_za

t_ads

t_zrds1

t_zrds2

vt_drd

t_zd1

IRDY# falling to reference LBCLK

Reference LBCLK to Address Valid

Address Valid to LBDS# falling

Reference LBCLK to LBDS# falling

Reference LBCLK to LBDS# rising

Data bus floating to LBDS# falling

Reference LBCLK to data bus floating at the start of the read

transaction

Nominally 2 PCI clock cycles

TBD

ns

t_zd2

Reference LBCLK to data bus driven by OX9162 at the end of the read

transaction

TBD

ns

t_sd

t_hd

Data bus valid to LBDS# rising

Data bus valid after LBDS# rising

TBD

ns

Table 20: Read operation from Motorola-type Local Bus

Min

Symbol Parameter

Max

Units

t_ref

t_za

t_ads

t_zw1

t_zw2

t_wds

t_dsw

t_zwds1

t_zwds2

t_zdv

IRDY# falling to reference LBCLK

Reference LBCLK to Address Valid

Address Valid to LBDS# falling

Nominally 2 PCI clock cycles

TBD

ns

Reference LBCLK to LBRDWR# falling

Reference LBCLK to LBRDWR# rising

LBRDWR# falling to LBDS# falling

LBDS# rising to LBRDWR# rising

Reference LBCLK to LBDS# falling

Reference LBCLK to LBDS# rising

Reference LBCLK to data bus valid

Reference LBCLK to data bus high-impedance

LBDS# rising to data bus invalid

t_zdf

t_dsdi

Table 21: Write operation to Motorola-type Local Bus

Data Sheet Revision 1.1 PRELIMINARY

Page 33

OX9162

OXFORD SEMICONDUCTOR LTD.

11 Timing Waveforms

CLK

FRAME#

AD[31:0]

C/BE[3:0]#

IRDY#

1

2

3

4

Address

Data

Bus CMD

Byte enable#

TRDY#

DEVSEL#

STOP#

Figure 1: PCI Read transaction from Local Configuration registers

CLK

1

2

3

4

FRAME#

AD[31:0]

C/BE[3:0]#

IRDY#

Address

Data

Bus CMD

Byte enable#

TRDY#

DEVSEL#

STOP#

Figure 2: PCI Write transaction to Local Configuration Registers

Data Sheet Revision 1.1 PRELIMINARY

Page 34

OX9162

OXFORD SEMICONDUCTOR LTD.

TIMING WAVEFORMS

CLK

1

2

3

4

5

n+5

n+6

n+7

Where: n = 0, 1, .., 9

FRAME#

AD[31:0]

C/BE[3:0]#

IRDY#

Address

Data

Bus CMD

Byte enable#

TRDY#

DEVSEL#

STOP#

LBCLK

LBA

t _ref

t _za

t_ard

Valid Local Bus Address

t_zrcs2

t_zrcs1

t_csrd

t

LBCS#

LBRD#

LBD¹

rdcs

t_zrd2

t_zrd1

t_zd2

t_drd

t_zd1

Valid Data

t _sd

t _hd

LBD ²

Valid Data

Figure 3: PCI Read Transaction from Intel-type Local Bus

Data Sheet Revision 1.1 PRELIMINARY

Page 35

OX9162

OXFORD SEMICONDUCTOR LTD.

TIMING WAVEFORMS

CLK

1

2

3

4

5

n+5

n+6

n+7

Where: n = 0, 1, .., 9

FRAME#

AD[31:0]

C/BE[3:0]#

IRDY#

Address

Data

Bus CMD

Byte enable#

TRDY#

DEVSEL#

STOP#

LBCLK

LBA

t _ref

t _za

t_awr

Valid Local Bus Address

t_zwcs2

t_zwcs1

t_cswr

t_wrcs

LBCS#

LBWR#

LBD¹

t

zwr2

t

zwr1

Valid Local Bus Data

t_zdv

t_wrdi

t_zdf

LBD²

Valid Local Bus Data

Figure 4: PCI Write Transaction to Intel-type Local Bus

Data Sheet Revision 1.1 PRELIMINARY

Page 36

OX9162

OXFORD SEMICONDUCTOR LTD.

TIMING WAVEFORMS

CLK

1

2

3

4

5

n+5

n+6

n+7

Where: n = 0, 1, .., 9

FRAME#

AD[31:0]

C/BE[3:0]#

IRDY#

Address

Data

Bus CMD

Byte enable#

TRDY#

t _ref

DEVSEL#

STOP#

LBCLK

LBA

t _za

t_ads

Valid Local Bus Address

LBRDWR#

LBDS#

t_zrds2

t_zrds1

t_zd1

t_zd2

t_drd

LBD¹

Valid Data

t _sd

t _hd

LBD ²

Valid Data

Figure 5: PCI Read Transaction from Motorola-type Local Bus

Data Sheet Revision 1.1 PRELIMINARY

Page 37

OX9162

OXFORD SEMICONDUCTOR LTD.

TIMING WAVEFORMS

CLK

1

2

3

4

5

n+5

n+6

n+7

Where: n = 0, 1, .., 9

FRAME#

AD[31:0]

C/BE[3:0]#

IRDY#

Address

Data

Bus CMD

Byte enable#

TRDY#

t _ref

DEVSEL#

STOP#

LBCLK

LBA

t _za

t_ads

Valid Local Bus Address

t _zw2

t

zw1

t_wds

LBRDWR#

LBDS#

t _dsw

t_zwds2

t_zwds1

LBD¹

Valid Local Bus Data

t_zdv

t_dsdi

t_zdf

LBD²

Figure 6: PCI Write Transaction to Motorola-type Local Bus

Data Sheet Revision 1.1 PRELIMINARY

Page 38

OX9162

OXFORD SEMICONDUCTOR LTD.

12 ERRATA 1 – IMMEDIATE POWER DOWN FILTERING

The OX9162 does not support the IMMEDIATE mode in Power Down Filtering. If this mode is asserted, then a Power Down

Request is issued immediately, regardless of any other settings.

To take advantage of the Power Down mode, place the filter into another mode. Power Down requests will be invoked via the

selected MIO pins, providing the options for these pins have been selected correctly. The Power Down will occur after the user

specified power down filter time.

Data Sheet Revision 1.1 PRELIMINARY

Page 39

OX9162

OXFORD SEMICONDUCTOR LTD.

NOTES

This page has been intentionally left blank

Data Sheet Revision 1.1 PRELIMINARY

Page 40

OX9162

OXFORD SEMICONDUCTOR LTD.

CONTACT DETAILS

Oxford Semiconductor Ltd.

69 Milton Park

Abingdon

Oxfordshire

OX14 4RX

United Kingdom

Telephone:

Fax:

Sales e-mail:

Tech support e-mail:

Web site:

+44 (0)1235 824900

+44 (0)1235 821141

sales@oxsemi.com

support@oxsemi.com

http://www.oxsemi.com

DISCLAIMER

Oxford Semiconductor believes the information contained in this document to be accurate and reliable. However, it is subject to

change without notice. No responsibility is assumed by Oxford Semiconductor for its use, nor for infringement of patents or other

rights of third parties. No part of this publication may be reproduced, or transmitted in any form or by any means without the prior

consent of Oxford Semiconductor Ltd. Oxford Semiconductor’s terms and conditions of sale apply at all times.

Data Sheet Revision 1.1 PRELIMINARY

Page 41
