RXQ1

型号：

RXQ1

描述：

FM窄带收发器[ FM NARROW BAND TRANSCEIVERS ]

品牌：

RFSOLUTIONS[ RFSOLUTIONS.LTD ]

页数：

12 页

PDF大小：

352 K

下载PDF手册

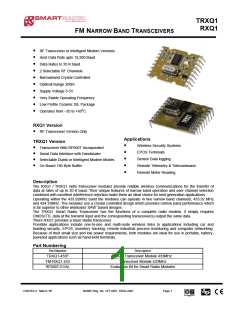

TRXQ1
RXQ1
FM NARROW BAND TRANSCEIVERS
•
•
•
•
•
•
•
•
•
•
RF Transceiver or Intelligent Modem Versions
Host Data Rate upto 19,200 Baud
Data Rates to 20 K baud.
2 Selectable RF Channels
Narrowband Crystal Controlled
Optimal Range 200m
Supply Voltage 3-5V
Very Stable Operating Frequency
Low Profile Ceramic DIL Package
Operates from –20 to +850C
RXQ1 Version
•
RF Transceiver Version Only
Applications
TRXQ1 Version
•
•
•
•
•
Wireless Security Systems
•
•
•
•
Transceiver With RF600T Incorporated
Serial Data Interface with Handshake
Selectable Dumb or Intelligent Modem Modes
On Board 190 Byte Buffer
EPOS Terminals
Sensor Data logging
Remote Telemetry & Telecommand
Remote Meter Reading
Description
The RXQ1 / TRXQ1 radio transceiver modules provide reliable wireless communications for the transfer of
data at rates of up to 20 K baud. Their unique features of narrow band operation and user channel selection
combined with excellent interference rejection make them an ideal choice for next generation applications.
Operating within the 433.92MHz band the modules can operate in two narrow band channels; 433.92 MHz
and 434.33MHz. The modules use a crystal controlled design which provides narrow band performance which
is far superior to other wideband ‘SAW’ based designs.
The TRXQ1 Smart Radio Transceiver has the functions of a complete radio modem, it simply requires
CMOS/TTL data at the transmit input and the corresponding transceiver(s) output the same data
There RXQ1 provides a basic Radio transceiver.
Possible applications include one-to-one and multi-node wireless links in applications including car and
building security, EPOS, inventory tracking, remote industrial process monitoring and computer networking.
Because of their small size and low power requirements, both modules are ideal for use in portable, battery-
powered applications such as hand-held terminals.
Part Numbering
Part Number
TRXQ1-433F
FM-RXQ1-433
RF600T-EVAL
Description
Smart Transceiver Module 433MHz
Transceiver Module 433MHz
Evaluation Kit for Smart Radio Modules
DS0353-9 March ‘05
©2005 Reg. No. 227 4001, ENGLAND
Page 1
TRXQ1
RXQ1
FM NARROW BAND TRANSCEIVERS
RXQ1 Pinout Detail
Top View
RF Gnd.
1
18 Channel Select
17 Vcc
Antenna
RF Gnd.
nc
2
3
4
5
6
7
8
9
16 Rx Select
15 Tx Select
14 Tx Data
13 nc
Gnd.
nc
nc
12 Rx Data
11 nc
nc
RXQ1
FM Transceiver
Gnd.
10 Gnd.
30.48
Pin Descriptions
Pin
Number
Name
Type
In
Description
For best results, these pins should be connected to the ground
plane against which the antenna radiates.
Nominal 50 ohm input/output impedance capacitively isolated from
the internal circuit.
1,3
2
RF GND
Antenna
In / Out
4, 6, 7, 8,
11, 13
-
No Connection
nc
5, 9, 10
In
Connect to 0 volts.
GND
Received data output to host controller (CMOS logic out)
representing true data as supplied to the transmitter.
12
Out
In
Rx
Tx
Transmit data input from host controller
Data input to the transmitter can be directly interfaced to CMOS
logic drive operating on the same supply voltage as the transceiver
14
15
16
In
In
Transmit select. Active LOW.
Receive select. Active LOW.
Tx SELECT
Rx SELECT
Positive supply voltage connection. Decouple with 100n ceramic
capacitor to ground.
17
In
Vcc
Channel Select;
18
In
CS
Logic 0 selects 433.92MHz
Logic 1 selects 434.33MHz
Operation Table
Tx Select
RX Select
Function
0
0
1
1
0
1
0
1
Power Down Mode
Transmit Mode
Receive Mode
Power Down Mode
DS0353-9 March ‘05
©2005 Reg. No. 227 4001, ENGLAND
Page 2
TRXQ1
RXQ1
FM NARROW BAND TRANSCEIVERS
RXQ1 Operating Parameters
Absolute Maximum Ratings
Operating temperature:
Storage temperature:
Supply Voltage
-20 0 C to +70 0 C
-40 0 C to +100 0 C
-0.3 to 6V
Data input
-0.3 to Vcc + 0.3v
Electrical Characteristics:
Min.
Typ.
Max.
Units
Notes
DC Levels
Supply voltage
2.7
3
26
12
8
5.25
V
mA
mA
uA
V
1
Supply current (Transmit Mode)
Supply current (Receive Mode)
Supply current (Standby Mode)
Data input/output high
Data input/output low
0.7xVcc
0
Vcc
0.3xVcc
V
RF
433.92 /
434.33
-100
Working Frequency
MHz
Receiver sensitivity
RF power out (transmitter)
FM Deviation
IF Bandwidth
Harmonic Spurious Emissions
dBm
dBm
KHz
KHz
dBc
5
Into 50Ω
+/- 15
65
85
-50
Operating Temperature
-20
+70
Deg C
Dynamic Timing
Power up to stable receiver data out
Power up to full RF out
Standby to RX mode
5
4
3
2
3
1
mS
mS
mS
mS
mS
mS
bps
2
2
Standby to TX mode
Changing from TX to RX mode
Changing from RX to TX mode
Data Bit rate
20
20,000
Notes
1. Supply voltage should have <10mV ripple.
RXQ1 Applications
The RXQ1 is a dual band ‘transceiver only’ RF module, which has applications in many areas where reliable
half duplex communications are required over ranges up to 200 metres. The crystal controlled narrow band
design gives optimum performance in the 433 MHz band and the dual channel capability allows for the design
of more complex networks than had previously been possible.
DS0353-9 March ‘05
©2005 Reg. No. 227 4001, ENGLAND
Page 3
TRXQ1
RXQ1
FM NARROW BAND TRANSCEIVERS
RXQ1 Application Information with RF600T
The circuit below shows a typical application of the RXQ1 in conjunction with the RF600T low power radio
transceiver controller. A 9 way ‘D’ connector provides an RS232 termination to the host system and the RXQ1
hybrid contains all of the circuitry required to implement the RF path. The RF600T operates as a transceiver
controller and performs all of the functions necessary to implement either a ‘dumb’ or an intelligent modem
with automatic retry and proof of deliver functions built in to the system. In many applications it will be possible
to dispense with the option links and hard-wire options to their desired settings but note however option
selection must be carried out exactly as described in the RF600T data sheet.
This implementation of TRXQ1 module and RF600T is available as the composite hybrid TRXQ1 which is
described in this data sheet.
2K2
2K2
2K2
DS0353-9 March ‘05
©2005 Reg. No. 227 4001, ENGLAND
Page 4
TRXQ1
RXQ1
FM NARROW BAND TRANSCEIVERS
TRXQ1 Pinout Detail
Top View
RF Gnd.
Antenna
1
2
18 Vcc RF
17 Dig. Gnd.
16 RF Baud
15 Host Baud
14 Rx Data
13 TX Data
12 Mode
Channel Select
IN #1
3
4
5
6
7
8
9
IN #2
OUT #1
OUT #2
LRN/LED
\CTS
11 \RTS
TRXQ1
Intelligent FM Transceiver
10 Vcc Digital
30.48
Pin Descriptions
Pin
Number
Name
Type
Power
In / Out
Description
For best results, this pin should be connected to the ground plane
against which the antenna radiates.
Nominal 50 ohm input/output impedance capacitively isolated from
the internal circuit.
1
2
RF GND
Antenna
Channel select option.
3
In
CS
Logic 0 selects 433.92MHz
Logic 1 selects 434.33MHz
Logic input #1
4
5
6
7
8
In
In
IN #1
IN #2
Logic input #2
Logic output #1
Out
Out
In/Out
OUT #1
OUT #2
LRN/LED
Logic output #2
Learn switch and status LED.
Logic ‘0’ is Clear To Send.
Connect to 0 volts via 2.2K to enable loop mode.
Positive supply voltage connection.
Logic ‘0’ is Request To Send.
9
Out
\CTS (loop)
10
11
Power
In
Dig Vcc
\RTS
Mode select option.
12
In
Logic ‘1’ or open selects addressed mode.
Logic ‘0’ selects broadcast mode.
MODE
13
14
In
Serial async. data input from the host.
Serial async. data output to the host.
TxData
RxData
Out
Host baud rate selection option.
15
16
In
In
Logic ‘1’ or open selects 9600 bauds.
Logic ‘0’ selects 19200 bauds.
RF baud rate (element time) select option.
Logic ‘1’ or open selects 400 us element time.
Logic ‘0’ selects 200 us element time.
Host Baud
RF Baud
17
18
Power
Power
0 volts.
GND
RF supply voltage connection. Level to be as Vcc Digital on pin 10
Decouple with a 100n capacitor close to the module supply pins.
VccRF
DS0353-9 March ‘05
©2005 Reg. No. 227 4001, ENGLAND
Page 5
TRXQ1
RXQ1
FM NARROW BAND TRANSCEIVERS
TRXQ1 Operating Parameters
Absolute Maximum Ratings
Operating temperature:
Storage temperature:
Supply Voltage
-20 0 C to +70 0 C
-40 0 C to +100 0 C
-0.3 to 6V
Data input
Maximum output current
-0.3 to Vcc + 0.3v
+/- 25 mA
Electrical Characteristics:
Min.
Typ.
Max.
Units
Notes
DC Levels
Supply voltage
3.0
5.0
28
14
5.25
V
1
Supply current (Transmit Mode)
Supply current (Receive Mode)
Data input/output high
Data input/output low
Output Pin Current rating
LED sink current
mA
mA
V
V
mA
mA
0.7xVcc
0
Vcc
0.3xVcc
25
-
5.0
25
RF
433.92 /
433.33
-100
Working Frequency
MHz
Receiver sensitivity
RF power out (transmitter)
FM Deviation
IF Bandwidth
Harmonic Spurious Emissions
dBm
dBm
KHz
KHz
dBc
5
Into 50Ω
+/- 15
65
85
-50
Operating Temperature
-20
+70
Deg C
Notes
1. Supply voltage should have <10mV ripple.
TRXQ1 Design Data
The TRXQ1 is an intelligent dual band communications module consisting of the RXQ1 transceiver circuitry
and an RF600T embedded controller IC. Designers should study the RF600T data sheet (DS601) since this
contains detailed information on the operation of this device. The design information given below should be
read in conjunction with this data sheet.
DS0353-9 March ‘05
©2005 Reg. No. 227 4001, ENGLAND
Page 6
TRXQ1
RXQ1
FM NARROW BAND TRANSCEIVERS
TRXQ1 Operating Modes
The device is capable of operation in one of two modes, either broadcast or addressed. The following
description describes the features of these mode and assumes two TRXQ1 nodes ‘A’ and ‘B’. The RF600T
must be configured before power up for either the broadcast or addressed mode of operation by means of the
MODE pin. Note that for security, broadcast nodes will not receive data from addressed nodes
Broadcast mode.
This mode allows a host generated data block from node ‘A’ to be transmitted and received by any number of
other nodes. This data is received and verified (for correct Manchester coding and CRC) by the other nodes
before being output to their host devices. Alternately, in the same way the other nodes can send data to node
‘A’. Note that although any node can initiate a transfer, only one direction of transfer can be active at a given
time. Correct reception of a data packet is not acknowledged and the node hosts have the responsibility of
ensuring that data transfers occur as required by operating some form of message protocol over the half
duplex data link.
Addressed mode
This mode allows a host generated data block from node ‘A’ to be transmitted and for the data frame to be
addressed to one other network node – in this case we assume node ‘B’. When the data is received by node
‘B’ it is verified for correct Manchester coding, CRC and for address match and then an acknowledge
message is transmitted back to node ‘A’. Node ‘A’ then outputs a confirmation to the host in the form of the
ASCII character ‘C’ (Confirmed). Note that confirmation is given when the data block is stored in the buffer of
node ‘B’ and not when it has been delivered to the host at node ‘B’.
All message transfers are tagged with the addresses of both the origin and destination, thus ensuring secure
data transfer at all times. Either node ‘A’ or node ‘B’ can initiate a transfer but only one direction of transfer
can be active at a given time. In the event that the originating node does not get confirmation of receipt of the
data packet, the software re-tries the transfer five times after which node ‘A’ will output an error message to
the host in the form of the ASCII character ‘F’ (Failed).
Correct reception (or otherwise) of a data packet is thus acknowledged and the host devices are relieved of
most of the workload of ensuring that data transfers occur as required.
The RF600T must be configured before use for either the broadcast or addressed point to point mode of
operation and details of how this is carried out are given in the following section.
System Operation
Each RF600T is programmed at manufacture with a 24 bit serial number which uniquely identifies the device.
In an addressed point to point system, these serial numbers are used as the device address for the nodes in
the system and non-volatile eeprom memory in the device stores the address of the ‘other’ node in the system.
If, as at time of manufacture, no address has been stored in the device or if the address has been erased then
the device will only operate in the broadcast mode. If however an address has been stored then the device will
also be able to operate in the addressed point to point mode.
DS0353-9 March ‘05
©2005 Reg. No. 227 4001, ENGLAND
Page 7
TRXQ1
RXQ1
FM NARROW BAND TRANSCEIVERS
If operation in the broadcast mode is required then with a new device, no action is necessary. If a device has
been used in the point to point addressed mode or if its status is unknown then status erase must be carried
out using the following procedure.
The LEARN pin is grounded for a period of 5 seconds and is then allowed to float, please note the unit must
be in addressed mode in order to do this. The status LED then flashes slowly for 3 seconds to indicate that
the device is erased and will now only operate in the broadcast mode until the learn sequence is repeated.
If operation in the addressed mode is required then the following procedure has to be followed to allow the two
nodes in the system to operate together.
The option for addressed mode is selected.
The two nodes, ‘A’ and ‘B’ are placed within radio range of one another are powered up.
The LEARN pin on one device – say ‘B’ is briefly taken low, placing the node into learn mode.
The LEARN/ERASE status LED on ‘B’ comes on and remains on for 20 seconds. If within this
period, no ‘learn’ data packet is received (see below) then the LED will be extinguished and the
device will operate normally.
At node ‘A’, the LEARN pin is briefly taken low. The LEARN/ERASE status LED will then come
on and node ‘A’ will transmit its address.
Node ‘B’ will receive and store the address of ’A’.
Node ‘B’ sends back to node ‘A’ both its address and that of node ‘A’.
Node ‘A’ receives and stores the address of ’B’ and confirms to ‘B’ that it has received the its
address.
Both node ‘A’ and ‘B’ LED's flash their its status LED’s rapidly for 3 seconds to show that they
have learned each others addresses.
Addressed mode can then be entered by setting the mode selection pin on the chip as
described in the PIN Descriptions table on page 5.
(other nodes which may be active will ignore this transfer since they have not been placed in the learn mode)
LRN/LED pin (addressed mode only)
The learn/LED pin is used both to sense the learn/erase switch and also to drive the indicator LED and should
be connected as shown in the RXQ1 application circuit. The switch, which should be of the normally open
type, should be connected from the learn pin to ground. The LED and its series current limiting resistor should
be connected from Vcc to the learn pin, ensuring that the maximum current drawn by the LED (as given in this
data sheet) is not exceeded.
TRXQ1 Loop Mode
Loop mode is provided to allow testing of the performance of a system and allows node ‘A’ to transmit a data
packet which will be looped back by node ‘B’ and received by node ‘A’. The mode settings of the nodes are
ignored in the loop mode and the transfer is carried out in broadcast mode. The mode must only be selected
when there are just two nodes in a network.
If we assume that we wish to send a host data packet from node ‘A’ to node ‘B’ and have the packet returned
such that host ‘A’ receives back its data packet then the LOOP link in node ‘A’ should be made before that unit
is powered up. This unit will now only operate in the loop mode until it is powered down, the loop link removed
and then powered up again.
DS0353-9 March ‘05
©2005 Reg. No. 227 4001, ENGLAND
Page 8
TRXQ1
RXQ1
FM NARROW BAND TRANSCEIVERS
TRXQ1 application schematic: RS232 connection to host PC.
Connection of the TRXQ1 to an RS232 host terminal device such as a PC serial port can be simply carried out
using the circuit shown below. The 9 way ‘D’ socket (CON1) provides the standard pinout required to connect
directly to the serial port of any PC using a 9 way male/female cable. The MAX222 provides level conversion
between the RS232 levels on the serial port and the logic levels pins of the TRXQ1 module. (note that direct
connection of RS232 levels to the module will result in immediate destruction of the device)
The TRXQ1 hybrid requires the following 4 signal connections to operate correctly:
Tx Data:
Rx Data:
\CTS:
this is serial data which is to be transmitted by the hybrid.
this is serial data which has been received by the hybrid.
this control output to the host is low when it is Clear To Send data to the hybrid.
this control input from the host is low when it is making a Request To Send data from the hybrid.
\RTS:
In this circuit, option selection is as follows:
RF Baud rate (pin 16):
Host Baud Rate (pin 15):
Mode (pin 12):
this pin is pulled high via a 22K resistor which selects 9600 bauds.
this pin is pulled high via a 22K resistor which 400 us element time.
this pin is pulled high via a 22K resistor which addressed mode.
If two such circuits are constructed then it will be possible to interconnect two PC’s and test out the
performance of the hybrids. When both circuits are powered up is will be necessary for them to learn one
another’s identity as described fully in the RF600T data sheet (DS601). That is – press the learn switch in one
circuit, then in the other and the two learn LED's should flash showing that the learn has taken place.
The addressed mode operates as a point to point half duplex system with automatic retry and indication to the
transmitting host of the status of the transfer. Again the RF600T data sheet gives full information on this mode
of operation.
NOTE: pins 16, 15, 12 should not be left floating as these control important features of the TRXQ1 such as the
baud rate and Mode of operation. Ensure that these pins are pulled either high with a ~22K resistor or pulled
low with a ~2K2 resistor.
DS0353-9 March ‘05
©2005 Reg. No. 227 4001, ENGLAND
Page 9
TRXQ1
RXQ1
FM NARROW BAND TRANSCEIVERS
TRXQ1 application schematic: logic level connection to host micro controller.
Direct connection of the TRXQ1 to a host micro controller allows the design of complex systems where the
host micro controller provides all of the processing power and the TRXQ1 acts as the data carried between
system nodes.
The use of the broadcast mode will allow multiple transceiver systems to be implemented and with suitable
software and a user defined protocol is will be possible to implement complex networks where control of the
data path, retries etc. are under the control of the designer.
Where a point to point system is required then the addressed mode will provide this and also give the required
level of security. This, along with the automatic retry feature of the TRXQ1 module will remove from the
system designer all of the normal overhead of writing communications software.
As was the case with the RS232 example given above, the TRXQ1 hybrid requires 4 signal connections to
operate correctly.
TxHOST:
RxHOST:
\CTS:
serial data which is to be transmitted by the hybrid.
serial data which has been received by the hybrid.
control output to the host is low when it is Clear To Send data to the hybrid.
control input from the host is low when it is making a Request To Send data from the hybrid.
\RTS:
In some addressed mode applications the learn/erase components may not be required and the LRN/LED pin
could be connected to the host micro controller which would be programmed to handle the functions of this
pin.
Where the module is to be used in the broadcast mode then the learn/erase components will not be required
which will lead to further simplification of the circuit.
DS0353-9 March ‘05
©2005 Reg. No. 227 4001, ENGLAND
Page 10
TRXQ1
RXQ1
FM NARROW BAND TRANSCEIVERS
Antenna Design
The design and positioning of the aerial is as crucial as the module performance itself in achieving a good
wireless system range. The following will assist the designer in maximising system performance.
The RF ground pin should be connected to a ground plane which should shield the aerial connection and the
PCB layout around the aerial track itself should be such as to give a 50 Ohm impedance. The aerial should be
kept as far away from sources of electrical interference as physically possible. The specified power supply
decoupling capacitors should be placed close to the module as possible and have direct connections to the
relevant pins.
The antenna ‘hot end’ should be kept clear of any objects, especially any metal as this can severely restrict the
efficiency of the antenna to receive power. Earth planes restricting the radiation path of the antenna will also
have the same effect.
The best range will be achieved with either a straight piece of wire, rod or PCB track @ ¼ wavelength (15.5cm
@ 433.92MHz). Increased range may be achieved if this ¼ wave antenna is placed perpendicular to and in
the middle of a solid earth plane measuring at least 16cm radius. In this case, the antenna should be
connected to the module using 50 Ohm coaxial cable and the PCB track layout tips given above should be
observed.
Helical Antenna
Whip Antenna
RF
RF
15.5cm @ 433MHz
34mm @ 433MHz
17 turns equally spaced
∅
= 5mm (inside)
Smart Radio Evaluation Kit (Please see Datasheet DS605)
The Smart Radio Evaluation Kit provides a hardware platform to enable
fast development of Radio applications.
Supplied as a pair of boards, each can accept a variety of RF Modules
including transmitters, receivers and transceivers, an RS232 port is
incorporated for direct connection to a PC.
The boards may be used for a wide range of tasks from simple RS232
data transmission to integrated system development and is the ideal
platform for exploring the advantages of using the “Smart Comms” range
of ICs and radio modules.
This eliminates the need to construct hand-wired prototype boards, which
are rarely successful in creating a valid environment for the development
of radio systems. (prototyping board also contains large stray capacitance
values which has a detrimental effect on the RF connections).
• Hardware Platform for Radio Comms Development
Contents
• Accepts Various RF Modules
• RS232 Interface to PC
• Supplied with RF600T Smart Comms Controller
• Performs all Data Encryption for Reliable Data Comms.
• Two Telemetry I/O Lines (addressed mode only)
• Range Testing
•
•
•
•
Two Eval Boards
Two RF600T Comms Controllers
Circuit diagrams
Two RS232 PC cables
Radio Modules and Antenna available
Separately.
• Target Environment Testing
• Antenna Evaluation
DS0353-9 March ‘05
©2005 Reg. No. 227 4001, ENGLAND
Page 11
TRXQ1
RXQ1
FM NARROW BAND TRANSCEIVERS
Mechanical Detail
RF Solutions Ltd.,
Unit 21, Cliffe Industrial Estate,
South Street,
Lewes,
E Sussex, BN8 6JL. England
Tel +44 (0)1273 898 000
Email sales@rfsolutions.co.uk
Fax +44 (0)1273 480 661
http://www.rfsolutions.co.uk
RF Solutions is a member of the Low Power Radio Association
All Trademarks acknowledged and remain the property of the respected owners
Information contained in this document is believed to be accurate, however no representation or warranty is given and R.F. Solutions Ltd. assumes no liability with respect to the accuracy of such
information. Use of R.F.Solutions as critical components in life support systems is not authorised except with express written approval from R.F.Solutions Ltd.
DS0353-9 March ‘05
©2005 Reg. No. 227 4001, ENGLAND
Page 12
厂商 型号 描述 页数 下载

RFE

 		RXQ 铝电解电容器RXQ系列： 105℃ ，可达10000小时[ ALUMINUM ELECTROLYTIC CAPACITORS RXQ Series: 105C, up to 10,000 hours ] 2 页

ROHM

 		RXQ040N03 4V驱动N沟道MOSFET[ 4V Drive Nch MOSFET ] 7 页

ROHM

 		RXQ040N03TCR [ Power Field-Effect Transistor, 4A I(D), 30V, 0.07ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TSMT6, 6 PIN ] 7 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.242656s
