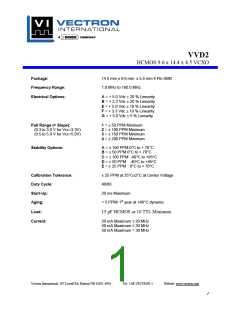

VVD2 4 Pad SMD VCXO
VVD2
HCMOS 9.6 x 14.4 x 4.5 VCXO
Package:
14.5 mm x 9.6 mm x 5.5 mm 4 Pin SMD
Frequency Range:
Electrical Options:
1.0 MHz to 160.0 MHz.
A = + 5.0 Vdc 20 % Linearity
B = + 3.3 Vdc 20 % Linearity
E = + 5.0 Vdc 10 % Linearity
F = + 3.3 Vdc 10 % Linearity
G = + 5.0 Vdc 5 % Linearity
Pull Range (+ Slope):
(0.3 to 3.0 V for Vcc=3.3V)
(0.5 to 5.0 V for Vcc=5.0V)
1 = 50 PPM Minimum
2 = ± 100 PPM Minimum
3 = ± 150 PPM Minimum
4 = ± 200 PPM Minimum
Stability Options:
A = ± 100 PPM 0°C to + 70°C
B = ± 50 PPM 0°C to + 70°C
C = 100 PPM -40C to +85C
D = ± 50 PPM -40C to +85C
E = ± 25 PPM 0°C to + 70°C
Calibration Tolerance:
Duty Cycle:
Start-Up:
± 25 PPM at 25°C±2°C at Center Voltage
40/60
20 ms Maximum
Aging:
< 5 PPM/ 1st year at +40°C dynamic
Load:
15 pF HCMOS or 10 TTL Minimum
Current:
20 mA Maximum ≤ 20 MHz
40 mA Maximum ≤ 30 MHz
50 mA Maximum > 30 MHz
Vectron International, 267 Lowell Rd, Hudson NH 03051-4916
Tel: 1-88-VECTRON-1
Website: www.vectron.com
1
