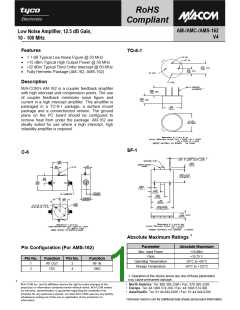

RoHS
Compliant
AM -/AM C -/AM S -16 2
V 4
Low Noise Amplifier, 12.5 dB Gain,
10 - 10 0 M H z
Features
TO-8-1
ñ
ñ
ñ
ñ
1.1 dB Typical Low Noise Figure @ 50 MHz
+15 dBm Typical High Output Power @ 50 MHz
+
32 dBm Typical Third Order Intercept @ 50 MHz
Fully Hermetic Package (AM-162, AMS-162)
Description
M/A-COM‘s AM-162 is a coupler feedback amplifier
with high intercept and compression points. The use
of coupler feedback minimizes noise figure and
current in a high intercept amplifier. This amplifier is
packaged in a TO-8-1 package, a surface mount
package and a connectorized version. The ground
plane on the PC board should be configured to
remove heat from under the package. AM-162 are
ideally suited for use where a high intercept, high
reliability amplifier is required.
SF-1
C-6
Absolute Maximum Ratings 1
Parameter
Max. Input Power
Vbias
Absolute Maximum
Pin Configuration (For AMS-162)
+10 dBm
+15.75 V
Pin No.
Function
RF OUT
VDC
Pin No.
Function
RF IN
Operating Temperature
Storage Temperature
-55°C to +85°C
-65°C to +125°C
1
2
3
4
GND
1. Operation of this device above any one of these parameters
may cause permanent damage.
1
