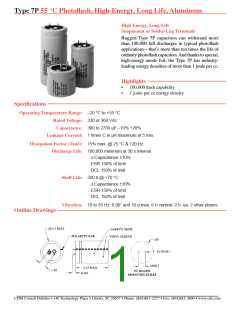

Type 7P 55 °C Photoflash, High-Energy, Long Life, Aluminum
High Energy, Long-Life
Snapmount or Solder-Lug Terminals
Rugged Type 7P capacitors can withstand more
than 100,000 full discharges in typical photoflash
applications—that’s more than ten times the life of
ordinary photoflash capacitors.And thanks to special,
high-energy anode foil, the Type 7P has industry-
leading energy densities of more than 1 joule per cc.
Highlights
•
•
100,000 flash capability
1 joule per cc energy density
Specifications
Operating Temperature Range: –20 °C to +55 °C
Rated Voltage: 330 or 360 Vdc
Capacitance: 300 to 2700 µF –10% +20%
Leakage Current: 1 times C in µA maximum at 5 min.
Dissipation Factor (Tanδ): 15% max. @ 25 °C & 120 Hz
Discharge Life: 100,000 minimum at 30 s interval
∆ Capacitance ±10%
ESR 150% of limit
DCL 150% of limit
Shelf Life: 500 h @ +70 °C
∆ Capacitance ±10%
ESR 150% of limit
DCL 150% of limit
Vibration: 10 to 55 Hz; 0.06” and 10 g max, 6 h vertical, 2 h. ea. 2 other planes
Outline Drawings
