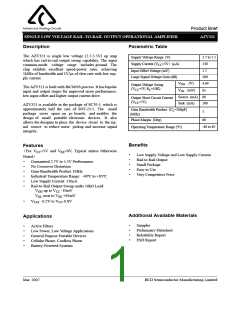

Product Brief
SINGLE LOW VOLTAGE RAIL-TO-RAIL OUTPUT OPERATIONAL AMPLIFIER
AZV321
Description
Parametric Table
The AZV321 is single low voltage (2.7-5.5V) op amp
which has rail-to-rail output swing capability. The input
common-mode voltage range includes ground. The
chip exhibits excellent speed-power ratio, achieving
1MHz of bandwidth and 1V/µs of slew rate with low sup-
ply current.
Supply Voltage Range (V)
2.7 to 5.5
130
Supply Current (VCC=5V）(µA)
Input Offset Voltage (mV)
1.7
Large Signal Voltage Gain (dB)
100
VOH (V)
VOL (mV)
4.99
65
Output Voltage Swing
(VCC=5V, RL=10K)
The AZV321 is built with BiCMOS process. It has bipolar
input and output stages for improved noise performance,
low input offset and higher output current drive.
Source (mA) 60
Sink (mA) 160
Output Short Circuit Current
(VCC=5V)
AZV321 is available in the package of SC70-5, which is
approximately half the size of SOT-23-5. The small
package saves space on pc boards, and enables the
design of small portable electronic devices. It also
allows the designer to place the device closer to the sig-
nal source to reduce noise pickup and increase signal
integrity.
Gain Bandwidth Product (CL=200pF)
(MHz)
1
Phase Margin (Deg)
60
Operating Temperature Range (oC)
-40 to 85
Benefits
Features
（For V =5V and V =0V, Typical unless Otherwise
CC
EE
·
·
·
·
·
Low Supply Voltage and Low Supply Current
Rail to Rail Output
Small Package
Easy to Use
Very Competitive Price
Noted）
·
·
·
·
·
·
Guaranteed 2.7V to 5.5V Performance.
No Crossover Distortion
Gain-Bandwidth Product 1MHz
Industrial Temperature Range: -40oC to +85oC
Low Supply Current: 130µA
Rail-to-Rail Output Swing under 10kΩ Load:
V
up to V -10mV
OH
OL
CC
V
near to V +65mV
EE
·
V
: -0.2V to V -0.8V
CM CC
Additional Available Materials
Applications
·
·
·
·
Samples
·
Active Filters
Preliminary Datasheet
Reliability Report
ESD Report
·
·
·
·
Low Power, Low Voltage Applications
General Purpose Portable Devices
Cellular Phone, Cordless Phone
Battery-Powered Systems
Mar. 2007
BCD Semiconductor Manufacturing Limited
