5STP50Q1800

型号：

5STP50Q1800

描述：

相位控制晶闸管[ Phase Control Thyristor ]

品牌：

ABB[ THE ABB GROUP ]

页数：

6 页

PDF大小：

524 K

下载PDF手册
V
DRM
= 1800
IT(AV)M = 6100
I
T(RMS)
= 9600
V
A
A
A
V

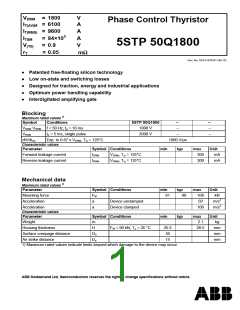

Phase Control Thyristor
ITSM
V
(T0)
rT
= 94×103
= 0.9
5STP 50Q1800
= 0.05
mΩ
Doc. No. 5SYA1070-01 Okt. 03
• Patented free-floating silicon technology
• Low on-state and switching losses
• Designed for traction, energy and industrial applications
• Optimum power handling capability
• Interdigitated amplifying gate
Blocking
Maximum rated values 1)
Symbol
Conditions
5STP 50Q1800
1800 V
--
--
--
--
--
--
VDRM, VRRM f = 50 Hz, tp = 10 ms
VRSM
tp = 5 ms, single pulse
2000 V
dV/dtcrit
Exp. to 0.67 x VDRM, Tvj = 125°C
1000 V/µs
Characteristic values
Parameter
Forward leakage current
Reverse leakage current
Symbol Conditions
IDRM VDRM, Tvj = 125°C
IRRM VRRM, Tvj = 125°C
min
typ
max
300
300
Unit
mA
mA
Mechanical data
Maximum rated values 1)
Parameter
Symbol Conditions
FM
min
min
typ
max
108
50
100
Unit
Mounting force
Acceleration
Acceleration
Characteristic values
Parameter
81
90
kN
a
a
Device unclamped
Device clamped
m/s2
m/s2
Symbol Conditions
typ
max
Unit
Weight
m
2.1
kg
Housing thickness
Surface creepage distance
Air strike distance
H
DS
Da
FM = 90 kN, Ta = 25 °C
25.5
36
15
26.5
mm
mm
mm
1) Maximum rated values indicate limits beyond which damage to the device may occur
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
5STP 50Q1800
On-state
Maximum rated values 1)
Parameter
Average on-state current
RMS on-state current
Peak non-repetitive surge
current
Symbol Conditions
min
typ
max
Unit
A
A
IT(AV)M
IT(RMS)
ITSM
Half sine wave, Tc = 70°C
6100
9600
tp = 10 ms, Tvj = 125 °C,
VD = VR = 0 V
94×103
A
Limiting load integral
I2t
41.28×106 A2s
100×103
Peak non-repetitive surge
ITSM
tp = 8.3 ms, Tvj = 125 °C,
VD = VR = 0 V
A
current
Limiting load integral
Characteristic values
Parameter
On-state voltage
Threshold voltage
Slope resistance
Holding current
I2t
43.37×106 A2s
Symbol Conditions
min
typ
max
1.04
Unit
V
V
mΩ
mA
mA
mA
mA
VT
V(T0)
rT
IT = 3000 A, Tvj = 125 °C
IT = 4000 A - 18000 A, Tvj= 125 °C
0.9
0.05
100
75
500
350
IH
Tvj = 25 °C
Tvj = 125 °C
Tvj = 25 °C
Tvj = 125 °C
Latching current
IL
Switching
Maximum rated values 1)
Parameter
Symbol Conditions
min
typ
typ
max
Unit
A/µs
Critical rate of rise of on-
di/dtcrit
Tvj = 125 °C,
TRM = 3000 A,
VD ≤ 0.67 VDRM
FG = 2 A, tr = 0.5 µs
Cont.
f = 50 Hz
Cont.
250
state current
I
Critical rate of rise of on-
state current
di/dtcrit
1000
A/µs
µs
,
f = 1Hz
I
Circuit-commutated turn-off tq
time
Tvj = 125°C, ITRM = 3000 A,
500
VR = 200 V, diT/dt = -20 A/µs,
VD ≤ 0.67⋅VDRM, dvD/dt = 20V/µs
Characteristic values
Parameter
Symbol Conditions
min
max
Unit
Recovery charge
Qrr
Tvj = 125°C, ITRM = 2000 A,
3000
µAs
VR = 200 V,
diT/dt = -1.5 A/µs
Gate turn-on delay time
tgd
3
µs
VD = 0.4⋅VRM, IFG = 2 A,
tr = 0.5 µs, Tvj = 25 °C
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1070-01 Okt. 03
page 2 of 6
5STP 50Q1800
Triggering
Maximum rated values 1)
Parameter
Peak forward gate voltage VFGM
Peak forward gate current IFGM
Peak reverse gate voltage VRGM
Average gate power loss
Characteristic values
Parameter
Symbol Conditions
min
min
typ
max
Unit
12
10
10
V
A
V
PG(AV)
see Fig. 9
Symbol Conditions
typ
max
Unit
Gate-trigger voltage
VGT
Tvj = 25 °C
2.6
V
Gate-trigger current
Gate non-trigger voltage
Gate non-trigger current
IGT
VGD
IGD
Tvj = 25 °C
VD = 0.4 x VDRM, Tvj = 125 °C
VD = 0.4 x VDRM, Tvj = 125°C
400
mA
V
mA
0.3
10
Thermal
Maximum rated values 1)
Parameter
Symbol Conditions
Tvj
min
typ
typ
max
125
Unit
°C
Operating junction
temperature range
Storage temperature range Tstg
-40
140
°C
Characteristic values
Parameter
Symbol Conditions
min
max
Unit
Thermal resistance junction Rth(j-c)
Double-side cooled
5
K/kW
to case
Rth(j-c)A Anode-side cooled
Rth(j-c)C Cathode-side cooled
10
10
1
K/kW
K/kW
K/kW
Thermal resistance case to Rth(c-h)
Double-side cooled
heatsink
Rth(c-h)
Single-side cooled
2
K/kW
Analytical function for transient thermal
impedance:
n
Zth(j - c)(t) = åRi(1- e
-t/τ
i
)
i=1
i
1
2
3
4
Ri(K/kW)
τi(s)
3.359
0.4069
0.936
0.0854
0.481
0.0118
0.224
0.0030
Fig. 1 Transient thermal impedance junction-to case.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1070-01 Okt. 03
page 3 of 6
5STP 50Q1800
Max. on-state characteristic model:
Max. on-state characteristic model:
VT125
VT25
= A +B ⋅IT +CTvj ⋅ln(IT +1)+D ⋅ IT
= A + BTvj ⋅IT +CTvj ⋅ln(IT +1)+ D ⋅ IT
Tvj
Tvj
Tvj
Tvj
Tvj
Valid for IT = 200 – 100000 A
Valid for IT = 200 – 100000 A
A25
B25
C25
D25
A125
B125
C125
D125
2.31×10-3
932.00×10-3 25.28×10-6 -14.74×10-3 3.72×10-3
334.70×10-3 29.36×10-6
61.20×10-3
Fig. 2 On-state characteristics.
Fig. 3 Max. on-state voltage characteristics
Tj=125°C, 10ms half sine
Fig. 4 On-state power dissipation vs. mean on-state
Fig. 5 Max. permissible case temperature vs. mean
current. Turn - on losses excluded.
on-state current.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1070-01 Okt. 03
page 4 of 6
5STP 50Q1800
Fig. 6 Surge on-state current vs. pulse length. Half-
Fig. 7 Surge on-state current vs. number of pulses.
sine wave.
Half-sine wave, 10 ms, 50Hz.
IG (t)
IGM
≈ 2..5 A
≥ 1.5 IGT
IGon
100 %
90 %
IGM
diG/dt ≥ 2 A/µs
tr
≤ 1 µs
tp(IGM
)
≈ 5...20 µs
diG/dt
IGon
10 %
tr
t
tp (IGM
)
tp (IGon
)
Fig. 8 Recommended gate current waveform.
Fig. 9 Max. peak gate power loss.
Fig. 10 Recovery charge vs. decay rate of on-state
Fig. 11 Peak reverse recovery current vs. decay rate
current.
of on-state current.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1070-01 Okt. 03
page 5 of 6
5STP 50Q1800
C
C
Fig. 12 Device Outline Drawing.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
ABB Switzerland Ltd
Semiconductors
Doc. No. 5SYA1070-01 Okt. 03
Fabrikstrasse 3
CH-5600 Lenzburg, Switzerland
Telephone +41 (0)58 586 1419
Fax
+41 (0)58 586 1306
Email
Internet
abbsem@ch.abb.com
www.abb.com/semiconductors
