5SGF40L4502

型号：

5SGF40L4502

描述：

不对称的门关断晶闸管[ Asymmetric Gate turn-off Thyristor ]

品牌：

ABB[ THE ABB GROUP ]

页数：

9 页

PDF大小：

344 K

下载PDF手册
VDRM
ITGQM
ITSM
VT0
=
=
4500 V
4000 A
Asymmetric Gate turn-off
Thyristor
= 25×103 A
=
=
=
1.2 V
0.65

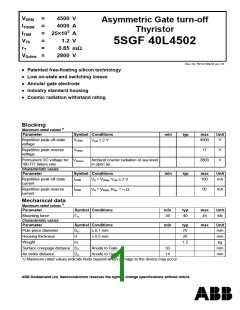

5SGF 40L4502
rT
mΩ
2800 V
VDclink
Doc. No. 5SYA1209-04 Jan. 03
• Patented free-floating silicon technology
• Low on-state and switching losses
• Annular gate electrode
• Industry standard housing
• Cosmic radiation withstand rating
Blocking
Maximum rated values 1)
Parameter
Symbol Conditions
min
min
typ
typ
max
4500
Unit
V
Repetitive peak off-state
VDRM
VGR ≥ 2 V
voltage
Repetitive peak reverse
voltage
VRRM
17
V
V
Permanent DC voltage for VDclink
Ambient cosmic radiation at sea level
in open air.
2800
100 FIT failure rate
Characteristic values
Parameter
Symbol Conditions
max
Unit
Repetitive peak off-state
IDRM
100
mA
VD = VDRM, VGR ≥ 2 V
current
Repetitive peak reverse
current
IRRM
50
mA
VR = VRRM, RGK = ∞ Ω
Mechanical data
Maximum rated values 1)
Parameter
Mounting force
Characteristic values
Parameter
Pole-piece diameter
Housing thickness
Weight
Symbol Conditions
Fm
min
36
typ
40
max
44
Unit
kN
Symbol Conditions
min
typ
75
26
max
Unit
mm
mm
kg
Dp
± 0.1 mm
H
± 0.5 mm
m
1.5
Surface creepage distance Ds
Air strike distance Da
Anode to Gate
Anode to Gate
33
14
mm
mm
1) Maximum rated values indicate limits beyond which damage to the device may occur
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
5SGF 40L4502
GTO Data
On-state
Maximum rated values 1)
Parameter
Symbol Conditions
ITAVM Half sine wave, TC = 85 °C
min
typ
max
1180
Unit
A
Max. average on-state
current
Max. RMS on-state current ITRMS
1850
A
A
Max. peak non-repetitive
ITSM
tp = 10 ms, Tvj = 125°C, sine wave
After Surge: VD = VR = 0 V
25×103
surge current
Limiting load integral
I2t
3.1×106 A2s
40×103
Max. peak non-repetitive
ITSM
tp = 1 ms, Tvj = 125°C, sine wave
After Surge: VD = VR = 0 V
A
surge current
Limiting load integral
Characteristic values
Parameter
I2t
800×103 A2s
Symbol Conditions
min
min
typ
max
3.8
1.2
0.65
100
Unit
V
V
mΩ
A
On-state voltage
Threshold voltage
Slope resistance
Holding current
VT
V(T0)
rT
IT = 4000 A, Tvj = 125°C
Tvj = 125°C
IT = 400...5000 A
IH
Tvj = 25°C
Turn-on switching
Maximum rated values 1)
Parameter
Symbol Conditions
diT/dtcr
typ
typ
max
500
Unit
A/µs
Critical rate of rise of on-
f = 200 Hz
f = 1 Hz
Tvj = 125°C,
state current
IT = 4000 A, IGM = 50 A,
Critical rate of rise of on-
state current
Min. on-time
Characteristic values
Parameter
diT/dtcr
ton
1000
A/µs
µs
diG/dt = 40 A/µs
100
Symbol Conditions
min
max
2.5
5
Unit
µs
µs
J
Turn-on delay time
td
VD = 0.5 VDRM, Tvj = 125 °C
IT = 4000 A, di/dt = 300 A/µs,
Rise time
tr
IGM = 50 A, diG/dt = 40 A/µs, CS = 6
Turn-on energy per pulse
Eon
3
µF, RS = 5 Ω
Turn-off switching
Maximum rated values 1)
Parameter
Symbol Conditions
ITGQM
min
typ
typ
max
4000
Unit
A
Max. controllable turn-off
V
DM ≤ VDRM, diGQ/dt = 40 A/µs,
current
CS = 6 µF, LS ≤ 0.2 µH
Min. off-time
Characteristic values
Parameter
Storage time
Fall time
Turn-on energy per pulse
Peak turn-off gate current
toff
Symbol Conditions
100
µs
min
max
25
3
10
1100
Unit
µs
µs
J
tS
tf
Eoff
IGQM
VD = 0.5 VDRM, Tvj = 125 °C
DM ≤ VDRM, diGQ/dt = 40 A/µs,
ITGQ = ITGQM
RS = 5Ω, CS = 6 µF, LS = 0.2 µH
V
,
A
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1209-04 Jan. 03
page 2 of 9
5SGF 40L4502
Gate
Maximum rated values 1)
Parameter
Symbol Conditions
VGRM
min
min
typ
max
17
Unit
V
Repetetive peak reverse
voltage
Repetetive peak reverse
current
IGRM
20
mA
VGR = VGRM
Characteristic values
Parameter
Symbol Conditions
typ
1.2
4
max
Unit
V
A
Gate trigger voltage
Gate trigger current
VGT
IGT
Tvj = 25°C,
VD = 24 V, RA = 0.1 Ω
Thermal
Maximum rated values 1)
Parameter
Junction operating temperature
Storage temperature range
Characteristic values
Parameter
Symbol Conditions
min
-40
-40
typ
typ
max
125
125
Unit
°C
°C
Tvj
Tstg
Symbol Conditions
min
max
11
20
25
6
Unit
K/kW
K/kW
K/kW
K/kW
K/kW
Thermal resistance junction to case
Rth(jc) Double side cooled
Rth(jc)A Anode side cooled
Rth(jc)C Cathode side cooled
Rth(ch) Single side cooled
Rth(ch) Double side cooled
Thermal resistance case to heatsink
(Double side cooled)
3
Analytical function for transient thermal
impedance:
n
(t) = åR
Z
thJC
i
(1-e-t/τ i )
i=1
i
1
2
3
4
Ri(K/kW)
7.766
0.5764
1.728
0.1258
1.064
0.0128 0.0031
0.450
τi(s)
Fig. 1 Transient thermal impedance, junction to
case.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1209-04 Jan. 03
page 3 of 9
5SGF 40L4502
Fig. 2 On-state characteristics.
Fig. 3 Average on-state power dissipation vs.
average on-state current.
Fig. 4 Surge current and fusing integral vs. pulse
width.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1209-04 Jan. 03
page 4 of 9
5SGF 40L4502
Fig. 5 Forward blocking voltage vs. gate-cathode
Fig. 6 Static dv/dt capability: Forward blocking
resistance.
voltage vs. neg. gate voltage or gate cathode
resistance.
Fig. 7 Forward gate current vs. forard gate voltage.
Fig. 8 Gate trigger current vs. junction temperature
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1209-04 Jan. 03
page 5 of 9
5SGF 40L4502
Fig. 9 Turn-on energy per pulse vs. on-state current
Fig. 10 Turn-on energy per pulse vs. on.-state current
and turn-on voltage.
and current rise rate
Common Test conditions for figures 9, 10 and 11:
diG/dt
CS
= 40 A/µs
= 6 µF
RS
= 5 Ω
Tj
= 125 °C
Definition of Turn-on energy:
20µs
Eon =
(t = 0, IG = 0.1⋅IGM )
òVD ⋅ITdt
0
Common Test conditions for figures 12, 13 and 15:
Definition of Turn-off energy:
40µs
E
off
=
D
⋅ I
T
dt ( t = 0, I = 0.9 ⋅ ITGQ )
T
òV
0
Fig. 11 Turn-on energy per pulse vs. on-state current
and turn-on voltage.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1209-04 Jan. 03
page 6 of 9
5SGF 40L4502
Fig. 12 Turn-off energy per pulse vs. turn-off current
and peak turn-off voltage. Extracted gate
charge vs. turn-off current.
Fig. 13 Turn-off energy per pulse vs. turn-off current
and snubber capacitance.
Fig. 14 Required snubber capacitor vs. max
Fig. 15 Turn-off energy per pulse, storage time and
peak turn-off gate current vs. junction
temperature.
allowable turn-off current.
IGQM [A]
I
GQM [A]
ts [s]
ts [s]
50
1200
1100
1000
900
60
50
40
30
20
10
0
1200
1000
800
600
400
200
0
Preliminary Data
45
40
35
30
25
20
15
10
5
IGQM
Preliminary Data
IGQM
tS
Conditions:
ITGQ = 4000 A
Tj = 125 °C
tS
800
Conditions:
µ
diGQ/dt =40 A/ s
Tj = 125 °C
0
700
0
10
20
30
40
50
60
0
500
1000 1500 2000 2500 3000 3500 4000
ITGQ [A]
µ
diGQ/dt [A/ s]
Fig. 16 Storage time and peak turn-off gate current
Fig. 17 Storage time and peak turn-off gate current
vs. neg. gate current rise rate.
vs. turn-off current.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1209-04 Jan. 03
page 7 of 9
5SGF 40L4502
Fig. 18 General current and voltage waveforms with GTO-specific symbols.
Fig. 19 Outline drawing. All dimensions are in millimeters and represent nominal values unless stated otherwise.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1209-04 Jan. 03
page 8 of 9
5SGF 40L4502
The 5SGF 40L4502 is a 91 mm buffered layer GTO with exceptionally low dynamic and static losses designed to
retro-fit all former 4 kA GTOs of the same voltage. It offers optimal trade-off between on-state and switching
losses and is encapsulated in an industry-standard press pack housing 120 mm wide and 26 mm thick.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
ABB Switzerland Ltd
Semiconductors
Doc. No. 5SYA1209-04 Jan. 03
Fabrikstrasse 3
CH-5600 Lenzburg, Switzerland
Telephone +41 (0)58 586 1419
Fax
+41 (0)58 586 1306
Email
Internet
abbsem@ch.abb.com
www.abb.com/semiconductors
