5SDF03D4501

型号：

5SDF03D4501

描述：

快恢复二极管[ Fast Recovery Diode ]

品牌：

ABB[ THE ABB GROUP ]

页数：

5 页

PDF大小：

238 K

下载PDF手册

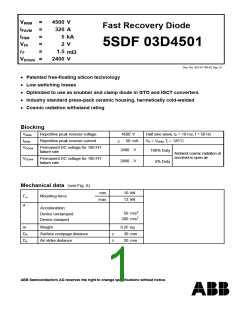

VRRM
IFAVM
IFSM
VF0
=
=
=
=
=
=
4500 V
320 A
Fast Recovery Diode
5 kA
2 V
1.5
5SDF 03D4501
rF
mΩ
2400 V
VDClink
Doc. No. 5SYA1106-02 Sep. 01
• Patented free-floating silicon technology
• Low switching losses
• Optimized to use as snubber and clamp diode in GTO and IGCT converters
• Industry standard press-pack ceramic housing, hermetically cold-welded
• Cosmic radiation withstand rating
Blocking
VRRM
Repetitive peak reverse voltage
Repetitive peak reverse current
4500 V
50 mA
Half sine wave, tP = 10 ms, f = 50 Hz
VR = VRRM, Tj = 125°C
IRRM
≤
VDClink
Permanent DC voltage for 100 FIT
failure rate
2400
2800
V
V
100% Duty
Ambient cosmic radiation at
sea level in open air.
5% Duty
VDClink
Permanent DC voltage for 100 FIT
failure rate
Mechanical data (see Fig. 8)
min.
10 kN
Fm
a
Mounting force
max.
12 kN
Acceleration:
50 m/s2
Device unclamped
Device clamped
200 m/s2
m
Weight
0.25 kg
30 mm
20 mm
DS
Da
Surface creepage distance
Air strike distance
≥
≥
ABB Semiconductors AG reserves the right to change specifications without notice.
5SDF 03D4501
On-state (see Fig. 2, 3)
IFAVM
IFRMS
IFSM
Max. average on-state current
320 A
500 A
5 kA
Half sine wave, Tc = 85°C
Max. RMS on-state current
Max. peak non-repetitive
surge current
tp
tp
tp
tp
IF
=
=
=
=
=
10 ms Before surge:
12 kA
1 ms Tc = Tj = 125°C
Max. surge current integral
A2s
A2s
10 ms
òI2dt
125⋅103
72⋅103
After surge:
1 ms
1000 A
VR ≈ 0 V
VF
VF0
rF
Forward voltage drop
Threshold voltage
Slope resistance
3.5 V
2 V
1.5
≤
≤
Approximation for
IF = 200…3000
Tj = 125°C
A
mΩ
Turn-on (see Fig. 4, 5)
Vfr
Peak forward recovery voltage
140 V
200 A
di/dt = 1000 A/µs, Tj = 125°C
Turn-off (see Fig. 6, 7)
Irr
Reverse recovery current
di/dt = 100 A/µs,
IF = 2000 A,
RS = 22 Ω,
Tj = 125 °C,
VRM = 4500 V,
CS = 0.22 µF
≤
≤
≤
Qrr
Err
Reverse recovery charge
Turn-off energy
1000 µC
-- J
Thermal (see Fig. 1)
Tj
Operating junction temperature range
-40...125°C
-40...125°C
80 K/kW
Tstg
RthJC
Storage temperature range
Thermal resistance junction to case
Anode side cooled
Cathode side cooled
Double side cooled
Single side cooled
Double side cooled
≤
≤
≤
≤
≤
80 K/kW
Fm =
10… 12 kN
40 K/kW
RthCH
Thermal resistance case to heatsink
16 K/kW
8 K/kW
Analytical function for transient thermal impedance.
i
1
2
3
4
1.33
0.0044
n
Z
thJC (t) =
R )
(1 - e - t /τ i
i
Ri(K/kW)
20.95
0.396
10.57
0.072
7.15
0.009
å
τi(s)
i =1
Fm = 10… 12 kN Double side cooled
ABB Semiconductors AG reserves the right to change specifications without notice.
Doc. No. 5SYA1106-02 Sep. 01
page 2 of 5
5SDF 03D4501
Fig. 1 Transient thermal impedance (junction-to-case) vs. time in analytical and graphical form (max. values).
Fig. 2 Forward current vs. forward voltage (typ.
and max. values) and linear approximation
of max. curve at 125°C.
Fig. 3 Surge current and fusing integral vs. pulse
width (max. values) for non-repetitive, half-
sinusoidal surge current pulses.
ABB Semiconductors AG reserves the right to change specifications without notice.
Doc. No. 5SYA1106-02 Sep. 01
page 3 of 5
5SDF 03D4501
200
180
160
140
120
100
80
Vfr
(V)
125°C
60
25°C
40
20
0
0
200
400
600
di/dt (A/
800
s)
1000
µ
Fig. 4 Typical forward voltage waveform when the
diode is turned on with a high di/dt.
Fig. 5 Forward recovery voltage vs. turn-on di/dt
(max. values).
Fig. 6 Typical current and voltage waveforms at
turn-off with conventional RC snubber
circuit.
Fig. 7 Reverse recovery current and reverse
recovery charge vs. di/dt (max. values).
ABB Semiconductors AG reserves the right to change specifications without notice.
Doc. No. 5SYA1106-02 Sep. 01
page 4 of 5
5SDF 03D4501
Fig. 8 Outline drawing. All dimensions are in
millimeters and represent nominal values
unless stated otherwise.
ABB Semiconductors AG reserves the right to change specifications without notice.
ABB Semiconductors AG
Fabrikstrasse 3
Doc. No. 5SYA1106-02 Sep. 01
CH-5600 Lenzburg, Switzerland
Telephone +41 (0)62 888 6419
Fax
+41 (0)62 888 6306
abbsem@ch.abb.com
www.abbsem.com
