5SDD60Q2800

型号：

5SDD60Q2800

描述：

整流器器二极管[ Rectifier Diode ]

品牌：

ABB[ THE ABB GROUP ]

页数：

6 页

PDF大小：

166 K

下载PDF手册

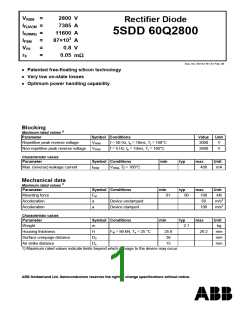

VRSM
IF(AV)M
IF(RMS)
IFSM
=
=
=
=
=
=
2800 V
7385 A
11600 A
87×103 A
0.8 V
Rectifier Diode
5SDD 60Q2800
VF0
rF
0.05
mW
Doc. No. 5SYA1161-01 Feb. 05
· Patented free-floating silicon technology
· Very low on-state losses
· Optimum power handling capability
Blocking
Maximum rated values 1)
Parameter
Symbol Conditions
Value
2000
2800
Unit
V
Repetitive peak reverse voltage
Non-repetitive peak reverse voltage
VRRM
VRSM
f = 50 Hz, tp = 10ms, Tj = 160°C
f = 5 Hz, tp = 10ms, Tj = 160°C
V
Characteristic values
Parameter
Symbol Conditions
min
typ
typ
max
400
Unit
Max. (reverse) leakage current
IRRM
VRRM, Tj = 160°C
mA
Mechanical data
Maximum rated values 1)
Parameter
Symbol Conditions
min
max
Unit
kN
m/s2
m/s2
Mounting force
Acceleration
Acceleration
FM
81
90
108
50
a
a
Device unclamped
Device clamped
100
Characteristic values
Parameter
Symbol Conditions
min
25.8
typ
2.1
max
26.2
Unit
kg
Weight
m
Housing thickness
Surface creepage distance
Air strike distance
H
FM = 90 kN, Ta = 25 °C
mm
mm
mm
DS
Da
36
15
1) Maximum rated values indicate limits beyond which damage to the device may occur
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
5SDD 60Q2800
On-state
Maximum rated values 1)
Parameter
Symbol Conditions
IF(AV)M 50 Hz, Half sine wave, TC = 90 °C
min
typ
max
7385
Unit
Max. average on-state
current
A
Max. RMS on-state current IF(RMS)
11600
87×103
A
A
Max. peak non-repetitive
surge current
IFSM
tp = 10 ms, Tj = 160°C,
VR = 0 V
Limiting load integral
I2t
38.5×106 A2s
95×103
Max. peak non-repetitive
surge current
IFSM
tp = 8.3 ms, Tj = 160°C,
VR = 0 V
A
Limiting load integral
I2t
38×106 A2s
Characteristic values
Parameter
Symbol Conditions
min
typ
max
Unit
V
On-state voltage
Threshold voltage
Slope resistance
VF
IF = 5000 A, Tj = 160°C
1.05
V(T0)
rT
Tj = 160°C
IT = 2500...7500 A
0.8
V
0.05
mW
Switching
Characteristic values
Parameter
Symbol Conditions
Qrr diF/dt = -10 A/µs, VR = 200 V
IFRM = 4000 A, Tj = 160°C
min
typ
max
Unit
6300
mAs
Recovery charge
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1161-01 Feb. 05
page 2 of 6
5SDD 60Q2800
Thermal
Maximum rated values 1)
Parameter
Symbol Conditions
min
typ
typ
max
Unit
Operating junction
temperature range
Tvj
160
°C
Storage temperature range Tstg
Characteristic values
Parameter
-40
175
°C
Symbol Conditions
min
max
Unit
Thermal resistance junction Rth(j-c)
to case
Double-side cooled
Fm = 81...108 kN
5
K/kW
Rth(j-c)A Anode-side cooled
Fm = 81...108 kN
10
10
1
K/kW
K/kW
K/kW
K/kW
Rth(j-c)C Cathode-side cooled
Fm = 81...108 kN
Thermal resistance case to Rth(c-h)
heatsink
Double-side cooled
Fm = 81...108 kN
Rth(c-h)
Single-side cooled
Fm = 81...108 kN
2
Analytical function for transient thermal
impedance:
n
-t/ti
Z
(t) = R (1-e )
å
th(j-c)
th i
i=1
i
1
2
3
4
Rth i(K/kW)
3.378
0.4710
0.919
0.0707
0.426
0.0074
0.280
0.0014
ti(s)
Fig. 1 Transient thermal impedance junction-to-
case.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1161-01 Feb. 05
page 3 of 6
5SDD 60Q2800
Fig. 2 On-state characteristics.
Fig. 3 On-state characteristics.
Tcase (°C)
P (W)
f
165
Double-sided cooling
160
155
150
145
140
135
130
125
120
115
110
105
100
95
DC
180° rectangular
180° sine
120° rectangular
90
0
2000
4000
6000
8000
10000 12000
IFAV (A)
Fig. 4 On-state power losses vs average on-state
Fig. 5 Max. permissible case temperature vs
current.
average on-state current.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1161-01 Feb. 05
page 4 of 6
5SDD 60Q2800
ò i2dt [MA2s]
IFSM [kA]
I
FSM(kA)
5SDD 60Q2800
150
50
9 0
8 0
7 0
6 0
5 0
4 0
3 0
2 0
1 0
0
IFSM
Tj = 160°C
140
130
120
110
100
90
48
Tj = 160°C
46
44
42
40
38
36
34
32
30
80
70
i2t
60
ò
50
100
101
102
2 0
n p
0
6 7 8 1
1
2
3
4
5
t [ms]
Fig. 6 Surge on-state current vs. pulse length. Half-
Fig. 7 Surge on-state current vs. number of pulses.
sine wave.
Half-sine wave, 10 ms, 50Hz.
IRM(A)
Qrr
(µA )
s
700
600
30000
500
IFRM = 4000 A
Tj = Tjmax
IFRM = 4000 A
Tj = Tjmax
20000
400
300
200
104
8000
7000
6000
102
80
70
60
50
5000
4000
3000
40
30
20 0
0
30
1
2
3
4
5
6
7 8 910
20
30
1
2
3
4
5
6
7 8 910
20
(
-d /d A µs)
iF
/
t
-diF/dt(A/µs)
Fig. 8 Recovery charge vs. decay rate of on-state
Fig. 9 Peak reverse recovery current vs. decay rate
current.
of on-state current.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1161-01 Feb. 05
page 5 of 6
5SDD 60Q2800
Fig. 10 Outline drawing. All dimensions are in millimeters and represent nominal values unless stated otherwise.
Related application notes:
Doc. Nr
Titel
5SYA 2020
5SYA 2029
5SYA 2036
Design of RC-Snubbers for Phase Control Applications
Designing Large Rectifiers with High Power Diodes
Recommendations regarding mechanical clamping of Press Pack High Power Semiconductors
Please refer to http://www.abb.com/semiconductors for actual versions.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
ABB Switzerland Ltd
Semiconductors
Doc. No. 5SYA1161-01 Feb. 05
Fabrikstrasse 3
CH-5600 Lenzburg, Switzerland
Telephone +41 (0)58 586 1419
Fax
+41 (0)58 586 1306
Email
Internet
abbsem@ch.abb.com
www.abb.com/semiconductors
