5SDD0135Z0400

型号：

5SDD0135Z0400

描述：

牌坊焊接二极管[ Housingless Welding Diode ]

品牌：

ABB[ THE ABB GROUP ]

页数：

6 页

PDF大小：

84 K

下载PDF手册
VRRM
IFAVM
IFRMS
IFSM
VF0
=
=
=
=
=
=
400 V
13526 A
21247 A
85000 A
0.758 V

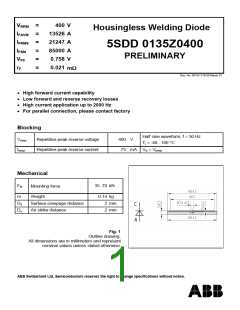

Housingless Welding Diode
5SDD 0135Z0400
PRELIMINARY
rF
0.021
mW
Doc. No. 5SYA1179-00 March 07
· High forward current capability
· Low forward and reverse recovery losses
· High current application up to 2000 Hz
· For parallel connection, please contact factory
Blocking
Half sine waveform, f = 50 Hz
Tj = -40...180 °C
75 mA VR = VRRM
VRRM
IRRM
Repetitive peak reverse voltage
Repetitive peak reverse current
400 V
Mechanical
FM
35..70 kN
Mounting force
Weight
m
0.14 kg
2 mm
2 mm
DS
Da
Surface creepage distance
Air strike distance
Fig. 1
Outline drawing.
All dimensions are in millimeters and represent
nominal values unless stated otherwise.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
5SDD 0135Z0400
On-state
IFAVM
Max. average on-state current
13526 A
21247 A
91000 A
85000 A
Tc =
Tc =
85 °C Half sine pulse
85 °C Half sine pulse
IFRMS
Max. RMS on-state current
tp
tp
=
=
=
=
=
=
8.3 ms
10 ms
VR =0 V
IFSM
Max. peak non-repetitive surge current
Half sine pulse
34200 kA2s tp
36100 kA2s tp
8.3 ms
10 ms
VR =0 V
òI2dt
Max. surge current integral
Half sine pulse
0.920 V
0.970 V
0.758 V
IF
IF
8000 A
10000 A
VF max Max. on-state voltage
VF0
rF
Max. Threshold voltage
Max. Slope resistance
0.021
IF = 10 000…30 000 A
mW
IF = 1 000 A, di/dt = -30 A/µs,
VR = 100 V
Qrr
Typ. Recovered charge
600 µC
Unless otherwise specified Tj = 180 °C
Thermal characteristics
Operating junction temperature range
Tj
-40...180 °C
-40...180 °C
Storage temperature range
Tstg
Rth(j-c)
Thermal resistance
junction to case
5.2 K/kW Anode side cooled
15.1 K/kW Cathode side cooled
3.9 K/kW Double side cooled
4.7 K/kW Anode side cooled
5.8 K/kW Cathode side cooled
2.6 K/kW Double side cooled
Rth(c-h) Thermal resistance
case to heatsink
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1179-00 March 07
page 2 of 6
5SDD 0135Z0400
4
R )
(1 - e - t /ti
i
Z th (j-c )(t) =
å
4
3
2
1
i =1
i
1
2
3
4
Ri (K/kW) 2.6480
0.8700
0.0255
0.2200
0.0041
0.1500
0.0006
0.0454
t i (s)
Conditions:
Fm = 35 +5/-0 kN, Double side cooled
Correction for periodic waveforms
0
180° sine:
120° sine:
60° sine:
180° rectangular:
120° rectangular:
60° rectangular:
0.9 K/kW
1.2 K/kW
2.2 K/kW
0.8 K/kW
1.2 K/kW
2.2 K/kW
0,0001
0,001
0,01
0,1
1
t
Square wave pulse duration
( s )
d
Fig. 2 Transient thermal impedance (junction-to-case) vs. time in analytical and graphical forms.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1179-00 March 07
page 3 of 6
5SDD 0135Z0400
On-state characteristics
Surge current characteristics
35000
200
150
100
50
80
70
60
50
40
30
20
10
0
25 °C
Tj = 180 °C
30000
25000
20000
15000
10000
5000
0
i2dt
I FSM
0
0,5
1
1,5
2
0
V F ( V )
1
10
100
t ( ms )
Fig. 3
Fig. 4 Surge forward current vs. pulse length,
half sine wave, single pulse,
VR = 0 V, Tj = Tjmax
Forward current vs. forward voltage (max.
values).
Surge current characteristics
Forward power loss
= 60°
90
120°180°
y
25000
20000
15000
10000
5000
0
80
70
60
DC
50
40
30
20
10
0
VR = 0 V
VR 0.5 VRRM
£
0
4000
8000
12000
16000
I FAV ( A )
1
10
100
Number n of cycles at 50 Hz
Fig. 5 Surge forward current vs. number
Fig. 6 Forward power loss vs. average forward
of pulses, half sine wave, Tj = Tjmax
current, sine waveform, f = 50 Hz, T = 1/f
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1179-00 March 07
page 4 of 6
5SDD 0135Z0400
Forward power loss
90° 120°
= 30°
60°
25000
20000
15000
10000
5000
0
y
180
160
140
120
100
80
180°
270°
DC
DC
= 60°
120°
180°
y
60
0
4000
8000
12000
16000
0
4000
8000
12000
IFAV
16000
( A )
IFAV
( A )
Fig. 7 Forward power loss vs. average forward
Fig. 8 Forward power loss vs. average forward
current, square waveform, f = 50 Hz, T =
1/f
current, sine waveform, f = 50 Hz, T = 1/f
180
160
140
120
DC
100
270°
80
= 30°
60° 90°
8000
120°
180°
y
60
0
4000
12000
IFAV
16000
( A )
Fig. 9 Max. case temperature vs. aver. forward
current, square waveform, f = 50 Hz, T =
1/f
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1179-00 March 07
page 5 of 6
5SDD 0135Z0400
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1179-00 March 07
ABB Switzerland Ltd
Semiconductors
Fabrikstrasse 3
CH-5600 Lenzburg, Switzerland
Telephone
Fax
+41 (0)58 586 1419
+41 (0)58 586 1306
Email
abbsem@ch.abb.com
Internet
www.abb.com/semiconductors
