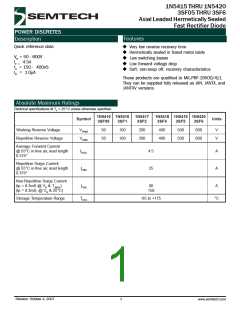

1N5415 THRU 1N5420
3SF05 THRU 3SF6
Axial Leaded Hermetically Sealed
Fast Rectifier Diode
POWER DISCRETES
Description
Features
Quick reference data
Very low reverse recovery time
Hermetically sealed in fused metal oxide
Low switching losses
Low forward voltage drop
Soft, non-snap off, recovery characteristics
VR = 50 - 600V
IF 4.5A
=
trr = 150 - 400nS
IR = 1.0µA
These products are qualified to MIL-PRF-19500/411.
They can be supplied fully released as JAN, JANTX, and
JANTXV versions.
Absolute Maximum Ratings
Electrical specifications @ TA = 25°C unless otherwise specified.
1N5415 1N5416 1N5417
1N5418 1N5419 1N5420
Symbol
3SF05
Units
3SF1
100
3SF2
200
3SF4
400
3SF5
500
3SF6
600
Working Reverse Voltage
Repetitive Reverse Voltage
VRWM
VRRM
50
50
V
V
100
200
400
500
600
Average Forward Current
@ 55°C in free air, lead length
0.375"
IF(AV)
4.5
25
A
A
Repetitive Surge Current
@ 55°C in free air, lead length
0.375"
IFRM
Non-Repetitive Surge Current
(tp = 8.3mS @ VR & TJMAX
)
IFSM
80
A
(tp = 8.3mS, @ VR & 25°C)
Storage Temperature Range
150
TSTG
-65 to +175
°C
Revision: October 4, 2007
1
www.semtech.com
