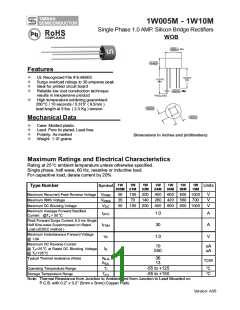

1W005M - 1W10M
Single Phase 1.0 AMP. Silicon Bridge Rectifiers
WOB
Features
ꢀ
ꢀ
ꢀ
ꢀ
UL Recognized File # E-96005
Surge overload ratings to 30 amperes peak
Ideal for printed circuit board
Reliable low cost construction technique
results in inexpensive product
ꢀ
High temperature soldering guaranteed:
o
260 C / 10 seconds / 0.375” ( 9.5mm )
lead length at 5 lbs. ( 2.3 Kg ) tension
Mechanical Data
ꢀ
ꢀ
ꢀ
ꢀ
Case: Molded plastic
Lead: Pure tin plated, Lead free.
Polarity: As marked
Dimensions in inches and (millimeters)
Weight: 1.10 grams
Maximum Ratings and Electrical Characteristics
o
Rating at 25 C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
1W
1W
1W
02M
1W
04M
1W
06M
1W
08M
1W
10M
Type Number
Symbol
Units
005M 01M
Maximum Recurrent Peak Reverse Voltage VRRM
50
35
50
100 200 400 600 800 1000
70 140 280 420 560 700
V
V
V
Maximum RMS Voltage
VRMS
VDC
Maximum DC Blocking Voltage
Maximum Average Forward Rectified
100 200 400 600 800 1000
I(AV)
IFSM
VF
1.0
A
A
V
o
Current @TA = 50 C
Peak Forward Surge Current, 8.3 ms Single
Half Sine-wave Superimposed on Rated
Load (JEDEC method )
30
Maximum Instantaneous Forward Voltage
@ 1.0A
1.0
Maximum DC Reverse Current
10
uA
uA
o
IR
@ TA=25 C at Rated DC Blocking Voltage
500
o
@ TA=125 C
Typical Thermal resistance (Note)
R
36
13
o
θJA
C/W
R
θJL
o
Operating Temperature Range
Storage Temperature Range
TJ
-55 to +125
-55 to +150
C
o
TSTG
C
Note: Thermal Resistance from Junction to Ambient and from Junction to Lead Mounted on
P.C.B. with 0.2” x 0.2” (5mm x 5mm) Copper Pads.
Version: A06
