NX7461LE-CC

型号：

NX7461LE-CC

描述：

1480纳米的InGaAsP多量子阱FP泵浦激光二极管模块用于EDFA的应用（ 150毫瓦MIN ）[ 1480 nm InGaAsP MQW FP PUMP LASER DIODE MODULE FOR EDFA APPLICATION (150 mW MIN) ]

品牌：

CEL[ CALIFORNIA EASTERN LABS ]

页数：

5 页

PDF大小：

187 K

下载PDF手册

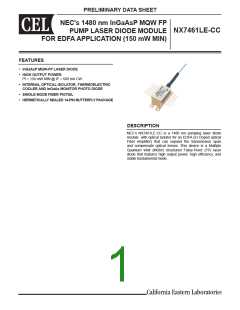

PRELIMINARY DATA SHEET
NEC's 1480 nm InGaAsP MQW FP
PUMP LASER DIODE MODULE
NX7461LE-CC
FOR EDFA APPLICATION (150 mW MIN)
FEATURES
• InGaAsP MQW-FP LASER DIODE
• HIGH OUTPUT POWER:
Pf = 150 mW MIN @ IF = 600 mA CW
• INTERNAL OPTICAL ISOLATOR, THERMOELECTRIC
COOLER AND InGaAs MONITOR PHOTO DIODE
• SINGLE MODE FIBER PIGTAIL
• HERMETICALLY SEALED 14-PIN BUTTERFLY PACKAGE
DESCRIPTION
NEC’s NX7461LE-CC is a 1480 nm pumping laser diode
module with optical isolator for an EDFA (Er Doped optical
Fiber Amplifier) that can expand the transmission span
and compensate optical losses. This device is a Multiple
Quantum Well (MQW) structured Fabry-Perot (FP) laser
diode that features high output power, high efficiency, and
stable fundamental mode.
California Eastern Laboratories
NX7461LE-CC
PACKAGE DIMENSIONS (Units in mm)
15.24
2.54
TOP VIEW
4–
φ
2.67
#7
#8
#1
Case
7
8
1
PD
LD
14
#14
Shrunk Tube
0.5
PIN CONNECTIONS
20.83 0.13
26.04 0.13
Pin No.
Function
Pin No.
Function
1
2
3
4
5
6
7
Cooler Anode
Thermistor
PD Anode
PD Cathode
Case Ground
NC
8
NC
NC
Optical Fiber (SMF)
Length: 1 000 MIN.
With SC Connector
9
10
LD Anode,
Case Ground
LD Cathode
NC
11
12
13
14
NC
Case Ground
Cooler Cathod
29.97 0.25
OPTICAL FIBER CHARACTERISTICS
PARAMETER
Mode Field Diameter
SPECIFICATION
UNIT
μm
μm
%
9.5±1
125±2
2
Cladding Diameter
Maximum Cladding Noncircularity
Maximum Core/Cladding Concentricity
Outer Diameter
1.6
%
0.9±0.1
1100 to 1270
30
mm
nm
mm
mm
Cut-off Wavelength
Minimum Fiber Bending Radius
Fiber Length
1000 MIN.
Flammability
UL1581 VW-1
35 2 mm
SC-UPC Connector
Fiber Length: 1000 mm MIN.
NX7461LE-CC
ORDERING INFORMATION
PART NUMBER
NX7461LE-CC
AVAILABLE CONNECTOR
With SC-UPC Connector
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Forward Current of LD
Reverse Voltage of LD
Forward Current of PD
Reverse Voltage of PD
Operating Case Temperature
Storage Temperature
Thermistor Current
SYMBOL
RATINGS
UNIT
mA
V
IF
VR
IF
720
2.0
10
mA
V
VR
TC
Tstg
It
20
–20 to +70
–40 to +85
0.5
°C
°C
mA
V
Thermistor Voltage
Vt
12.0
Cooler Current
IC
1.8
A
Cooler Voltage
VC
Tsld
6.0
V
Lead Soldering Temperature
260 (10 sec.)
°C
ELECTRO-OPTICAL CHARACTERISTICS (TLD = 25°C, TC = -20 to +70°C, unless otherwise specified)
PARAMETER
Threshold Current
SYMBOL
CONDITIONS
MIN.
TYP.
MAX.
UNIT
Ith
CW
50
60
mA
Forward Voltage
VF
Pf
IF = 600 mA
IF = 600 mA
2.4
2.7
V
Optical Output Power from Fiber
150
mW
λC
σ
Center Emission Wavelength
Spectrum Width
IF = 600 mA, RMS (–20 dB)
IF = 600 mA, RMS (–20 dB)
1 460
1 480
4.0
1 490
8.0
nm
nm
Isolation
IS
1 460 nm to 1 490 nm
25
dB
NX7461LE-CC
ELECTRO-OPTICAL CHARACTERISTICS (Applicable to Monitor PD: TLD = 25°C, TC = –20 to +70°C)
PARAMETER
SYMBOL
CONDITIONS
MIN.
TYP.
1300
2
MAX.
2000
10
UNIT
μA
Monitor Current
Im
VR = 5 V, IF = 600 mA
500
Dark Current
ID
VR = 5 V
nA
Tracking Error
γ*1
Im = const.
0.5
dB
Pf
*1 γ = 10 log
150 mW
Pf
(mW)
TLD = TC = 25ºC
X
TLD = 25ºC
TC = –20 to +70ºC
Pf
Im
0
Im
(@Pf (25ºC) = 150 mW)
ELECTRO-OPTICAL CHARACTERISTICS (Applicable to Thermistor and TEC: TLD = 25°C, TC = –20 to +70°C)
PARAMETER
Thermistor Resistance
B Constant
SYMBOL
CONDITIONS
MIN.
TYP.
10.0
3450
MAX.
UNIT
R
B
TLD = 25°C
9.5
10.5
kΩ
3350
3550
K
Cooler Current
Cooler Voltage
Cooling Capacity
IC
ΔT = 45°C, IF = 720 mA
ΔT = 45°C, IF = 720 mA
IC = 1.4 A, IF = 720 mA
1.2
3.0
1.4
3.6
A
V
VC
ΔT*1
45
°C
*1 ΔT = TC – TLD
NX7461LE-CC
TYPICAL CHARACTERISTICS (TC = 25°C, unless otherwise specified)
OPTICAL OUTPUT POWER FROM FIBER vs.
FORWARD CURRENT
SPECTRUM
250
200
150
100
50
0
100 200 300 400 500 600 700
Forward Current IF (mA)
1430
1480
1530
Wavelength λ (nm)
THERMISTOR RESISTANCE vs.
OPERATING AMBIENT TEMPERATURE
50
30
20
10
5
3
2
1
0
25
50
75
Operating Ambient Temperature TA (ºC)
Life Support Applications
These NEC products are not intended for use in life support devices, appliances, or systems where the malfunction of these products can reasonably
be expected to result in personal injury. The customers of CEL using or selling these products for use in such applications do so at their own risk and
agree to fully indemnify CEL for all damages resulting from such improper use or sale.
08/02/2004
A Business Partner of NEC Compound Semiconductor Devices, Ltd.
