VW6754R0Y6/TR

型号:

VW6754R0Y6/TR

描述:

超小型回流焊UXGA摄像头模块[ Ultra small reflowable UXGA camera module ]

品牌:

STMICROELECTRONICS[ ST ]

页数:

4 页

PDF大小:

96 K

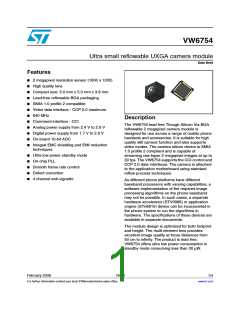

VW6754
Ultra small reflowable UXGA camera module
Data Brief
Features
2 megapixel resolution sensor (1600 x 1200)
High quality lens
Compact size: 5.0 mm x 5.0 mm x 3.8 mm
Lead-free reflowable BGA packaging
SMIA 1.0 profile 2 compatible
Video data interface - CCP 2.0 maximum
640 MHz
Description
Command interface - CCI
The VW6754 lead free Though Silicon Via BGA
reflowable 2 megapixel camera module is
designed for use across a range of mobile phone
handsets and accessories. It is suitable for high
quality still camera function and also supports
video modes. The camera silicon device is SMIA
1.0 profile 2 compliant and is capable of
streaming raw bayer 2 megapixel images at up to
30 fps. The VW6754 supports the CCI control and
CCP 2.0 data interfaces. The camera is attached
to the application motherboard using standard
reflow process techniques.
Analog power supply from 2.4 V to 2.9 V
Digital power supply from 1.7 V to 2.9 V
On-board 10-bit ADC
Integral EMC shielding and EMI reduction
techniques
Ultra low power standby mode
On-chip PLL
Smooth frame rate control
Defect correction
4 channel anti-vignette
As different phone platforms have different
baseband processors with varying capabilities, a
software implementation of the required image
processing algorithms on the phone baseband
may not be possible. In such cases, a separate
hardware accelerator (STV0986) or application
engine (STn8815) device can be incorporated in
the phone system to run the algorithms in
hardware. The specifications of these devices are
available in separate documents.
The module design is optimized for both footprint
and height. The multi-element lens provides
excellent image quality at focus distances from
50 cm to infinity. The product is lead free.
VW6754 offers ultra low power consumption in
standby mode consuming less than 30 µW.
February 2008
Rev 1
1/4
For further information contact your local STMicroelectronics sales office.
www.st.com
4
Overview
VW6754
1
Overview
Figure 1.
Application diagram
Figure 2.
Block diagram
VW6754
2 Mpixel
camera
module
Baseband
or
Application
Processor
STV0984
or
STV0986
Processor
CLK
PDN
CLK
PDN
VW6754
I2C
PLL and Clock Management
CCI
EXTCLK
VDIG
DGND
Power Mgmt
XSHUTDOWN
Power-On Reset
CCP2.0
or
ITU
CCP2.0
Sensor
2 Mpixel
Control
Registers
Pixel array
VANA
AGND
SCL
SDA
CLK
PDN
Baseband
or
VW6754
2 Mpixel
camera
module
SMIA
profile 0
frame
formatter
Application
CCI
CLKP
CLKN
Column ADC
X Decoder
Processor
DATAP
DATAN
CCP2.0
SMIA Rx’er
Line SRAM
Table 1.
Technical specifications
Parameter
Descriptions
Pixel resolution
Sensor technology
Pixel size
1600 x 1200 (UXGA)
ST IMG175 process
1.75 µm x 1.75 µm
+ 81 dB
Exposure control
Analog gain
+ 24 dB (max)
Dynamic range
Signal to noise
Minimum illumination(1)
60 dB
37 dB (@ 100 lux)
< 10 lux
Analog: 2.4 V to 2.9 V
Digital: 1.7 V to 2.9 V
<200 mW
Supply voltage
Average power consumption 30fps
Package size (lxwxh)
Lens
5.0 mm x 5.0 mm x 3.8 mm
51° +/- 2 HFOV
Typical <|1.0%|
Typical 50% +/-2%
BGA
F/2.8
TV distortion
Module relative illumination(2)
Package type
System attach
Lead-free reflowable soldering process
1. At minimum illumination the image is correctly exposed with D65 illumination on 18% grey card at 30fps
2. With anti-vignette function
2/4
VW6754
Ordering information
2
Ordering information
Table 2.
Order code
VW6754R0Y6/TR
Order code
Package
Packing
Tape and reel
BGA 5.0 mm x 5.0 mm x 3.8 mm
3
Revision history
Table 3.
Date
07-Feb-2008
Document revision history
Revision
Changes
1
Initial release.
3/4
VW6754
