0RXU-75TD10

型号：

0RXU-75TD10

描述：

隔离式DC / DC转换器36 VDC - 75 VDC输入12 VDC / 5 A， -12 VDC / 1.5 A双输出[ ISOLATED DC/DC CONVERTERS 36 Vdc - 75 Vdc Input +12 Vdc/5 A, -12 Vdc/1.5 A Dual Outputs ]

品牌：

BEL[ BEL FUSE INC. ]

页数：

8 页

PDF大小：

292 K

下载PDF手册

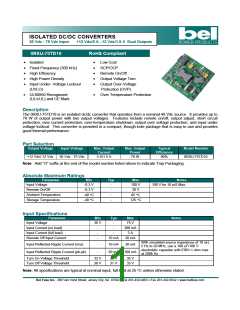

ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input
+12 Vdc/5 A, -12 Vdc/1.5 A Dual Outputs
0RXU-75TD10
RoHS Compliant
•
•
•
•
•
Isolated
•
•
•
•
•
Low Cost
Fixed Frequency (300 kHz)
High Efficiency
SCP/OCP
Remote On/Off
High Power Density
Input Under- Voltage Lockout
(UVLO)
Output Voltage Trim
Output Over-Voltage
Protection (OVP)
Over Temperature Protection
•
UL60950 Recognized
(UL/cUL) and CE Mark
•
Description
The 0RXU-75TD10 is an isolated dc/dc converter that operates from a nominal 48 Vdc source. It provides up to
78 W of output power with two output voltages. Features include remote on/off, output adjust, short circuit
protection, over current protection, over-temperature shutdown, output over voltage protection, and input under
voltage lockout. This converter is provided in a compact, though-hole package that is easy to use and provides
good thermal performance.
Part Selection
Output Voltage
Input Voltage
Max. Output
Current
Max. Output
Power
Typical
Efficiency
Model Number
+12 Vdc/-12 Vdc
36 Vdc - 75 Vdc
5 A/1.5 A
78 W
90%
0RXU-75TD10
Note: Add “G” suffix at the end of the model number listed above to indicate Tray Packaging.
Absolute Maximum Ratings
Parameter
Min
Typ
Max
Notes
Input Voltage
-0.3 V
-
100 V
100 V for 10 mS Max.
Remote On/Off
-0.3 V
-40 °C
-40 °C
-
-
-
30 V
85 °C
125 °C
Ambient Temperature
Storage Temperature
Input Specifications
Parameter
Min
Typ
Max
Notes
Input Voltage
36 V
-
75 V
200 mA
3 A
Input Current (no load)
Input Current (full load)
Remote Off Input Current
-
-
-
-
-
10 mA
20 mA
With simulated source impedance of 10 uH,
5 Hz to 20 MHz; use a 100 uF/100 V
electrolytic capacitor with ESR=1 ohm max
at 200k Hz
Input Reflected Ripple Current (rms)
-
-
10 mA
50 mA
30 mA
Input Reflected Ripple Current (pk-pk)
100 mA
Turn On Voltage Threshold
Turn Off Voltage Threshold
32 V
30 V
34 V
31 V
35 V
33 V
Note: All specifications are typical at nominal input, full load at 25 °C unless otherwise stated.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input
+12 Vdc/5 A, -12 Vdc/1.5 A Dual Outputs
Output Specifications
Parameter
Min
Typ
Max
Notes
Output Voltage Set Point
VO1=+12 V
VO2=-12 V
+11.76 V
-11.86 V
+12 V
-12.1 V
+12.24 V
-12.34 V
Vin=48 V, lo=50% load
Load Regulation
Line Regulation
VO1=+12 V
VO2=-12 V
-
-
-
-
2% VO
4% VO
ΔIo1=50% Imax1; Io2=50% Imax2
ΔIo2=50% Imax2; Io1=50% Imax1
VO1=+12 V
VO2=-12 V
-
-
-
-
1% VO
1% VO
Io1=50% Imax1; Io2=50% Imax2
Regulation Over Temperature
-
-
0.02% /°C (-40 °C to +85 °C)
Output Current
VO1=+12 V
VO2=-12 V
0.06 A
0.06 A
-
-
5 A
1.5 A
Output Current Limit
VO1=+12 V
VO2=-12 V
6 A
1.8 A
-
-
7.5 A
2.25 A
Hiccup Mode
Hiccup Mode
Short Circuit Protection
Startup Time
-
-
-
Power Up
Remote On/Off
-
-
10 mS
7 mS
20 mS
20 mS
Overshoot at Turn On
Ripple and Noise (rms)
-
-
5%
VO1=+12 V
VO2=-12 V
-
-
25 mV
10 mV
50 mV
50 mV
Test conditions:
0-20 MHz Bandwidth, with a 1 uF
ceramic capacitor at the output.
Ripple and Noise (pk-pk)
VO1=+12 V
VO2=-12 V
-
-
75 mV
40 mV
150 mV
150 mV
Output Capacitance
0 uF
-
1,000 uF
For both VO1 and VO2
Transient Response
-
-
-
-
-
-
-
-
Overshoot
Settling Time
300 mV
600 mV
50% ~ 75%
Max Load
150 uS
300 mV
150 uS
300 mV
150 uS
300 mV
150 uS
300 uS
600 mV
300 uS
600 mV
300 uS
600 mV
300 uS
VO1=+12 V
Overshoot
Settling Time
Overshoot
75% ~ 50%
Max Load
Test conditions:
di/dt=0.5 A/us, Vin=48 V
50% ~ 75%
Max Load
Settling Time
Overshoot
VO2=-12 V
75% ~ 50%
Max Load
Settling Time
Note: All specifications are typical at nominal input, full load at 25 °C unless otherwise stated.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input
+12 Vdc/5 A, -12 Vdc/1.5 A Dual Outputs
General Specifications
Parameter
Min
Typ
Max
Notes
Vin = 48 V; Full Load
Efficiency
84%
90%
-
Switching Frequency
I/O Isolation Voltage
Isolation Capacitance
270k Hz
300k Hz
1500 V
1500 pF
-
330k Hz
-
-
-
-
Output Trim Range
90%
110%
Output Over Voltage Protection
VO1=+12 V
VO2=-12 V
+13.5 V
-13.5 V
+15 V
-15 V
+17 V
-17 V
Hiccup Mode
Hiccup Mode
Over-temperature
-
-
130 °C
Calculated Per Bell Core SR-332 (IO =
80% Imax; TA = 25 °C)
MTBF
2,366,749 hours
Dimensions
Inches (L × W × H)
2.28 x 2.4 x 0.48
Millimeters (L × W × H)
57.9 x 61.0 x 12.09
Weight
-
45 g
-
Note: All specifications are typical at nominal input, full load at 25 °C unless otherwise stated.
Control Specifications
Parameter
Min
Typ
Max
Notes
Remote On/Off
Signal Low (Unit On)
Signal High (Unit Off)
-0.3 V
3.5 V
-
-
1.8 V
12 V
Active Low; Remote On/Off pin open, Unit off.
Output Trim Equations
Equations for calculating the trim resistor (in kΩ) given the desired adjusted voltage (Vadj) and the nominal
output voltage of the converter (Vnom) are shown below. The Trim Down resistor should be connected between
the Trim pin and Vo1. The Trim Up resistor should be connected between the Trim pin and COM. Only one of
the resistors should be used for any given application.
Vout1
99.86
Rtrim_down
=
− 20.5
Rtrim_down
Vnom −Vadj
ModuleTrim
COM
26.25
Rtrim_up
=
−10
Vout1
Vadj −Vnom
ModuleTrim
Rtrim_up
COM
Note: Output voltage Vo=12.012 V
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input
+12 Vdc/5 A, -12 Vdc/1.5 A Dual Outputs
Efficiency Data
0RXU-75TD10 module
0.950
0.900
0.850
0.800
0.750
0.700
0.650
0.600
Vin=36V
Vin=48V
Vin=75V
10%load 25%load 50%load 75%load 100%load
Output Current
Thermal Derating Curve (Vin=48 V)
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input
+12 Vdc/5 A, -12 Vdc/1.5 A Dual Outputs
Ripple and Noise Waveforms
Ripple and noise at full load, 36 V input, ch1 (+)12 V/5 A output, (-)12 V/1.5 A
Ripple and noise at full load, 48 V input, ch1 (+)12 V/5 A output, (-)12 V/1.5 A
Ripple and noise at full load, 75 V input, ch1 (+)12 V/5 A output, (-)12 V/1.5 A
Note: With a 1uF ceramic capacitor at the output, Ta=25 deg C.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input
+12 Vdc/5 A, -12 Vdc/1.5 A Dual Outputs
Transient Response Waveforms
Vout=(+)12 V 50%-75% Load Transients at Vin=36 V
Vout=(+12) V 75%-50% Load Transients at Vin=36 V
Vout=(-)12 V 50% - 75% Load Transients at Vin=36 V Vout=(-)12 V 75% -50% Load Transients at Vin=36 V
Vout=(+)12 V 50%-75% Load Transients at Vin=48 V Vout=(+12) V 75%-50% Load Transients at Vin=48 V
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input
+12 Vdc/5 A, -12 Vdc/1.5 A Dual Outputs
Transient Response Waveforms (continued)
Vout=(-)12 V 50% - 75% Load Transients at Vin=48 V
Vout=(-)12 V 75% -50% Load Transients at Vin=48 V
Vout=(+)12 V 50%-75% Load Transients at Vin=75 V
Vout=(+12) V 75%-50% Load Transients at Vin=75 V
Vout=(-)12 V 50% - 75% Load Transients at Vin=75 V
Vout=(-)12 V 75% -50% Load Transients at Vin=75 V
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input
+12 Vdc/5 A, -12 Vdc/1.5 A Dual Outputs
Mechanical Outline
Pin Connections
Pin
Function
Pin
6
Function
COM
1
-Vin
2
FG
7
Trim
3
REM
8
COM
4
+Vin
9
-Vo1 (-12 V)
No Connection
5
+Vo1 (+12 V)
10
RoHS Compliance
Complies with the European Directive 2002/95/EC, calling for the elimination of lead and
other hazardous substances from electronic products.
©2006 Bel Fuse Inc. Specifications subject to change without notice. 032806
CORPORATE
FAR EAST
EUROPE
Bel Fuse Inc.
Bel Fuse Ltd.
Bel Fuse Europe Ltd.
206 Van Vorst Street
Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
8F/ 8 Luk Hop Street
San Po Kong
Kowloon, Hong Kong
Tel 852-2328-5515
Fax 852-2352-3706
www.belfuse.com
Preston Technology Management Centre
Marsh Lane, Suite G7, Preston
Lancashire, PR1 8UD, U.K.
Tel 44-1772-556601
Fax 44-1772-888366
www.belfuse.com
