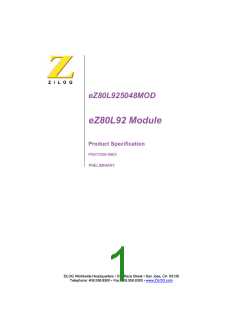

eZ80L925048MOD
eZ80L92 Module
Product Specification
PS017005-0903
PRELIMINARY
ZiLOG Worldwide Headquarters • 532 Race Street • San Jose, CA 95126
Telephone: 408.558.8500 • Fax: 408.558.8300 • www.ZiLOG.com
This publication is subject to replacement by a later edition. To determine whether
a later edition exists, or to request copies of publications, contact:
ZiLOG Worldwide Headquarters
532 Race Street
San Jose, CA 95126
Telephone: 408.558.8500
Fax: 408.558.8300
www.ZiLOG.com
ZiLOG is a registered trademark of ZiLOG Inc. in the United States and in other countries. All other
products and/or service names mentioned herein may be trademarks of the companies with which
they are associated.
Document Disclaimer
©2003 by ZiLOG, Inc. All rights reserved. Information in this publication concerning the devices,
applications, or technology described is intended to suggest possible uses and may be superseded.
ZiLOG, INC. DOES NOT ASSUME LIABILITY FOR OR PROVIDE A REPRESENTATION OF
ACCURACY OF THE INFORMATION, DEVICES, OR TECHNOLOGY DESCRIBED IN THIS
DOCUMENT. ZiLOG ALSO DOES NOT ASSUME LIABILITY FOR INTELLECTUAL PROPERTY
INFRINGEMENT RELATED IN ANY MANNER TO USE OF INFORMATION, DEVICES, OR
TECHNOLOGY DESCRIBED HEREIN OR OTHERWISE. Except with the express written approval
ZiLOG, use of information, devices, or technology as critical components of life support systems is
not authorized. No licenses or other rights are conveyed, implicitly or otherwise, by this document
under any intellectual property rights.
PS017005-0903
P R E L I M I N A R Y
eZ80L925048MOD
eZ80L92 Module Product Specification
iii
Table of Contents
List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
List of Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
The eZ80L92 Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Module Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
eZ80L92 Processor Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Peripheral Bus Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
I/O Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Onboard Component Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Logic-Level I/Os . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Onboard Battery Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Ethernet Media Access Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Ethernet LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Ethernet Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
GPIO Pins for Enabling LAN Activity, Sleep, Interrupt . . . . . . . . . . . . . . . . 13
EMAC Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
EMAC Wait States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Wait States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Static RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Flash Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
IrDA Transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Reset Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Serial Interface Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
®
Mounting the Module onto the eZ80 Development Platform . . . . . . . . . . . . . . 19
ESD/EMI Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Document Number Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Change Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Schematic Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Customer Feedback Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
The eZ80L92 Module Product Specification . . . . . . . . . . . . . . . . . . . . . . . . 32
PS017005-0903
P R E L I M I N A R Y
Table of Contents
eZ80L925048MOD
eZ80L92 Module Product Specification
iv
Customer Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Return Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Problem Description or Suggestion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
PS017005-0903
P R E L I M I N A R Y
Table of Contents
eZ80L925048MOD
eZ80L92 Module Product Specification
iv
List of Figures
Figure 1. eZ80L92 Module Functional Block Diagram . . . . . . . . . . . . . . . . . . . 3
Figure 2. eZ80L92 Module Peripheral Bus Connector Pin Configuration . . . . . 4
Figure 3. eZ80L92 Module I/O Connector Pin Configuration . . . . . . . . . . . . . . 8
Figure 4. Dimension Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Figure 5. Top Layer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Figure 6. Bottom Layer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Figure 7. Mounting Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Figure 8. Power Supply Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Figure 9. eZ80L92 Module Schematic Diagram, #1 of 9—Top Level . . . . . . . 23
Figure 10. eZ80L92 Module Schematic Diagram, #2 of 9—100-Pin QFP
eZ80L92 Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Figure 11. eZ80L92 Module Schematic Diagram, #3 of 9—
36-Pin SRAM Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Figure 12. eZ80L92 Module Schematic Diagram, #4 of 9—NOR Flash Device 26
Figure 13. eZ80L92 Module Schematic Diagram, #5 of 9—E-NET Module . . . 27
Figure 14. eZ80L92 Module Schematic Diagram, #6 of 9—IrDA Reset . . . . . . 28
Figure 15. eZ80L92 Module Schematic Diagram, #7 of 9—Headers . . . . . . . . 29
Figure 16. eZ80L92 Module Schematic Diagram, #8 of 9—Power Supply . . . 30
Figure 17. eZ80L92 Module Schematic Diagram, #9 of 9—Control Logic . . . . 31
PS017005-0903
P R E L I M I N A R Y
List of Figures
eZ80L925048MOD
eZ80L92 Module Product Specification
v
List of Tables
Table 1. eZ80L92 Module Peripheral Bus Connector Pin Identification. . . . . . . . 5
Table 2. eZ80L92 Module I/O Connector Pin Identification . . . . . . . . . . . . . . . . . 8
Table 3. Ethernet Connector Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . 13
Table 4. Chip Frequency to Wait State Cycle Time Calculation. . . . . . . . . . . . . 14
Table 5. Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
PS017005-0903
P R E L I M I N A R Y
List of Tables
eZ80L925048MOD
eZ80L92 Module Product Specification
1
The eZ80L92 Module
The eZ80L92 Module is a compact, high-performance Ethernet module specially
designed for the rapid development and deployment of embedded systems
requiring control and Internet/Intranet connectivity.
This low-cost, expandable module is powered by ZiLOG’s latest power-efficient,
high-speed, optimized pipeline architecture eZ80L92 device (eZ80L925048MOD),
®
a member of ZILOG’s new eZ80 microprocessor family.
The eZ80L92 microprocessor is a high-speed single-cycle instruction-fetch micro-
processor, which can operate with a clock speed of 48MHz. It can operate in Z80-
compatible addressing mode (64KB) or full 24-bit addressing mode (16MB).
The rich peripheral set of the eZ80L92 Module makes it suitable for a variety of
applications, including industrial control, IrDA connectivity, communication, secu-
rity, automation, point-of-sale terminals, and embedded networking applications.
Module Features
•
eZ80L92 MPU default factory operating clock frequency at 48MHz
•
•
•
•
•
•
•
•
•
10Base-T Ethernet Media Access Controller+ PHI with Onboard RJ45 connector
512KB zero-wait-state onboard SRAM
1MB onboard NOR Flash ROM (90–100ns)
GoldCap backup for Real-Time Clock
I/O connector provides 24 general-purpose 5V-tolerant I/O pinouts
ZiLOG’s industry-leading IrDA transceiver—ZiLOG ZHX1810
In-circuit Flash programming circuitry
2
Onboard connector provides I C 2-wire SDA/SCL interface
Onboard connector provides I/O bus for external peripheral connections (IRQ,
CS, 24 address, 8 data)
•
•
•
•
•
Low-cost adaptation to carrier board via two 2x25pin (2.54mm) headers
®
Horizontal or vertical mounting onto the eZ80 Development Platform
Small footprint 64x64mm; height is 24mm
3.3V power supply
Standard operating temperature range: 0ºC to +70ºC
PS017005-0903
P R E L I M I N A R Y
The eZ80L92 Module
eZ80L925048MOD
eZ80L92 Module Product Specification
2
eZ80L92 Processor Features
®
•
•
Single-cycle instruction fetch, high-performance, pipelined eZ80 CPU core
Low power features including SLEEP mode, HALT mode, and selective
peripheral power-down control
•
•
•
•
•
•
Two UARTs with independent baud rate generators
SPI with independent clock rate generator
2
I C with independent clock rate generator
Infrared Data Association (IrDA)-compliant infrared encoder/decoder
®
New DMA-like eZ80 instructions for efficient block data transfer
Glueless external memory interface with 4 chip selects, individual wait state
generators, and an external WAIT input pin—supports Intel- and Motorola-style
buses
•
•
Fixed-priority vectored interrupts (both internal and external) and interrupt
controller
Real-time clock with on-chip 32KHz oscillator, selectable 50/60Hz input, and
separate VDD pin for battery backup
•
•
•
•
•
•
•
Six 16-bit Counter/Timers with prescalers and direct input/output drive
Watch-Dog Timer
24 bits of general-purpose I/O
JTAG and ZDI debug interfaces
100-pin LQFP package
3.0–3.6V supply voltage with 5V tolerant inputs
Standard operating temperature range: 0ºC to +70ºC
Note:
All signals with an overline are active Low. For example, B/W, for which
WORD is active Low, and B/W, for which BYTE is active Low.
Block Diagram
Figure 1 illustrates a block diagram of the eZ80L92 Module.
PS017005-0903
P R E L I M I N A R Y
The eZ80L92 Module
eZ80L925048MOD
eZ80L92 Module Product Specification
3
Gold Cap
32 KHz XTAL
XTAL/Osc.
eZ80 CPU
IrDA
Transceiver
Real-Time Clock
Power-On
Reset
Watch-Dog
Timer
UART
UART
PD
PC
PB
ZDI/JTAG
I2C/SPI
SPI
6 Timer
RJ45
Bus Controller
10 BaseT
Controller
w/ Magnetics
1 MB
Flash/ROM
128/512 KB
SRAM
50-Pin Connector
Figure 1. eZ80L92 Module Functional Block Diagram
PS017005-0903
P R E L I M I N A R Y
The eZ80L92 Module
eZ80L925048MOD
eZ80L92 Module Product Specification
4
Pin Description
Peripheral Bus Connector
Figure 2 illustrates the pin layout of the 50-pin I/O Connector, located at position
JP1 on the eZ80L92 Module. Table 1 describes the pins and their functions.
JP1
A0
A3
V3.3_EXT
A7
A9
A14
A16
GND_EXT
A1
A12
A20
A17
DIS_FLASH
V3.3_EXT
A23
CS1
D0
D2
D4
A6
A10
GND_EXT
A8
1
3
5
7
2
4
6
8
A13
A15
A18
A19
A2
A11
A4
A5
9
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
DIS_ETH
A21
A22
CS0
CS2
D1
D3
D5
D7
GND_EXT
D6
IOREQ
RD
INSTRD
BUSREQ
MREQ
GND_EXT
WR
BUSACK
HEADER 25X2
IDC50
Figure 2. eZ80L92 Module Peripheral Bus Connector Pin Configuration
PS017005-0903
P R E L I M I N A R Y
Pin Description
eZ80L925048MOD
eZ80L92 Module Product Specification
5
Table 1. eZ80L92 Module Peripheral Bus Connector Pin Identification*
Pull
Pin # Symbol
Up/Down* Signal Direction Comments
1
A6
Bidirectional
Bidirectional
Bidirectional
Bidirectional
2
A0
3
A10
A3
4
5
GND
V
/Ground (0V).
SS
6
V
3.3V Supply Input Pin.
DD
7
A8
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
8
A7
9
A13
A9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
A15
A14
A18
A16
A19
GND
A2
V
/Ground (0V).
SS
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
A1
A11
A12
A4
A20
A5
A17
Notes: *External capacitive loads on RD, WR, IORQ, MREQ, D0–D7 and A0–A23 should be below 10pF to satisfy
®
timing requirements for the eZ80 CPU.
All unused inputs should be pulled to either V
consumption and to reduce noise sensitivity.
or GND, depending on their inactive levels to reduce power
DD
To prevent EMI, the EZ80CLK output can be deactivated via software in the eZ80L92 Peripheral Power-Down
Register.
All inputs are CMOS level 3.3V (5V tolerant), except where otherwise noted.
PS017005-0903
P R E L I M I N A R Y
Pin Description
eZ80L925048MOD
eZ80L92 Module Product Specification
6
Table 1. eZ80L92 Module Peripheral Bus Connector Pin Identification* (Continued)
Pull
Pin # Symbol
Up/Down* Signal Direction Comments
25
DIS_Eth
DIS_Flash
A21
PU 10KΩ
Input
A Low disables on-module EMAC from
responding to CS3 on a per-cycle basis.
CS3 can be used on the eZ80
Development Platform; CMOS Input 3.3V
(5V tolerant)
®
26
PU 10KΩ
Input
A Low disables on-module Flash memory
from responding to CS0 on a per-cycle
®
basis. CS0 can be used on the eZ80
Development Platform for external memory
purposes; CMOS Input 3.3V (5V tolerant).
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
Bidirectional
V
3.3V supply input pin.
DD
A22
A23
CS0
CS1
CS2
D0
Bidirectional
Bidirectional
Output
Output
Output
PU 4k7Ω
PU 4k7Ω
PU 4k7Ω
PU 4k7Ω
PU 4k7Ω
PU 4k7Ω
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
D1
D2
D3
D4
D5
GND
D7
V
/Ground (0V).
SS
PU 4k7Ω
Bidirectional
Bidirectional
Bidirectional
D6
MREQ
Notes: *External capacitive loads on RD, WR, IORQ, MREQ, D0–D7 and A0–A23 should be below 10pF to satisfy
®
timing requirements for the eZ80 CPU.
All unused inputs should be pulled to either V
consumption and to reduce noise sensitivity.
or GND, depending on their inactive levels to reduce power
DD
To prevent EMI, the EZ80CLK output can be deactivated via software in the eZ80L92 Peripheral Power-Down
Register.
All inputs are CMOS level 3.3V (5V tolerant), except where otherwise noted.
PS017005-0903
P R E L I M I N A R Y
Pin Description
eZ80L925048MOD
eZ80L92 Module Product Specification
7
Table 1. eZ80L92 Module Peripheral Bus Connector Pin Identification* (Continued)
Pull
Pin # Symbol
Up/Down* Signal Direction Comments
44
45
46
47
48
49
50
IORQ
GND
Bidirectional
V
/Ground (0V).
SS
RD
Bidirectional
Bidirectional
Output
WR
INSTRD
BUSACK
BUSREQ
PU 10KΩ
PU 10KΩ
Output
Input
Notes: *External capacitive loads on RD, WR, IORQ, MREQ, D0–D7 and A0–A23 should be below 10pF to satisfy
®
timing requirements for the eZ80 CPU.
All unused inputs should be pulled to either V
consumption and to reduce noise sensitivity.
or GND, depending on their inactive levels to reduce power
DD
To prevent EMI, the EZ80CLK output can be deactivated via software in the eZ80L92 Peripheral Power-Down
Register.
All inputs are CMOS level 3.3V (5V tolerant), except where otherwise noted.
PS017005-0903
P R E L I M I N A R Y
Pin Description
eZ80L925048MOD
eZ80L92 Module Product Specification
8
I/O Connector
Figure 3 illustrates the pin layout of the 50-pin I/O Connector, located at position
JP2 of the eZ80L92 Module. Table 2 describes the pins and their functions.
JP2
PB7
PB5
PB3
PB6
PB4
PB2
PB0
PC7
PC5
PC3
PC1
PD7
GND_EXT
PD4
PD2
PD0
1
3
5
7
2
4
6
PB1
8
GND_EXT
9
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
PC6
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
PC4
PC2
PC0
PD6
PD5
PD3
PD1
TDO
TDI
TRIGOUT
TMS
GND_EXT
TCK
RTC_VDD
IICSCL
IICSDA
FLASHWE
CS3
EZ80CLK
GND_EXT
DIS_IRDA
WAIT
GND_EXT
NMI
RESET
V3.3_EXT
HALT_SLP
V3.3_EXT
HEADER 25X2
IDC50
Figure 3. eZ80L92 Module I/O Connector Pin Configuration
Table 2. eZ80L92 Module I/O Connector Pin Identification*
Pull
Signal
Pin # Symbol
Up/Down Direction
Comments
1
2
PB7
PB6
Bidirectional
Bidirectional
Notes: *External capacitive loads on RD, WR, IORQ, MREQ, D0–D7 and A0–A23 should be below 10pF to satisfy
timing requirements for the CPU.
All unused inputs should be pulled to either V
consumption and to reduce noise sensitivity.
or GND, depending on their inactive levels, to reduce power
DD
To prevent EMI, the EZ80CLK output can be deactivated via software in the eZ80F91 Peripheral Power-Down
Register.
All inputs are CMOS level 3.3V (5V tolerant), except where otherwise noted.
PS017005-0903
P R E L I M I N A R Y
Pin Description
eZ80L925048MOD
eZ80L92 Module Product Specification
9
Table 2. eZ80L92 Module I/O Connector Pin Identification* (Continued)
Pull Signal
Pin # Symbol
Up/Down Direction
Comments
3
PB5
PB4
PB3
PB2
PB1
PB0
GND
PC7
PC6
PC5
PC4
PC3
PC2
PC1
PC0
PD7
PD6
GND
PD5
PD4
PD3
PD2
PD1
PD0
Bidirectional
4
Bidirectional
5
Bidirectional
6
Bidirectional
7
Bidirectional
8
Bidirectional
9
V
/Ground (0V).
SS
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
V
/Ground (0V).
SS
Bidirectional
PD 4k7
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Notes: *External capacitive loads on RD, WR, IORQ, MREQ, D0–D7 and A0–A23 should be below 10pF to satisfy
timing requirements for the CPU.
All unused inputs should be pulled to either V
consumption and to reduce noise sensitivity.
or GND, depending on their inactive levels, to reduce power
DD
To prevent EMI, the EZ80CLK output can be deactivated via software in the eZ80F91 Peripheral Power-Down
Register.
All inputs are CMOS level 3.3V (5V tolerant), except where otherwise noted.
PS017005-0903
P R E L I M I N A R Y
Pin Description
eZ80L925048MOD
eZ80L92 Module Product Specification
10
Table 2. eZ80L92 Module I/O Connector Pin Identification* (Continued)
Pull Signal
Pin # Symbol
Up/Down Direction
Comments
27
28
29
30
31
TDO
Output
JTAG data output pin.
JTAG data input pin.
TDI/ZDA
GND
PU 10KΩ Input
V
/Ground (0V).
SS
TRIGOUT
TCK/ZCL
Output
Active High trigger event indicator.
PU 10KΩ Input
JTAG clock. High on reset enables ZDI mode; Low
on reset enables OCI debug.
32
33
34
35
36
37
38
39
TMS
PU 10KΩ Input
JTAG Test Mode Select.
RTC_V
RTC supply from GoldCap (or external battery).
48MHz synchronous CPU clock.
DD
EZ80CLK
SCL
Output
2
PU 4k7
PU 4k7
Bidirectional
Bidirectional
I C Bus Clock.
GND
V
/Ground (0V).
SS
2
SDA
I C Bus Data.
V /Ground (0V).
SS
GND
FlashWE
PU 10KΩ Input
Low enables Write to onboard Flash memory. If this
pin is unconnected, the Flash memory is write-
protected.
40
41
42
GND
V
/Ground (0V).
SS
CS3
Output
PU 10KΩ Input
Used on module for CS8900 EMAC.
DIS_IRDA
Low disables onboard IRDA transceiver to use PD0/
PD1 UART pins externally.
43
44
RESET
WAIT
PU 2k2
PU 2k2
Bidirectional
Input
Reset output from Module or push-button reset.
®
Driving the WAIT pin Low forces the eZ80 CPU to
provide additional clock cycles for an external
peripheral or external memory to complete its Read
or Write operation.
45
V
3.3V supply input pin.
DD
Notes: *External capacitive loads on RD, WR, IORQ, MREQ, D0–D7 and A0–A23 should be below 10pF to satisfy
timing requirements for the CPU.
All unused inputs should be pulled to either V
consumption and to reduce noise sensitivity.
or GND, depending on their inactive levels, to reduce power
DD
To prevent EMI, the EZ80CLK output can be deactivated via software in the eZ80F91 Peripheral Power-Down
Register.
All inputs are CMOS level 3.3V (5V tolerant), except where otherwise noted.
PS017005-0903
P R E L I M I N A R Y
Pin Description
eZ80L925048MOD
eZ80L92 Module Product Specification
11
Table 2. eZ80L92 Module I/O Connector Pin Identification* (Continued)
Pull
Signal
Pin # Symbol
Up/Down Direction
Comments
V /Ground (0V).
SS
46
47
GND
®
HALT_SLP
Output, Active A Low on this pin indicates that the eZ80 CPU
Low
enters either HALT or SLEEP mode because of exe-
cution of either a HALT or SLP instruction.
48
NMI
PU 10KΩ Schmitt Trig- The NMI input is a higher priority input than the
ger Input,
Active Low
maskable interrupts. It is always recognized at the
end of an instruction, regardless of the state of the
interrupt enable control bits. This input includes a
Schmitt trigger to allow RC rise times. This external
NMI signal is combined with an internal NMI signal
generated from the WDT block before being con-
®
nected to the NMI input of the eZ80 CPU.
49
50
V
3.3V supply input pin.
DD
Reserved
NC
Reserved—No Connection.
Notes: *External capacitive loads on RD, WR, IORQ, MREQ, D0–D7 and A0–A23 should be below 10pF to satisfy
timing requirements for the CPU.
All unused inputs should be pulled to either V
consumption and to reduce noise sensitivity.
or GND, depending on their inactive levels, to reduce power
DD
To prevent EMI, the EZ80CLK output can be deactivated via software in the eZ80F91 Peripheral Power-Down
Register.
All inputs are CMOS level 3.3V (5V tolerant), except where otherwise noted.
PS017005-0903
P R E L I M I N A R Y
Pin Description
eZ80L925048MOD
eZ80L92 Module Product Specification
12
Onboard Component Description
Logic-Level I/Os
The I/O connector features 24 general-purpose 3.3V CMOS I/O pins that can be
used as outputs or inputs interfacing to external logic. All I/Os are 5V tolerant.
Some of the General-Purpose I/O pins support dual mode functions (SPI, Timer I/
O, UARTs and bit I/O with edge- or level-triggered interrupt functions on each pin).
For more information on eZ80L92 dual modes, please refer to the eZ80L92 Prod-
uct Specification (PS0130).
Onboard Battery Backup
An onboard 0.1F capacitor (GoldCap) is used to bridge power outages of 2–4
hours if the power supply to the module is disconnected. The capacitor is charged
to 3.1V during normal operation and is discharged through the on-chip Real Time
Clock. The VRTC pin is available on the I/O connector of the module to connect
external components to a power supply or to a larger GoldCap.
Do not connect a Lithium Battery to the GoldCap capacitor, because
onboard charging circuitry for the capacitor can destroy the lithium bat-
tery.
Caution:
Ethernet Media Access Controller
The eZ80L92 Module contains a CS8900A EMAC (MAC, PHI, and RAM) which is
attached to the data/address bus of the processor. This chip is connected to the
processor’s CS3 Chip Select, A0–A3, D0–D7, RD, WR, and PD4 pins for interrupt
purposes. Connection of pins PD6 and PD7 for LANACT (wake-up from sleep)
and SLEEP is optional and resistor-selectable onboard (see below).
Ethernet LEDs
There are two green LEDs, a Link LED and a LAN LED, that are located adjacent
to each other on the eZ80L92 Module. A flashing LAN LED (top) indicates
received link pulses from the 10Base-T Ethernet. This LAN LED should be ON if
RX+ is connected to TX+ and RX– is connected to TX–. A steady Link LED (bot-
tom) indicates Traffic (RX or TX) on the LAN.
PS017005-0903
P R E L I M I N A R Y
Onboard Component Description
eZ80L925048MOD
eZ80L92 Module Product Specification
13
An RJ45 loopback connector can be used to verify the correct operation of the
Receiver and the Transmitter. The green LED should be on if RX+ is connected
with TX+ and RX– is connected with TX–.
Ethernet Connectors
The eZ80L92 Module is equipped with an RJ45 connector that features integrated
magnetics (transformer, common mode chokes). The remaining pins on the
onboard RJ45 connector are not connected.
Node assignments for the RJ45 Ethernet connector are shown in Table 3.
Table 3. Ethernet Connector Pin Assignments
Pin
1
Function
TX+
2
TX–
3
RX+
6
RX–
Node assignment, in contrast to hub assignment, means that a straight-through
cable (equivalent pin numbers on both sides of the cable are connected to each
other) is used to attach the board to an Ethernet hub or switch. To connect the
eZ80L92 Module directly to another node (e.g., a personal computer), a crossover
cable must be used.
The EMAC can be additionally protected by placing a U9 ESD protection array on
the module. This array can be either of the LCDA15C-6 (Semtech) or ESDA25B1
(ST Microelectronics) devices.
GPIO Pins for Enabling LAN Activity, Sleep, Interrupt
GPIO input bit PD4 serves as an active High interrupt input for the EMAC’s
INTRQ0 output.
GPIO output bit PD7 can be used to enter the EMAC into SLEEP mode. When
pulling SLEEP (PD7) Low after enabling HWStandbyE and HWSleepE modes,
the chip draws lower current, because only the receiver is operating. A zero-Ohm
resistor at position R14 on the eZ80L92 Module is required for this function. In this
case, the PD6 pin is not available for GPIO on the I/O connector.
If LAN activity is detected, the LANACT signal is pulled Low. The LANACT is con-
nected to GPIO input PD6 and can be used in interrupt edge-detection mode to
wake up and reinitialize the Ethernet chip. A zero-Ohm resistor at position R15 on
PS017005-0903
P R E L I M I N A R Y
Onboard Component Description
eZ80L925048MOD
eZ80L92 Module Product Specification
14
the module is required for this function. In this case, the PD6 pin is not available
for GPIO on the I/O connector.
EMAC Ports
Chip Select CS3 is used for selecting the EMAC via I/O decoding. The I/O base
address is user-selectable. The EMAC is connected as an 8- or 16-bit device with
8-word-wide I/O registers:
EMAC Wait States
The CS8900A EMAC should be operated in Intel bus mode so that the setup and
hold times for the I/O access are met. For 48MHz operation, first set CS3_BMC (I/
O address 0xF3h) to 84h (Intel bus mode with four system clock cycles per bus
cycle) and then CS3_CTL (I/O Address 0xB3) to 18h (0 wait states for I/O). For a
20.8ns CPU Clock cycle time, the Read and Write access time is:
2 x 4 x 20.8ns–16ns (for capacitive and chip delays) = 150ns
Memory
The eZ80L92 Module offers SRAM and Flash memories and the wait states that
support memory operations, as described in this section.
Wait States
To ensure that valid data is read from or written to slower memories, a number of
wait states must be inserted into the memory or I/O access operations by the pro-
cessor. The number of wait states that are required should be added by program-
ming the chip select control registers. To calculate the minimum number of wait
states required, refer to Table 4.
Table 4. Chip Frequency to Wait State Cycle Time Calculation
MHz
12
Cycle Time
83.3ns
20
50.0ns
24
41.7ns
36
27.8ns
40
25.0ns
48
20.8ns
PS017005-0903
P R E L I M I N A R Y
Onboard Component Description
eZ80L925048MOD
eZ80L92 Module Product Specification
15
Static RAM
The eZ80L92 Module features 512KB of fast SRAM. Access speed is typically
12ns or faster, allowing zero-wait-state operation at 48MHz. With the CPU at
48MHz, onboard SRAM can be accessed with zero wait states in eZ80 mode.
CS1_CTL (chip select CS1) can be set to 08h (no wait states).
Flash Memory
The Flash Boot Loader, application code, and user configuration data are held
permanently in NOR Flash memory. A typical application requires eight times
more ROM for code than RAM. As an example, for 128KB onboard SRAM, 1MB
of ROM is required. The eZ80L92 Module allows NOR Flash memories between
4megabits (512KB) and 32 megabits (4MB) to be used. The chips are housed in
wide TSOP40 cases. Flash ROM access times are 55–150ns; typically 90ns.
NOR Flash should be operated in Intel bus mode to satisfy setup and hold times
and to prevent bus contention with a Write cycle that could possibly follow. For
proper CPU operation at 48MHz, first set the bus mode control register
CS0_BMC (I/O address 0xF0h) to 82h, then set the Chip Select Control register
CS0_CTL (I/O address 0xAAh) to 08h. These settings select Intel Bus Mode with
two system clocks per bus cycle and zero wait states.
IrDA Transceiver
An onboard IrDA transceiver (ZiLOG ZHX1810) is connected to PD0 (TX), PD1
(RX), and PD2 (Shutdown, R_SD). The IrDA transceiver is of the LED type
870nm Class 1.
The receiver supply current is 90–150µA and the transmitter supply current is
260mA when the LED is active.The IrDA transceiver is accessible via the IrDA
controller attached to UART0 on the eZ80L92 device. The UART0 console and
the IrDA transceiver cannot be used simultaneously.
To use the UART0 for console or to save power, the transceiver can be disabled
by the software or by an off-board signal when using the proper jumper selection.
The transceiver is disabled by setting PD2 (IR_SD) High or by pulling the
DIS_IRDA pin on the I/O connector Low. The shutdown is used for power savings.
To enable the IrDA transceiver, DIS_IRDA is left floating and PD2 is set to Low.
Reset Generator
The onboard Reset Generator Chip performs reliable Power-On Reset. The chip
generates a reset pulse with a duration of 200ms if the power supply drops below
PS017005-0903
P R E L I M I N A R Y
Onboard Component Description
eZ80L925048MOD
eZ80L92 Module Product Specification
16
2.93V. This reset pulse ensures that the board always starts in a defined condi-
tion. The RESET pin on the I/O connector reflects the status of the RESET line. It
is a bidirectional pin for resetting external peripheral components or for resetting
the eZ80L92 Module with a low-impedance output (e.g. a 100-Ohm pushbutton).
Serial Interface Ports
The processor contains two 16550-style UARTs with programmable baud rate
generators. UART0 is typically used for console I/O and initial boot code upload or
to connect remote peripherals that can be controlled and monitored via Ethernet.
UART0 is connected to GPIO PD[0:3] on the I/O connector. There are no RS232-
level shifters on the eZ80L92 Module.
Do not connect an RS-232 interface without level shifters.
Note:
UART1 can be used for modem attachment or as a communications port to a host
computer, where the embedded Ethernet module emulates an AT-style modem for
internet access. UART1 does not offer onboard RS232-level shifters.
PS017005-0903
P R E L I M I N A R Y
Onboard Component Description
eZ80L925048MOD
eZ80L92 Module Product Specification
17
Physical Dimensions
The size of the eZ80L92 Module PCB is 64x64mm. With an RJ45 Ethernet con-
nector, the overall height is 25mm, as shown in Figure 4.
63.5 mm
16 mm
8.5 mm
Link
LAN
13.7 mm
8.3 mm
max.
LEDs
1
1
2.54 mm
16.3 mm
RJ45
9 mm
3.5 mm
64 mm
Top View
9 mm
IrDA
2.7 mm
6.2 mm
7 mm
55.88 mm
Figure 4. Dimension Drawing
PS017005-0903
P R E L I M I N A R Y
Onboard Component Description
eZ80L925048MOD
eZ80L92 Module Product Specification
18
Figure 5 illustrates a top view of the eZ80L92 Module.
Figure 5. Top Layer
Figure 6 illustrates a bottom view of the eZ80L92 Module.
Figure 6. Bottom Layer
PS017005-0903
P R E L I M I N A R Y
Onboard Component Description
eZ80L925048MOD
eZ80L92 Module Product Specification
19
Mounting the Module onto the eZ80® Development Platform
The eZ80L92 Module can be mounted in several positions. Depending on volume
and area restrictions, it can be mounted horizontally or vertically with or without
®
components between the connectors on the eZ80 Development Platform. See
Figure 8 for examples.
Low Profile Mounting
s
D
RJ45
(rear)
63.5 mm
E
L
1
1
15.3 mm
8.3 mm
64 mm
E-NET Module
Bus
H = 4.5 mm
1.7 mm
I/O
Carrier Board
4.2 mm
Stacked Mounting
RJ45
(rear)
1
1
64 mm
E-NET Module
Bus
I/O
H = 4.5 mm
8.5 mm
Modem or Power Supply
50.5 mm max
Carrier Board
Figure 7. Mounting Examples
PS017005-0903
P R E L I M I N A R Y
Onboard Component Description
eZ80L925048MOD
eZ80L92 Module Product Specification
20
ESD/EMI Protection
Caution:
The eZ80L92 Module is a component that is intended to be part of a
system design for end-user devices. Therefore, the user must exercise
caution to use ESD protection on the I/O pins.
The EMAC can be additionally protected by placing an ESD protection array on
the eZ80L92 Module at position U9. Either use ESDA25B1 from ST Microelec-
tronics or LCDA15C-6 from Semtech. A mounting hole on the board can be used
for grounding the shield of the Ethernet RJ45 jack to prevent surge or ESD cur-
rents from flowing through the digital circuitry.
The RJ45 Ethernet Connector on the eZ80L92 Module contains a transformer and
common mode chokes for EMI suppression.
CMOS I/Os are ESD-sensitive and must be handled with care. Han-
dling of the module should be performed in ESD-safe environments (for
example with a wrist-wrap attached). When developing applications,
the user must provide for proper ESD protection on external, user-
accessible I/Os (e.g. suppressor arrays for the I/Os).
Caution:
The components are mounted on a multilayer PCB to provide a stable ground
plane for onboard components. The module features several GND pins next to
pins with higher switching frequency for short ground returns. If unused, the clock
output can be separated from the module header by removing a series resistor on
the module. Removing the series resistor further reduces electromagnetic emis-
sions.
Absolute Maximum Ratings
Stresses greater than those listed in Table 5 can cause permanent damage to the
device. These ratings are stress ratings only. Operation of the device at any con-
dition outside those indicated in the operational sections of these specifications is
not implied. Exposure to absolute maximum rating conditions for extended peri-
ods may affect device reliability. For improved reliability, unused inputs should be
tied to one of the supply voltages (VDD or VSS).
Table 5. Absolute Maximum Ratings
Parameter
Min
0
Max
+70
+85
90%
3.3
Units
ºC
Standard operating temperature
Storage temperature
–45
25%
—
ºC
Operating Humidity (RH @ 50ºC)
Operating Voltage ( 5%)
V
PS017005-0903
P R E L I M I N A R Y
Onboard Component Description
eZ80L925048MOD
eZ80L92 Module Product Specification
21
Power Supply
The eZ80L92 Module requires a regulated external 3.3VDC/0.5A power supply.
You may use a Low Dropout Regulator (LDO) to get 3.3V from 5V or use the fol-
lowing switcher circuit to generate 3.3V from unregulated 10-28V power supply.
Power connections follow these conventional descriptions:
Connection
Power
Circuit
VCC
Device
V
V
DD
SS
Ground
GND
Figure 8 offers two typical power supply examples.
Switcher 10–28V → 3.3V
To Module
U1
LM2575S-ADJ
4
2
L1
10–28V
VDD
3.3V
FB
VOUT
N
1
V
VIN
O
IN
330uH/1A
R1
5k6
1%
C3
/
G
N
D
O
F
F
C2
C1
100n
D1
1A/30V
1000uF
470uF/6.3V
Low ESR
R2
3
5
3k3
1%
GND
GND
LDO 5V → 3.3V
U1
LM3940
4-6V
VDD
V
VI
VO
3.3V
CC
G
N
D
C3
470uF/6.3V
Low ESR
C1
100n
GND
GND
Figure 8. Power Supply Examples
PS017005-0903
P R E L I M I N A R Y
Onboard Component Description
eZ80L925048MOD
eZ80L92 Module Product Specification
22
Document Number Description
The Document Control Number that appears in the footer of each page of this
document contains unique identifying attributes, as indicated in the following
table:
PS
Product Specification
Unique Document Number
Revision Number
0170
05
0903
Month and Year Published
Change Log
Rev Date
Purpose
Original issue
By
01 June 2002
02 July 2002
03 October 2002
04 January 2003
M. Staubermann, R. Pujar
M. Staubermann, R. Beebe
R. Beebe
Minor modifications
Minor modifications
Minor modifications
R. Beebe
05 September 2003 Minor modifications
R. Beebe
PS017005-0903
P R E L I M I N A R Y
Document Number Description
eZ80L925048MOD
eZ80L92 Module Product Specification
Schematic Diagrams
23
Figures 9 through 17 diagram the layout of the eZ80L92 Module.
RAM
CPU
Peripherals
Reset
Connector
Headers
03
02
07
08
SRAM
eZ80
IRDA_TXD
IRDA_RXD
IRDA_SD
IRDA_TXD
D[0..7]
-RESET
-RESET
D[0..7]
D[0..7]
-RESET
-RESET IRDA_RXD
IRDA_SD
-RESET
A[0..23]
-FLASHWE
A[0..23]
A[0..23]
-FLASHWE
-RD
-WR
-IOREQ
-MREQ
-INSTRD
-IOREQ
-MREQ
-INSTRD
-RD
-WR
-RD
-WR
-IOREQ
-MREQ
-INSTRD
-IOREQ
-MREQ
-INSTRD
-CS1
-CS1
-WAIT
-HALT_SLP
-WAIT
-HALT_SLP
-WAIT
-HALT_SLP
-WAIT
-HALT_SLP
-BUSREQ
-BUSACK
-BUSREQ
-BUSACK
-BUSREQ
-BUSACK
-BUSREQ
-BUSACK
-NMI
-NMI
ROM
-NMI
CLK_OUT
RTC_VDD
-NMI
04
CLK_OUT
RTC_VDD
CLK_OUT
RTC_VDD
NOR-Flash
CLK_OUT
RTC_VDD
D[0..7]
D[0..7]
A[0..23]
A[0..23]
Logic
06
IICSDA
IICSCL
IICSDA
IICSCL
IICSDA
IICSCL
IICSDA
IICSCL
-RD
-WR
CTRL-Logic
-RD
-WR
D[0..7]
D[0..7]
-CSFLASH
-RESFLASH
-FLASHWE
-RESET
-WAIT
-CSFLASH
-RESFLASH
-FLASHWE
-RESET
-WAIT
A[0..23]
A[0..23]
PB[0..7]
PC[0..7]
PD[0..7]
IRDA_TXD
IRDA_RXD
IRDA_SD
PB[0..7]
PC[0..7]
PD[0..7]
IRDA_TXD
-WR
-RD
IRDA_RXD
IRDA_SD
-DIS_FL
-WR
-RD
-DIS_FL
-DIS_FL
-DIS_IRDA
PB[0..7]
PD[0..7]
-CS[0..3]
-DIS_IRDA
-DIS_IRDA
-CS[0..3]
-CS[0..3]
PB[0..7]
PC[0..7]
PD[0..7]
-CSFLASH
PC[0..7]
PD[0..7]
-CSFLASH
JTAG[1..4]
TDO
-RESFLASH
JTAG[1..4]
TDO
-RESFLASH
-CS[0..3]
-CS[0..3]
JTAG[1..4]
TDO
JTAG[1..4]
TDO
-DIS_ETH
Ethernet
05
Power
09
V3.3
GND
CS8900A
V3.3_EXT
GND_EXT
SD[0..7]
SA[0..3]
PowerSupply
SD[0..7]
SA[0..3]
V3.3
GND
V3.3
GND
IOCHRDY
-ETHRD
-ETHWR
IOCHRDY
-ETHRD
-ETHWR
ETHIRQ
-SLEEP
-ACTIVE
ETHIRQ
-SLEEP
-ACTIVE
-DIS_ETH
Figure 9. eZ80L92 Module Schematic Diagram, #1 of 9—Top Level
PS017005-0903
PRELIMINARY
Schematic Diagrams
eZ80L925048MOD
eZ80L92 Module Product Specification
24
XIN
eZ80=IIC-bus-master
PB[0..7]
PC[0..7]
48 MHz
Y2
IICSDA
XOUT
IICSDA
IICSDA
IICSCL
HC49SM
IICSCL
IICSCL
CLK_OUT
1M
C17
R27
CLK_OUT
CLK_OUT
L1
C16
15pF
4.7pF
3.3 H
PB[0..7]
PC[0..7]
PD[0..7]
PB[0..7]
PC[0..7]
PD[0..7]
PD[0..7]
A0
A1
A2
A3
A4
A5
PD7
PD6
PD5
PD4
PD3
PD2
PD1
PD0
1
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
A0
PD7/RI0
C25
2
A1
PD6/DCD0
PD5/DSR0
PD4/DTR0
PD3/CTS0
PD2/RTS0/IR_SD
PD1/RxD0/IR_RXD
PD0/TxD0/IR_TXD
VDD
220pF
3
A2
4
A3
-RESET
V3.3
5
6
-RESET
A4
A5
VDD
VSS
A6
A7
A8
A9
A10
A11
A12
A13
A14
VDD
VSS
A15
A16
A17
A18
A19
A20
JTAG[1..4]
TDO
JTAG[1..4]
7
JTAG[1..4]
TDO
8
U8
A6
A7
A8
A9
A10
A11
A12
A13
A14
R28
100
9
TDO
TDI
(= JTAG0)
= JTAG1
TRIGOUT = JTAG2
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
TDO
-RD
-RD
-WR
TDI (ZDA)
TRIGOUT
TCK (ZCL)
TMS
-WR
TCK
TMS
= JTAG3
= JTAG4
eZ80L92
TQFP100
D1
-IOREQ
-MREQ
-INSTRD
-WAIT
TMM BAT 41
-IOREQ
-MREQ
-INSTRD
VSS
RTC_VDD
RTC_XOUT
RTC_XIN
MINIMELF_AK
RTC_VDD
RTC_XOUT
RTC_XIN
VSS
RTC_VDD
GoldCap
A15
A16
A17
A18
A19
A20
C18
100nF
VDD
-HALT_SLP
-BUSACK
-BUSREQ
-NMI
C19
-WAIT
HALT_SLP
BUSACK
BUSREQ
NMI
0,1F
-HALT_SLP
GOLDCAP_SD
-HALT_SLP
R29
-RESET
10k
RESET
-BUSREQ
-BUSACK
-BUSREQ
-BUSACK
R32
RTC_XOUT
RTC_XIN
-NMI
-NMI
V3.3
220
Y3
32.768kHz
XTAL3
C20
18pF
VDD
VSS
A[0..23]
-CS[0..3]
D[0..7]
A[0..23]
V3.3
A[0..23]
-CS[0..3]
D[0..7]
C24
18pF
-CS[0..3]
GND
V3.3
V3.3
D[0..7]
C21
1nF
C22
1nF
C23
1nF
PLACE CAPS CLOSE
TO PINS
97,7,33,43
RTC_VDD
RTC_VDD
Figure 10. eZ80L92 Module Schematic Diagram, #2 of 9—100-Pin QFP eZ80L92 Device
PS017005-0903
PRELIMINARY
Schematic Diagrams
eZ80L925048MOD
eZ80L92 Module Product Specification
25
D[0..7]
D[0..7]
RN1
A[0..23]
A21/A22/A23
not used
here
A[0..23]
D0
D1
D2
D3
D4
D5
D6
D7
2
3
4
5
6
7
8
9
1
-CS1
-RD
-WR
-CS1
-RD
-WR
U1
A20
A16
A18
A0
1
2
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
A0
A1
N.C.
A18
A17
A16
A15
OE
I/O7
I/O6
VSS
VDD
I/O5
I/O4
A14
A13
A12
A11
A10
N.C.
4.7k
A1
A15
A14
A13
-RD
D7
3
A2
A2
A3
-CS1
D0
D1
4
A3
5
A4
6
7
8
9
10
11
12
13
14
15
16
17
18
CE
I/O0
I/O1
VDD
VSS
I/O2
I/O3
WE
A5
D6
D2
D3
-WR
A12
A9
A6
A4
D5
D4
A11
A8
A10
A7
A6
A7
A8
A5
A19
A17
A9
512kx8 SRAM
SOJ36.400
C7
100nF
V3.3
GND
U2D
VDD
VSS
9
8
74LVC04/SO
U2F
U2E
11
10
13
12
74LVC04/SO
74LVC04/SO
Figure 11. eZ80L92 Module Schematic Diagram, #3 of 9—36-Pin SRAM Device
PS017005-0903
PRELIMINARY
Schematic Diagrams
eZ80L925048MOD
eZ80L92 Module Product Specification
26
D[0..7]
A[0..23]
Intel-Type
U3
A0
DFLASH0
D0
D1
D2
D3
D4
D5
D6
D7
21
20
19
18
17
16
15
14
8
7
36
6
5
4
25
DQ0
26
=
=
=
=
=
=
=
=
A0
A1
DFLASH1
DFLASH2
DFLASH3
DFLASH4
DFLASH5
DFLASH6
DFLASH7
A1
DQ1
27
A2
A3
A4
A2
A3
DQ2
28
DQ3
32
A4
DQ4
33
A5
A5
DQ5
34
A6
A6
DQ6
35
VDD
R1
A7
A7
A8
A9
DQ7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
-CSFLASH
-RD
-WR
-RESFLASH
-WP
22
CE
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
10K
U2A
24
OE
9
WE
10
12
RP
-FLASHWE
3
2
1
WP
2
0R
R2
VPP
1
11
VPP
40
13
37
A21
A20
74LVC04/SO
29
N.C.
A20/A21 used for
16/32Mbit-Flash
38
N.C.
Pin37=N.C.
for 4Mbit-
Flashes
MT28F008B3VG
TSOP40.20MM
C8
100nF
D[0..7]
D[0..7]
V3.3
GND
A[0..23]
A22/A23
not used here
A[0..23]
VDD
VSS
-CSFLASH
-RD
-WR
-CSFLASH
-RD
-WR
-RESFLASH
-RESFLASH
-FLASHWE
-FLASHWE
Note: Must be pulled 'low'
externally for programming.
Figure 12. eZ80L92 Module Schematic Diagram, #4 of 9—NOR Flash Device
PS017005-0903
PRELIMINARY
Schematic Diagrams
eZ80L925048MOD
eZ80L92 Module Product Specification
27
V3.3
GND
VDD
VSS
R19
10k
90 degree,
stacked
dual-LED
R20
220
R21
220
0603
green
-LANLED
0603
LD1B
3
4
2
-LANLED
-LINKLED
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
SD9
SD8
LANLED
LINKLED/HC0
XTAL2
XTAL1
AVSS
LD1A
-LINKLED
1
R22
4k7
MEMW
MEMR
INTRQ2
INTRQ1
INTRQ0
IOCS16
MEMCS16
INTRQ3
SHBE
SA0
SA1
SA2
SA3
SA4
Y1
20.000 MHz
HC49SM
yellow
AVDD
AVSS
RES
RXD-
RXD+
AVDD
AVSS
TXD-
TXD+
AVSS
AVDD
DO-
DO+
CI-
CI+
DI-
ETHIRQ
R23
4k99/1%
U7
RXD-
RXD+
ESD protection array
U9
CS8900A-CQ3
TQFP100
SA0
SA1
SA2
SA3
TXD-
TXD+
RD+
RD-
TD+
TD-
1
2
3
4
8
7
6
5
SA5
SA[0..3]
SA6
SA7
SA8
SA9
SA10
SA11
REFRESH
SA12
DI+
LCDA15C-6
SO8.150
BSTATUS/HC1
SLEEP
TEST
-SLEEP
int. Pull-Up
-DIS_ETH
GND
GND
J1
8R2
C12
TXD-
TD-
TD+
R24
560pF
TXD+
1
1
2
2
3
3
4
4
5
5
6
6
device addresses:
00300h bis 0030Fh
8R2
R25
RXD-
RD-
CTD
C13
100nF
-ETHRD
CRD
-ETHRD
-ETHRD
-ETHWR
R26
100
-ETHWR
-ETHWR
IOCHRDY
8
8
SD[0..7]
RXD+
RD+
HFJ11-1041
TX+ H<A-LO>FA1STJACK
C14
100nF
C15
R34
10k
0603
100nF
JP4
through hole
solder pad
HEADER 1
SIP1
TX- <-> 2
RX+ <-> 3
RX- <-> 6
SD[0..7]
SA[0..3]
ETHIRQ
-SLEEP
V3.3
SD[0..7]
SA[0..3]
ETHIRQ
place
near
J1
don't
stuff
VDD
VSS
L2
CASE
ferrite
tbd
don't stuff
GND
-SLEEP
-ACTIVE -LANLED
=
-ACTIVE
Figure 13. eZ80L92 Module Schematic Diagram, #5 of 9—E-NET Module
PS017005-0903
PRELIMINARY
Schematic Diagrams
eZ80L925048MOD
eZ80L92 Module Product Specification
28
V3.3
C9
100nF
0603
R3
2k2
0603
U4
-RESET
2
-RESET
RESET
open-drain
C10
10nF
0603
MAX6328UR29
SOT-23-L3
alternative:
Maxim
MAX6802UR29D3
IR-transceiver
V3.3
R5
68R
C11
330nF
U5
R6
2R7, 0.25W
1206
(MMA 020 4)
IRDA_TXD
IRDA_RXD
5
1
2
4
3
6
IRDA_TXD
IRDA_RXD
VCC
LEDA
TXD
SD
IRDA_TXD
IRDA_SD
IRDA_SD
V3.3
IRDA_SD
IRDA_RXD
RXD
GND
VDD
VSS
ZHX1810
GND
Figure 14. eZ80L92 Module Schematic Diagram, #6 of 9—IrDA Reset
PS017005-0903
PRELIMINARY
Schematic Diagrams
eZ80L925048MOD
eZ80L92 Module Product Specification
29
A[0..23]
D[0..7]
A[0..23]
D[0..7]
connector 1
connector 2
JP1
JP2
A6
A0
A3
V3.3_EXT
A7
A9
A14
A16
GND_EXT
A1
A12
A20
A17
-DIS_FL
V3.3_EXT
A23
-CS1
D0
PB7
PB5
PB6
PB4
PB2
PB0
PC7
PC5
PC3
PC1
PD7
GND_EXT
PD4
PD2
PD0
1
3
5
7
2
4
6
1
3
2
4
A10
GND_EXT
PB3
PB1
GND_EXT
5
7
9
6
8
A8
A13
A15
A18
A19
A2
A11
A4
-CS[0..3]
R7
4k7
R8
-CS[0..3]
8
4k7
9
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
PC6
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
PC4
PC2
PC0
PD6
PD5
PD3
PD1
TDO
IICSDA
IICSCL
IICSDA
IICSCL
IICSDA
IICSCL
R9
A5
CLK_OUT
-DIS_FL
EZ80CLK
CLK_OUT
-DIS_FL
DIS_ETH
33place near eZ80
output (PHI)
A21
A22
-CS0
-CS2
D1
D3
D5
D7
-MREQ
TDI
TRIGOUT
TMS
GND_EXT
TCK
-DIS_IRDA
-FLASHWE
RTC_VDD
RTC_VDD
IICSCL
IICSDA
-FLASHWE
-CS3
-RESET
V3.3_EXT
-HALT_SLP
V3.3_EXT
EZ80CLK
-DIS_IRDA
-FLASHWE
RTC_VDD
-DIS_ETH
PB[0..7]
D2
D4
GND_EXT
D6
-IOREQ
-RD
GND_EXT
-DIS_IRDA
-WAIT
GND_EXT
-NMI
GND_EXT
-WR
-INSTRD
-BUSREQ
PB[0..7]
PC[0..7]
PD[0..7]
-BUSACK
R36
10K
HEADER 25X2
IDC50
HEADER 25X2
IDC50
PC[0..7]
PD[0..7]
-RESET
-RESET
-RD
-WR
-RD
-WR
-IOREQ
-MREQ
-INSTRD
R10
R33
-IOREQ
-MREQ
-INSTRD
2k2
0603
2k2
0603
-WAIT
-HALT_SLP
-WAIT
-WAIT
-HALT_SLP
R11
10k
R12
10k
-BUSREQ
-BUSACK
-BUSREQ
-BUSREQ
-BUSACK
-NMI
JTAG1
(JTAG0 =) TDO
=
TDI
-NMI
JTAG2
JTAG3
JTAG4
=
=
=
TRIGOUT
TCK
TMS
JTAG[1..4]
TDO
JTAG[1..4]
TDO
V3.3
V3.3_EXT
GND_EXT
V3.3_EXT
GND_EXT
R13
4k7
GND
Figure 15. eZ80L92 Module Schematic Diagram, #7 of 9—Headers
PS017005-0903
PRELIMINARY
Schematic Diagrams
eZ80L925048MOD
eZ80L92 Module Product Specification
30
V3.3
common power plane
V3.3
GND
V3.3
V3.3
GND
C1
47uF
TAJC
C2
47uF
TAJC
C3
C4
C5
C6
100nF
1nF
100nF
1nF
GND
GND
common ground plane
no power supply on board!
Input: VDD(=V3.3) = 3.3V 5ꢀ
Power: Pmax = 1.6W
Ptyp = 0.4W
Current: Imax = 200mA (IrDA not in use)
Imax = 460mA (IrDA in use)
Ityp = 100mA
PCB1
E-NET Module Rev.B
98Cxxxx-xxx
Figure 16. eZ80L92 Module Schematic Diagram, #8 of 9—Power Supply
PS017005-0903
PRELIMINARY
Schematic Diagrams
eZ80L925048MOD
eZ80L92 Module Product Specification
31
=
D[0..7]
D[0..7]
SD[0..7]
SA[0..3]
SD[0..7]
SD[0..7]
D[0..7]
A[0..23]
A[0..23]
SA[0..3]
SA[0..3]
only A0,A1,A2,A3
are used here
A[0..23]
=
=
=
=
A0
A1
A2
A3
SA0
SA1
SA2
SA3
-ETHRD
-ETHRD
PD[0..7]
-ETHWR
-ETHWR
PD3 and PD5
not used here
PD[0..7]
VDD
=
PD4
ETHIRQ
ETHIRQ
-RESET
-WAIT
-RESET
-WAIT
R14
R15
0R
0R
PD7
PD6
-SLEEP
U6D
-SLEEP
-RD
12
13
-ETHRD
-ACTIVE
11
-ACTIVE
-DIS_FL
-DIS_IRDA
-DIS_FL
-DIS_IRDA
don’t stuff
74LCX32
TSSOP14
=
-RD
-CS3
-WR
-CSETH
-RD
R35
0
-WAIT
-WR
-WR
IOCHRDY
U6A
1
2
-ETHWR
3
-CS[0..3]
-CS1 and-CS2
not used
here
-CS[0..3]
74LCX32
TSSOP14
=
=
PD0
PD1
IRDA_TXD
IRDA_RXD
IRDA_TXD
IRDA_RXD
VDD
IRDA_SD
IRDA_SD
R30
10k
0603
U2B
U6B
DIS_FL
-DIS_FL
3
4
4
5
-CSFLASH
6
=
-CS0
-RESET
-RESFLASH
-CSFLASH
-RESFLASH
-CSFLASH
74LVC04/SO
U2C
74LCX32
TSSOP14
R17
10k
0603
U6C
DIS_IRDA
PD2 IR_SD
-DIS_IRDA
5
6
9
IRDA_SD
8
=
10
74LVC04/SO
74LCX32
TSSOP14
V3.3
VDD
VSS
GND
Figure 17. eZ80L92 Module Schematic Diagram, #9 of 9—Control Logic
PS017005-0903
PRELIMINARY
Schematic Diagrams
eZ80L925048MOD
eZ80L92 Module Product Specification
32
Customer Feedback Form
The eZ80L92 Module Product Specification
If you experience any problems while operating this product, or if you note any inaccuracies
while reading this Product Specification, please copy and complete this form, then mail or fax it to
ZiLOG (see Return Information, below). We also welcome your suggestions!
Customer Information
Name
Country
Phone
Fax
Company
Address
City/State/Zip
Email
Product Information
Serial # or Board Fab #/Rev. #
Software Version
Document Number
Host Computer Description/Type
Return Information
ZiLOG
System Test/Customer Support
532 Race Street
San Jose, CA 95126
Phone: (408) 558-8500
Fax: (408) 558-8536
ZiLOG Customer Support
Problem Description or Suggestion
Provide a complete description of the problem or your suggestion. If you are reporting a specific
problem, include all steps leading up to the occurrence of the problem. Attach additional pages
as necessary.
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
PS017005-0903
P R E L I M I N A R Y
Customer Feedback Form
厂商 型号 描述 页数 下载

ZILOG

 		EZ80190 eZ80190模块是一个紧凑的，高性能的以太网模块[ eZ80190 Module is a compact, high-performance Ethernet module ] 36 页

ZILOG

 		EZ801905050MOD eZ80190模块是一个紧凑的，高性能的以太网模块[ eZ80190 Module is a compact, high-performance Ethernet module ] 36 页

IXYS

 		EZ80190AZ050EC [ Microcontroller, 8-Bit, Z80 CPU, 50MHz, CMOS, PQFP100, LQFP-100 ] 219 页

IXYS

 		EZ80190AZ050EG [ Microcontroller, 8-Bit, 50MHz, CMOS, PQFP100, LQFP-100 ] 219 页

IXYS

 		EZ80190AZ050SC [ Microcontroller, 8-Bit, Z80 CPU, 50MHz, CMOS, PQFP100, LQFP-100 ] 219 页

ZILOG

 		EZ80F91 eZ80Acclaim -TM闪存微控制器[ eZ80Acclaim-TM Flash Microcontrollers ] 396 页

ZILOG

 		EZ80F910200ZCO eZ80Acclaim -TM闪存微控制器[ eZ80Acclaim-TM Flash Microcontrollers ] 396 页

IXYS

 		EZ80F9105005MODG [ Microcontroller, CMOS ] 384 页

IXYS

 		EZ80F9105050MODG [ IC MICROCONTROLLER, Microcontroller ] 384 页

ZILOG

 		EZ80F915005MOD eZ80F91迷你Enet模块[ eZ80F91 Mini Enet Module ] 25 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.188106s
